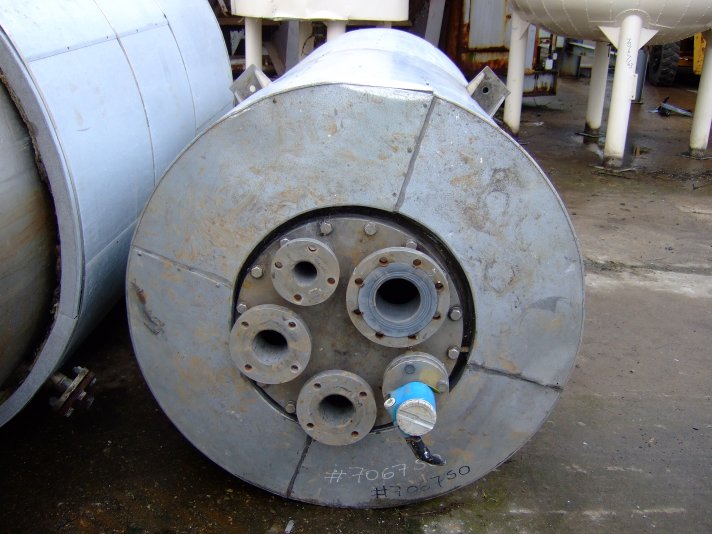

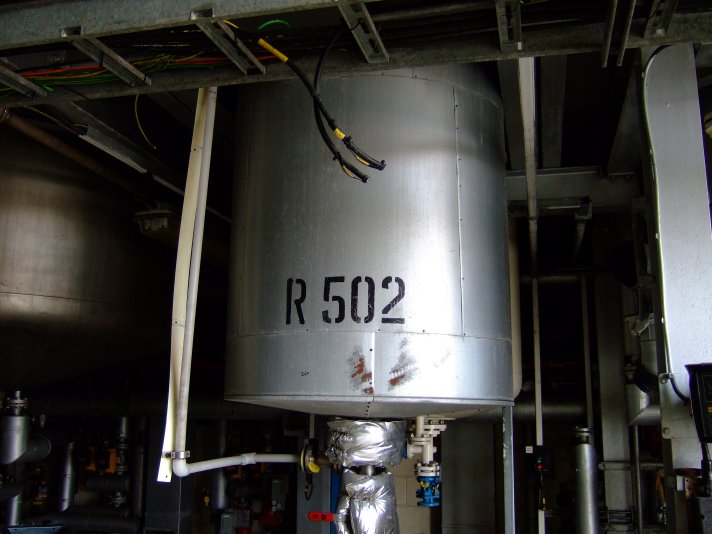

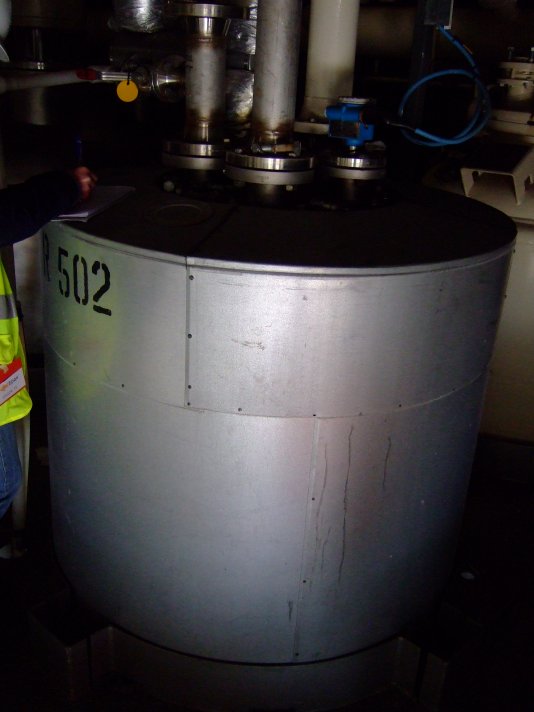

Stainless Steel 316L JENS OLSEN Tank - IPP# 706750

Type: Tank

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 4,050 L (1,050 gallons)

Orientation: Vertical

• 316 stainless steel tank with 2 jackets.
• Tank straight side & bottom dish with jacket

Diameter: 1,400 mm (55.1 in). Straight-side Length: 1,900 mm (74.8 in). Internal Pressure: 1.8 bar (26.1 psi). Internal Temperature: 179 °C (354.2 °F). Does it have Agitation ?: Yes. Jacket Type: Half Pipe/Limpet. Jacket Pressure: 10 bar (145 psi). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 2,600 L (689 gallons)

Orientation: Vertical

• 2610 liter vessel, 28 liter jacket.
• With coiled jacket on tank straight side.

Diameter: 1,200 mm (46.9 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 1.8 bar (26.1 psi). Internal Temperature: 170 °C (338 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 304. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 170 °C (338 °F). Support: Legs.

Type: Tank

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 317

Capacity (Design): 2,400 L (634 gallons)

Orientation: Vertical

• With carbon steel half-pipe coil jacket on vessel straight side.

Diameter: 1,400 mm (55.1 in). Straight-side Length: 1,400 mm (55.1 in). Internal Pressure: 1.5 bar (21.8 psi). Does it have Agitation ?: Yes. Jacket Type: Half Pipe/Limpet. Jacket Material: Carbon Steel. Jacket Pressure: 2 bar (29 psi). Baffle Type: Flat Vertical. Support: Lugs.

Type: Tank

Manufacturer: Process Systems ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 570 L (150.6 gallons)

Orientation: Horizontal

• pressure tank
• working pressure 3.4 barg + FV

Diameter: 600 mm (23.6 in). Straight-side Length: 1,850 mm (72.2 in). Internal Pressure: 5.2 bar (75.4 psi). Internal Temperature: 150 °C (302 °F). Vacuum: Yes.
