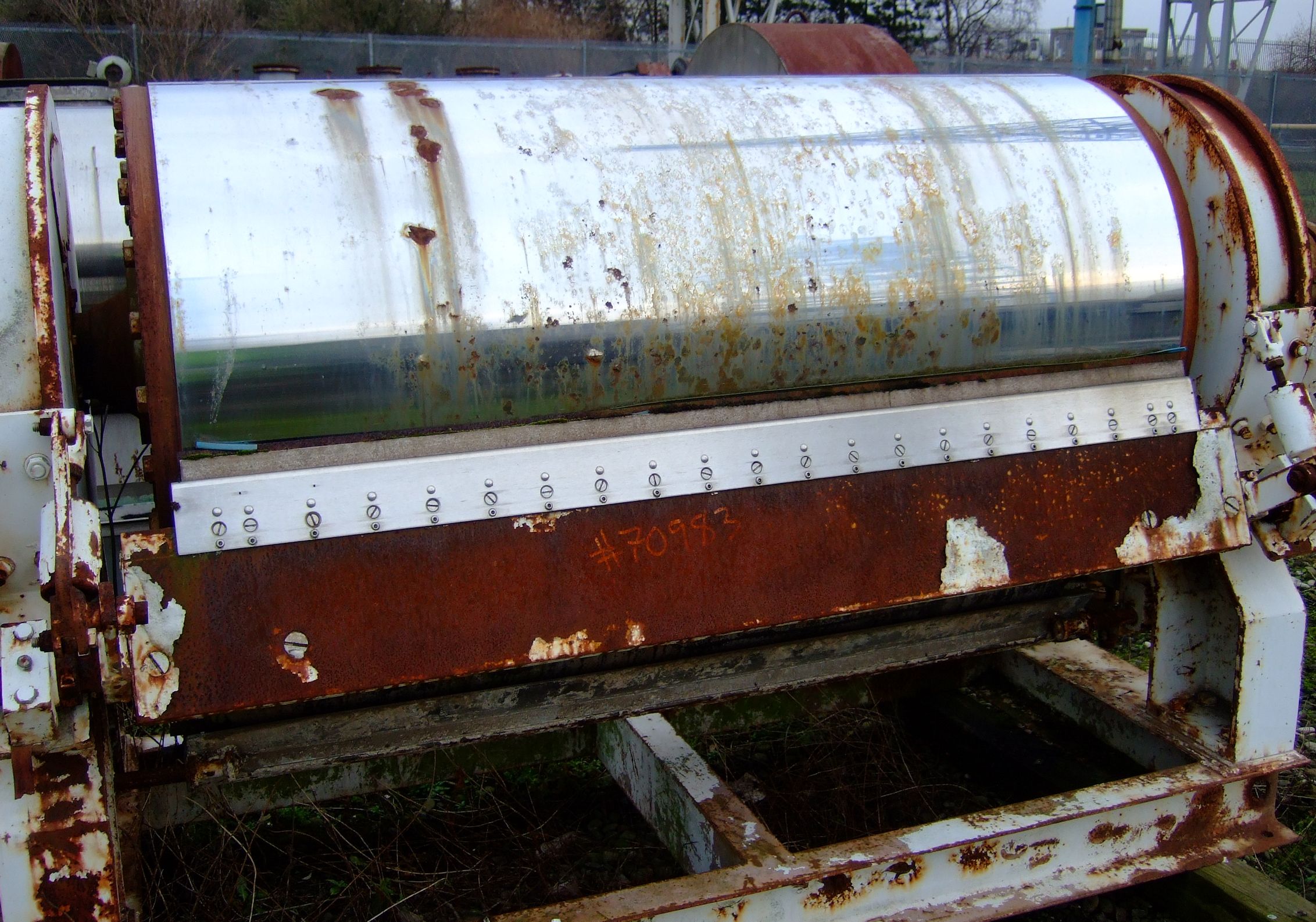

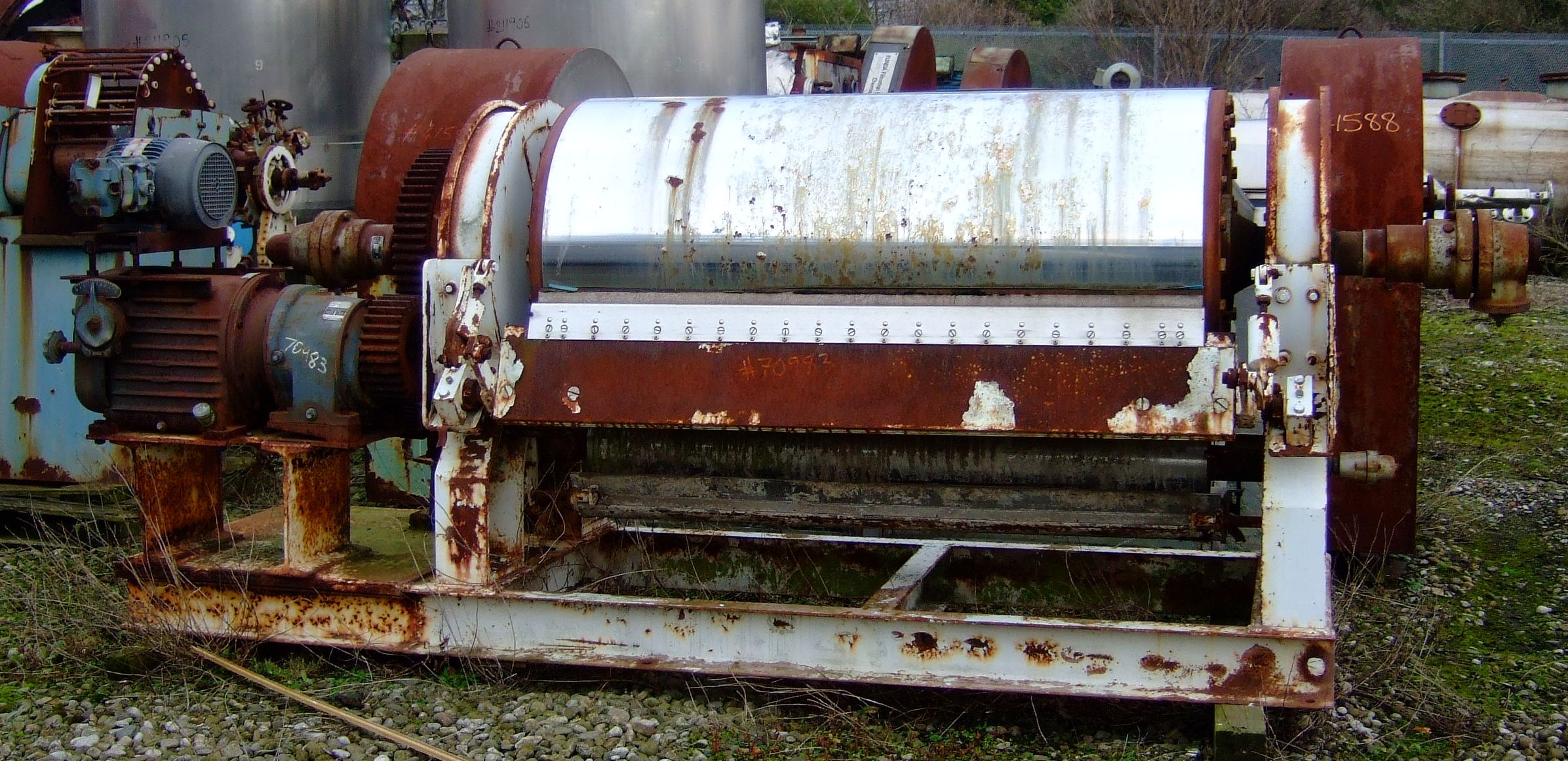

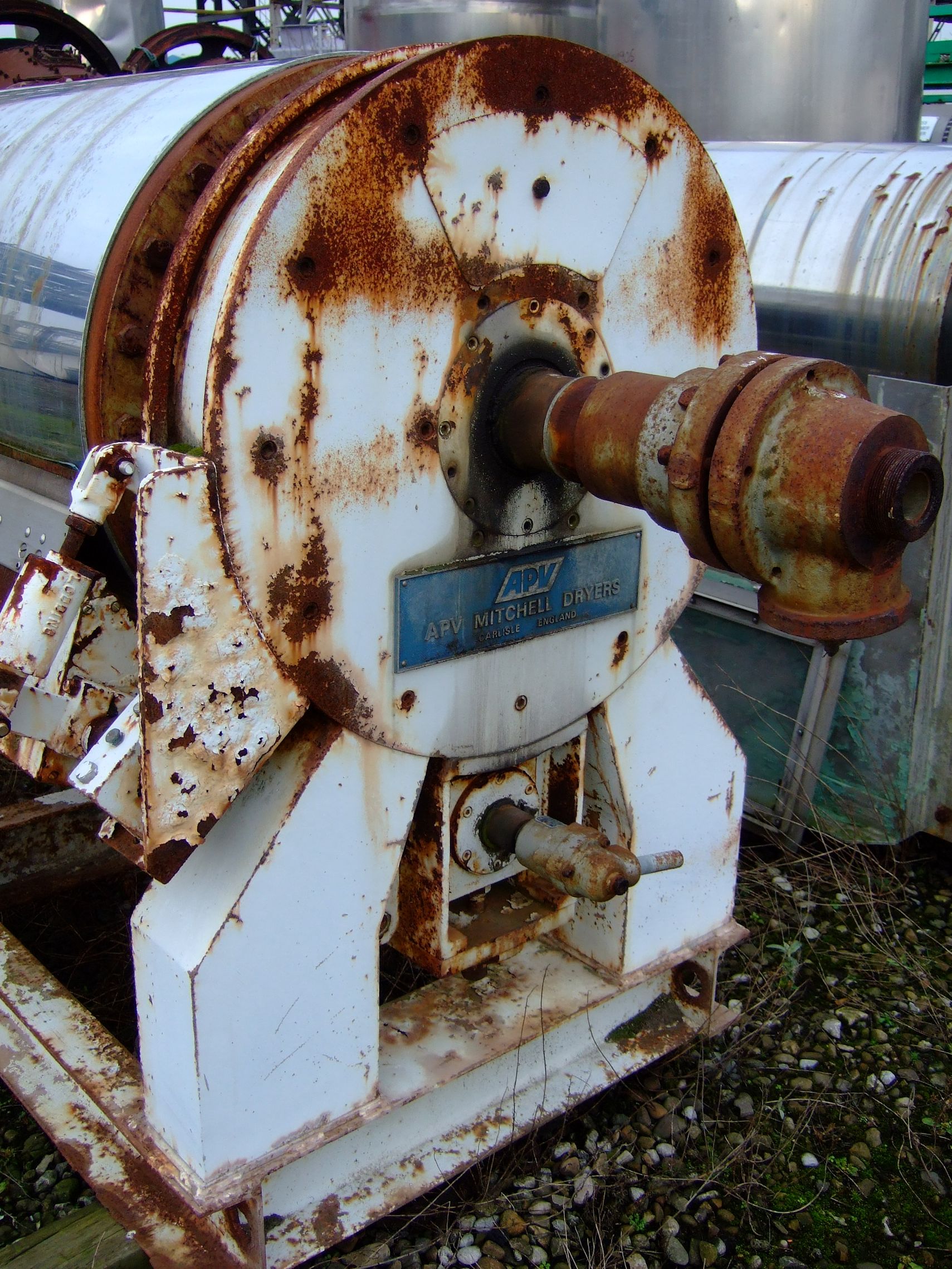

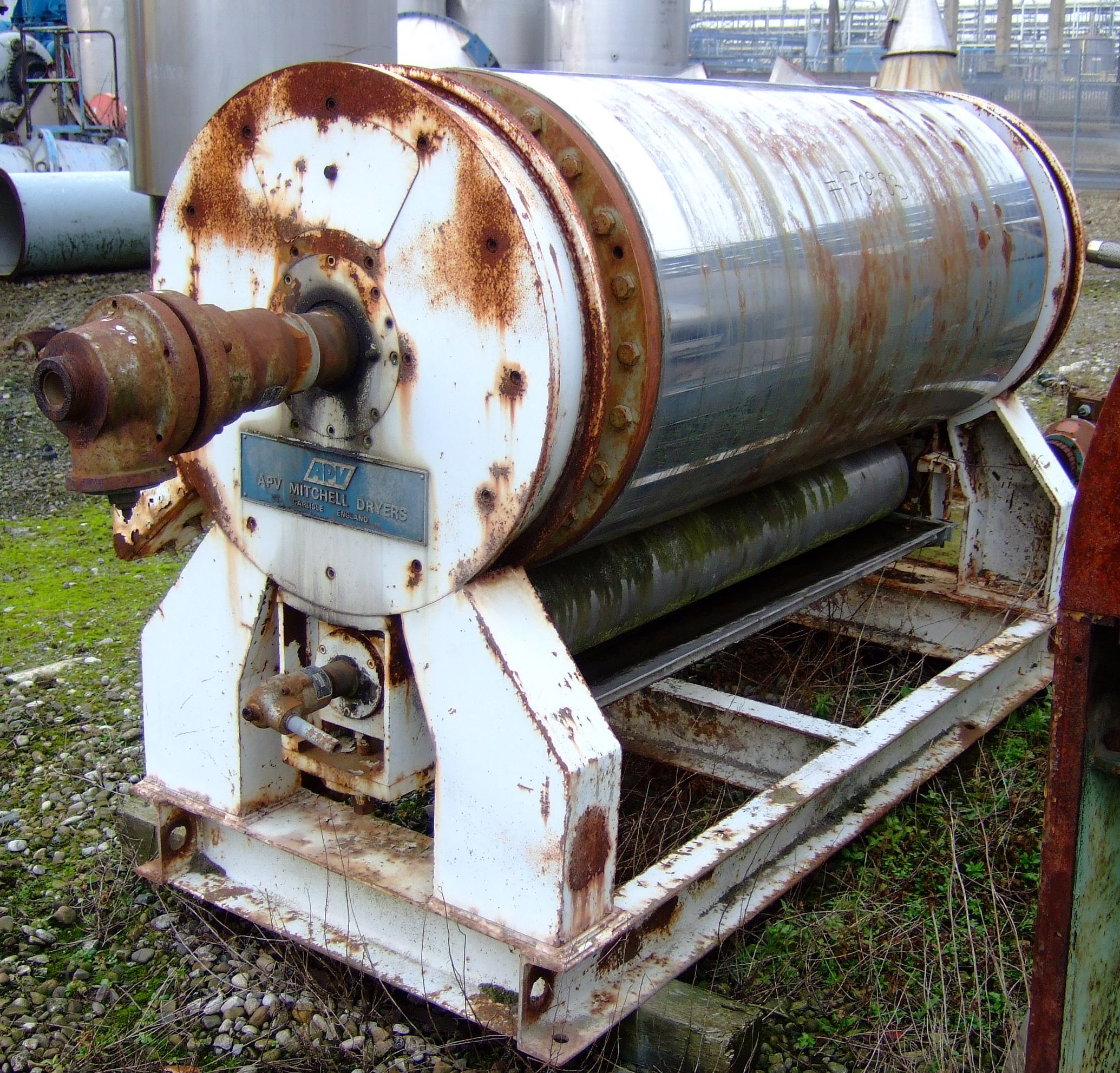

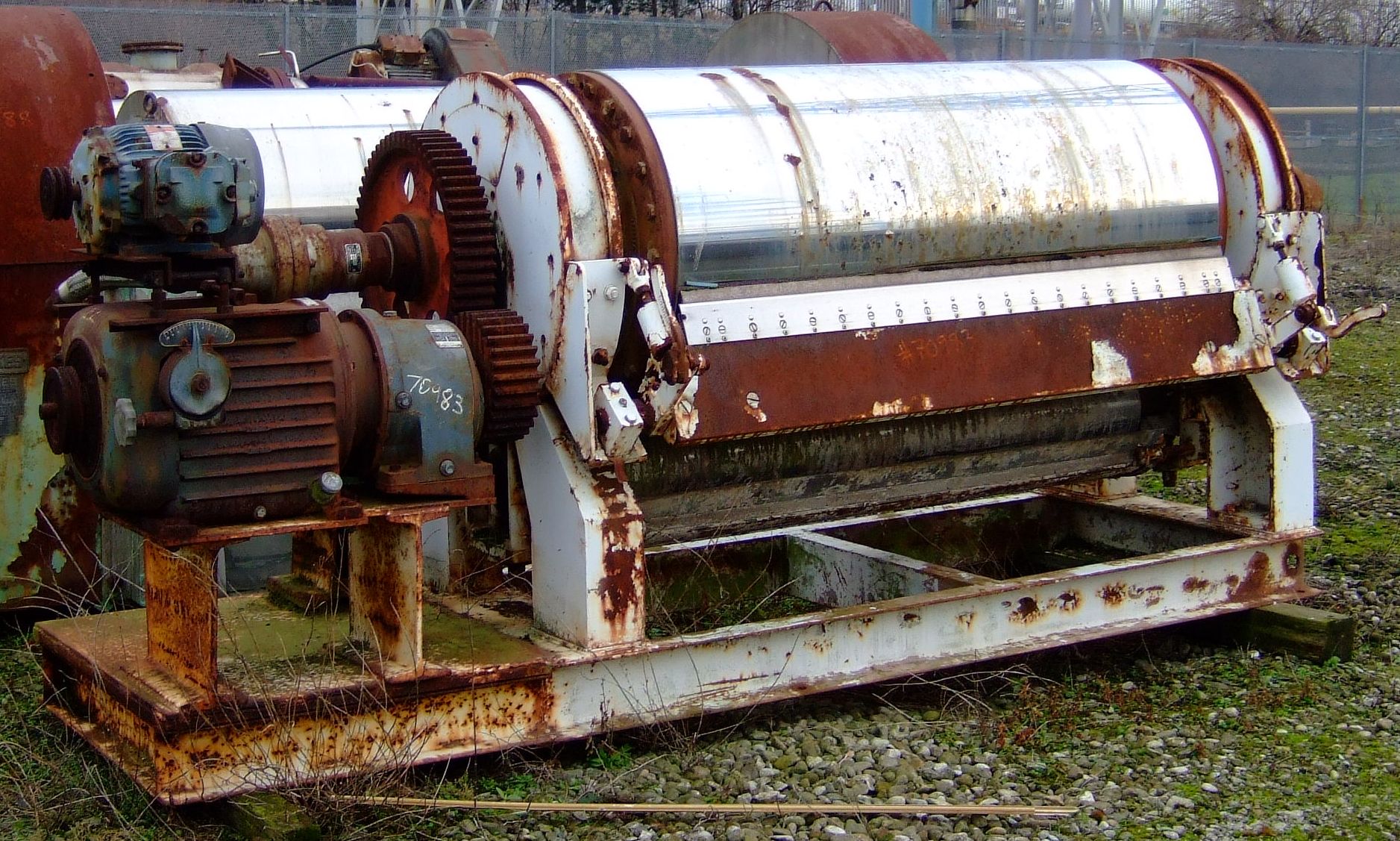

chrome plated single drum flaker Drum pressure 0.42 bar DC thyristor controlled varispeed drive. Roll speed 10-100 rpm. Heating low pressure steam system of 0.1 bar. Doctor manual adjustable knife made of carbon steel. Drum gear driven by 4 KW, 3/50/380 volt 1440 rpm flameproof motor Drum speed 2-18 rpm. Drum and applicator roll cored for steam/cooling
Type: Dryer-Flaker Drum and Belt
Manufacturer: APV Mitchell
Condition: Used
Material: Stainless Steel 316
Flaker Width: 600 mm (23.6 in)
Area of Flaker: 2.8 m² (30.4 ft²)

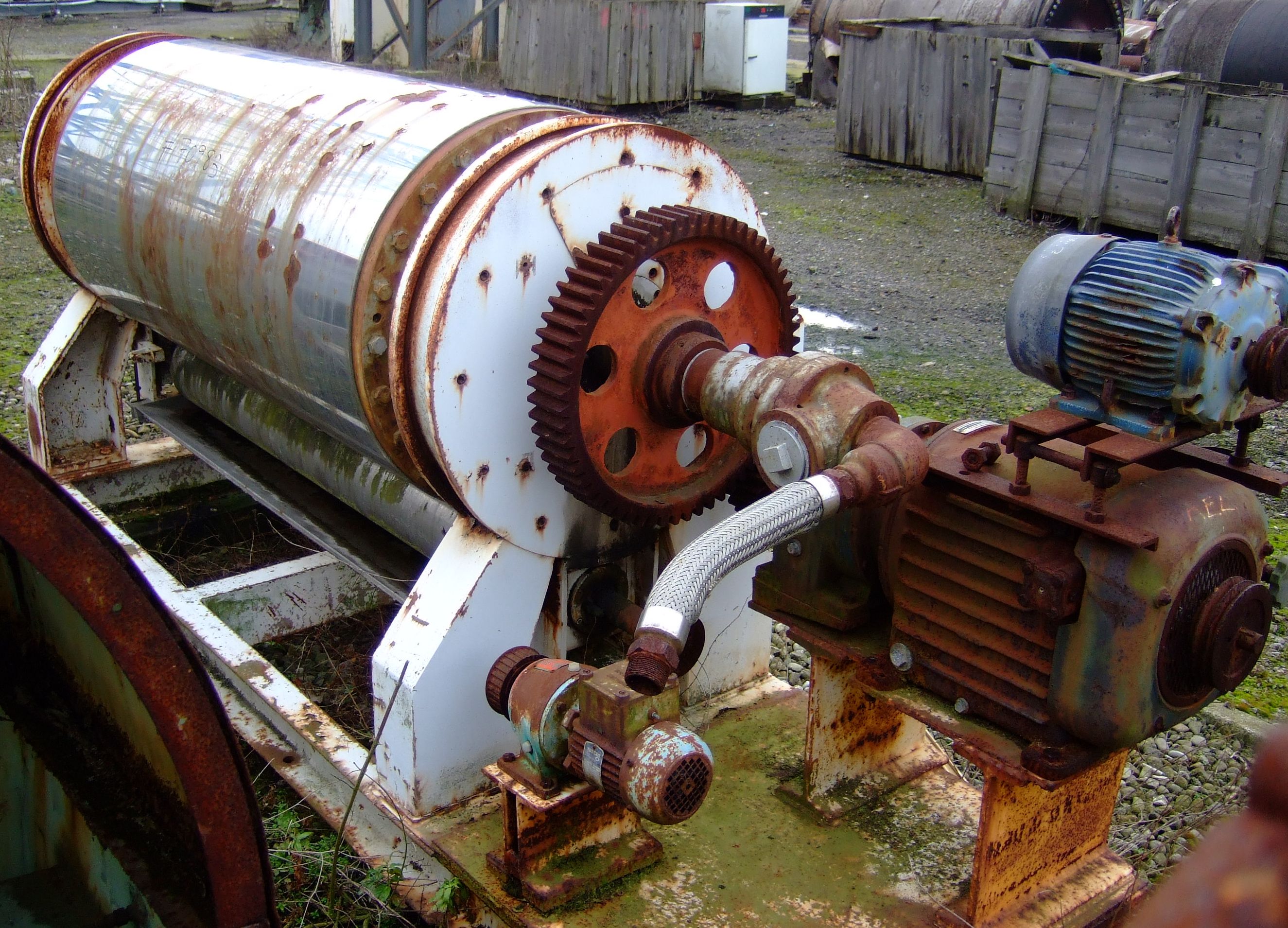

drum flaker/dryer Single drum design Drum and applicator roll cored for steam heating Drum driven by Carter gearbox, Size MF14/100340 2.71 KW @ 960 rpm belt driven by 3 KW, 3/50/415 volt, 700 rpm flameproof motor Applicator roll driven by Croft varispeed drive 316 stainless steel knife discharge with pneumatic adjustment 316 stainless steel drip tray with 316 stainless steel fume hood Openings: hood (2) 52" x 14" plastic inspection doors, 1-8"; tray 3-1".
Orientation: Horizontal. Scraper: Yes. Scraper Details: 316 stainless steel knife discharge with pneumatic adjustment.
