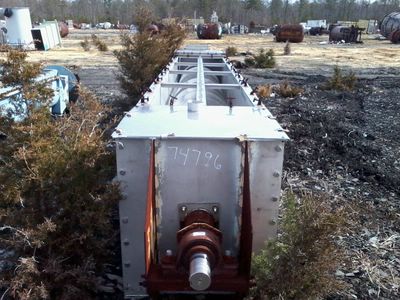

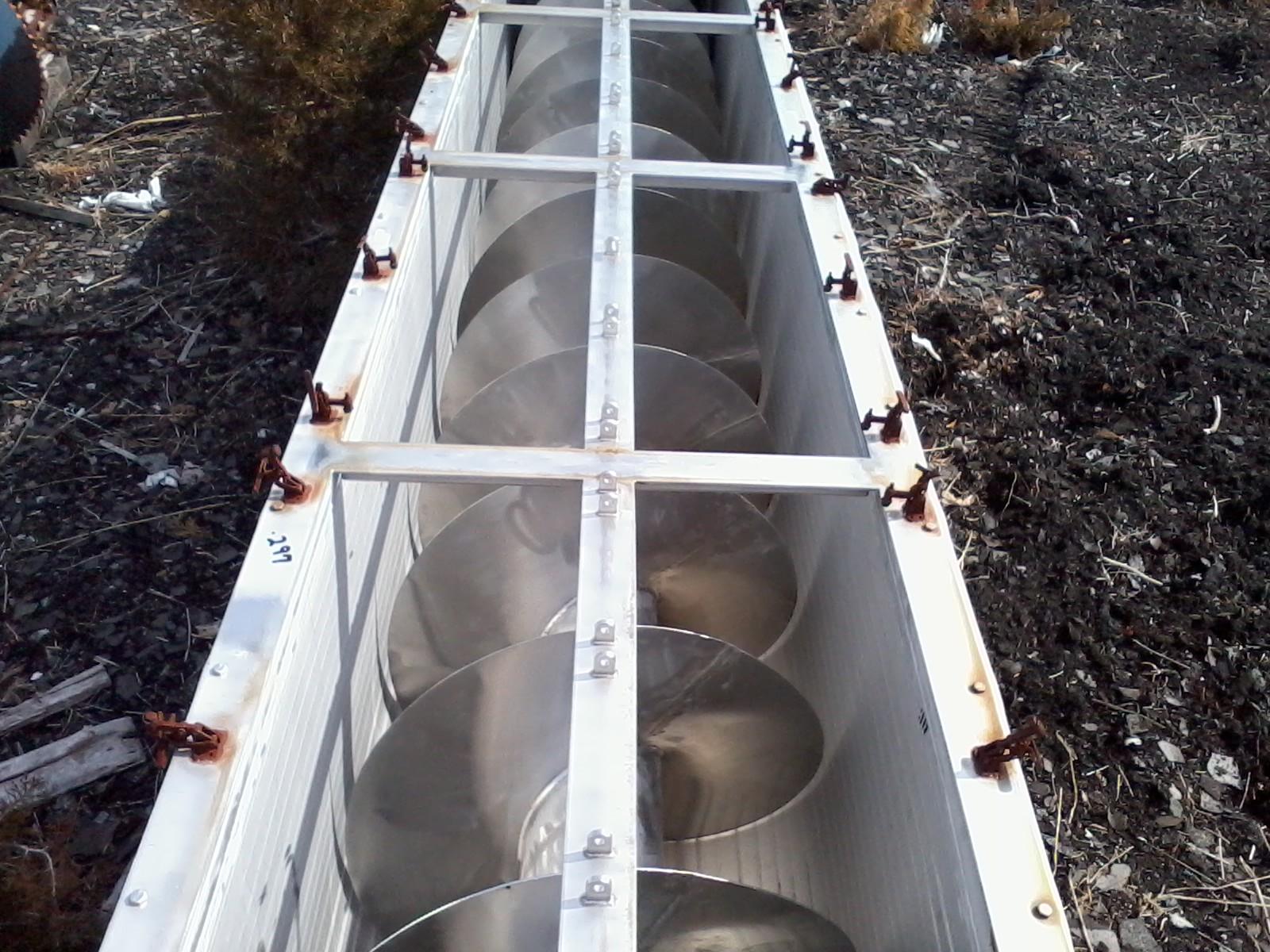

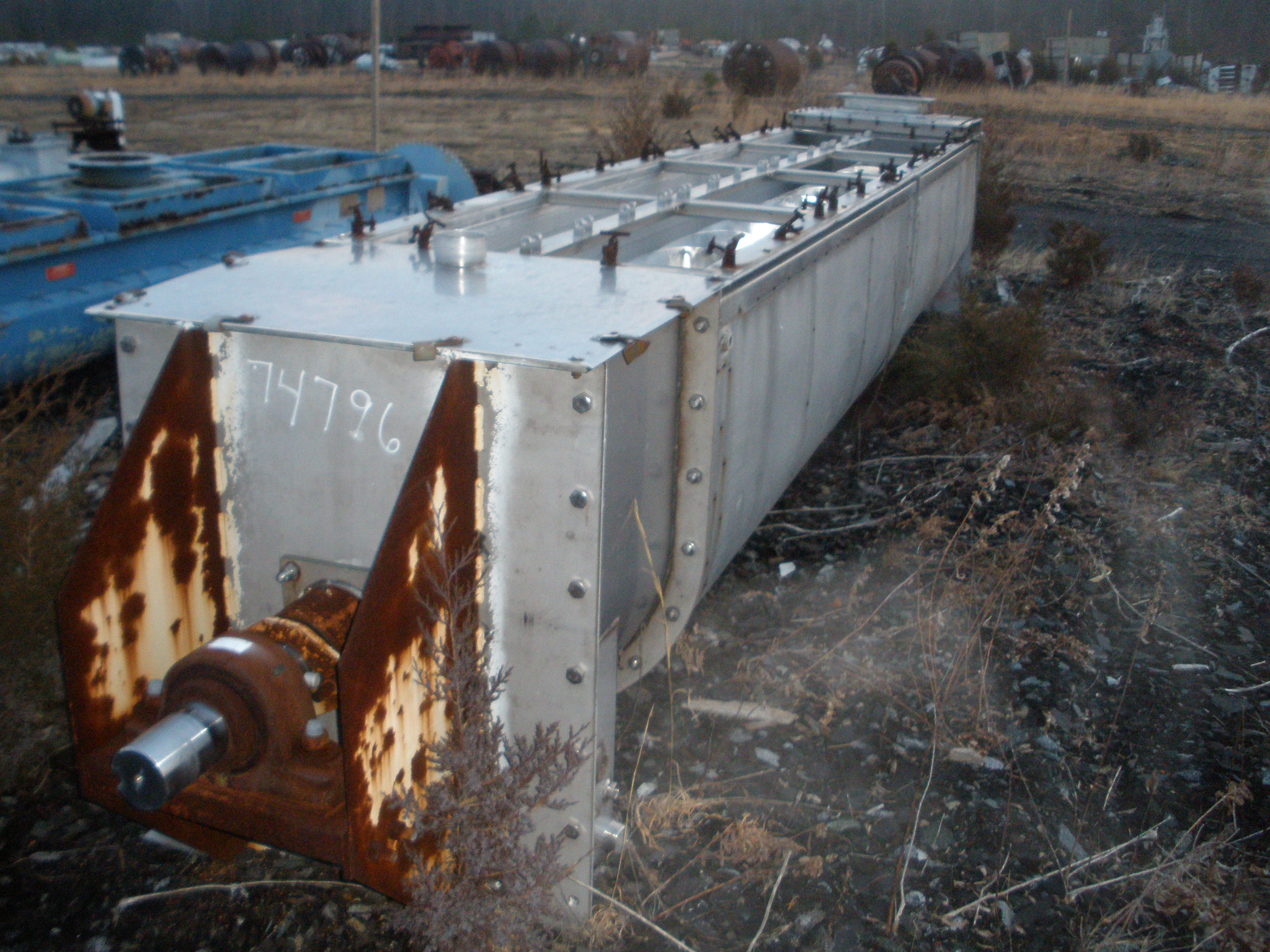

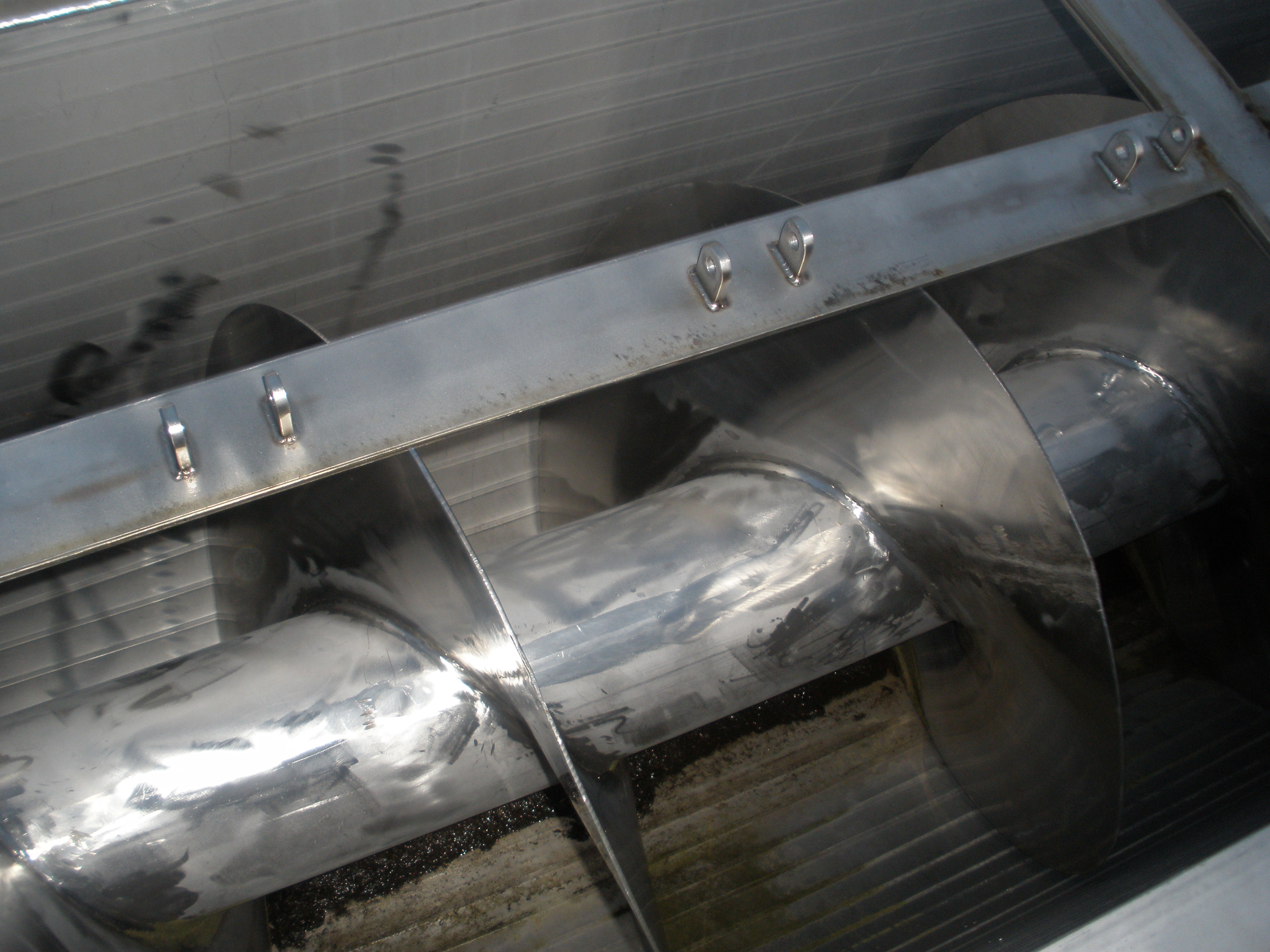

screw conveyor.
12" x 16" charge port, 12" x 16" rectangular discharge port.
13" pitch on screw.
Packing gland on 304SS shaft and 304SS screw.
No drive and no covers (lids).
Type: Conveyor
Subtype: Screw
Manufacturer: Nord Gear Corp
Condition: Used
Material: Stainless Steel 304
Diameter--Width: 533.4 mm (21 in)
Length: 482.6 mm (19 in)

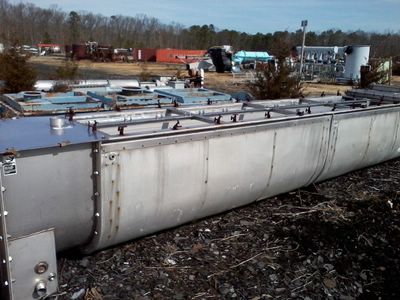

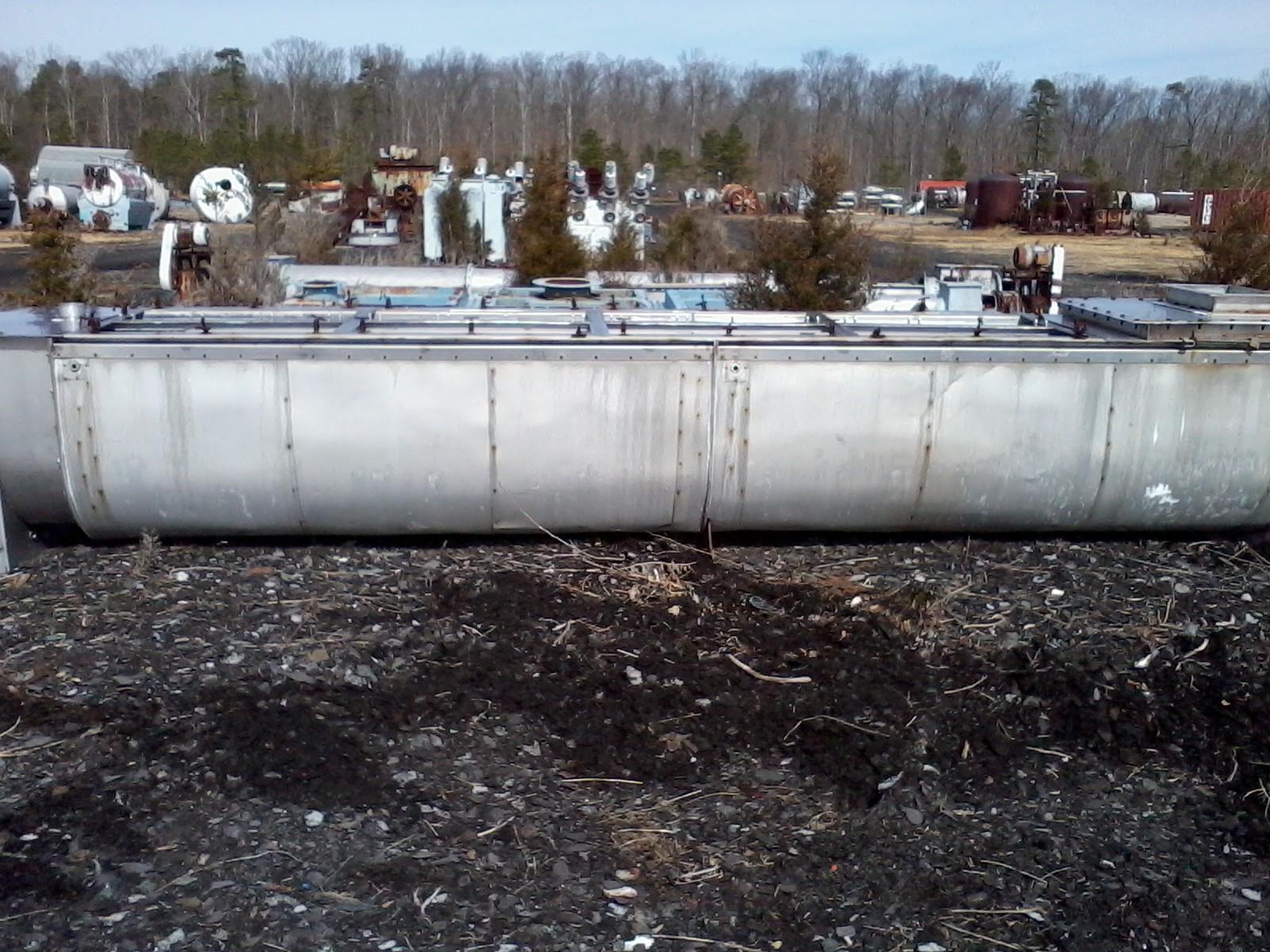

Inclined cooling screw conveyor
Orientation: Inclined.
Type: Conveyor
Subtype: Screw
Condition: Used
Material: Stainless Steel 304
Length: 338.6 mm (13.3 in)
Orientation: Horizontal
screw pitch 9". Trough inside 13'4" x 10" Has packing glands. W/outboard bearings. Openings: top 10" x 10"; discharge btm 1-8".
Power Transmission: Belt. Inlet Size: 254 mm (10 in). Outlet Discharge Size: 203.2 mm (8 in). Screw Diameter: 228.6 mm (9 in). Screw Type: Single screw.
Type: Conveyor
Subtype: Screw
Manufacturer: Martin Sprocket
Model: 4
Condition: Used
Material: Stainless Steel 304
Diameter--Width: 228.6 mm (9 in)
Length: 338.6 mm (13.3 in)
super screw Conveyor Type #2 3/16" wall 3.5" diameter shaft Capacity is 18 M Dry Size is 9" x 2" x 13' 4"
Orientation: Vertical. Power Transmission: Belt. Powered By: Electric. Screw Type: Single screw.
Type: Conveyor
Subtype: Screw
Manufacturer: Continental
Condition: Used
Material: Stainless Steel 304
Diameter--Width: 254 mm (10 in)
Length: 5,486 mm (216 in)
Angle Mount 16 degree.
Orientation: Horizontal. Power Transmission: Belt. Inlet Size: 254 mm (10 in). Outlet Discharge Size: 203.2 mm (8 in). Powered By: Electric. Screw Diameter: 228.6 mm (9 in). Screw Type: Single screw. Conveyor Rate: 1300 lbs./Hr..
