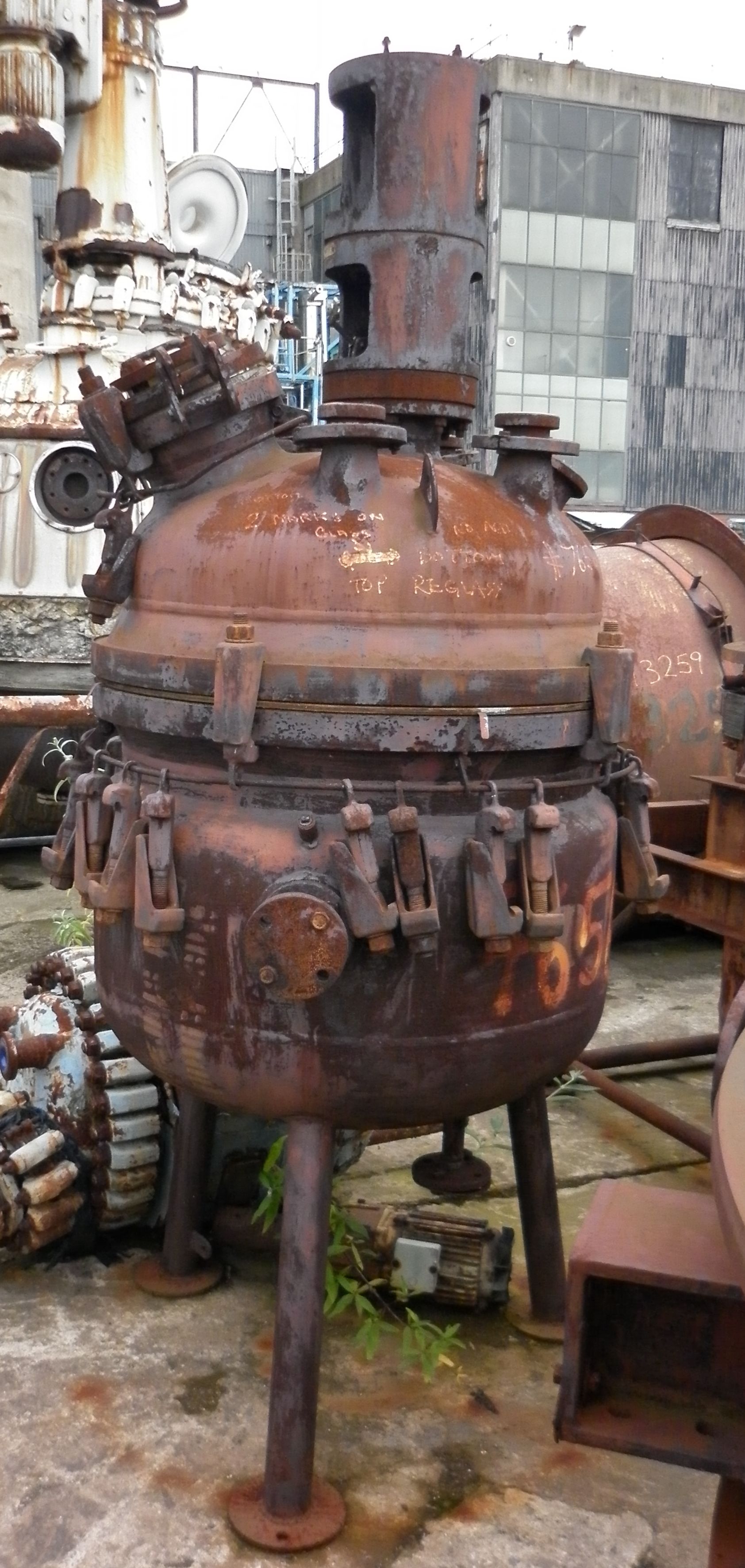

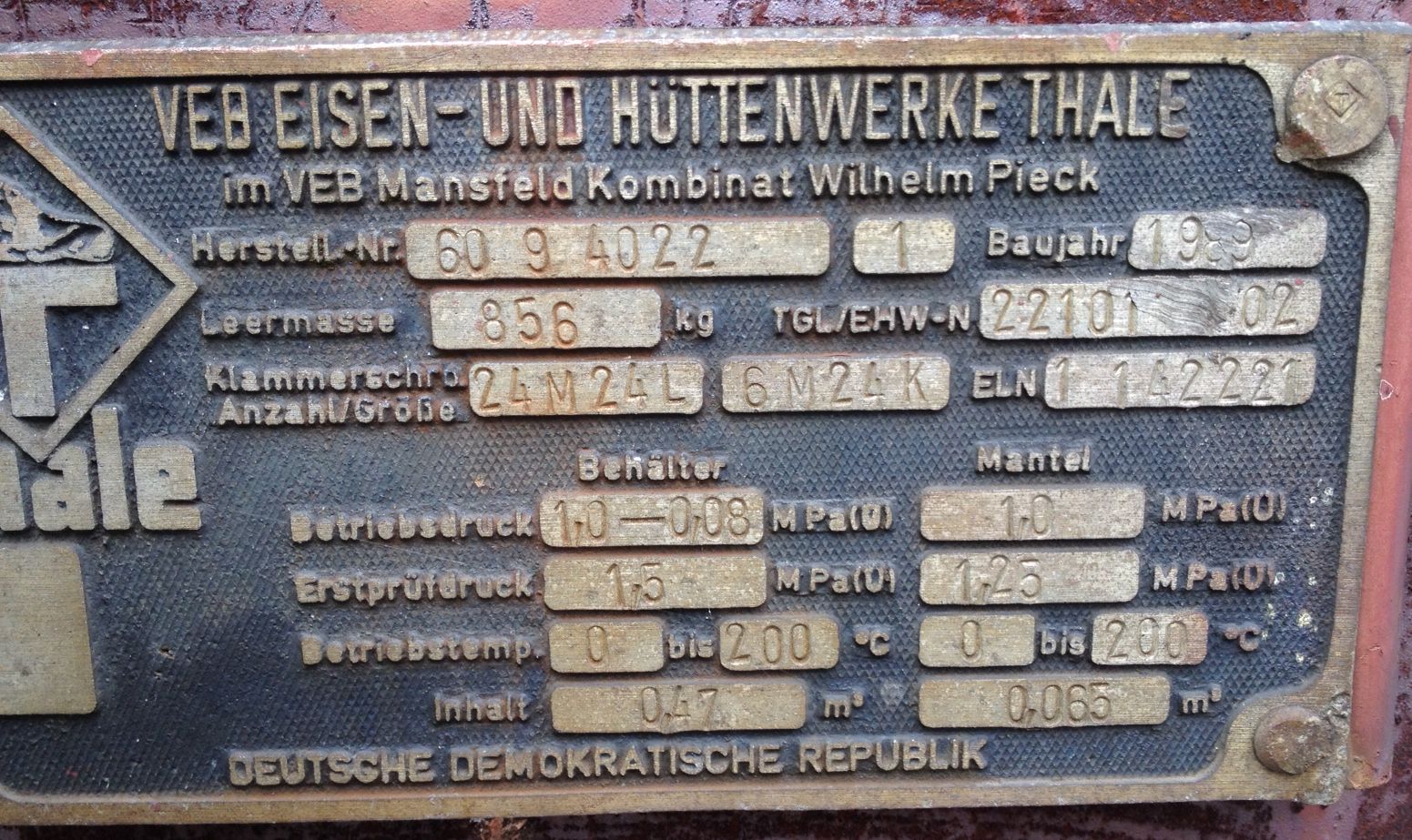

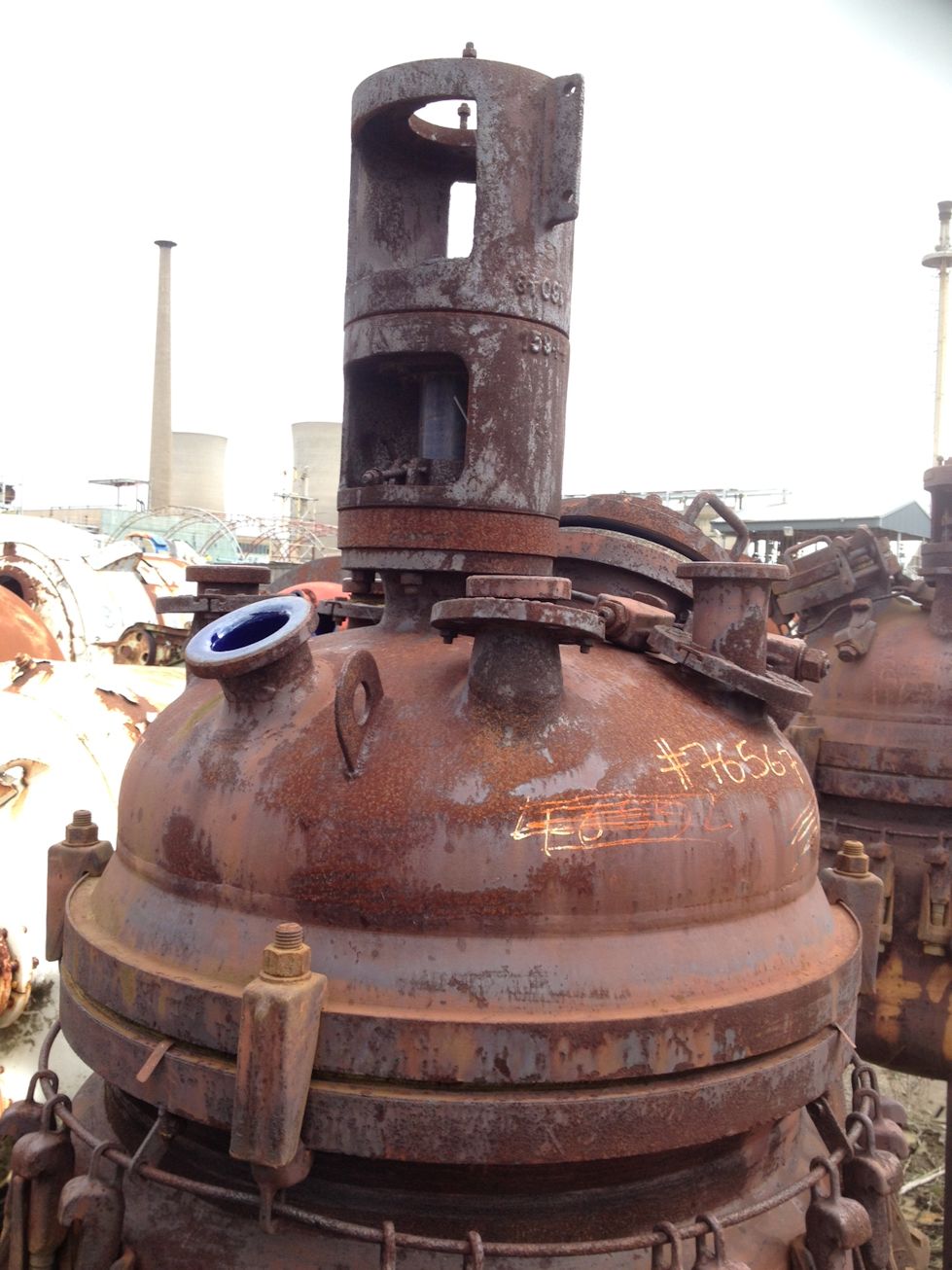

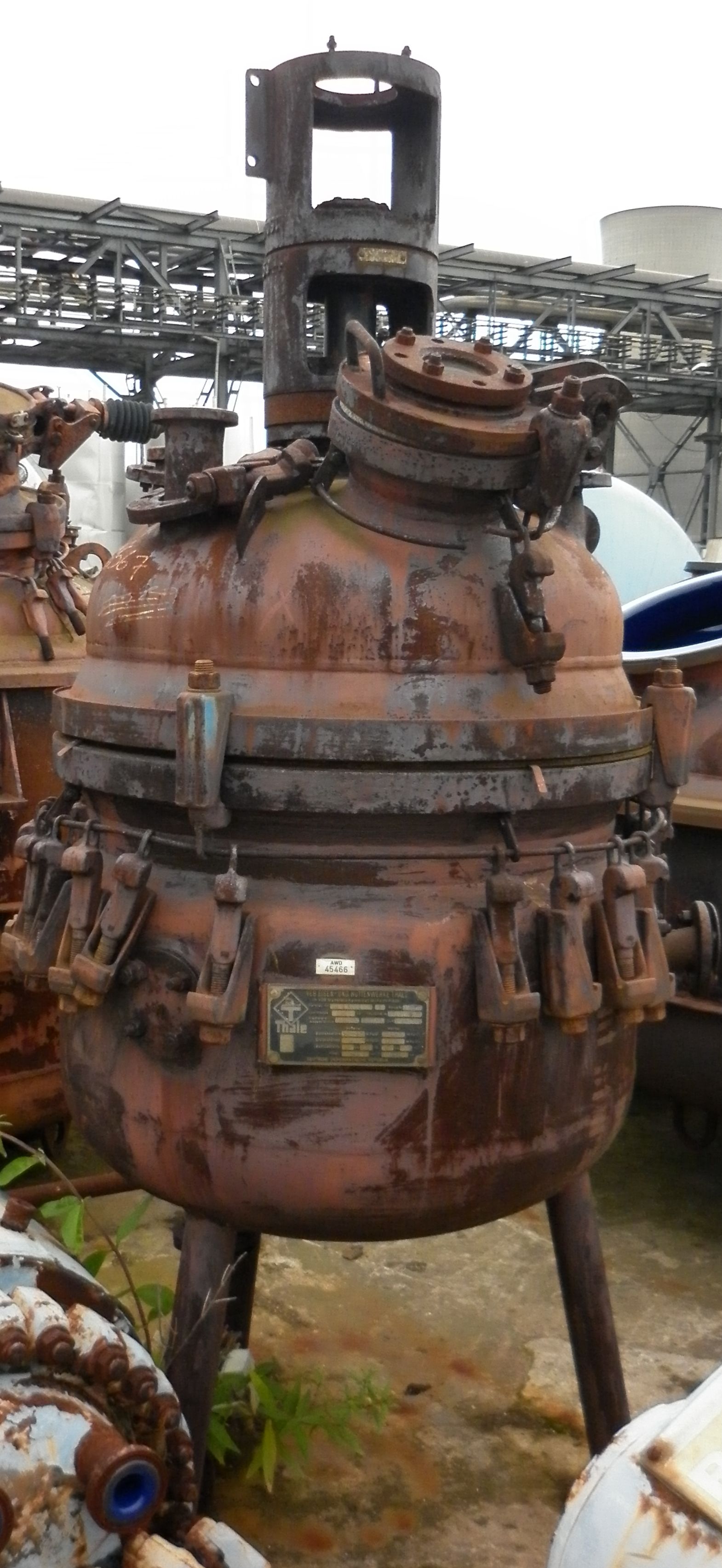

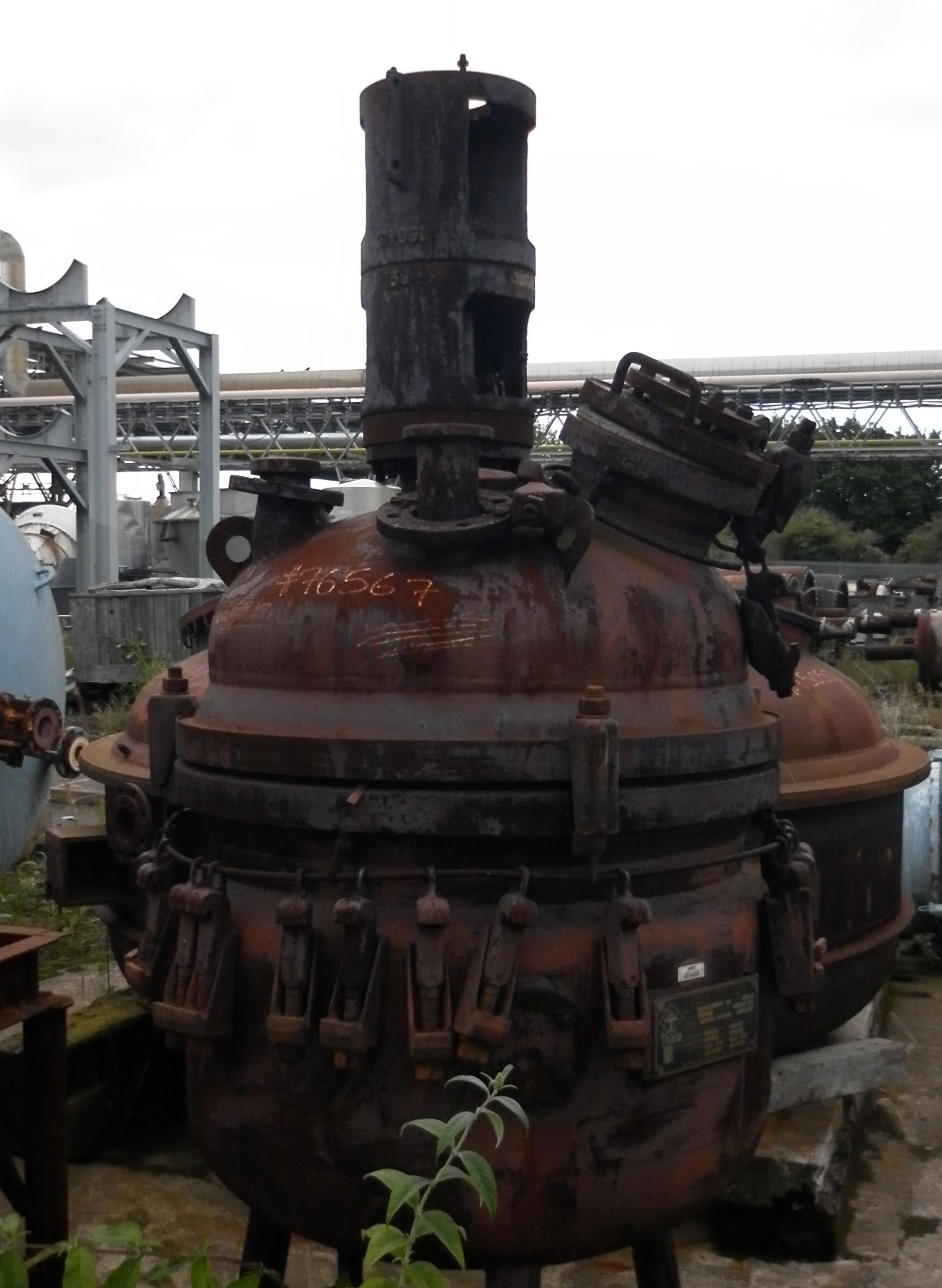

Unused Glasslined Thale (Germany) C0.25/1e-2D-1-1/GN680 Batch Type Body Only Reactor - IPP# 76567

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Glascote

Condition: Used

Material: Glasslined

Capacity (Design): 1,500 L (400 gallons)

Internal Pressure: 2.1 bar (30 psi)

• 60 psi w/full vac. (3) bosses w/14" bolt circle. (*)

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 343.3 °C (650 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,150 mm (46 in). Straight Side Length: 1,350 mm (54 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 2,850 L (750 gallons)

Internal Pressure: 6.9 bar (100 psi)

• (4) lugs and (4) sockets for pipe legs.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Body Only: Yes. Diameter: 1,500 mm (60 in). Straight Side Length: 1,300 mm (52 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Condition: Unused

Material: Glasslined

Clad: Yes

Capacity (Design): 100 L (26.4 gallons)

Internal Pressure: 6 bar (87 psi)

• Glass type 3009LB
• Light blue glass -design pressure internal -1/6 bar @ -25/150 degrees C (100 liter) jacket -1/6 bar @ -25/150 degrees C (36 liter)
• Open topped
• CE marked
• Stainless steel cladding/insulation on the straight side

Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Jacket Pressure: 16 bar (232.1 psi). Jacket Temperature: 150 °C (302 °F). Body Only: Yes. Orientation: Vertical. Diameter: 470 mm (18.5 in). Straight Side Length: 430 mm (16.9 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: P

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 94.6 L (25 gallons)

Internal Pressure: 0.83 bar (12 psi)

reactor bottom

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 7.9 bar (115 psi). Jacket Temperature: 232.2 °C (450 °F). Diameter: 610 mm (24 in). Straight Side Length: 406.4 mm (16 in). Support Type: Lugs.
