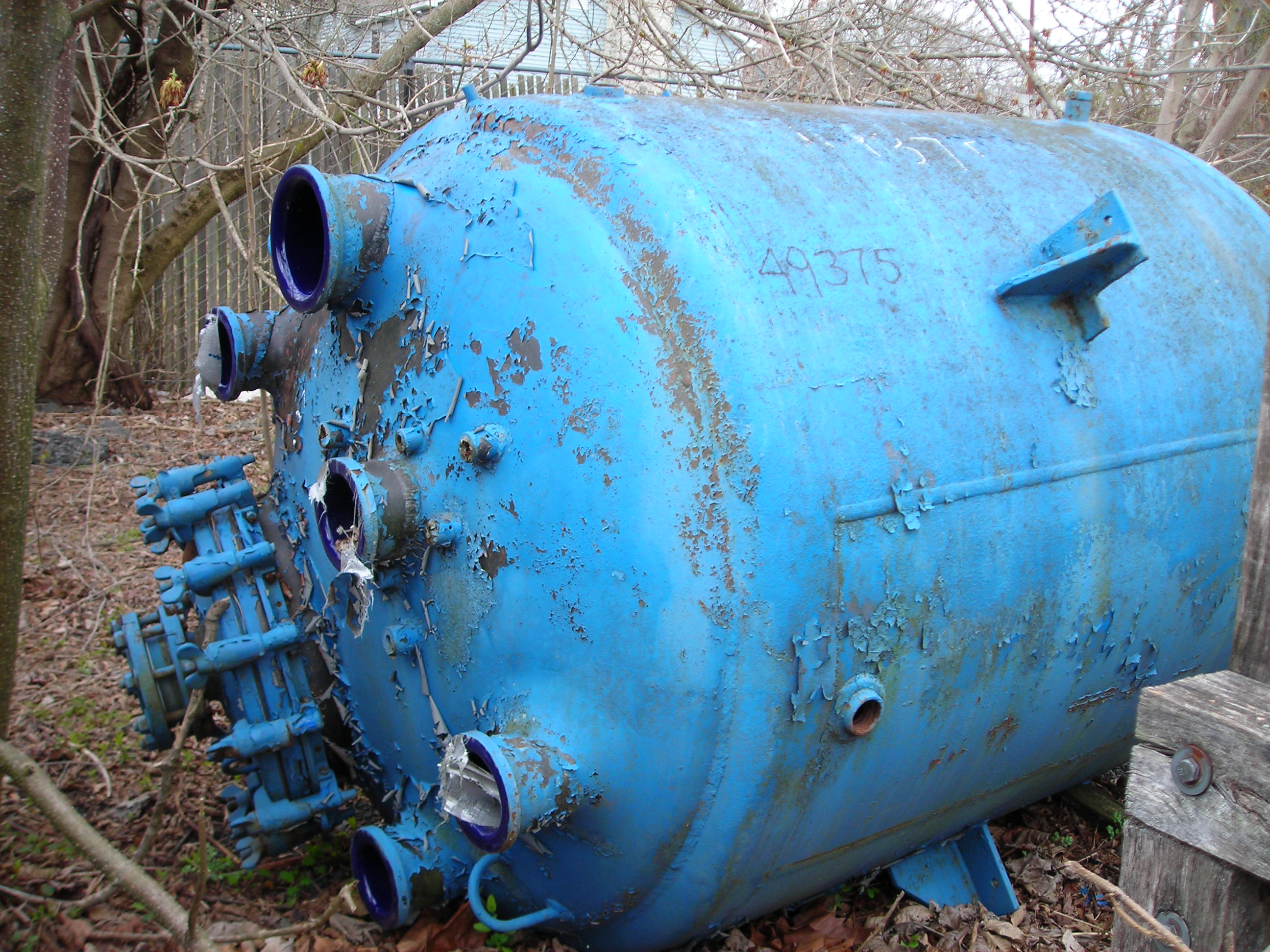

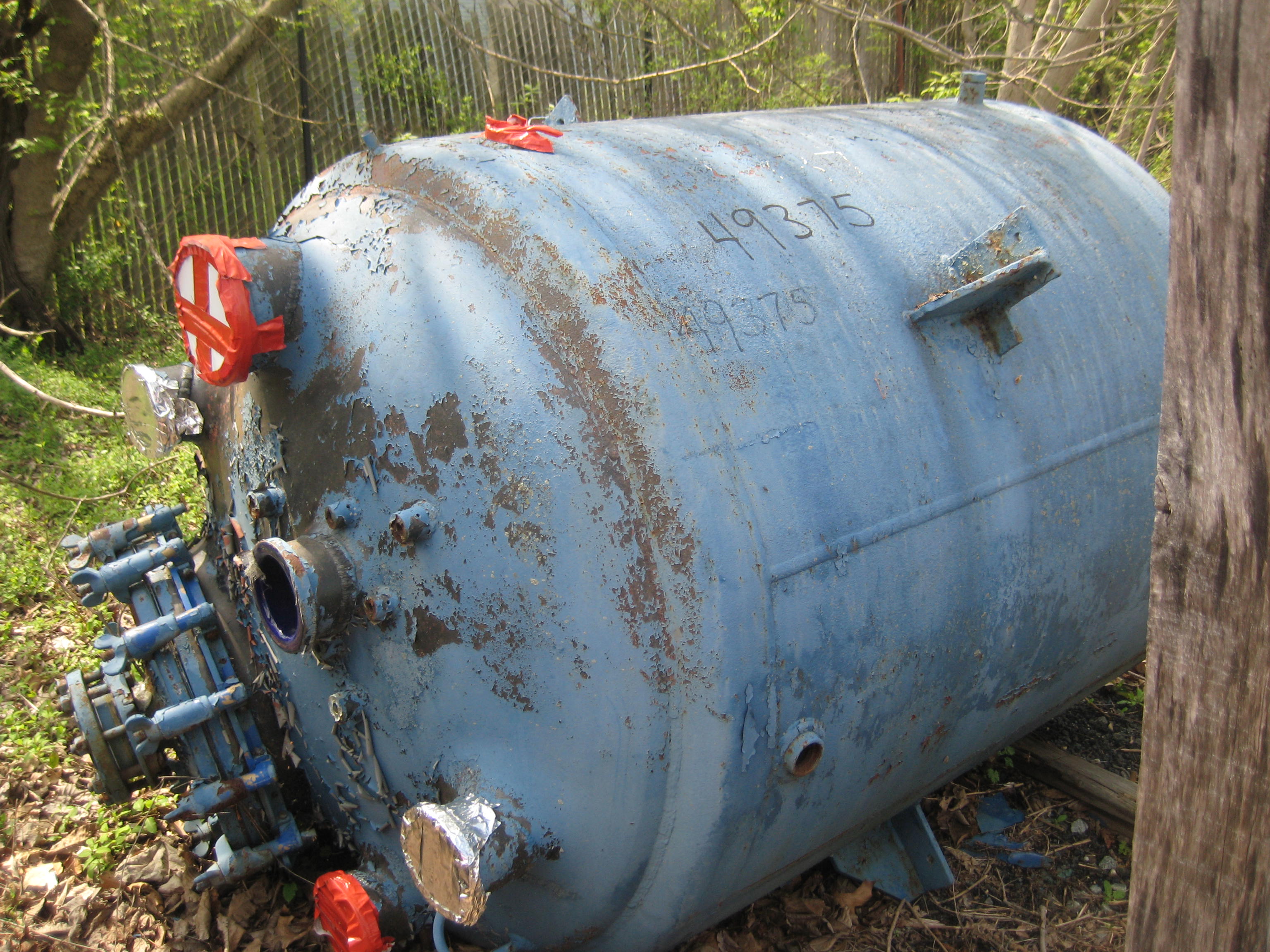

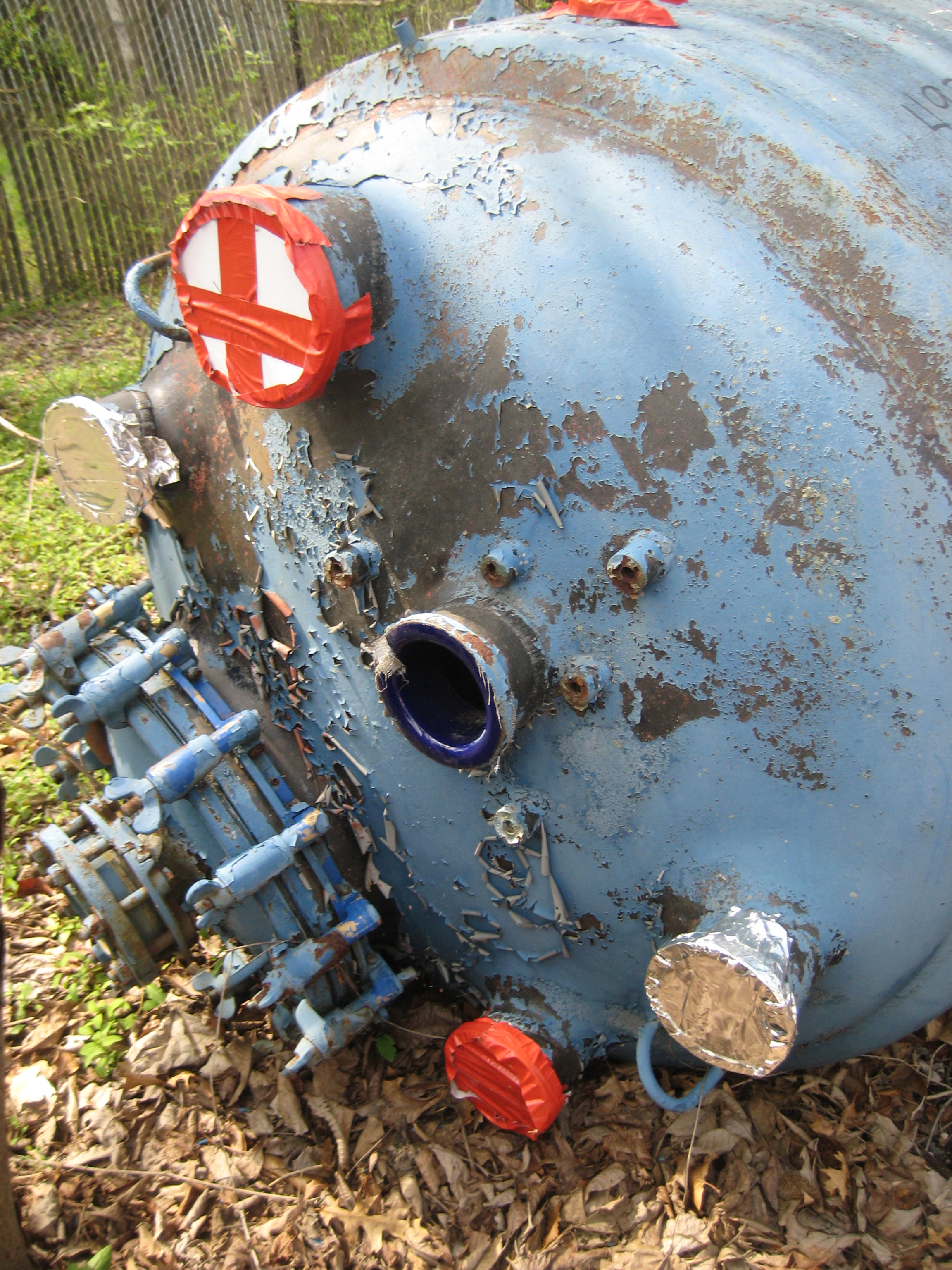

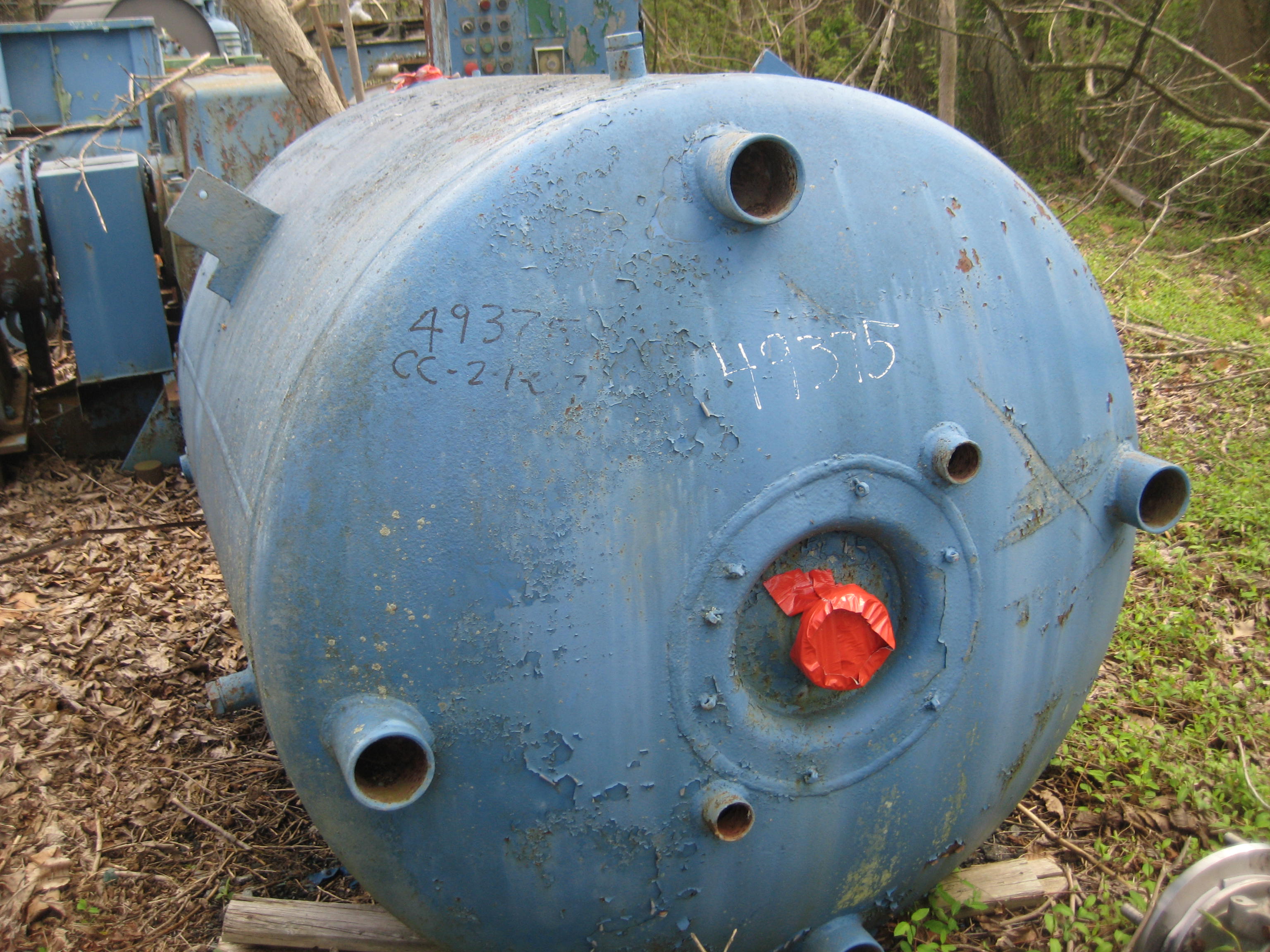

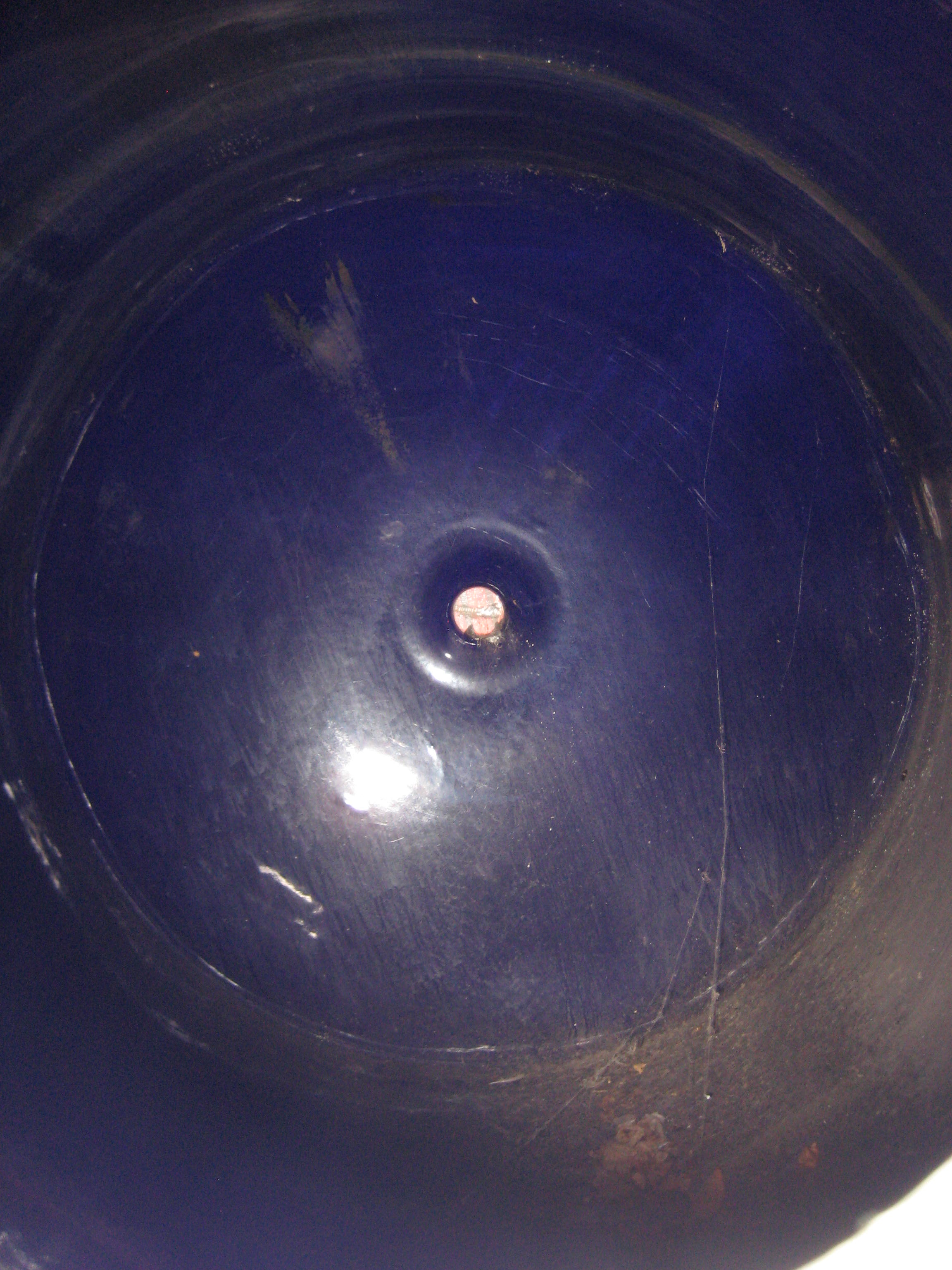

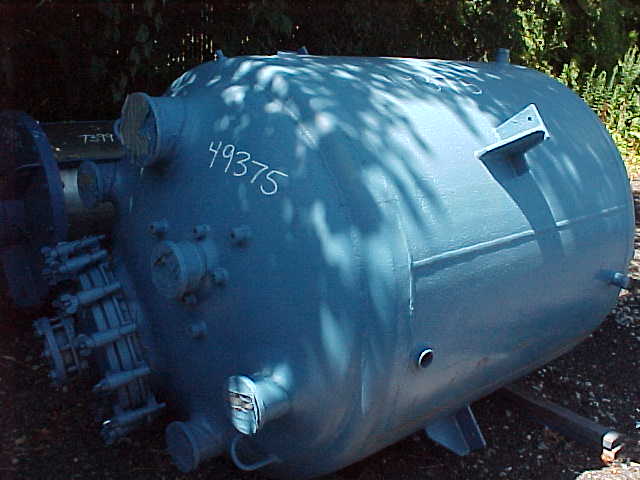

Glasslined Glascote Batch Type Body Only Reactor - IPP# 49375

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 2,839 L (750 gallons)

Internal Pressure: 6.89 bar (100 psi)

• (4) lugs and (4) sockets for pipe legs.

Internal Full Vacuum: Yes. Internal Temperature: 232 °C (450 °F). Jacket Pressure: 6.21 bar (90 psi). Jacket Temperature: 177 °C (350 °F). Body Only: Yes. Diameter: 1,524 mm (60 in). Straight Side Length: 1,321 mm (52 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Condition: Unused

Material: Glasslined

Clad: Yes

Capacity (Design): 100 L (26.4 gallons)

Internal Pressure: 6 bar (87 psi)

• Glass type 3009LB
• Light blue glass
  -design pressure internal -1/6 bar @ -25/150 degrees C (100 liter)
  jacket -1/6 bar @ -25/150 degrees C (36 liter)
• Open topped
• CE marked
• Stainless steel cladding/insulation on the straight side

Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Jacket Pressure: 16 bar (232 psi). Jacket Temperature: 150 °C (302 °F). Body Only: Yes. Orientation: Vertical. Diameter: 470 mm (18.5 in). Straight Side Length: 430 mm (16.9 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: P

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 94.6 L (25 gallons)

Internal Pressure: 0.827 bar (12 psi)

reactor bottom

Internal Full Vacuum: Yes. Internal Temperature: 232 °C (450 °F). Jacket Pressure: 7.93 bar (115 psi). Jacket Temperature: 232 °C (450 °F). Diameter: 610 mm (24 in). Straight Side Length: 406 mm (16 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: EL

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 757 L (200 gallons)

Internal Pressure: 0.138 bar (2 psi)

• Special, no Bottom outlet, can not take a cover, use as an open top only. (AS)

Internal Temperature: 177 °C (350 °F). Jacket Pressure: 6.21 bar (90 psi). Jacket Temperature: 177 °C (350 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight Side Length: 889 mm (35 in). Support Type: Sockets for pipe legs.
