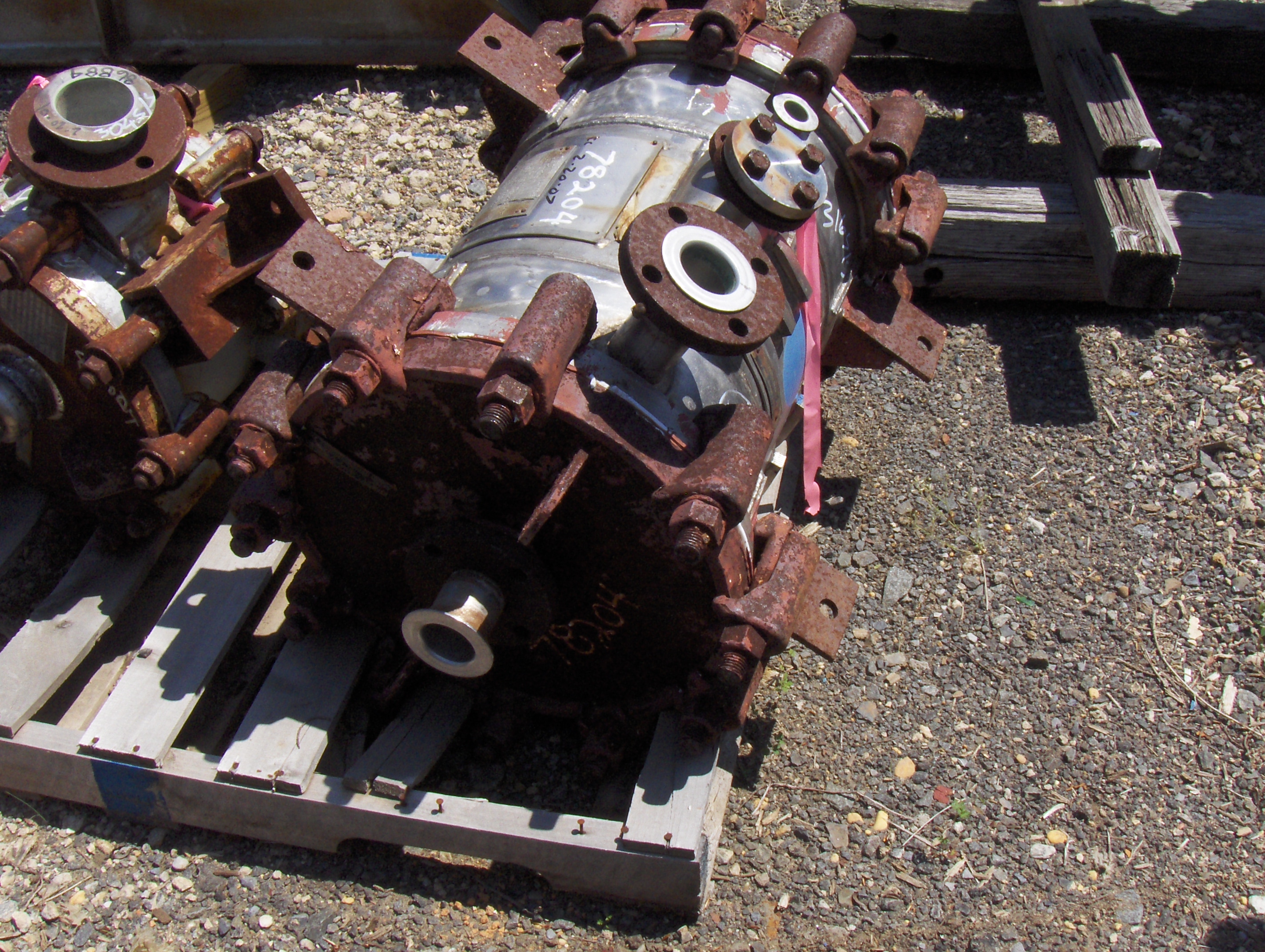

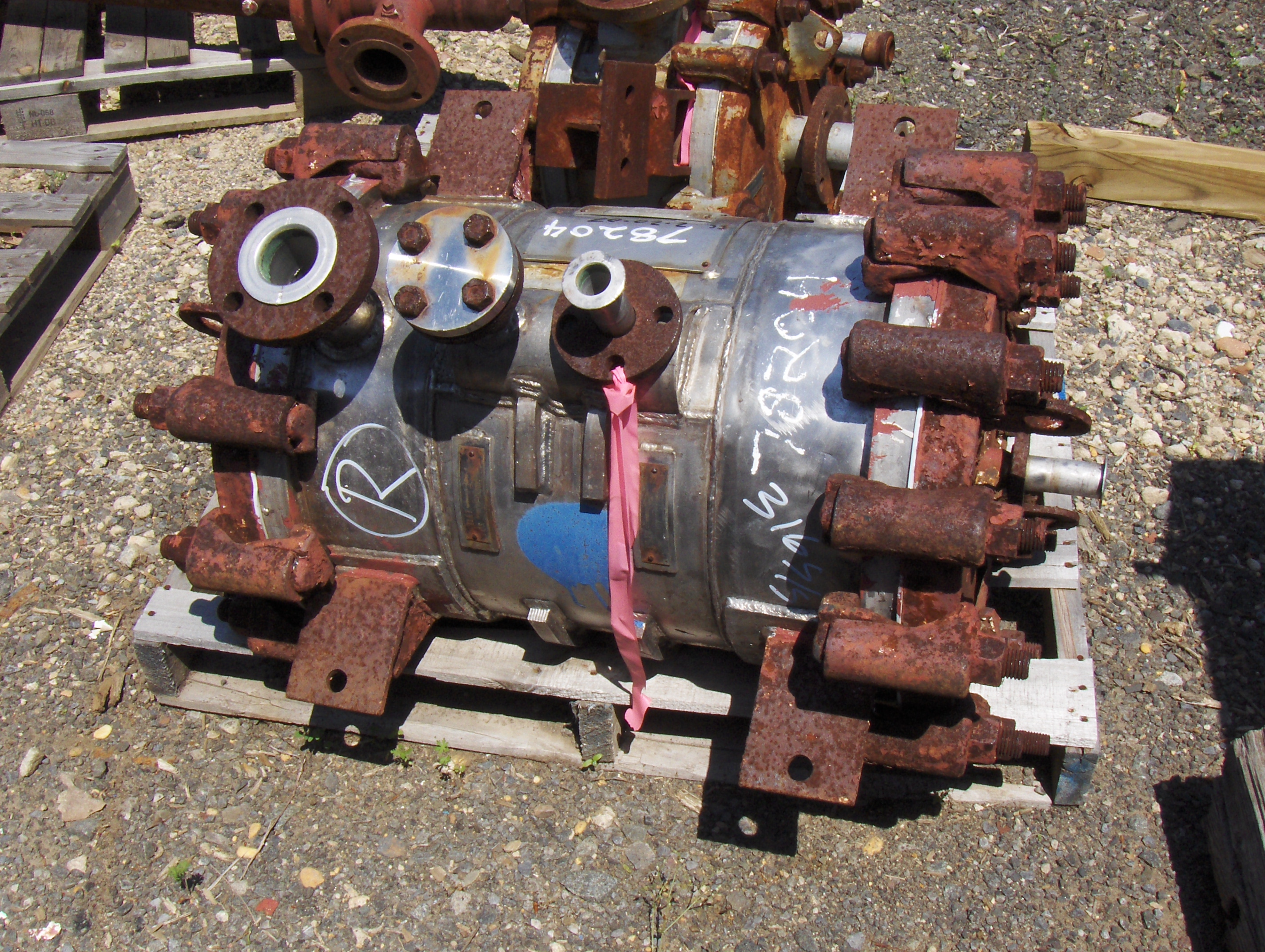

Stainless Steel 316 Spiral Heat Exchanger - IPP# 78204

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: American Heat Reclaiming

Model: 1H

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 1.39 m² (15 ft²)

Shell Material: Stainless Steel 316

inner pass is .25" x 6", 14'5" long; cold side outer pass is .25" x 6", 15'4" long.

Head Material: Stainless Steel 316. Nozzle Schedule: 1" inlets and outlets.. Spiral Material: Stainless Steel 316.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: American Heat Reclaiming

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 96.2 m² (1,035 ft²)

Shell Pressure: 7.6 bar (110 psi)

Division of Alfa Laval MFGR. #17712 Rated for 110 psi @ -20 degrees to 190 dgrees F Type 1H, Head Material: SA 516 70 ,Thickness: 1.85", Shell Material SA 516 70 Thickness: .3125". 70" long x 48" diameter X 60" high. 12" wide x 15" long. Weight:21,000 lbs

Shell Temperature: 87.8 °C (190 °F). Shell Material: Carbon Steel. Shell Diameter: 1,219 mm (48 in). Head Material: Carbon Steel. Length: 1,778 mm (70 in). Nozzle Schedule: (2x) 4" flanges on each head, (4x) 6" flanges, two on each side, and (2x) 3" flanges, one on each side.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: American Heat Reclaiming

Model: 1-V

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 1.77 m² (19 ft²)

Shell Pressure: 10.3 bar (150 psi)

304SS/CS spiral

Shell Temperature: 176.7 °C (350 °F). Head Material: Carbon Steel. Nozzle Schedule: - Head openings: 2-2" - Shell openings: 1-4", 1-1".

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Amer Heat Reclaiming

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 1.39 m² (15 ft²)

Nozzle Schedule: 1" inlets and outlets
