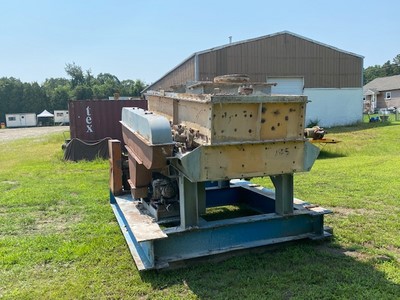

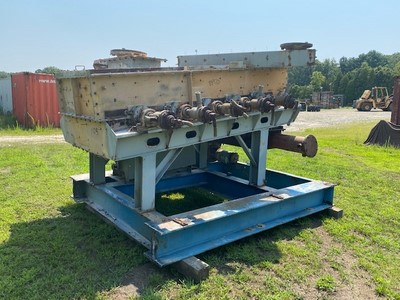

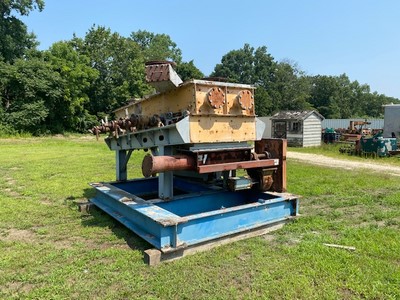

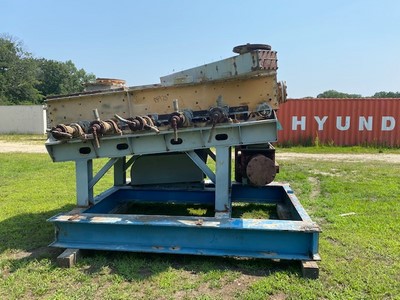

Dryer-Thermal Disc 1,000 mm (40 in) Carbon Steel For Sale - IPP# 88925

Type: Dryer-Thermal Disc

Manufacturer: Strong Scott

Model: TDJ

Condition: Used

Material: Carbon Steel

Diameter: 711 mm (28 in)

Length: 1,650 mm (64 in)

• Torus disc dryer screw 150 psi @ 375 deg FT trough is 64" long x 28" wide x 36" deep Requires 5 HP drive No cover

Number of Disc Shafts: 1. Number of Discs: 10. Jacket Temperature: 190.6 °C (375 °F). Disc Temperature: 190.6 °C (375 °F). Jacket Pressure: 10.3 bar (150 psi). Disc Pressure: 10.3 bar (150 psi).

Type: Dryer-Thermal Disc

Manufacturer: Bepex

Model: TD48-9

Condition: Unused

Material: Carbon Steel

Diameter: 1,200 mm (48 in)

Length: 2,750 mm (108 in)

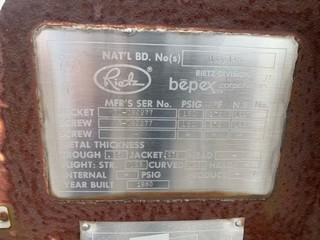

Bepex Torus Disc Cooler U shaped trough, continuous design. Certified by Moorhead Machinery & Boiler Co Moorhead Serial number 605-2300.
Shell rated 15 psi @ 350 degrees. No jacket on trough.
U shaped trough, bolted flat top, with one end bolted for rotor removal. Inside dimensions 48” ID x 9’ long Nominal 106 cubic foot working capacity, approx.

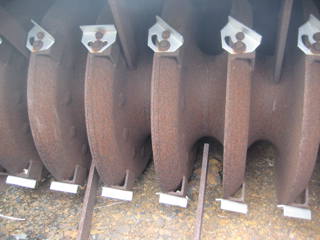

Unit has a tubular rotor with hollow discs mounted on the rotor to allow heating/cooling media to flow through the rotor. The shaft is mounted on outboard bearings, rotary joint on one end, packing glands. Chain and sprocket drive with a gear reducer and 25 HP 3/60/230/460 volt motor. 15 RPM shaft speed. The residence time is adjustable by and overflow weir at the discharge end.

Height: 2,000 mm (78 in). Number of Disc Shafts: 1. Vessel Temperature: 176.7 °C (350 °F). Disc Temperature: 176.7 °C (350 °F). Vessel Pressure: 1.03 bar (15 psi). Disc Pressure: 6.9 bar (100 psi). Operational Mode: Continuous. Heat Transfer Surface Area: 42.7 m² (460 ft²).

Type: Dryer-Thermal Disc

Manufacturer: Bepex

Model: TD48-9

Condition: Unused

Material: Carbon Steel

Diameter: 1,200 mm (48 in)

Length: 2,750 mm (108 in)

Bepex Torus Disc Cooler U shaped trough, continuous design. Certified by Moorhead Machinery & Boiler Co Moorhead Serial number 605-2299.
Working pressure in the hollow rotor is 100 PSI @ + 50 to 350 degrees F Shell rated 15 psi @ 350 degrees. No jacket on trough.
U shaped trough, bolted flat top, with one end bolted for rotor removal. Inside dimensions 48” ID x 9’ long Nominal 106 cubic foot working capacity, approx.
Unit has a tubular rotor with hollow discs mounted on the rotor to allow heating/cooling media to flow through the rotor. The shaft is mounted on outboard bearings, rotary joint on one end, packing glands. Chain and sprocket drive with a gear reducer and 25 HP 3/60/230/460 volt motor. 15 RPM shaft speed. The residence time is adjustable by and overflow weir at the discharge end.

Height: 2,000 mm (78 in). Number of Disc Shafts: 1. Vessel Temperature: 176.7 °C (350 °F). Disc Temperature: 176.7 °C (350 °F). Vessel Pressure: 1.03 bar (15 psi). Disc Pressure: 6.9 bar (100 psi). Operational Mode: Continuous. Heat Transfer Surface Area: 42.7 m² (460 ft²).

Type: Dryer-Thermal Disc

Manufacturer: Bepex

Model: TD48-9

Condition: Unused

Material: Carbon Steel

Diameter: 1,200 mm (48 in)

Length: 2,750 mm (108 in)

Torus disc cooler

Height: 2,250 mm (88 in). Number of Disc Shafts: 1. Vessel Temperature: 196.1 °C (385 °F). Disc Temperature: 176.7 °C (350 °F). Vessel Pressure: 1.03 bar (15 psi). Disc Pressure: 6.9 bar (100 psi). Type of Shaft Sealing: Packing gland. Operational Mode: Continuous. Heat Transfer Surface Area: 42.7 m² (460 ft²).
