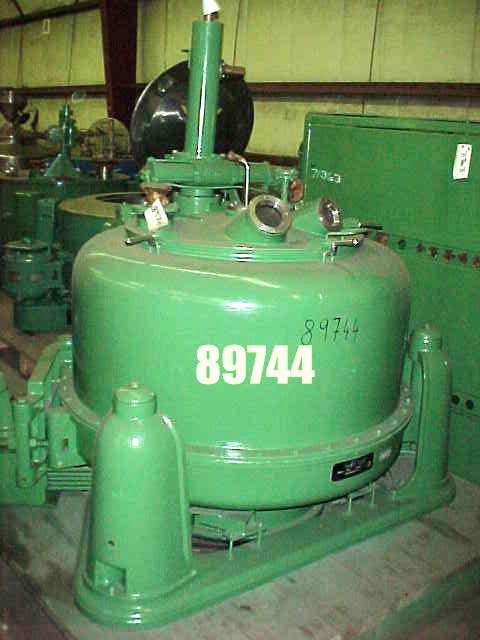

Centrifuge-Basket 1,200 mm (48 in) Rubberlined For Sale - IPP# 89744

Type: Centrifuge-Basket

Subtype: Manual Discharge-Top

Manufacturer: Ferrum

Model: J8P-S

Condition: Refurbished/Rebuilt

Material: Stainless Steel 316

Basket Diameter: 800 mm (31.5 in)

Basket Depth: 360 mm (14.2 in)

sanitary perforated basket centrifuge 140 kg wet material with handbrake openings: 2-75mm feed pipes, 1-75mm filtrate outlet, 2-75mm sightglasses

Filtration Area: 0.9 m² (9.7 ft²). Motor Power: 2.2 kW (3 HP). Speed-RPM Maximum: 960. Load Weight: 140 kg (308.6 lb).

Type: Centrifuge-Basket

Subtype: Manual Discharge-Top

Manufacturer: Ferrum

Condition: Refurbished/Rebuilt

Material: Stainless Steel 316

Basket Diameter: 1,000 mm (39.4 in)

Basket Depth: 500 mm (19.7 in)

Perforate basket centrifuge Sanitary curb including the exterior Non-flameproof motor Handbrake. 2-75mm sight glasses in access door. Feed 100mm, wash pipe 19mm with (1) spray nozzle, filtrate outlet 100mm, 1-100mm on curb. (*)

Motor Power: 7.5 kW (10.1 HP). Load Weight: 120 kg (264.6 lb).

Type: Centrifuge-Basket

Subtype: Manual Discharge-Top

Manufacturer: Ferrum

Model: FIV55ELGR1

Condition: Used

Material: Stainless Steel 316L

Basket Diameter: 1,250 mm (49.2 in)

Basket Depth: 600 mm (23.6 in)

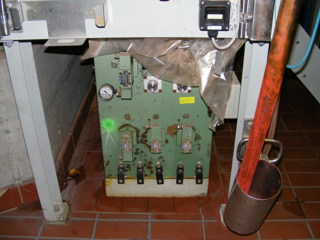

top load/unload pressure 1.8 bar @ 150 deg C via a hydraulic Rexroth type 380/660 volt 1480/1475 rpm motor Thermosyphon which is hydraulic driven by the same powerpack, 2-internal spray nozzles, 1-150mm filtrate outlet half of the top cover is hinged and has a open/close assist mechanism, hydraulic panel,

Motor Power: 27 kW (36.2 HP). Load Weight: 480 kg (1,050 lb).

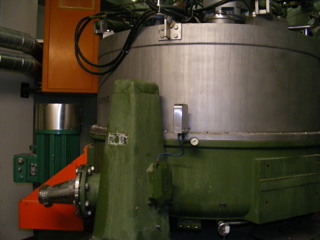

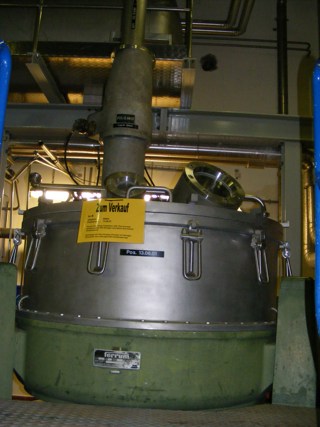

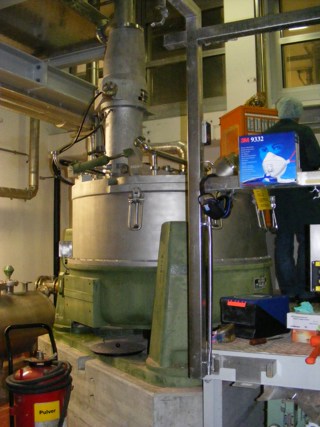

Type: Centrifuge-Basket

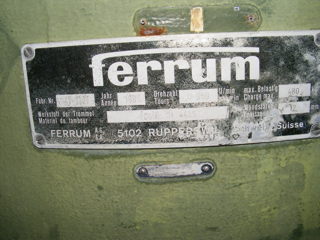

Manufacturer: Ferrum

Model: PO/U 1250

Condition: Used

Material: Stainless Steel 316L

Basket Diameter: 1,250 mm (49.2 in)

Basket Depth: 600 mm (23.6 in)

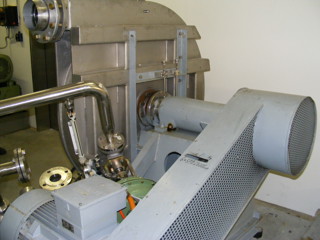

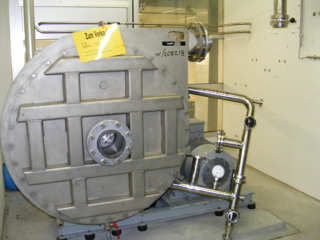

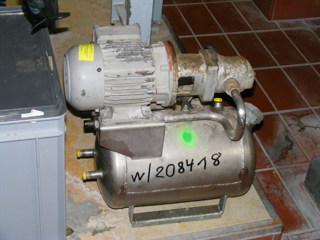

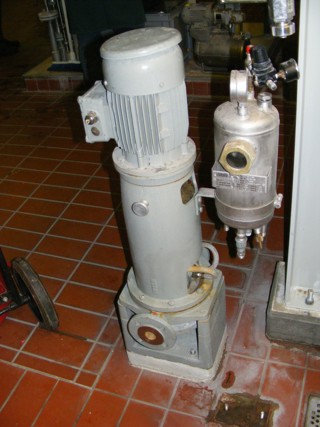

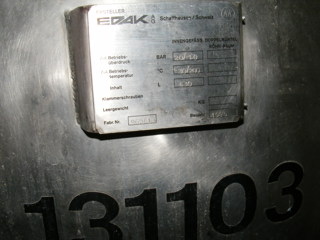

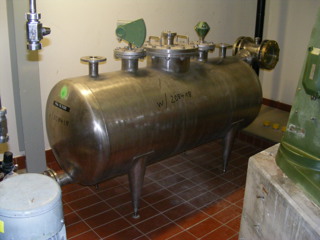

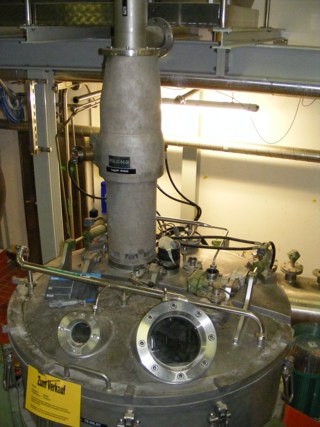

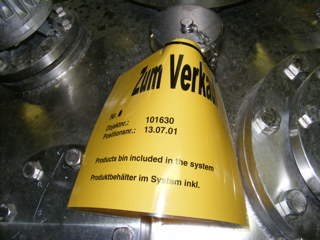

Ferrum basket centrifuge with Titus cyclone cake discharge system Complete centrifuge and discharge system is gas-tight design. deep perforated basket pressure rated 1.96 Sqm, 0 to 950 upm 480 kg, 316L s/steel housing and cover pressure rated 1.6 bar @ 120 degrees C Top cover has 100mm sightglass with light 225mm sightglass 75mm wash pipe 75mm feed pipe 45mm, 80mm, and a 1/2 hinged cover 150mm filtrate outlet Unit has top entering feed and wash pipes and has a hydraulic knife for cake removal from basket walls Cake is pneumatically removed from the centrifuge though a Krauss Maffei, Titan cyclone dryer, which pulls the cake out through the top of the centrifuge Complete system includes a 630 liter SS horizontal mother liquor tank manufactured by Edak, Serial number 965/1, rated 1.6 bar, Krauss Maffei solvent condensor manufactured by J Engelsman, Serial Number 15641/2, miscellanous centrifugal pumps,

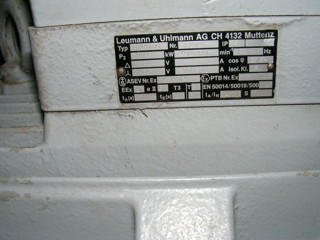

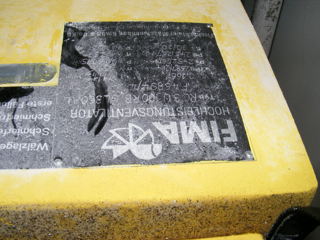

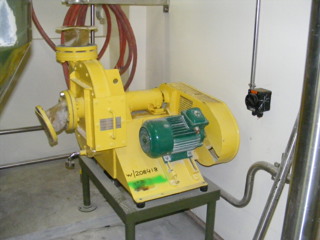

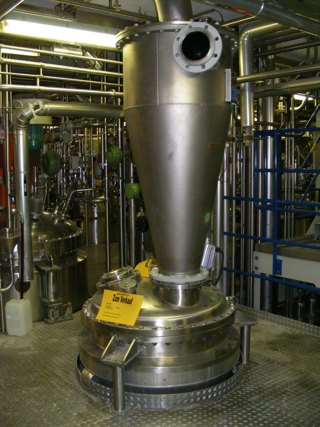

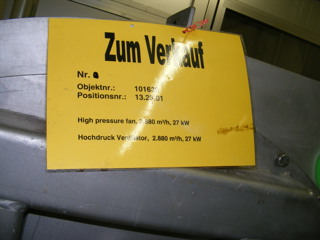

K-M Titus cylone discharge system with 2,880 CuM/Hr, SS suction fan driven by a 30 KW, 3 phase 50 cycle EExeII motor, 385 liter 1.4571 SS cake cyclone, 692 mm diameter x 450 mm ss with 1100 mm cone, discharging the cake into a 500 liter 1.4435 SS jacketed product receiver, manufactured by Hanag, rated -1/2 bar @ -30 to 200 degrees C internal; 6 bar @ -30 to 200 degrees C in the 1/2 pipe coil jacket, with bolted dished top, cone bottom, 1/2 pipe coil jacket on cone bottom, 1000mm diameter x 342 mm straight side with 682 mm deep cone bottom.
Entire system is sealed and designed for use in Solvent processes.
Previous use allowed solvent ladened product cake to be dried using ambient temperature in the cyclone air flow before being collected in the product bin

Motor Power: 11 kW (14.8 HP). Speed-RPM Maximum: 950. Load Weight: 480 kg (1,050 lb). Gas Tight: Yes.
