Used basket centrifuges for sale: high-speed separation for industrial solids and liquids
Highest-ranked available inventory for this selection.
Used basket centrifuges for sale: high-speed separation for industrial solids and liquids
Choose a subtype for a more focused set of listings.
Set a numeric threshold to narrow the matching listings.
Set a numeric threshold to narrow the matching listings.
Use this setting to include or exclude equipment with this feature.
Use this setting to include or exclude equipment with this feature.
Showing 25 of 163 matching Basket Centrifuges.
top load, bottom discharge, 12mm thick basket, 3.15 square meter filter area, 1100 rpm permissible speed single motion plow driven by a hydraulic powerpack, powerpack driven by approx 0.75kw EX motor, mounted on a steel baseplate,
spare top and bottom section bottom discharge basket centrifuge bottom discharge design
clarifier basket centrifuge bottom discharge (2) horizontal baffles basket capacity 7.6 cu ft. 316SS basket, curb and plow Top driven by hydraulic powerpak Hinged access port 1" rotary pneumatic skimmer

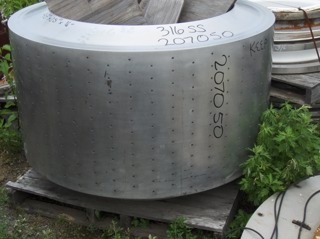

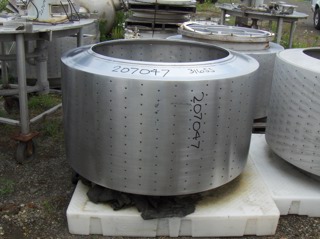

basket only 1/4 " drainage holes Eight 7/8" bolt hole pattern
with single action pneumatic operated plow cylinder.(no Plow) Cover has an inspection door with a 9" sight glass Cover has the following openings for piping connections One, 6" weld neck flange, One 2" opening for feed pipe, Three, 1" opening for accessories.
top load/unload basket centrifuge 8mm thick basket lid with hydraulic assist with powerpack 50mm feed pipe, 25mm wash pipe, 85mm filtrate
highly polished 316L (1.4435) stainless steel basket centrifuge basket thickness 12mm, pressure 1.8 bar @ 150 degrees C half of the top cover hinges/opens, open/close assist driven by a power pack, cake is discharged via a pneumatic thermosyphon peeling pipe/plow and also pressurised gas is introduced into the centrifuge which enables the solids to discharge upwards.
top load/unload pressure 1.8 bar @ 150 deg C via a hydraulic Rexroth type 380/660 volt 1480/1475 rpm motor Thermosyphon which is hydraulic driven by the same powerpack, 2-internal spray nozzles, 1-150mm filtrate outlet half of the top cover is hinged and has a open/close assist mechanism, hydraulic panel,
top load/unload basket driven by an hydraulic motor via a hydraulic powerpack Thermosyphon which is hydraulic driven by the same powerpack 2-internal spray nozzles, 1-150mm filtrate outlet half of the top cover is hinged and has a open/close assist mechanism, hydraulic panel,
Ferrum basket centrifuge
with Titus cyclone cake discharge system
Complete centrifuge
and discharge system is gas-tight design.
deep perforated basket
pressure rated 1.96 Sqm, 0 to 950 upm
480 kg,
316L s/steel housing and cover
pressure rated 1.6 bar @ 120 degrees C
Top cover has 100mm sightglass with light
225mm sightglass
75mm wash pipe
75mm feed pipe
45mm, 80mm, and a 1/2 hinged cover
150mm filtrate outlet
Unit has top entering feed and wash pipes
and has a hydraulic knife for cake removal from basket walls
Cake is pneumatically removed from the centrifuge
though a Krauss Maffei,
Titan cyclone dryer,
which pulls the cake out through the top of the centrifuge
Complete system includes a 630 liter SS horizontal mother liquor tank manufactured by Edak,
Serial number 965/1,
rated 1.6 bar,
Krauss Maffei solvent condensor manufactured by J Engelsman, Serial Number 15641/2,
miscellanous centrifugal pumps,
K-M Titus cylone discharge system with 2,880 CuM/Hr,
SS suction fan driven by a 30 KW,
3 phase 50 cycle EExeII motor,
385 liter 1.4571 SS cake cyclone,
692 mm diameter x 450 mm ss with 1100 mm cone,
discharging the cake into a 500 liter 1.4435 SS jacketed product receiver,
manufactured by Hanag, rated -1/2 bar @ -30 to 200 degrees C internal;
6 bar @ -30 to 200 degrees C in the 1/2 pipe coil jacket,
with bolted dished top, cone bottom,
1/2 pipe coil jacket on cone bottom,
1000mm diameter x 342 mm straight side with 682 mm deep cone bottom.
Entire system is sealed and designed for use in Solvent processes.
Previous use allowed solvent ladened product cake to be dried using ambient temperature in the cyclone air flow before being collected in the product bin
top load, bottom discharge semi automatic Unit has 316SS basket, 304SS curb and Cover unit has pneumatic operated plow hydraulic basket drive hydraulic powerpack and controls
perforated basket centrifuge 316SS TI (1.4571) Half top hydraulically operated liftable cover Basket thickness 10mm Hydraulic operated knife. W/hydraulic powerpak, mfd by Hydramatic. Hydraulic driver Type A2P W/250mm sight glass
vertical decanter centrifuge with motorized liquid skimmer Rated 150/180 l/mn flow rate manufactured by Rousselet Robatel Rated 150/180 l/mn flow rate 5-60 degrees C 100 liter solids capacity Solid bowl is 1000mm diameter x 500 mm deep bowl 1.4539 Stainless top cover mounted on a hinge with an electric motor for opening the cover liquid skimmers and solid discharge skimmer Liquid skimmer is driven by a 0,15/0,22kW, 3 ph/50 cyc/ 400 volt electrical motor, manufactured by CEO, type 63-2/4, serial number 00017320102, 2 speed 1400/2760 rpm Includes (1) control panel; with (1) control cabinet with hydraulic power pack with aa 0,55-0,66kW electrical motor, manufactured by Leroy Somer, type LS80LT, serial number 660550RM001, 3ph/50-60Hz/230-460V/ 1.385-1.700rpm; Centrifuge and powerpack is mounted on stainless steel frame. System is CE rated
perforated basket centrifuge EX motor with air cooling fan mounted on top driven by 0.12 KW 3/50/380 volt motor.
top load, bottom discharge wall thickness of the basket 12mm lid with assist mechanism basket with electric motor
Heine 316SS (V4AE) Basket thickness 6mm Pneumatic operated liftable half top cover. W/1-200mm sight glass, 1-100mm sight glass, 2-25mm, 1-50mm, 1-75mm; 1-100mm discharge W/hydraulic motor and W/hydraulic powerpak
vertical top load/bottom discharge centrifuge wetted parts are hastelloy (2.4610) 6mm basket wall thickness hydraulic drive for knife and cover
Mirror Polished finish designed for GMP & Sanitary use. 316 SS perforated Basket 22KW Crompton Breaves drive w/ dynamic braking Hydraulic power pack Flame proof control panel Overall dimensions 2000mm L x 1500 mm W.
perforated basket centrifuge. Hastelloy basket, halar lined curb, 2.4610 basket, cover 1.4571 material Gas tight Cover 1/2 leftable hydraulically. Control panel. Perforation 8mm dia W/0.75 KW, Motor: 3 phase Hydraulic pump: 0.75 KW, 3/50/380 volt, 1450 rpm
1.4581 perforated basket centrifuge. Half top hydraulically operated liftable cover. Basket thickness 10mm Hydraulic operated knife. mfd by Hydramatic, hydraulic driver Type A2P. W/250mm sight glass
manual discharge top wall thickness of the basket 6mm
When your process demands efficient separation of solids from liquids, basket centrifuges offer reliable, high-speed solutions across a wide range of industries. With more than 47 years of process equipment expertise, IPP delivers immediate access to used basket centrifuges sourced from 20 complete plant sites and included in our inventory of over 15,000 ready-to-ship pieces of equipment. Choosing used basket centrifuges from IPP helps companies minimize capital expenditures while securing proven, production-ready equipment.
Basket centrifuges operate by spinning a perforated basket at high speeds, using centrifugal force to separate solids from liquids. They are essential for batch and continuous separation processes in industries ranging from pharmaceuticals to wastewater treatment. Their design allows for efficient handling of a wide variety of slurries, pastes, and particulate-laden liquids.
Basket centrifuges are engineered to endure tough processing conditions while maintaining product purity:
High centrifugal forces for rapid and thorough separation
Perforated or imperforated basket options for different process needs
Designs for manual, semi-automatic, or fully automatic operation
Adaptable for batch or continuous processing
Easy disassembly for cleaning, inspection, and maintenance
Learn more about solid-liquid separation techniques from Chemical Processing.
Search the IPP inventory or contact IPP’s equipment specialists to find the right basket centrifuge for your separation needs. With ready-to-ship inventory, IPP helps companies maintain uptime, manage project costs, and meet demanding production schedules.
