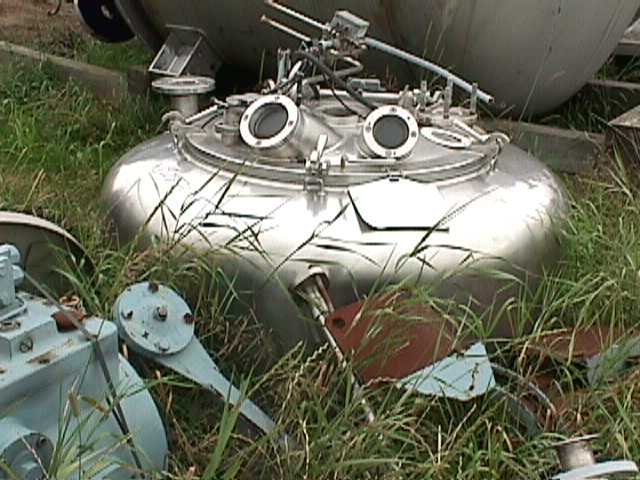

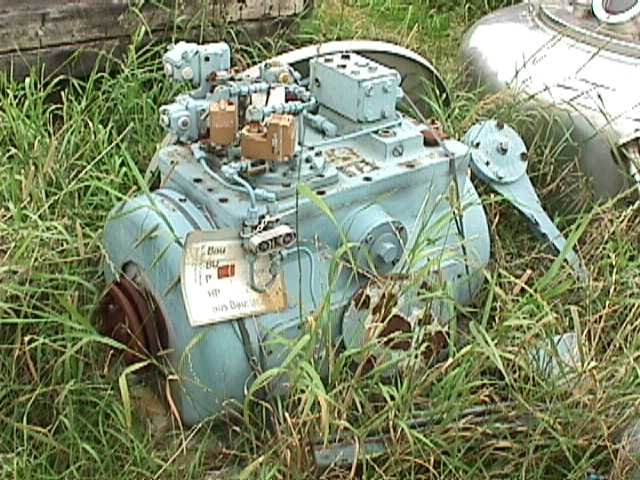

Manual 316 stainless steel plow. Gastight design. Cover completely liftable. centrifuge with Von Roll hydraulic powerpak serial #825435, 25 PS, 950 rpm, wit a Von Roll hydraulic 900 rpm motor. 75mm feed pipe, 25mm wash pipe 100mm filtrate, 75mm vapour Top cover (2) sight glasses: 1-100mm, 1- 75mm. Top cover with hydraulic raise/lower mechanism.
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Ferrum
Model: J8P-S
Condition: Refurbished/Rebuilt
Material: Stainless Steel 316
Basket Diameter: 800 mm (31.5 in)
Basket Depth: 360 mm (14.2 in)
sanitary perforated basket centrifuge 140 kg wet material with handbrake openings: 2-75mm feed pipes, 1-75mm filtrate outlet, 2-75mm sightglasses
Filtration Area: 0.9 m² (9.7 ft²). Motor Power: 2.2 kW (3 HP). Speed-RPM Maximum: 960. Load Weight: 140 kg (308.6 lb).
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Ferrum
Condition: Refurbished/Rebuilt
Material: Stainless Steel 316
Basket Diameter: 1,000 mm (39.4 in)
Basket Depth: 500 mm (19.7 in)
Perforate basket centrifuge Sanitary curb including the exterior Non-flameproof motor Handbrake. 2-75mm sight glasses in access door. Feed 100mm, wash pipe 19mm with (1) spray nozzle, filtrate outlet 100mm, 1-100mm on curb. (*)
Motor Power: 7.5 kW (10.1 HP). Load Weight: 120 kg (264.6 lb).
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Ferrum
Model: POR-1250
Condition: Used
Material: Stainless Steel 316
Basket Diameter: 1,250 mm (49.2 in)
Basket Depth: 600 mm (23.6 in)
highly polished 316L (1.4435) stainless steel basket centrifuge basket thickness 12mm, pressure 1.8 bar @ 150 degrees C half of the top cover hinges/opens, open/close assist driven by a power pack, cake is discharged via a pneumatic thermosyphon peeling pipe/plow and also pressurised gas is introduced into the centrifuge which enables the solids to discharge upwards.
Filtration Area: 2.4 m² (25.3 ft²). Speed-RPM Maximum: 950. G Force: 630. Load Weight: 480 kg (1,050 lb).
Type: Centrifuge-Basket
Subtype: Auto Discharge-Bottom
Manufacturer: Ferrum
Model: DSZ-UR
Condition: Used
Material: Stainless Steel 316
Basket Diameter: 1,250 mm (49 in)
Basket Depth: 610 mm (24 in)
316 S lid, 316 SS basket and 316 SS cone, automatic bottom discharge, The model DSZ utilizes a pull action filter for gentle handling of material. It allows the centrifuge to function with out a scraper knife, making it ideal for sensitive products. The pneumatic pull mechanism allows for no heel to be left over after discharge. This design works excellent in the fine chemicals, pharmaceutical, and the food industries. Manufactured to GMP standards with FDA approved parts. 39 a The basket aperture is 34.5", The cover is hinged, with hydraulic power pack for lid lifting (opening). The maximum height (for lid to open) is 121.5", the maximum width is 94.5 X maximum depth of 86.6". nitrogen purged The housing is Gas tight with spray nozzles This machine does not have a electrically driven feed disk.
Filtration Area: 2.5 m² (26.5 ft²). Motor Power: 16.4 kW (22 HP). Speed-RPM Maximum: 950. G Force: 630. Load Weight: 500 kg (1,100 lb). Gas Tight: Yes.
