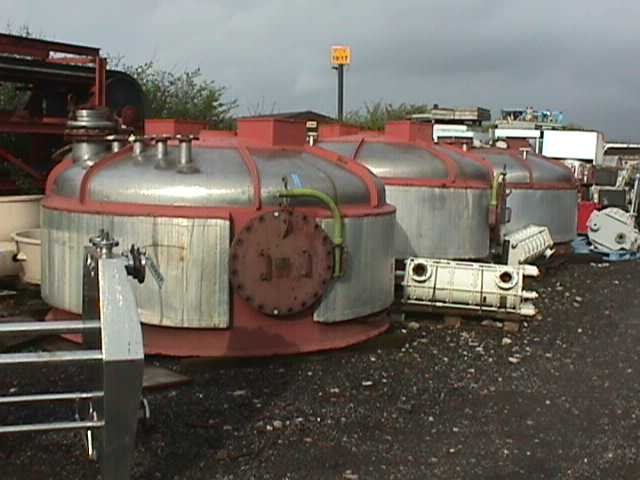

Stainless Steel 316 Bertrams (Basel) Rosenmund and Cogiem Filter - IPP# 92661

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Bertrams (Basel)

Condition: Used

Material: Stainless Steel 316

Filtration Area: 6 m² (64.6 ft²)

Diameter: 2,750 mm (108 in)

• 316 stainless agitated jacketed pressure Nutsche filter.
• Filter volume 7200 liters
• Hydraulic racker lift driven by 0.75 KW, 3/50/500 volt motor.
• Packing gland on shaft.
• Side discharge.

Pressure: 2 bar (29 psi). Overall Length: 1,000 mm (39.4 in). Jacket Pressure: 6 bar (87 psi).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Bertrams (Basel)

Condition: Used

Material: Stainless Steel 316

Filtration Area: 6 m² (64.6 ft²)

Diameter: 2,741 mm (108 in)

• Filter volume 7200 liters. Hydraulic agitator lift driven by 0.75 KW, 3/50/500 volt motor.
• Hydraulic agitator lift driven by 0.75 KW, 3/50/500 volt motor. Packing gland on shaft.
• Side discharge.

Pressure: 2 bar (29 psi). Overall Length: 990 mm (39 in). Jacket: Yes. Jacket Pressure: 6 bar (87 psi).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Bertrams (Basel)

Condition: Used

Material: Stainless Steel 316

Filtration Area: 6 m² (64.6 ft²)

Diameter: 2,741 mm (108 in)

• Vessel is 108" (2741mm) diameter x 39" (990mm) straight side, Filter volume 7200 liters.
• Hydraulic agitator lift driven by 0.75 KW, 3/50/500 volt motor. Packing gland on shaft
• Unit designed for brick type filter stone (none with unit)
• Side discharge

Pressure: 2 bar (29 psi). Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket MOC: Stainless Steel 316.

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Charles Thompson

Model: CT-2525

Condition: Used

Material: Stainless Steel 316

Filtration Area: 5 m² (53.8 ft²)

Diameter: 2,525 mm (99.4 in)

• Agitated jacketed pressure filter/dryer. 400mm agitator stroke, 400mm product discharge lateral, 15 rpm agitator speed, Zone 2 IIB T3 classification. Internal wash ring (pipe), clamped flat filter bed with hydraulic raise/lower mechanism and castors for removing.
• Valve and filter bed raise/lower mechanism driven by a power pack, power pack with a 3kw, 3/50/415 volt, 1440 rpm CE IP55 Ex NII T3 motor.
• Side Discharge.

Pressure: 4 bar (58 psi). Temperature: 150 °C (302 °F). Overall Length: 1,050 mm (41.3 in). Jacket: Yes. Jacket Pressure: 4 bar (58 psi). Jacket MOC: Carbon Steel. Jacket Temperature: 150 °C (302 °F).
