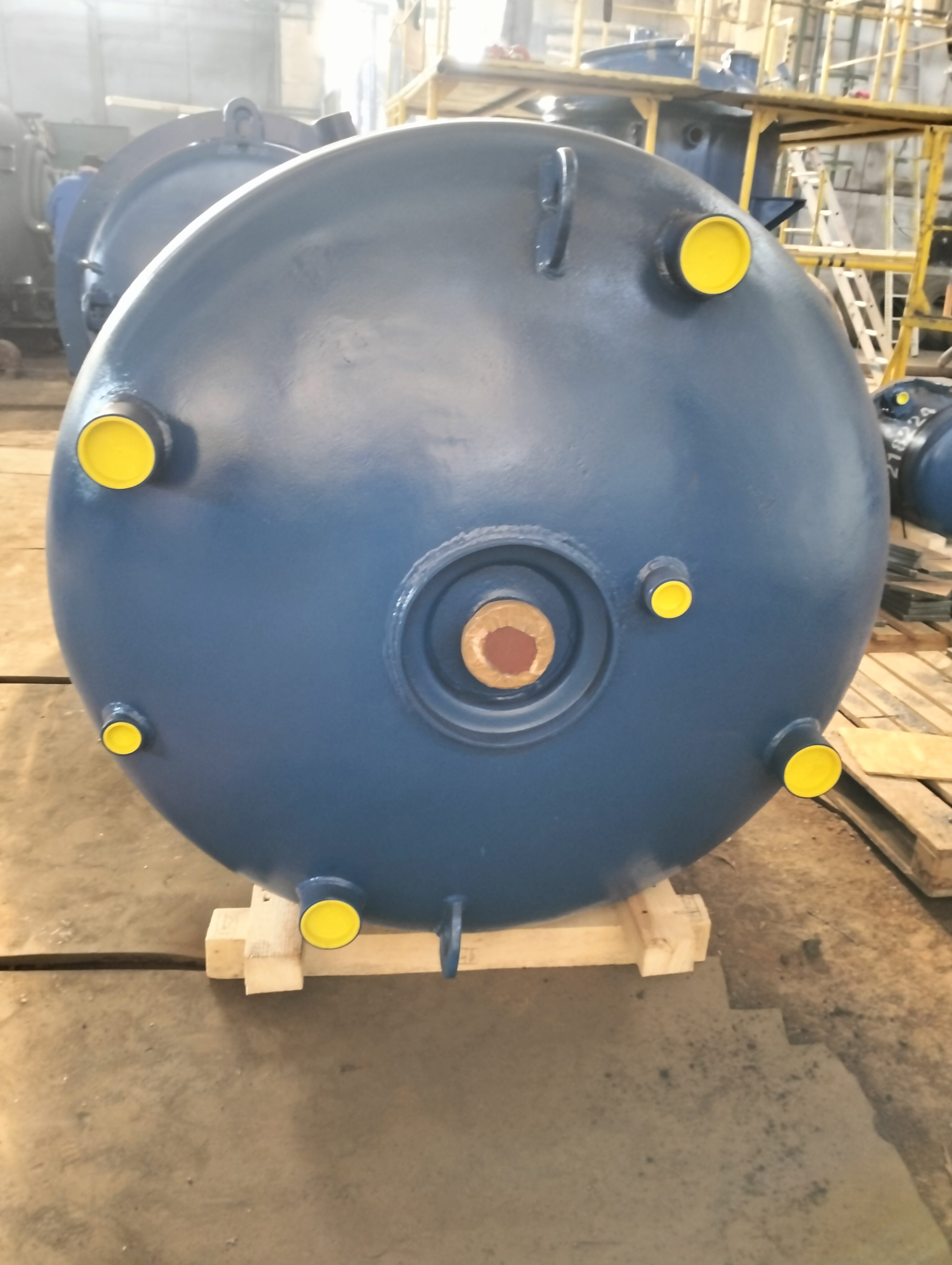

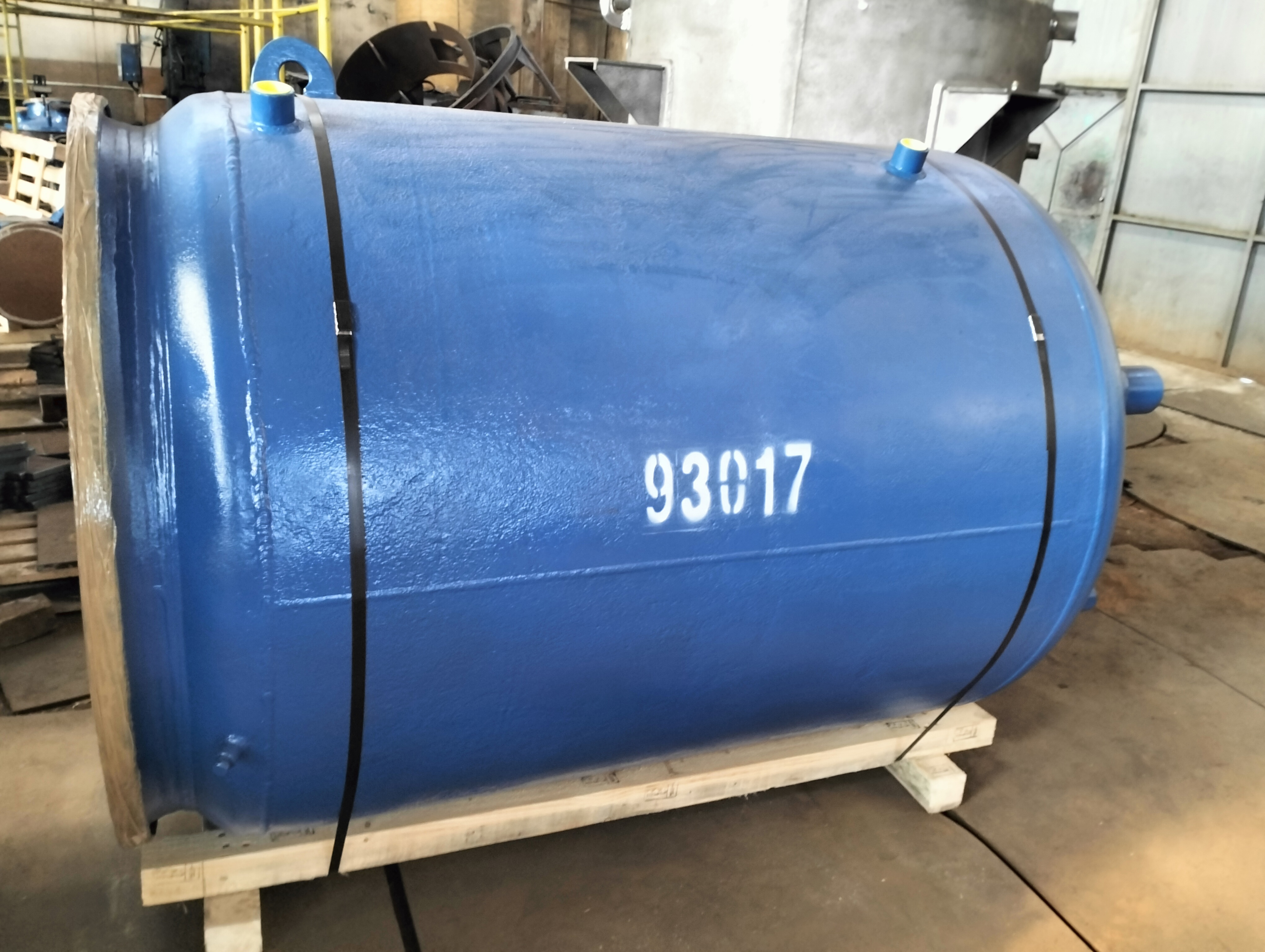

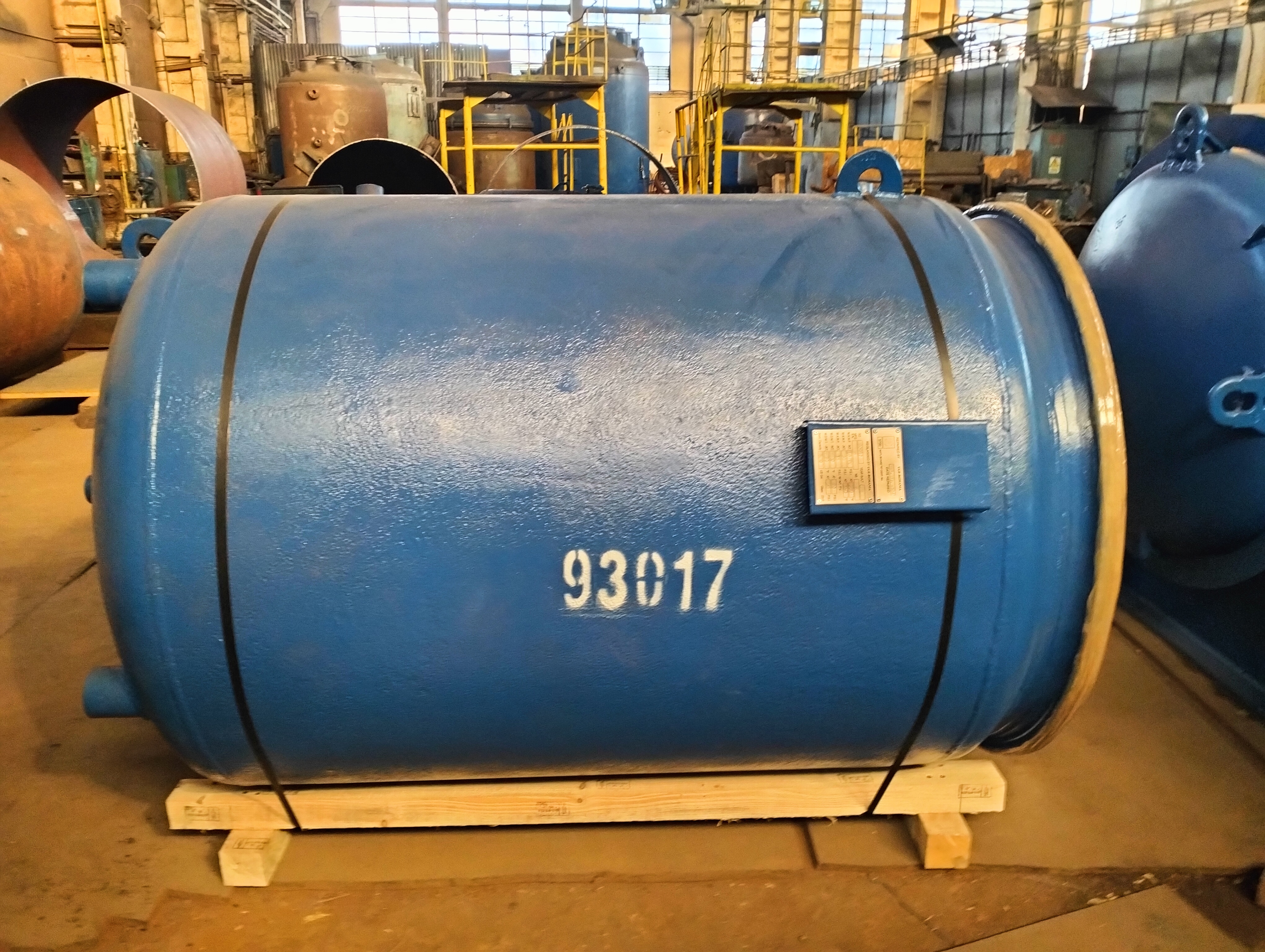

Glasslined Pfaudler EL Batch-Type Agitated Reactor - IPP# 93017

  • Glasslined Pfaudler EL Batch-Type Agitated Reactor - IPP# 93017 Glasslined Pfaudler EL Batch-Type Agitated Reactor - IPP# 93017
  • Glasslined Pfaudler EL Batch-Type Agitated Reactor - IPP# 93017 Glasslined Pfaudler EL Batch-Type Agitated Reactor - IPP# 93017
  • Glasslined Pfaudler EL Batch-Type Agitated Reactor - IPP# 93017 Glasslined Pfaudler EL Batch-Type Agitated Reactor - IPP# 93017
  • Glasslined Pfaudler EL Batch-Type Agitated Reactor - IPP# 93017
  • Glasslined Pfaudler EL Batch-Type Agitated Reactor - IPP# 93017
  • Glasslined Pfaudler EL Batch-Type Agitated Reactor - IPP# 93017
Overview
Reactor
Batch-Type Agitated
Pfaudler
EL
Re-glassed
Glasslined
1,900 L (500 gallons)
Glass Lined
Pressure Vessel
3.4 bar (50 psi)
Yes
176.7 °C (350 °F)
Jacket/Internal Coil
6.2 bar (90 psi)
176.7 °C (350 °F)
Standard
Carbon Steel
Dimensions
Vertical
1,200 mm (48 in)
2,000 mm (78 in)
Agitation System
Yes
Mechanical
Pfaudler 4TW agit drive, Mdl DMV-50410-7B, SN 82004129-001, 10:1 ratio, 175 rpm output, belt driven w/varispeed pulleys, flange mtd 10 HP, 3/60/230/460 volt, 1745 rpm motor. Mech seal. Nucerite 3-blade retreat curve agit and nucerite H-baffle.
7.5 kW (10 HP)
H-Baffle
nucerite H-baffle.
Heads
Dish
Glasslined
Dish
Glasslined
Inlets & Outlets
Openings: top 3-4", 1-8", 12" x 16" manway (no cover); 3" center btm outlet.
Other Specifications
Legs
Glass Details
Full Fire Polish (FF)
Very Clean (VC)
