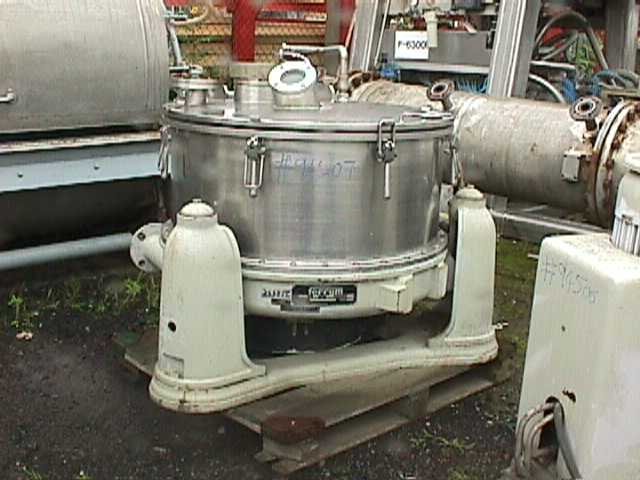

perforated basket centrifuge
Ring volume 100mm
Basket 6mm thick
Top cover pneumatically lifted
Openings: top cover 2-3" (1-sight glass)
1-1 1/2", 1-1", 1-3/4"; filtrate 1-3"
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Ferrum
Model: J8P-S
Condition: Refurbished/Rebuilt
Material: Stainless Steel 316
Basket Diameter: 800 mm (31.5 in)
Basket Depth: 360 mm (14.2 in)
sanitary perforated basket centrifuge
140 kg wet material
with handbrake
openings: 2-75mm feed pipes, 1-75mm filtrate outlet, 2-75mm sightglasses
Filtration Area: 0.9 m² (9.69 ft²). Motor Power: 2.24 kW (3 HP). Speed-RPM Maximum: 960. Load Weight: 140 kg (309 lb).
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Ferrum
Condition: Refurbished/Rebuilt
Material: Stainless Steel 316
Basket Diameter: 1,000 mm (39.4 in)
Basket Depth: 500 mm (19.7 in)
Perforate basket centrifuge
Sanitary curb including the exterior
Non-flameproof motor
Handbrake.
2-75mm sight glasses in access door.
Feed 100mm, wash pipe 19mm
with (1) spray nozzle, filtrate outlet 100mm, 1-100mm on curb. (*)
Motor Power: 7.5 kW (10.1 HP). Load Weight: 120 kg (265 lb).
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Ferrum
Model: POR-1250
Condition: Used
Material: Stainless Steel 316
Basket Diameter: 1,250 mm (49.2 in)
Basket Depth: 600 mm (23.6 in)
highly polished 316L (1.4435) stainless steel basket centrifuge
basket thickness 12mm,
pressure 1.8 bar @ 150 degrees C
half of the top cover hinges/opens, open/close assist driven by a power pack,
cake is discharged via a pneumatic thermosyphon peeling pipe/plow and also pressurised gas is introduced into the centrifuge which enables the solids to discharge upwards.
Filtration Area: 2.35 m² (25.3 ft²). Speed-RPM Maximum: 950. G Force: 630. Load Weight: 480 kg (1,058 lb).
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Ferrum
Model: FIV55ELGR1
Condition: Used
Material: Stainless Steel 316L
Basket Diameter: 1,250 mm (49.2 in)
Basket Depth: 600 mm (23.6 in)
top load/unload
pressure 1.8 bar @ 150 deg C

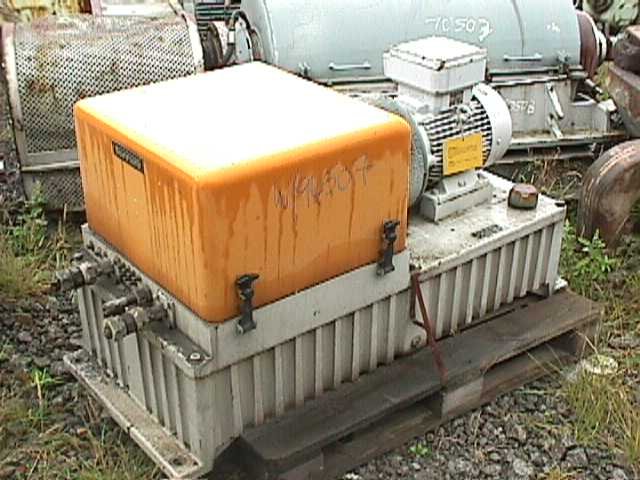

via a hydraulic Rexroth type
380/660 volt
1480/1475 rpm motor
Thermosyphon which is hydraulic driven by the same powerpack,
2-internal spray nozzles, 1-150mm filtrate outlet
half of the top cover is hinged and has a open/close assist mechanism, hydraulic panel,
Motor Power: 27 kW (36.2 HP). Load Weight: 480 kg (1,058 lb).
