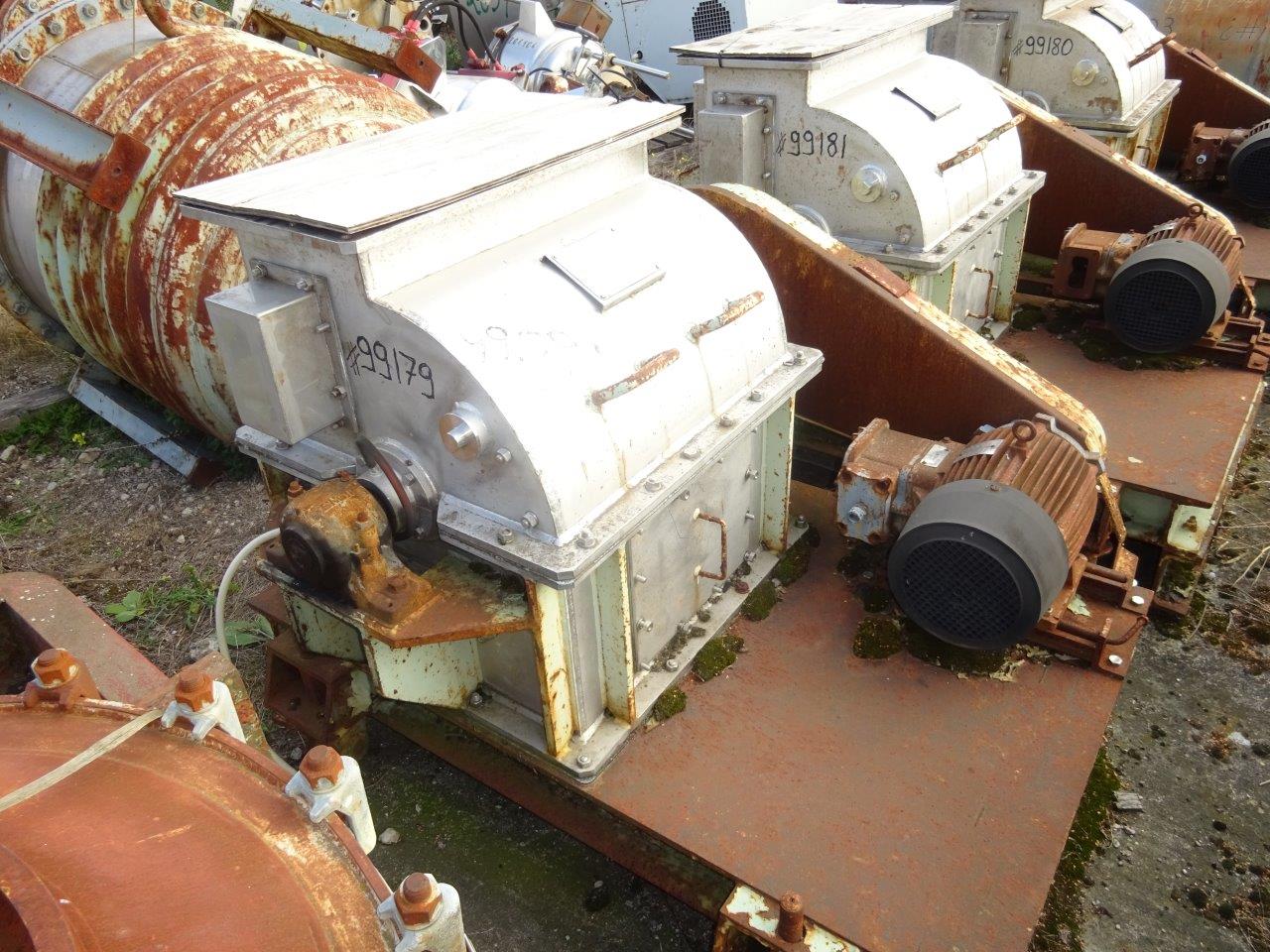

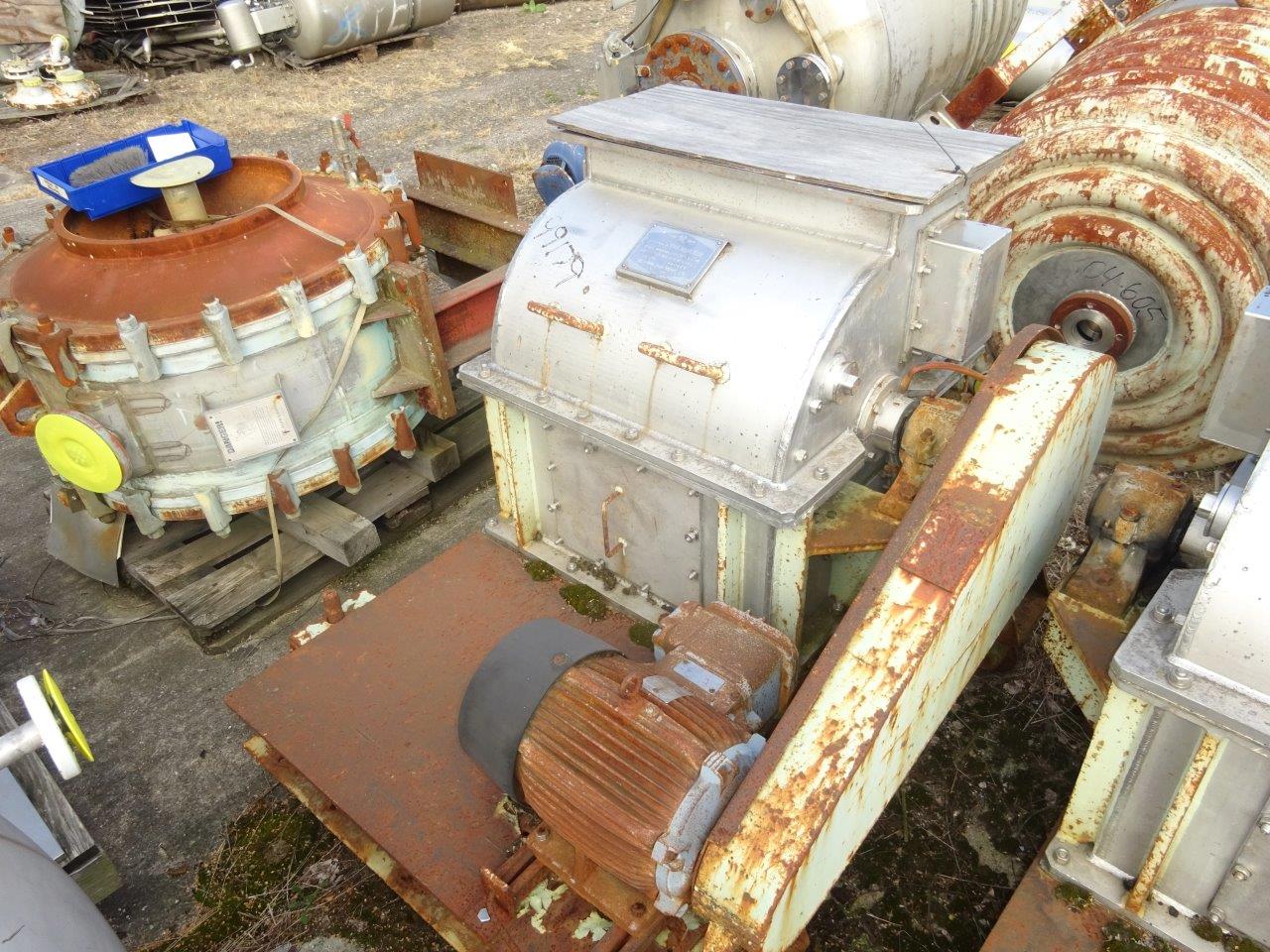

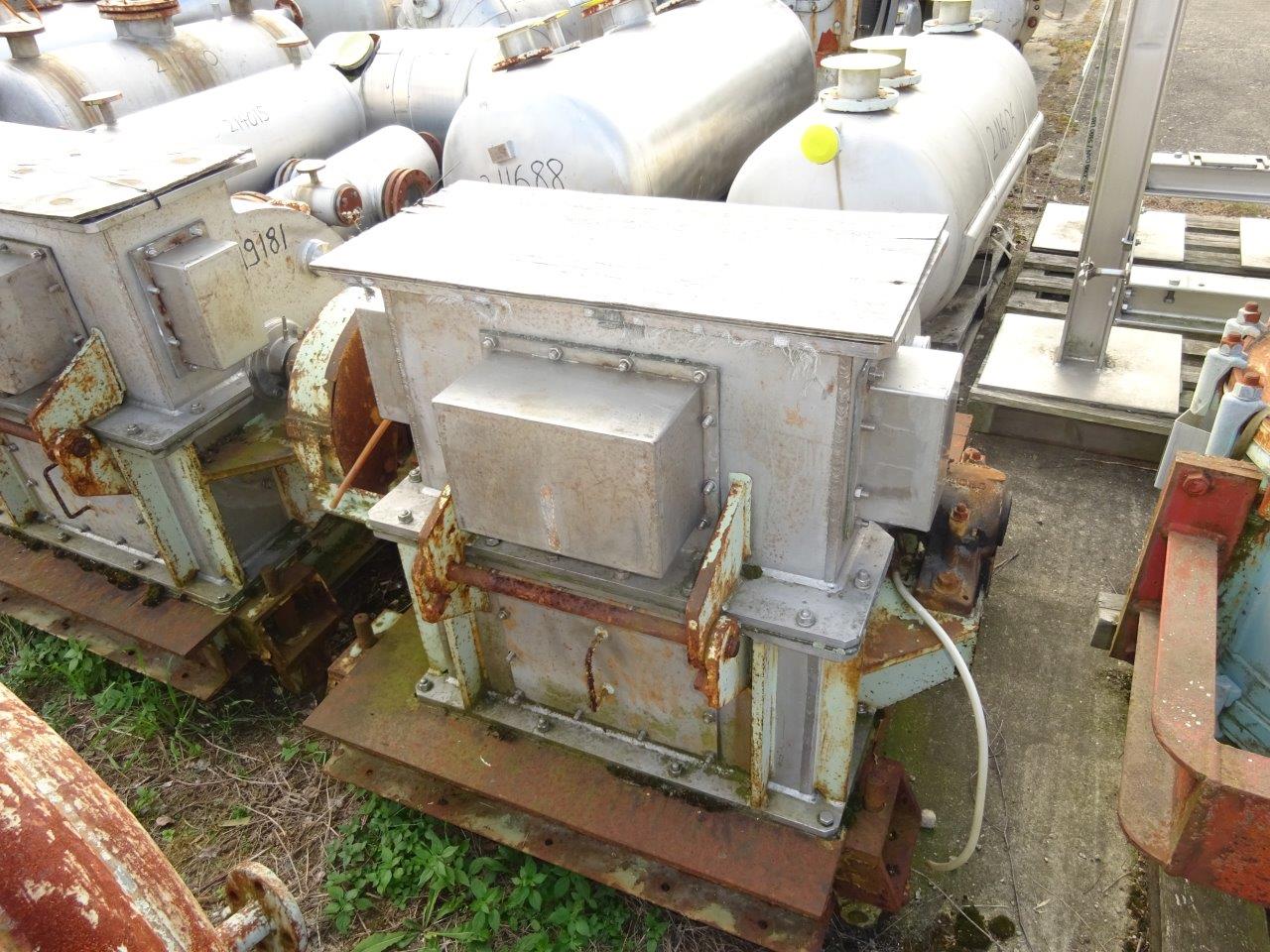

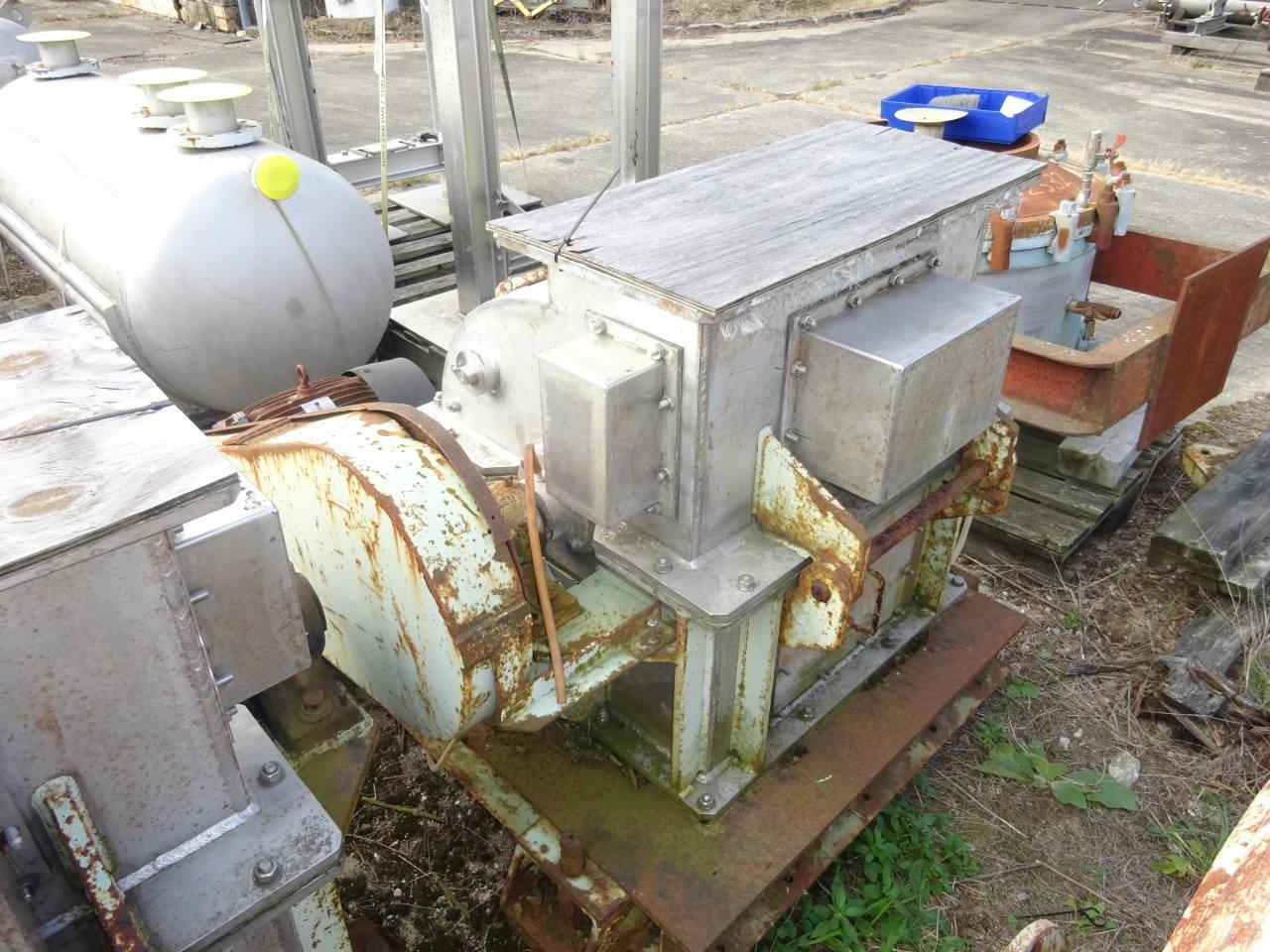

IPP# 99179 - Granulator/Disintegrator Pulverizer 3.73 kW (5 HP) Stainless Steel 304 For Sale

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Alpine (Hosokawa)

Model: 450MM

Condition: Used

Material: Stainless Steel 304

Outlet Discharge Diameter: 559 mm (22 in)

Inlet Diameter: 635 mm (25 in)

Top feed, gravity discharge
Has (16) fixed blades, sharp on one side, on 24" (620mm) long rotor.

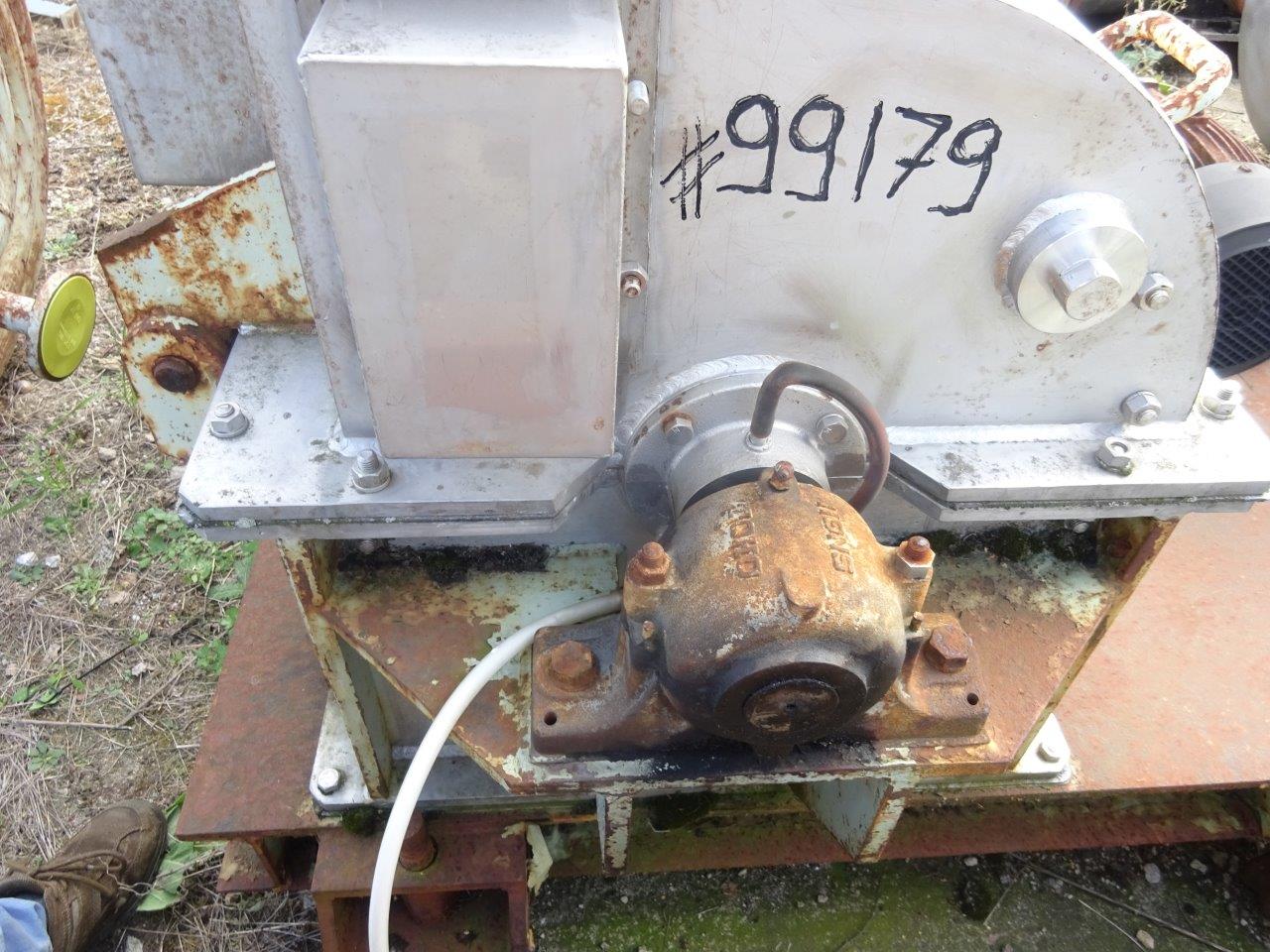

Has outboard bearing and removable rotor.
25" x 10" feed, 22" x 16" discharge
Housing on hinge.

Motor Power (Design): 3.73 kW (5 HP). Orientation: Horizontal.

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Alpine (Hosokawa)

Model: 450mm dia x 620 L

Condition: Used

Material: Stainless Steel 304

Outlet Discharge Diameter: 559 mm (22 in)

Inlet Diameter: 635 mm (25 in)

Top feed, gravity discharge.
Has (16) fixed blades, sharp on one side, on 24" (620mm) long rotor.
X-proof motor.
Has outboard bearing and removable rotor.
25" x 10" feed, 22" x 16" discharge
Housing on hinge.

Motor Power (Design): 3.73 kW (5 HP). Orientation: Horizontal.

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Alpine (Hosokawa)

Model: Multiplex 315 UPZ

Condition: Used

Material: Stainless Steel 304

Capacity: 11 m3 (388 ft3)

Outlet Discharge Diameter: 157 mm (6.16 in)

rated: 11 DCuM, 0.05 bar, 60°C., 10 bar overpressure
stud disc diameter: 315 mm, plate beater: 298 mm, swing beater: 298mm, air inlet: DN 100 mm

Inlet Diameter: 150 mm (5.91 in). Motor Power (Design): 22 kW (29.5 HP). Orientation: Horizontal. Pressure: 0.05 bar (0.725 psi). Temperature: 60 °C (140 °F).

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Alpine (Hosokawa)

Model: 630-C

Condition: Used

Material: Stainless Steel 321

Motor Power (Design): 23 kW (30.8 HP)

Speed (RPM): 2,000

contraplex wide chamber impact pin mill with 2-driven counter rotating pin discs
throughput 800 KG/hour,
housing disc belt driven by 23kw, 3/50/660 volt, 1500 rpm Ex II T3 motor,
front door disc belt driven by 23kw, 3/50/660 volt, 1500 rpm Ex II T3 motor,
hinged front door

Orientation: Horizontal. Temperature: 60 °C (140 °F).
