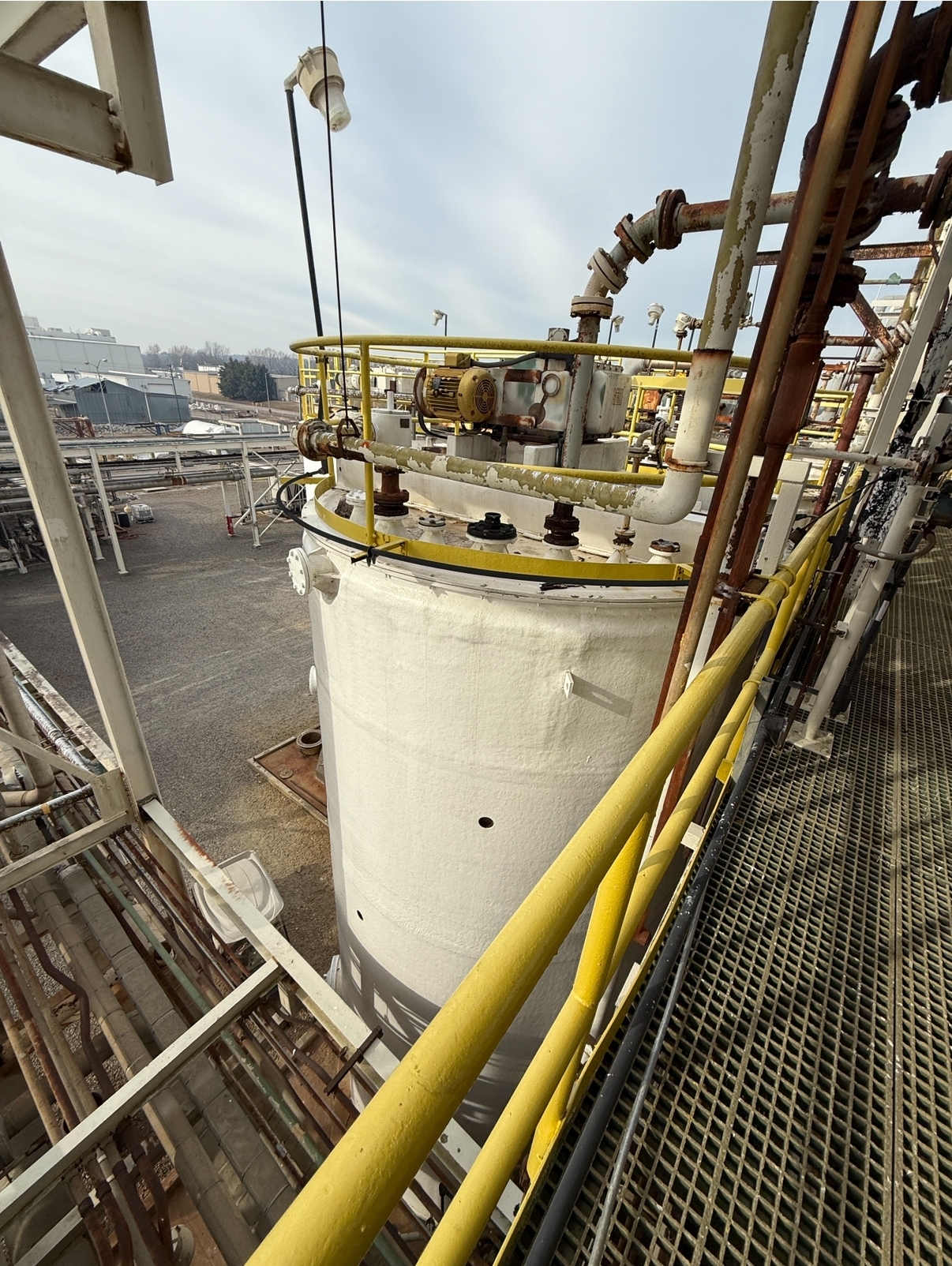

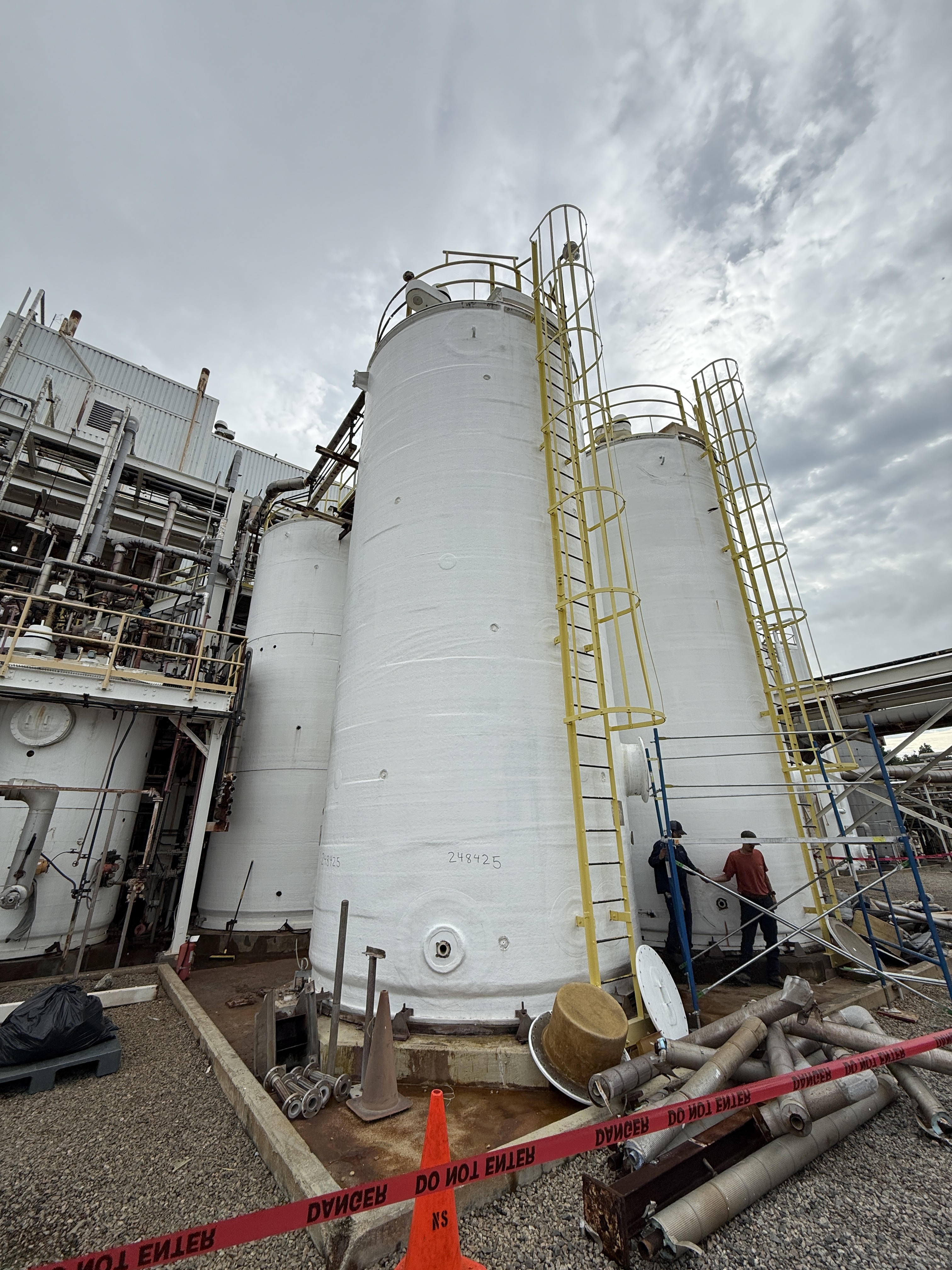

78 ft2 Fiberglass Crystallizer/Evaporator with Titanium Coil - IPP# 248425

Type: Evaporator

Subtype: Crystalizer/Evaporator

Manufacturer: Palmer Mfg. and Tank Inc

Condition: Used

Material: Fiberglass

Evaporation Rate: 177 kg/h (390 lb/h)

Total Heat Transfer Surface Area: 7.25 m² (78 ft²)

• Evaporation rate based on 5 lbs. water per square foot of surface area.
• 20 HP agitator with PVDF coated blades & shaft, bridge mounted, 86" wide sweep, and rotating at 37 RPM.

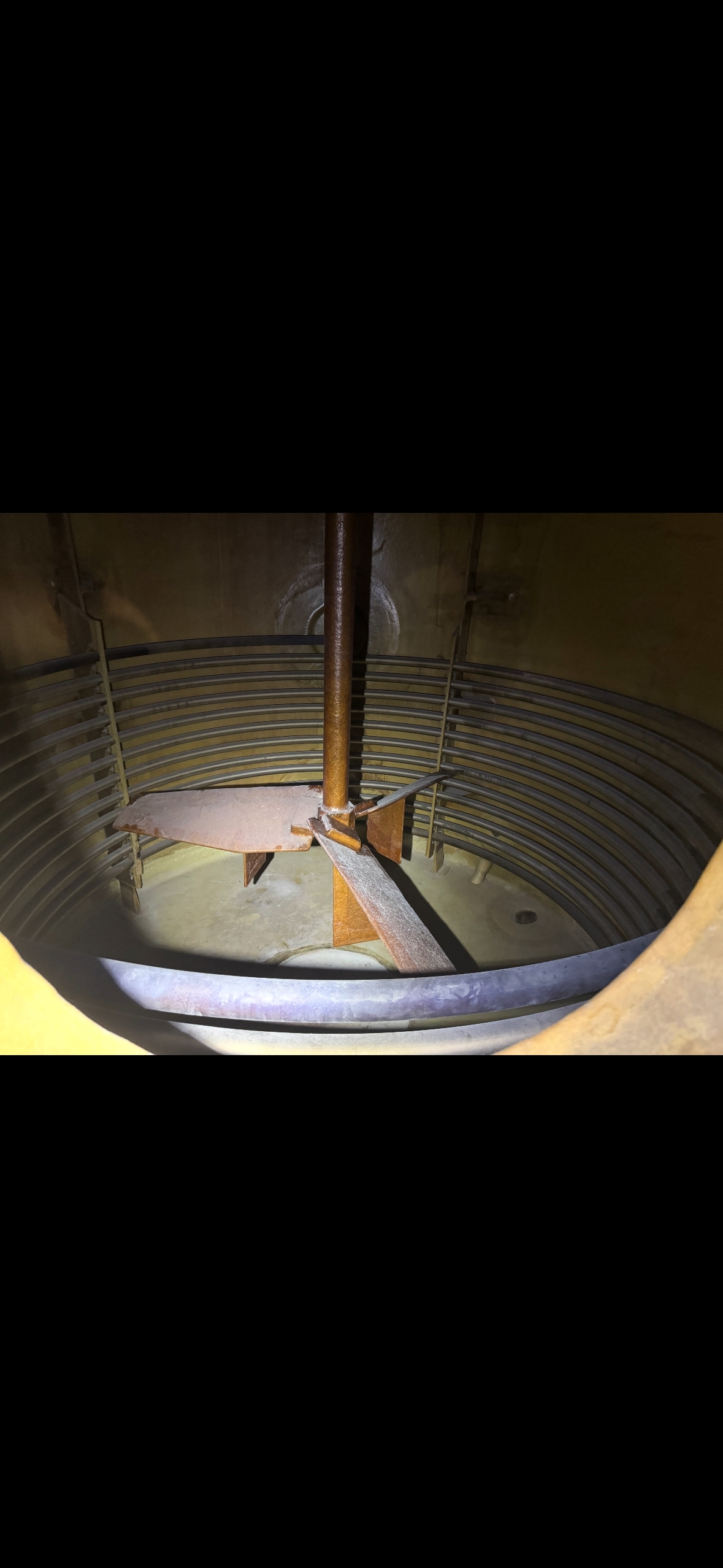

• Coils 12 turns titanium grade 7 coils internal. 2" schedule 10 pipe.
• 4 Derakane 411 baffles.

Orientation: Vertical. Diameter: 3,658 mm (144 in). Height: 8,839 mm (348 in). Temperature: 71.1 °C (160 °F). Vacuum: Yes. Internal Coil: Yes. Agitation: Yes. Agitator Seal Type: Packing. Internal Coil or Jacket Temperature: 93.3 °C (200 °F). Internal Coil or Jacket Pressure: 10.3 bar (150 psi). Capacity in Gallons: 92,743 L (24,500 gallons).

Type: Evaporator

Subtype: Crystalizer/Evaporator

Manufacturer: ERSHIGS

Condition: Used

Material: Fiberglass

Evaporation Rate: 177 kg/h (390 lb/h)

Total Heat Transfer Surface Area: 7.25 m² (78 ft²)

• Evaporation rate based on 5 lbs. water per square foot of surface area.
• 20 HP agitator with PVDF coated blades & shaft, bridge mounted, 86" wide sweep, and rotating at 37 RPM.
• Coils 12 turns titanium grade 7 coils internal. 2" schedule 10 pipe.
• 4 Derakane 411 baffles.

Orientation: Vertical. Diameter: 3,658 mm (144 in). Height: 8,839 mm (348 in). Pressure: 0.965 bar (14 psi). Temperature: 71.1 °C (160 °F). Vacuum: Yes. Internal Coil: Yes. Agitation: Yes. Agitator Seal Type: Packing. Internal Coil or Jacket Temperature: 93.3 °C (200 °F). Internal Coil or Jacket Pressure: 10.3 bar (150 psi). Capacity in Gallons: 92,743 L (24,500 gallons).

Type: Evaporator

Subtype: Crystalizer/Evaporator

Manufacturer: ERSHIGS

Condition: Used

Material: Fiberglass

Evaporation Rate: 177 kg/h (390 lb/h)

Total Heat Transfer Surface Area: 7.25 m² (78 ft²)

• Evaporation rate based on 5 lbs. water per square foot of surface area.
• 20 HP agitator with PVDF coated blades & shaft, bridge mounted, 86" wide sweep, and rotating at 37 RPM.
• Coils 12 turns titanium grade 7 coils internal. 2" schedule 10 pipe.
• 4 Derakane 411 baffles.

Orientation: Vertical. Diameter: 3,658 mm (144 in). Height: 87,579 mm (3,448 in). Temperature: 71.1 °C (160 °F). Vacuum: Yes. Internal Coil: Yes. Agitation: Yes. Agitator Seal Type: Packing. Internal Coil or Jacket Temperature: 93.3 °C (200 °F). Internal Coil or Jacket Pressure: 10.3 bar (150 psi). Capacity in Gallons: 92,743 L (24,500 gallons).

Type: Evaporator

Subtype: Crystalizer/Evaporator

Manufacturer: ERSHIGS

Condition: Used

Material: Fiberglass

Evaporation Rate: 177 kg/h (390 lb/h)

Total Heat Transfer Surface Area: 7.25 m² (78 ft²)

• Evaporation rate based on 5 lbs. water per square foot of surface area.
• 20 HP agitator with PVDF coated blades & shaft, bridge mounted, 86" wide sweep, and rotating at 37 RPM.
• Coils 12 turns titanium grade 7 coils internal. 2" schedule 10 pipe.
• 4 Derakane 411 baffles.

Orientation: Vertical. Diameter: 3,658 mm (144 in). Height: 8,839 mm (348 in). Temperature: 71.1 °C (160 °F). Vacuum: Yes. Internal Coil: Yes. Agitation: Yes. Agitator Seal Type: Packing. Internal Coil or Jacket Temperature: 93.3 °C (200 °F). Internal Coil or Jacket Pressure: 10.3 bar (150 psi). Capacity in Gallons: 92,743 L (24,500 gallons).
