Filter - IPP# 239393

Type: Filter

Manufacturer: Sartorius

Model: Sartoflow 20 PH/A "Gandalf"

Condition: Used

Material: Stainless Steel 316

Vessel Liquid Capacity: 200 L (52.8 gallons)

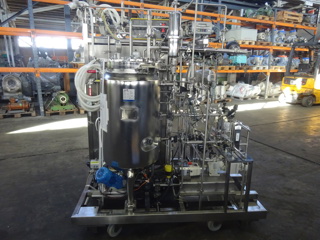

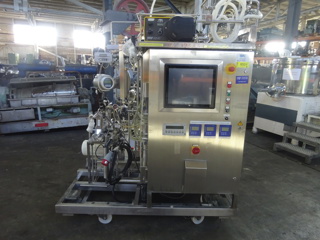

Sartoflow 20 PH/A Crossflow Filter/ Tangential Flow Filter (TFF) system

• Skid mounted system with the following components- Sartoflow 20 filter holder, can handle 20 crossflow cassettes or four Sartocubes.

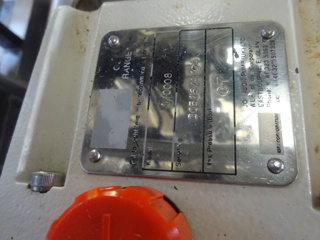

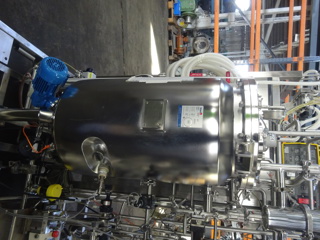

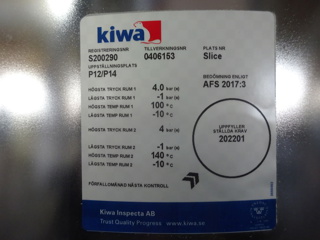

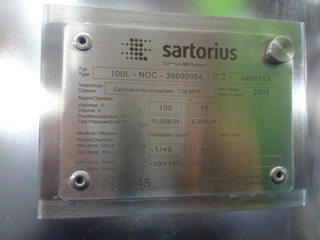

• A 200 Liter vertical pressure tank, with jacket engineered by Sartorius, type 200L NOC-39600055, serial # 0406154. Vessel rated for -1 to 6 bar at 140 degrees C, jacket (15 liter) is rated for -1 to 4 bar at 140 degrees C. Vessel has a welded dish bottom and bolted flat top. Under drive is magnetic with a 1 kW drive motor.

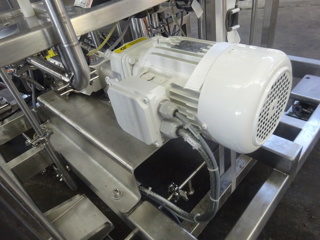

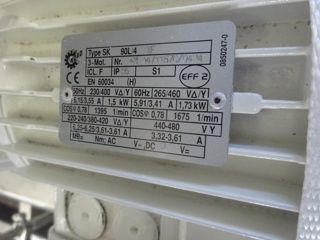

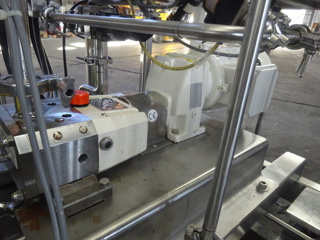

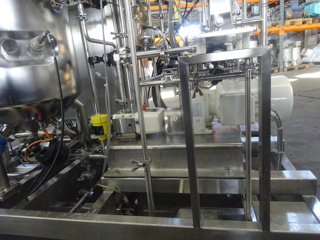

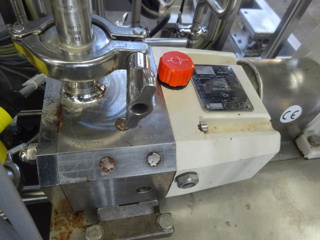

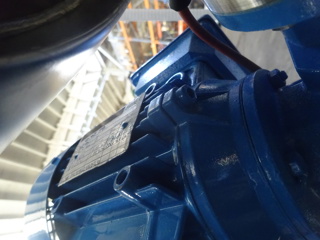

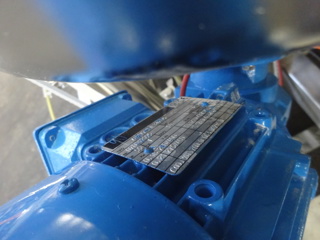

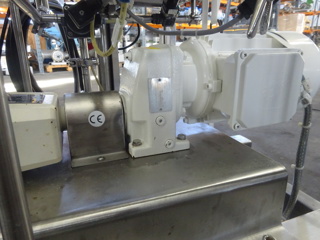

• 2" x 2" rotary lobe pump with a Nord drive serial # 30515/A/04 rated for 7 bar.

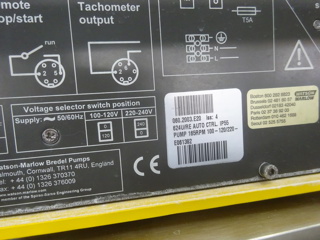

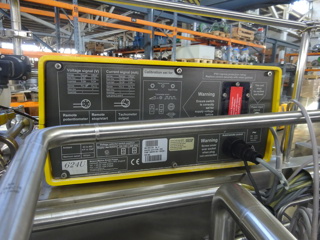

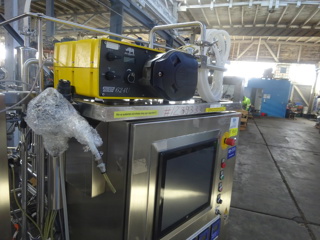

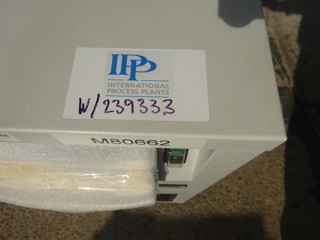

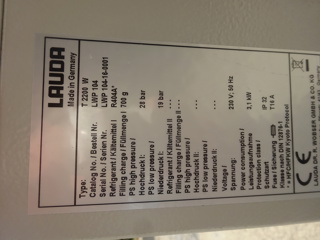

• With one Watson Marlow 624 U, auto control 165 rpm peristaltic pump. Controls in NEMA Stainless steel cabinets with an IEI HMI. Jacket and cooling is completed by a Lauda T -4600 cooling unit, 18 Liter bath capacity, process thermostat, manufactured by Lauda-Brinkman, model T4600. Temperature range -30 degrees C to 120 degrees C. Cooling capacity at 20 degrees C. 4600 W. With 2 line back lit LCD display. Temperature accuracy to plus/minus 0.05 degrees C. Skid dimensions overall 1.8 m long x 1260 mm deep x 2.5 m high. CE certified.

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap

Model: A18

Condition: Unused

Material: Stainless Steel 316L

Filtration Area: 18 m² (193.8 ft²)

Diameter: 1,100 mm (43.3 in)

Funda filter with centrifugal discharge (23) 1000mm diameter filter elements mounted @ 30mm spacing Wet cake discharge

Pressure: 5 bar (72.5 psi). Temperature: 100 °C (212 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Diessel Hildesheim

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 2.2 m² (24 ft²)

Diameter: 508 mm (20 in)

Orientation: Horizontal. Pressure: 6 bar (87 psi). Temperature: 148.9 °C (300 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 3 bar (43.5 psi). Jacket Type: Standard. Jacket MOC: Stainless Steel 316L. Jacket Temperature: 148.9 °C (300 °F). Number of Filter Elements: 5+1.

Type: Filter

Subtype: Cartridge And Candle

Manufacturer: 3M Purification

Model: 16ZPB4

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 2.8 m² (30.1 ft²)

Diameter: 457.2 mm (18 in)

• These take a Zeta Plus Cartridge 2.8 m2, double open end, rated for 82 degree C., 40.64 cm diameter x 27.3 cm high.
• With Jacket
• Part # 4544802

Orientation: Vertical. Pressure: 10.3 bar (150 psi). Temperature: 93.3 °C (200 °F). Jacket: Yes. Jacket Pressure: 5.2 bar (75 psi). Jacket Type: Standard. Jacket MOC: Stainless Steel 316L. Jacket Temperature: 93.3 °C (200 °F).
