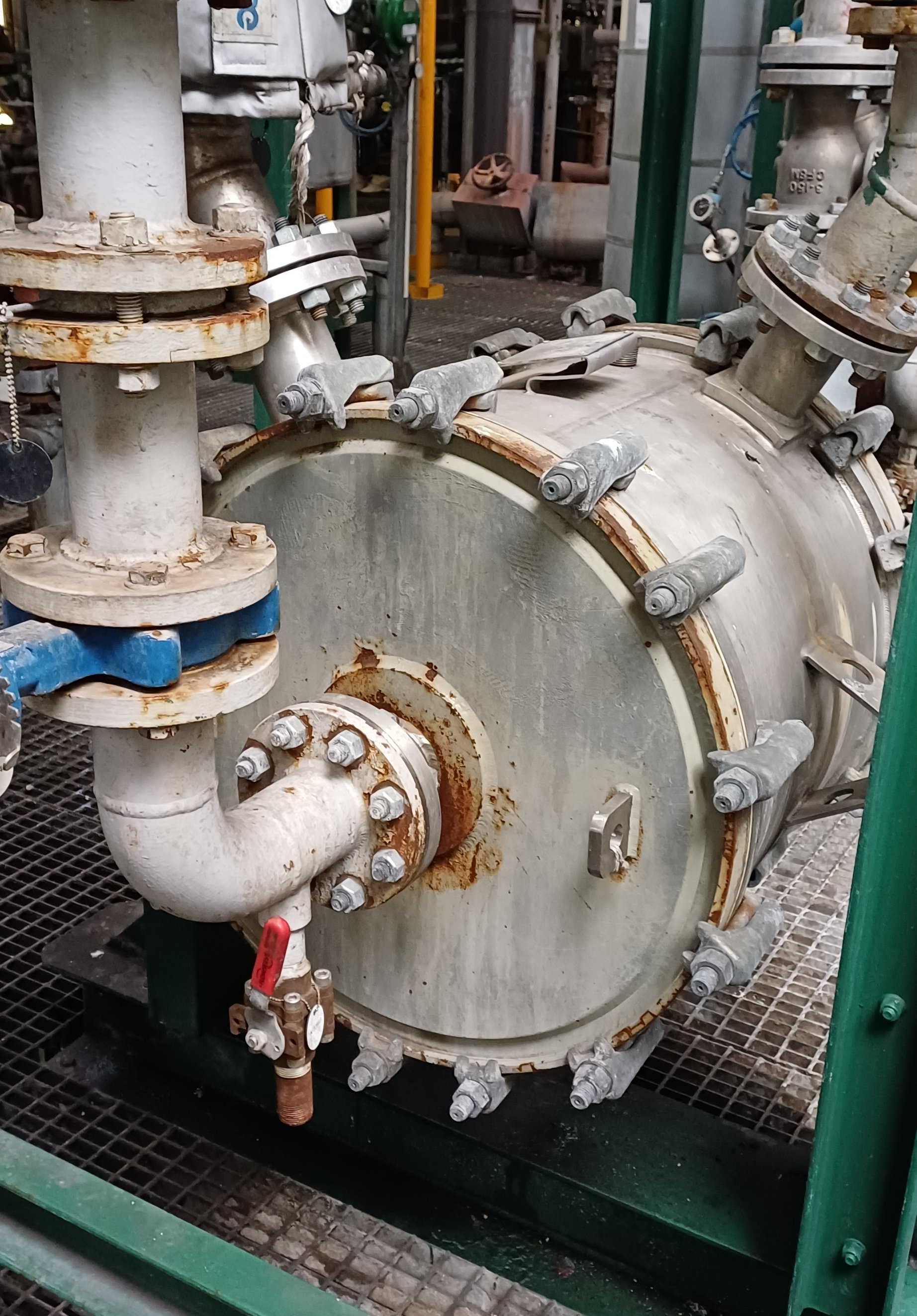

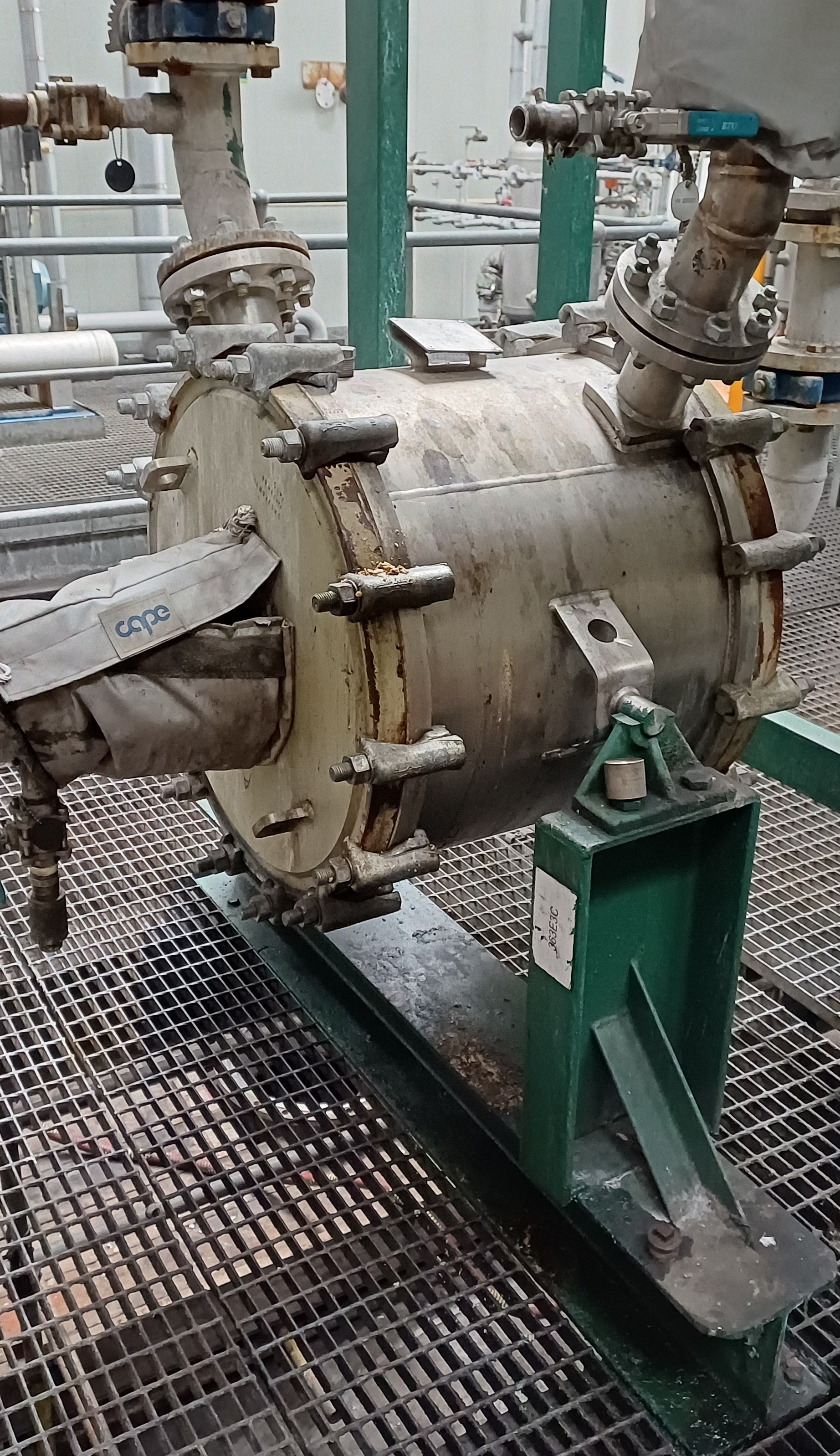

Stainless Steel 316L Alfa Laval AI.SHE LTL. 13S Spiral Heat Exchanger - IPP# 248321

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: AI.SHE LTL. 13S

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 13.5 m² (145.3 ft²)

Shell Material: Stainless Steel 316L

• design pressure channel A: 10 barg @ -10/130 degrees C (50 liter), channel B: 10 barg @ -10/130 degrees C (70 liter),

Shell Diameter: 645 mm (25.4 in). Head Material: Carbon Steel with 316L SS lining. Length: 600 mm (23.6 in). Cold-side Pressure: 10 bar (145 psi). Cold-side Temperature: 130 °C (266 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 130 °C (266 °F). Spiral Material: Stainless Steel 316L.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: AI.SHE LTL. 13S

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 13.5 m² (145.3 ft²)

Shell Material: Stainless Steel 316L

• design pressure channel A: 10 barg @ 0/130 degrees C (50 liter), channel B: 10 barg @ 0/130 degrees C (70 liter),
• mounted on a frame,

Shell Diameter: 645 mm (25.4 in). Head Material: Carbon Steel with 316L SS lining. Length: 600 mm (23.6 in). Cold-side Pressure: 10 bar (145 psi). Cold-side Temperature: 130 °C (266 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 130 °C (266 °F). Spiral Material: Stainless Steel 316L.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: I H

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 58.5 m² (630 ft²)

Shell Pressure: 7 bar (101.5 psi)

duty 0.37MW, spacing channel A 8, channel B 12, channel A volume 220 liter, channel B 400 liter,

design code ASME VIII DIV 1 Edition 1992

Shell Temperature: 170 °C (338 °F). Shell Material: Stainless Steel 316. Shell Diameter: 1,700 mm (66.9 in). Head Material: Stainless Steel 316. Length: 300 mm (11.8 in). Cold-side Pressure: 7 bar (101.5 psi). Cold-side Temperature: 170 °C (338 °F). Hot-side Pressure: 13 bar (188.5 psi). Hot-side Temperature: 170 °C (338 °F). Spiral Material: Stainless Steel 316.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Condition: Used

Material: Alloy 20

Heat Transfer Surface Area: 9.3 m² (100 ft²)

Shell Pressure: 10.3 bar (150 psi)

AL6XN product contact (cover faced with ALX6N) vertical spiral heat exchanger Heads =0.86" thick shell =0.135" thick. with welded bottom cone and clamped top

Shell Temperature: 232.2 °C (450 °F). Shell Material: Alloy 20. Vacuum: Yes. Shell Diameter: 431.8 mm (17 in). Head Material: Carbon Steel. Length: 1,750 mm (69 in). Nozzle Schedule: Nozzle schedule as follows: one 10" inlet, Two 2" outlets, one 2" inlet, one 1" drain.. Cold-side Pressure: 10.3 bar (150 psi). Cold-side Temperature: 232.2 °C (450 °F). Hot-side Pressure: 10.3 bar (150 psi). Hot-side Temperature: 232.2 °C (450 °F). Spiral Material: Alloy 20.
