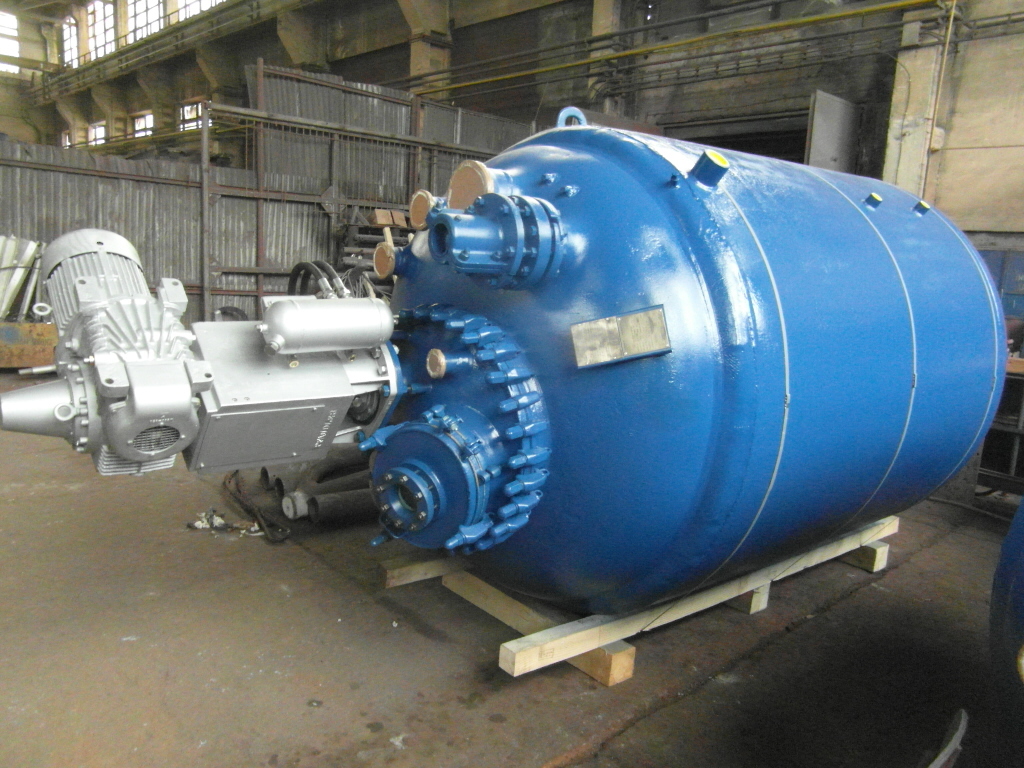

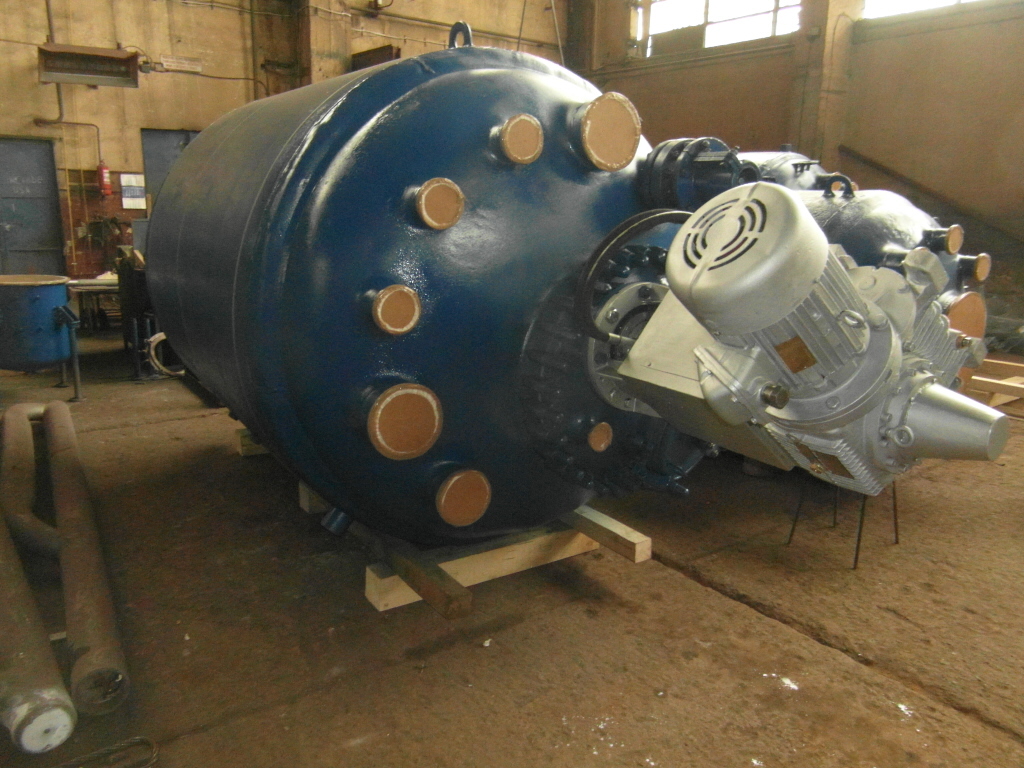

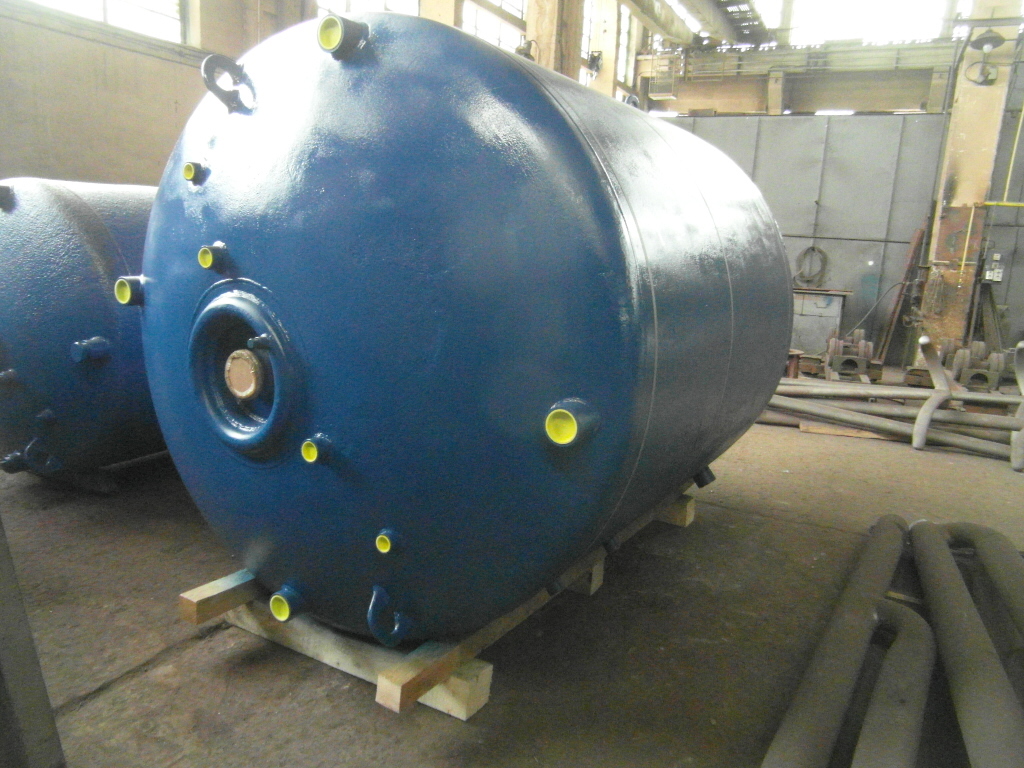

Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073

  • Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073 Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073
  • Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073 Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073
  • Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073 Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073
  • Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073 Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073
  • Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073 Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073
  • Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073 Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073
  • Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073
  • Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073
  • Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073
  • Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073
  • Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073
  • Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 232073
Overview
Reactor
Batch-Type Agitated
Pfaudler
RA
Re-glassed
Glasslined
7,550 L (2,000 gallons)
Glass Lined
Pressure Vessel
6.9 bar (100 psi)
Yes
176.7 °C (350 °F)
Jacket/Internal Coil
6.2 bar (90 psi)
176.7 °C (350 °F)
Standard
Carbon Steel
Dimensions
Vertical
2,000 mm (78 in)
2,150 mm (84 in)
Agitation System
Yes

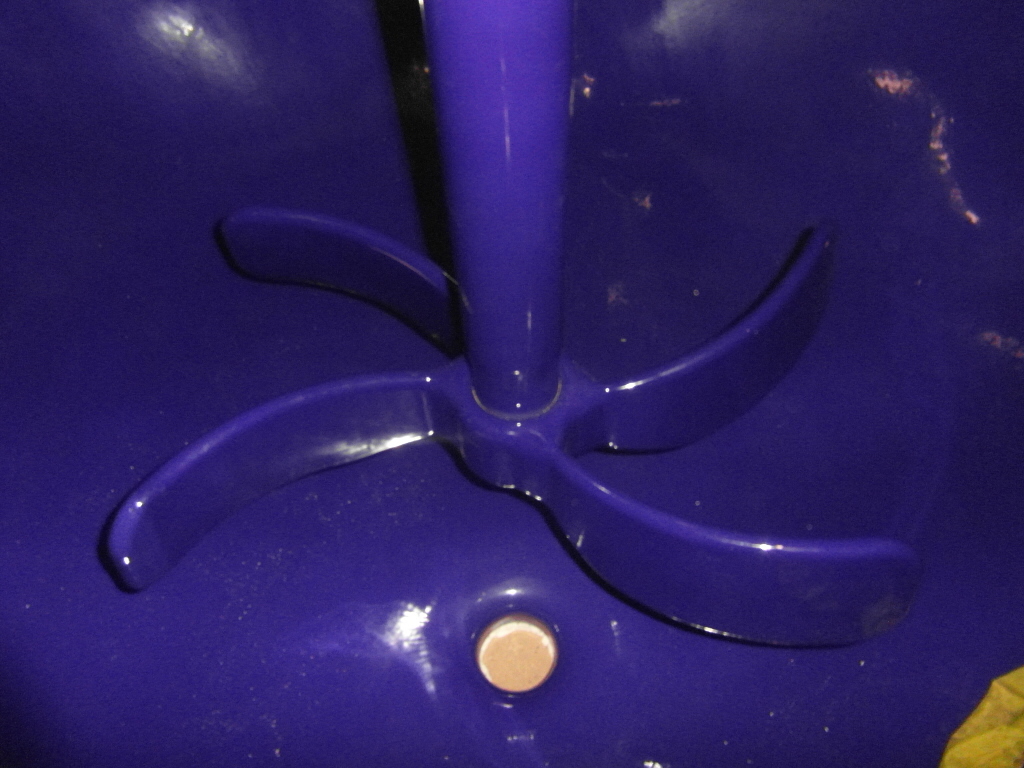

CBT
Mechanical

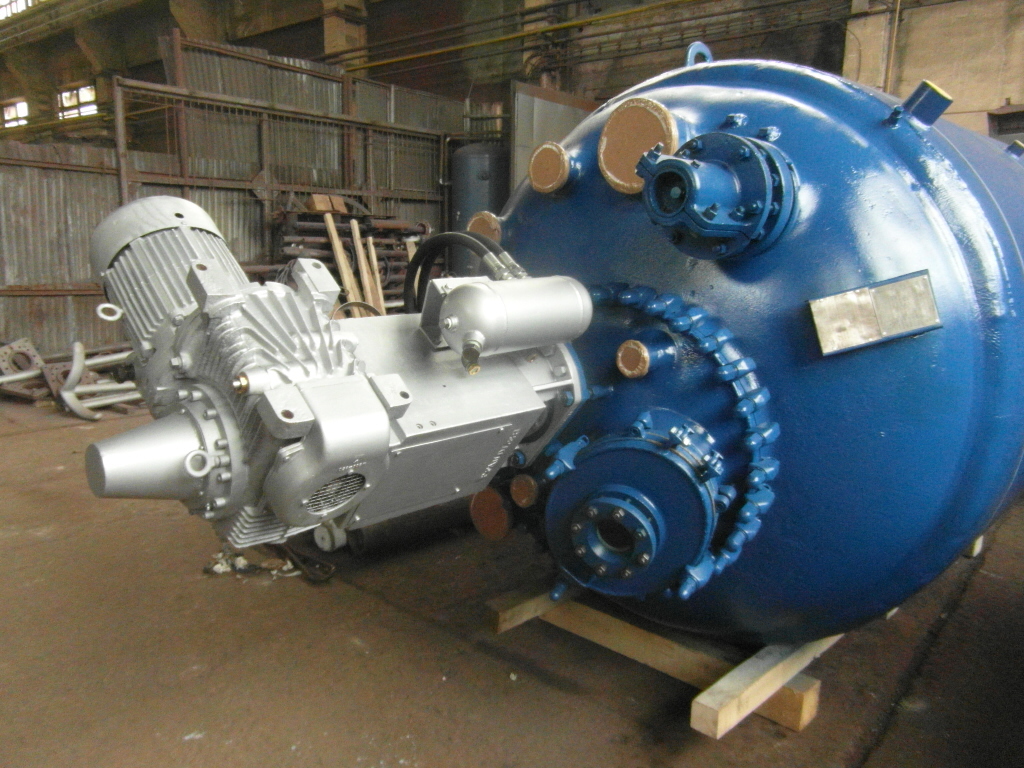

- Drive System: 5RW with double mechanical seal and 15 HP flange mount motor
11.2 kW (15 HP)
11.2 kW (15 HP)

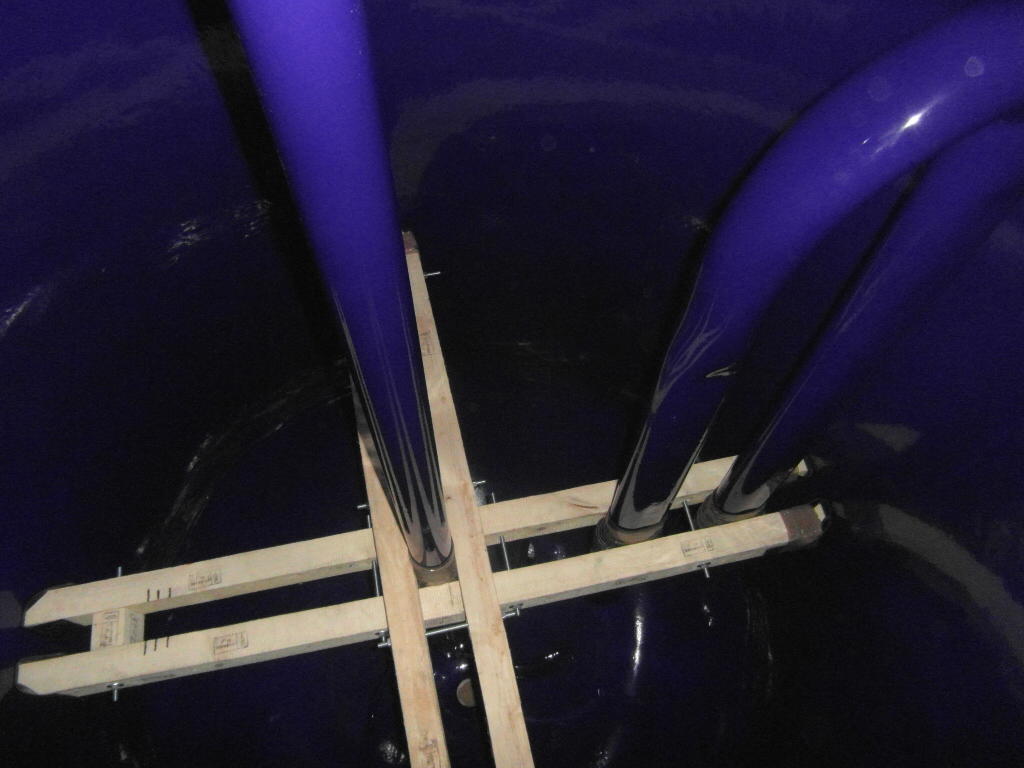

H-Baffle
Integral tip
Heads
Dish
Glasslined
Dish
Glasslined
Other Specifications
Yes
Legs
Inlets & Outlets
- Cover: 30" main cover, 14" x 18" maw way with pro ring - Top Head Nozzles: Schedule two 8", two 6", three 4", two 2" and one 4" drive nozzle - Center Bottom Nozzle: One 4"
Glass Details
Full Fire Polish (FF)
Very Clean (VC)
Additional Information
  • Complete assembly
  • Series: RA15 HP flange mount motor
