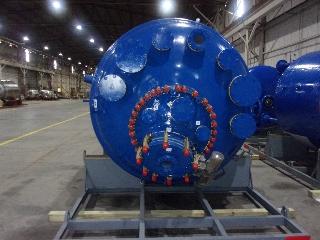

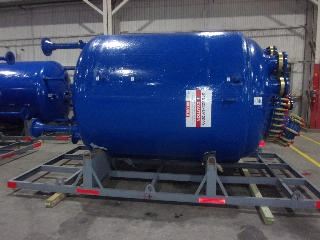

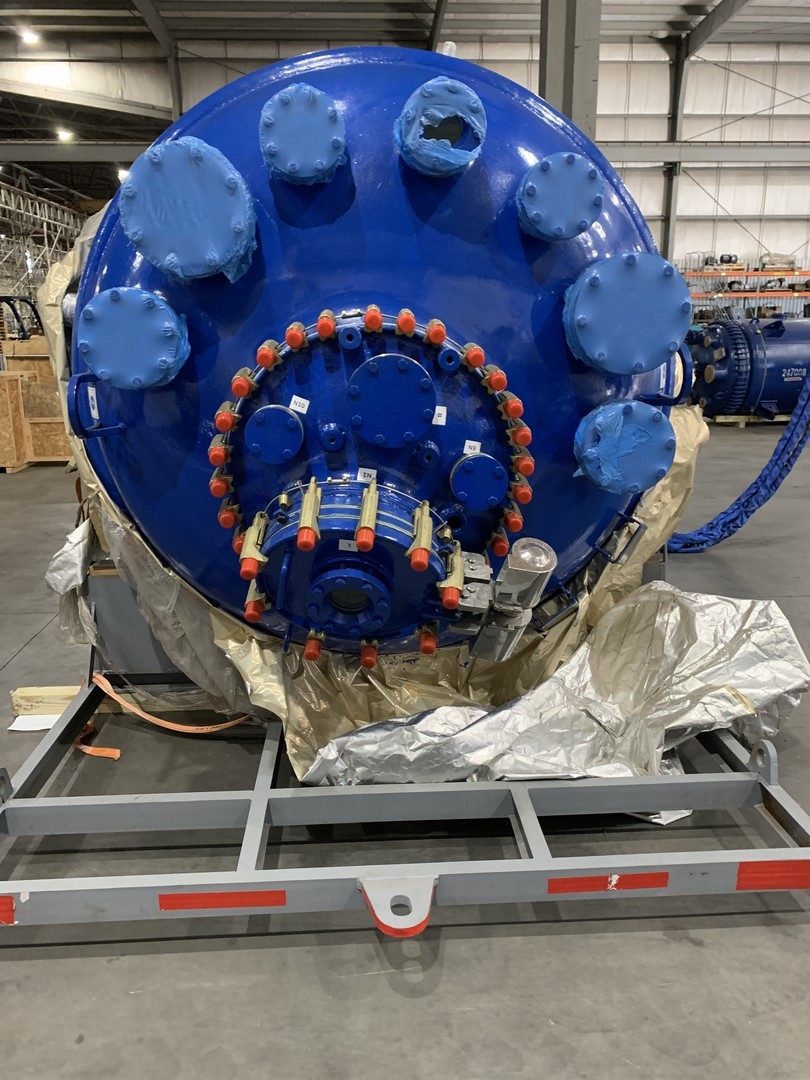

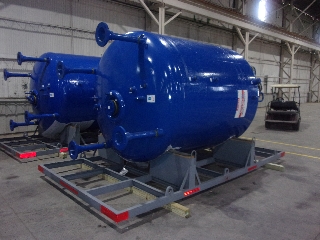

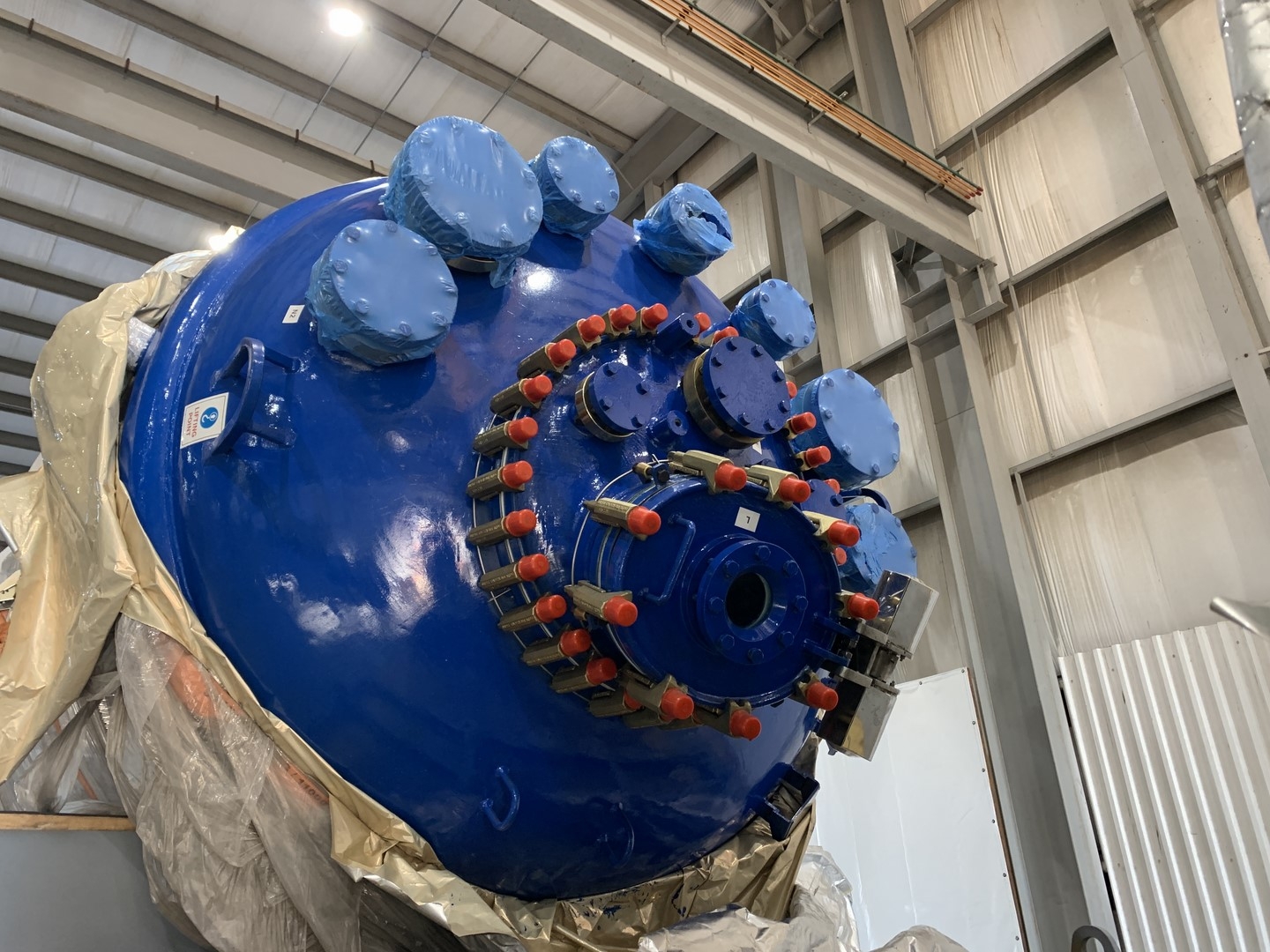

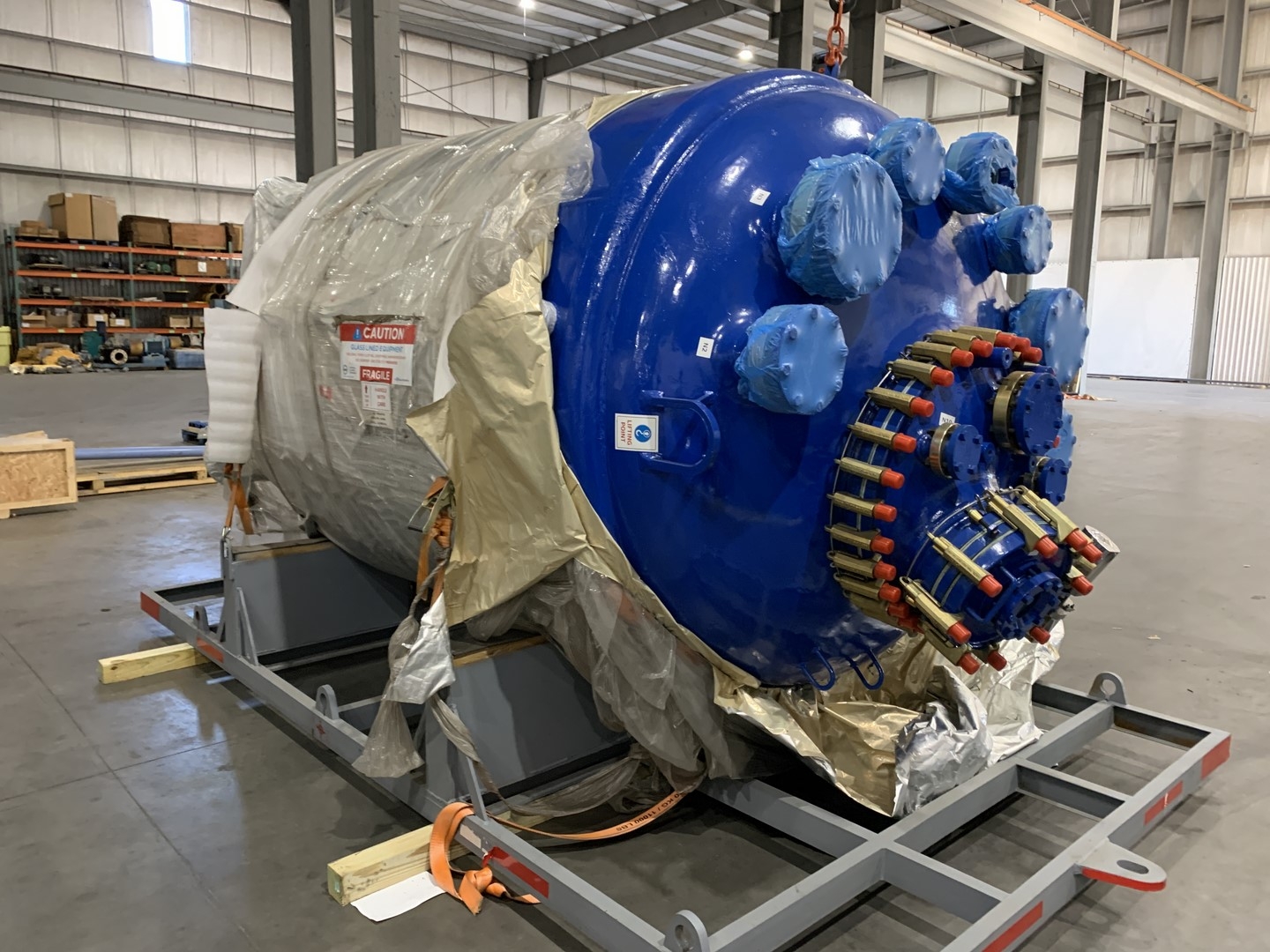

New Glasslined UGE UA-2000 Batch Type Body Only Reactor - IPP# 246501

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: UGE

Model: UA-2000

Condition: New

Material: Glasslined

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• New Base Reactor Body (with covers). Bare reactor price in sales comments.
• Can be upgraded w/ drive system to reactor
• Both ASME National Board # and CE Marked
• Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,000 mm (78 in). Straight Side Length: 2,700 mm (106 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: UGE

Model: UA-2000

Condition: New

Material: Glasslined

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• Dark Blue Glass
• New Base Reactor Body (with covers). Bare reactor price in sales comments.
• Can be upgraded w/ drive system to reactor
• Both ASME National Board # and CE Marked
• Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,000 mm (78 in). Straight Side Length: 2,700 mm (106 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: UGE

Model: Base UT-50

Condition: New

Material: Glasslined

Capacity (Design): 189.3 L (50 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Body Only, base body, in construction.
• Top Head Mixer Boss' three 1/2"-13UNC.
• Glass type SG59 (Artic Blue) Pharma Grade
• Exterior Paint :UGE blue Acrylic Polyurethane
• Supports would be: legs with flat plate feet, with 18” clearance bottom nozzle to floor.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 610 mm (24 in). Straight Side Length: 730 mm (28.8 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: UGE

Model: Base UT-30

Condition: New

Material: Glasslined

Capacity (Design): 113.6 L (30 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Body Only, base body, in construction.
• Top Head Mixer Boss' three 1/2"-13UNC.
• Glass type SG59 (Artic Blue) Pharma Grade
• Exterior Paint :UGE blue Acrylic Polyurethane
• Supports would be: legs with flat plate feet, with 18” clearance bottom nozzle to floor.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 508 mm (20 in). Straight Side Length: 629 mm (24.8 in). Support Type: Legs.
