Glasslined Pfaudler ELL Batch Type Body Only Reactor - IPP# 90415

  • Glasslined Pfaudler ELL Batch Type Body Only Reactor - IPP# 90415 Glasslined Pfaudler ELL Batch Type Body Only Reactor - IPP# 90415
  • Glasslined Pfaudler ELL Batch Type Body Only Reactor - IPP# 90415
Overview
Reactor
Batch Type Body Only
Pfaudler
ELL
Re-glassed
Glasslined
1,900 L (500 gallons)
Glass Lined
Yes
Pressure Vessel
1.72 bar (25 psi)
Yes
176.7 °C (350 °F)
Jacket/Internal Coil
6.2 bar (90 psi)
176.7 °C (350 °F)
Standard
Carbon Steel
Dimensions
1,500 mm (60 in)
1,300 mm (52 in)
Heads
Dish
Glasslined
Dish
Glasslined
Inlets & Outlets
Openings: top 12" x 16" , one 4 3/8" drive nozzle with four bosses, , 3-4", 1-8"; bottom 1-3".
Other Specifications
Lugs
Additional Information

body (bare). 75 psi w/full vacuum internal

Similar Equipment

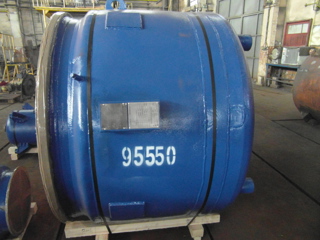

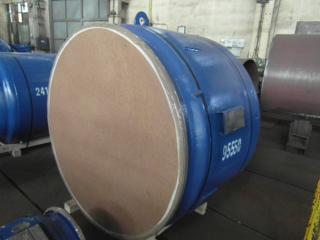

Glasslined Pfaudler ELL Batch Type Body Only Reactor

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: ELL

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 1,900 L (500 gallons)

Internal Pressure: 6.9 bar (100 psi)

  • clamp top reactor body

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 8.3 bar (120 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,500 mm (60 in). Straight Side Length: 914 mm (36 in). Support Type: Legs.

Glasslined Pfaudler ELL Batch Type Body Only Reactor

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: ELL

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 1,900 L (500 gallons)

Internal Pressure: 1.72 bar (25 psi)

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 5.9 bar (85 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,500 mm (60 in). Straight Side Length: 1,300 mm (52 in). Support Type: Legs.

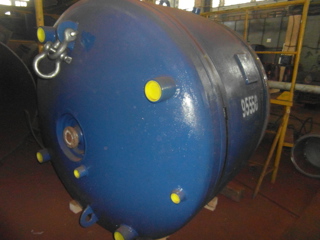

Glasslined Pfaudler RA Batch Type Body Only Reactor

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 2,850 L (750 gallons)

Internal Pressure: 6.9 bar (100 psi)

  • (4) lugs and (4) sockets for pipe legs.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Body Only: Yes. Diameter: 1,500 mm (60 in). Straight Side Length: 1,300 mm (52 in). Support Type: Legs.

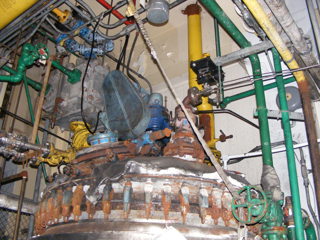

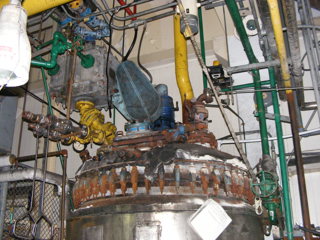

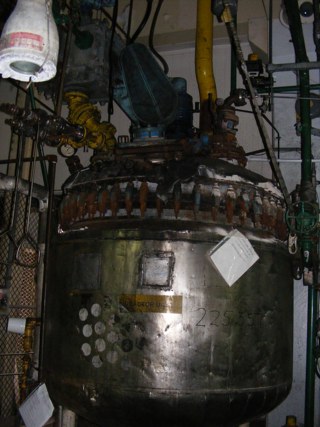

Glasslined Pfaudler P Batch-Type Agitated Reactor
