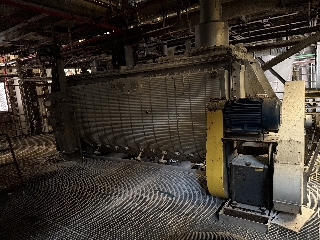

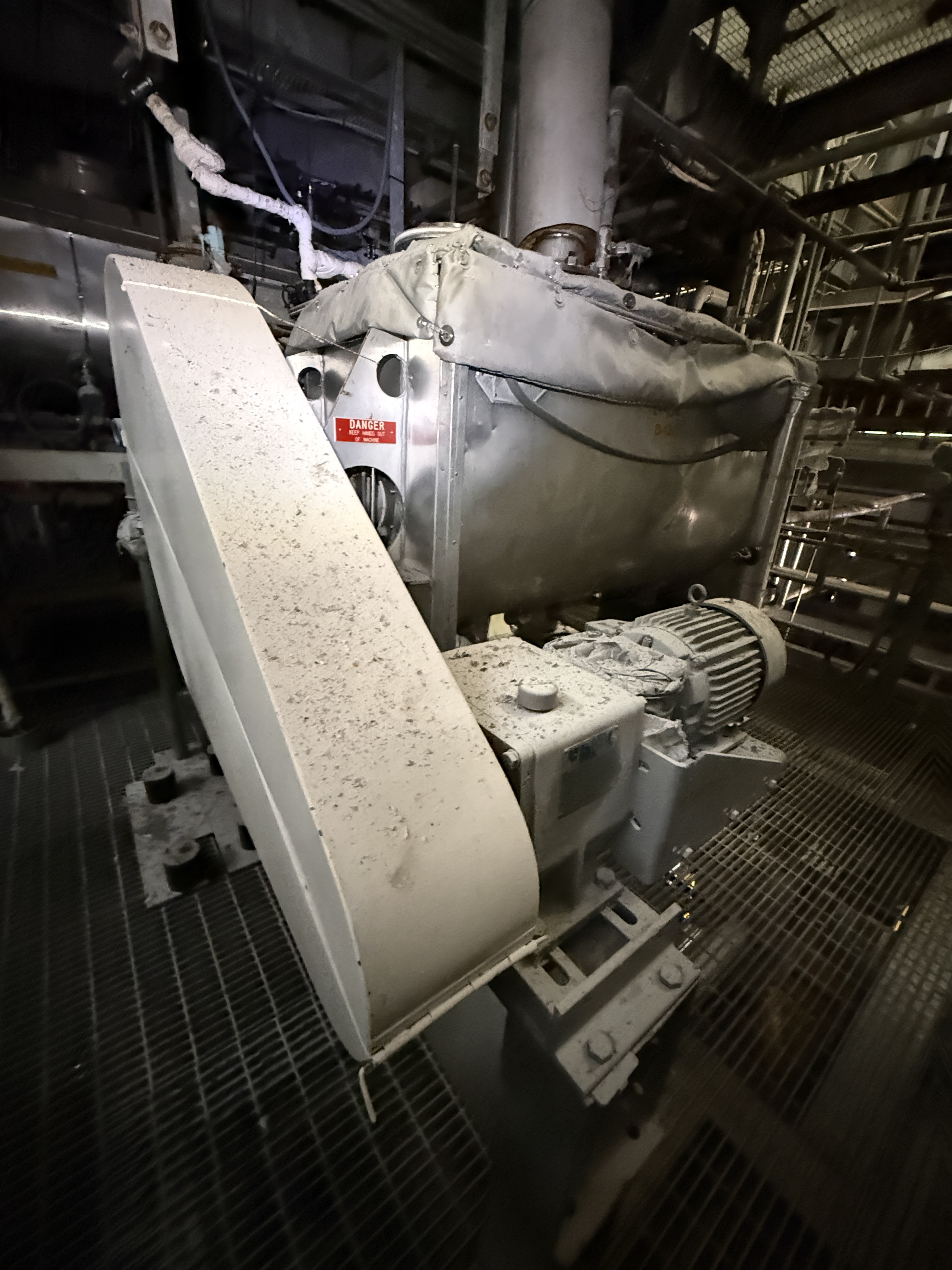

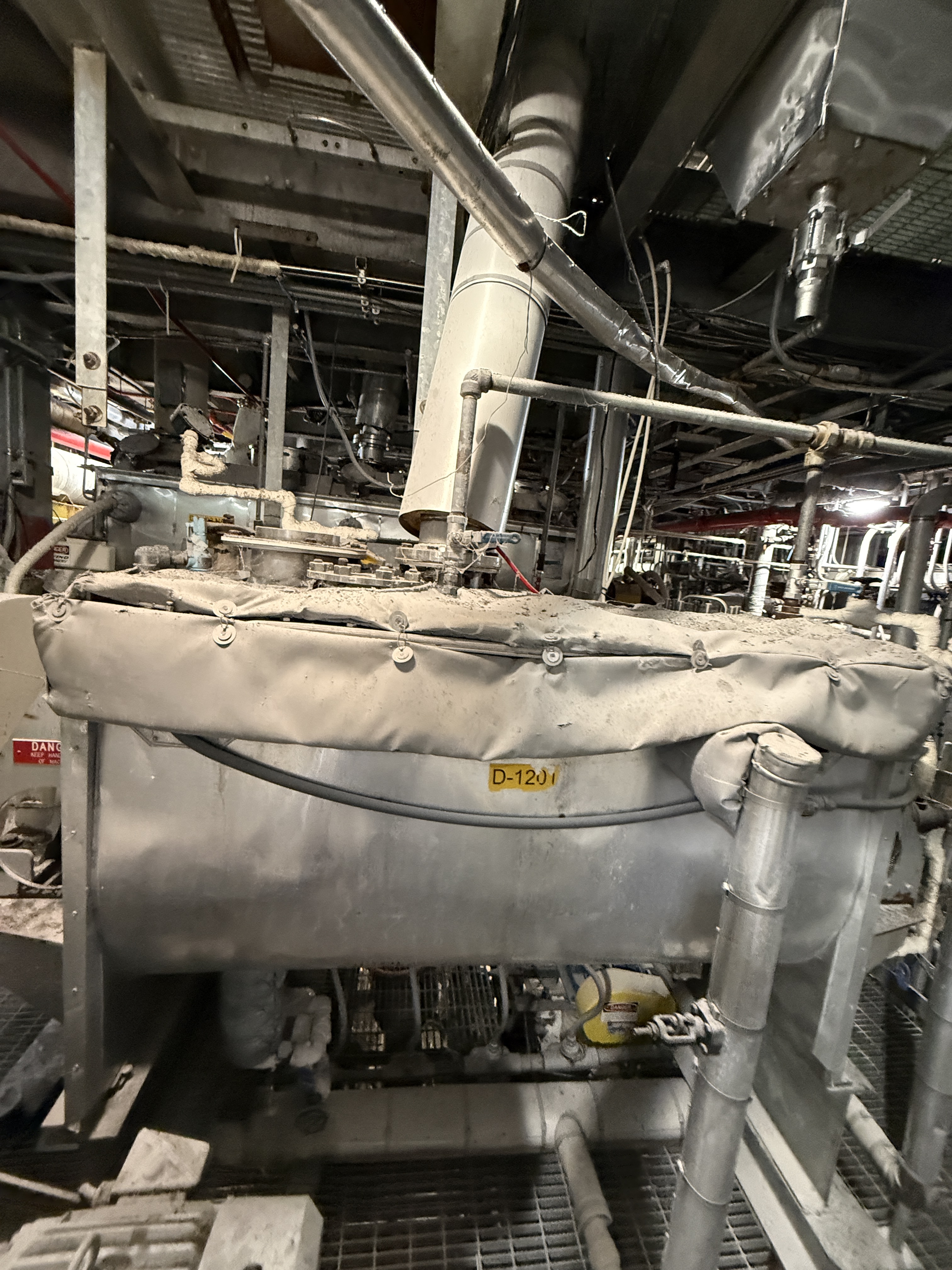

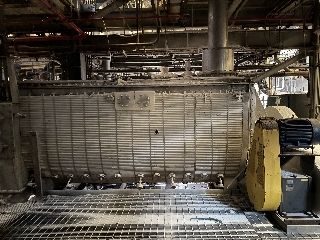

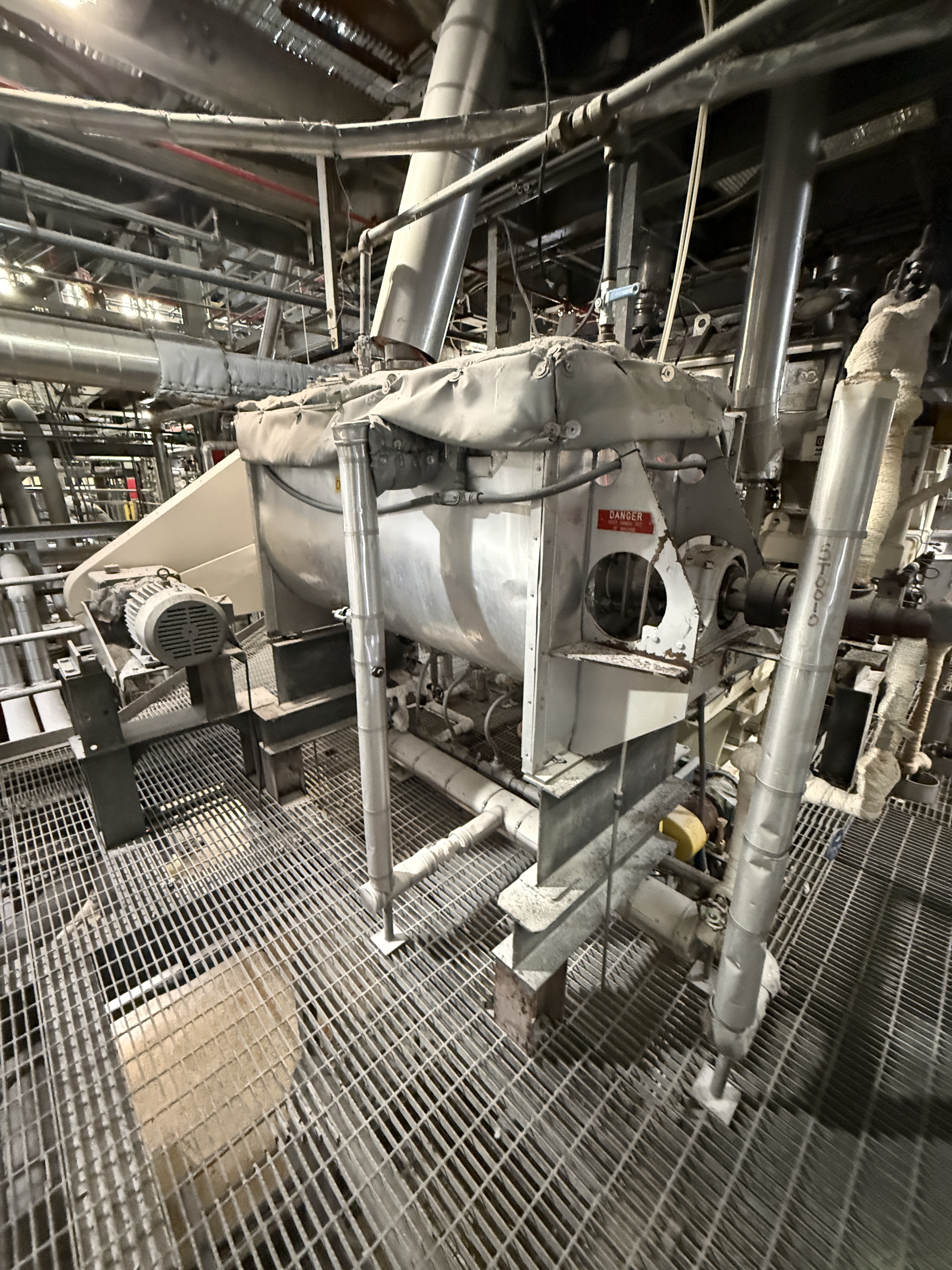

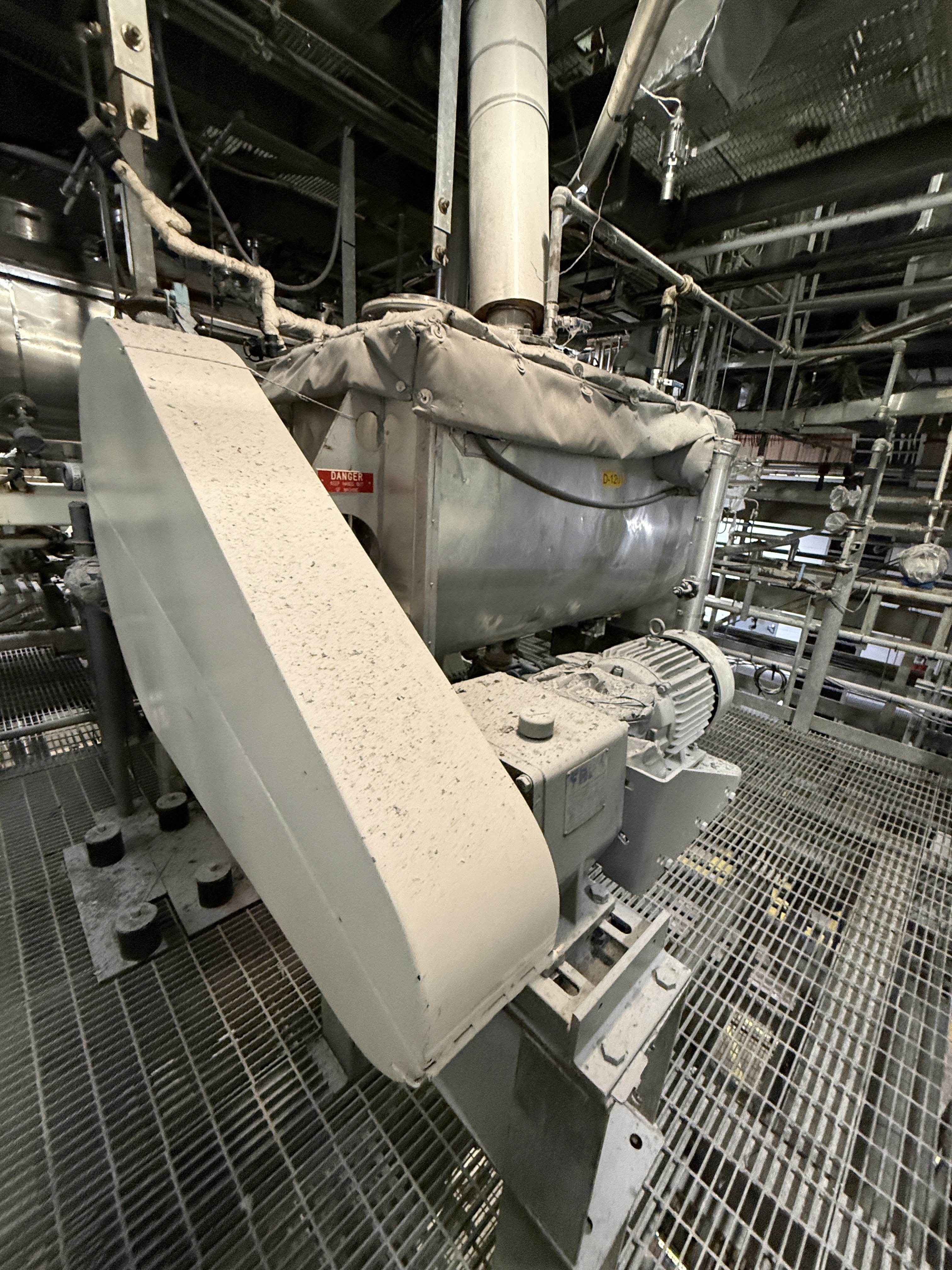

Type: Dryer- Ribbon & Paddle
Manufacturer: Hosokawa Bepex
Model: TDJS 48-15
Condition: Used
Material: Stainless Steel 304
Design Capacity: 4.1 m3 (144.8 ft3)
Vessel Pressure: 1.01 bar (14.7 psi)
Vessel Temperature: 37.8 °C (100 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 315.6 °C (600 °F). Agitator Pressure: 5.2 bar (75 psi). Agitator Temperature: 271.1 °C (520 °F). Operational mode: Continuous. Heating Transfer Surface Area: 58.3 m² (628 ft²). Heating Type: Steam. Shaft Cored for Heating/Cooling: Yes. Jacket Type: External Pipe Coil. Ribbon Type: Disc. Agitation Shaft Sealing: Packing.
Type: Dryer- Ribbon & Paddle
Manufacturer: Strong Scott
Condition: Used
Material: Stainless Steel 304
Design Capacity: 0.85 m3 (30 ft3)
Operating Capacity: 0.57 m3 (20 ft3)
24" diameter x 15' long jacketed Solidaire dryer Rotor has adjustable pitch paddles and was Openings: top 1-6" feed end, 1-6" and 1-6" discharge
Heating Transfer Surface Area: 8.7 m² (94 ft²). Jacket Type: Standard.
Type: Dryer- Ribbon & Paddle
Manufacturer: Strong Scott
Condition: Used
Material: Stainless Steel 304
Vessel Pressure: 1.01 bar (14.7 psi)
Vessel Temperature: 148.9 °C (300 °F)
10" diameter Shell 12" diameter x 95" long
Removable 2" plow design rotor w/adjustable pitch & clearance paddles
Outboard bearings, Telon - Viton double lip seals with purge connection
Shell 3/8" thick, jacket 1/4" thick
Openings: Shell 1-6" feed, 1-6" discharge; jacket 2-2", 1-1"Mounted on base. With pulley
Jacket Pressure: 20.7 bar (300 psi). Jacket Temperature: 218.3 °C (425 °F). Ribbon Type: Plows.
Type: Dryer- Ribbon & Paddle
Manufacturer: VOMM Turbotechnologia
Condition: Used
Material: Stainless Steel 304
Design Capacity: 1.25 m3 (44.1 ft3)
Operating Capacity: 0.7 m3 (24.7 ft3)
jacketed 'Turbo' continuous paddle dryer CE 600mm inside diameter x 3820mm straight side, bolt flat ends 3 x 304 stainless steel (1.4307) jacket sections on straight side only each jacket is 711mm outside diameter x 1246mm long
Vessel Pressure: 5 bar (72.5 psi). Vessel Temperature: 188 °C (370.4 °F). Jacket Pressure: 12 bar (174 psi). Jacket Temperature: 188 °C (370.4 °F). Operational mode: Continuous.
