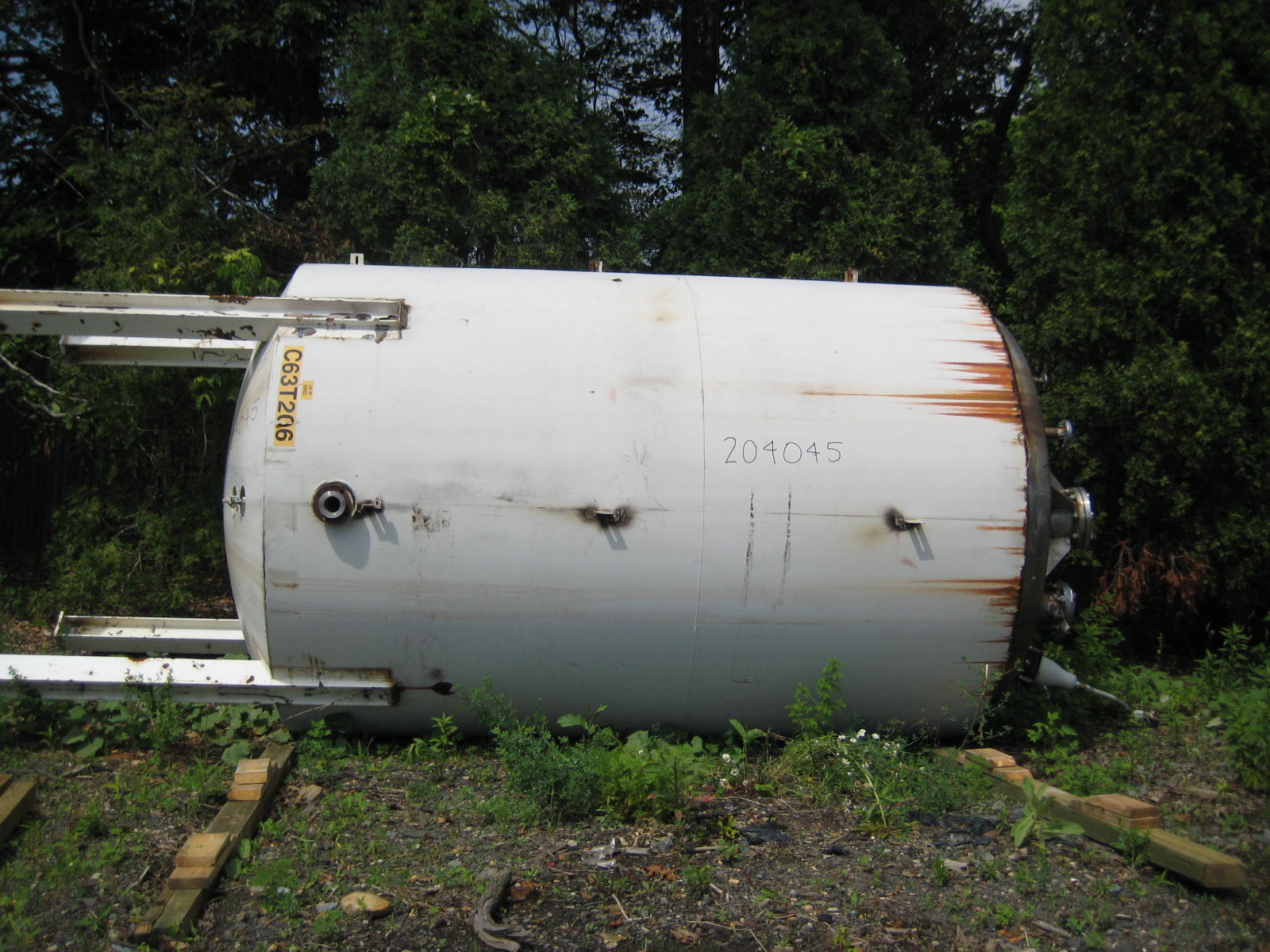

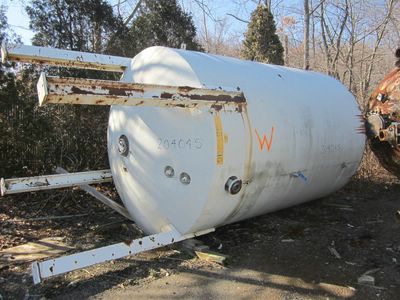

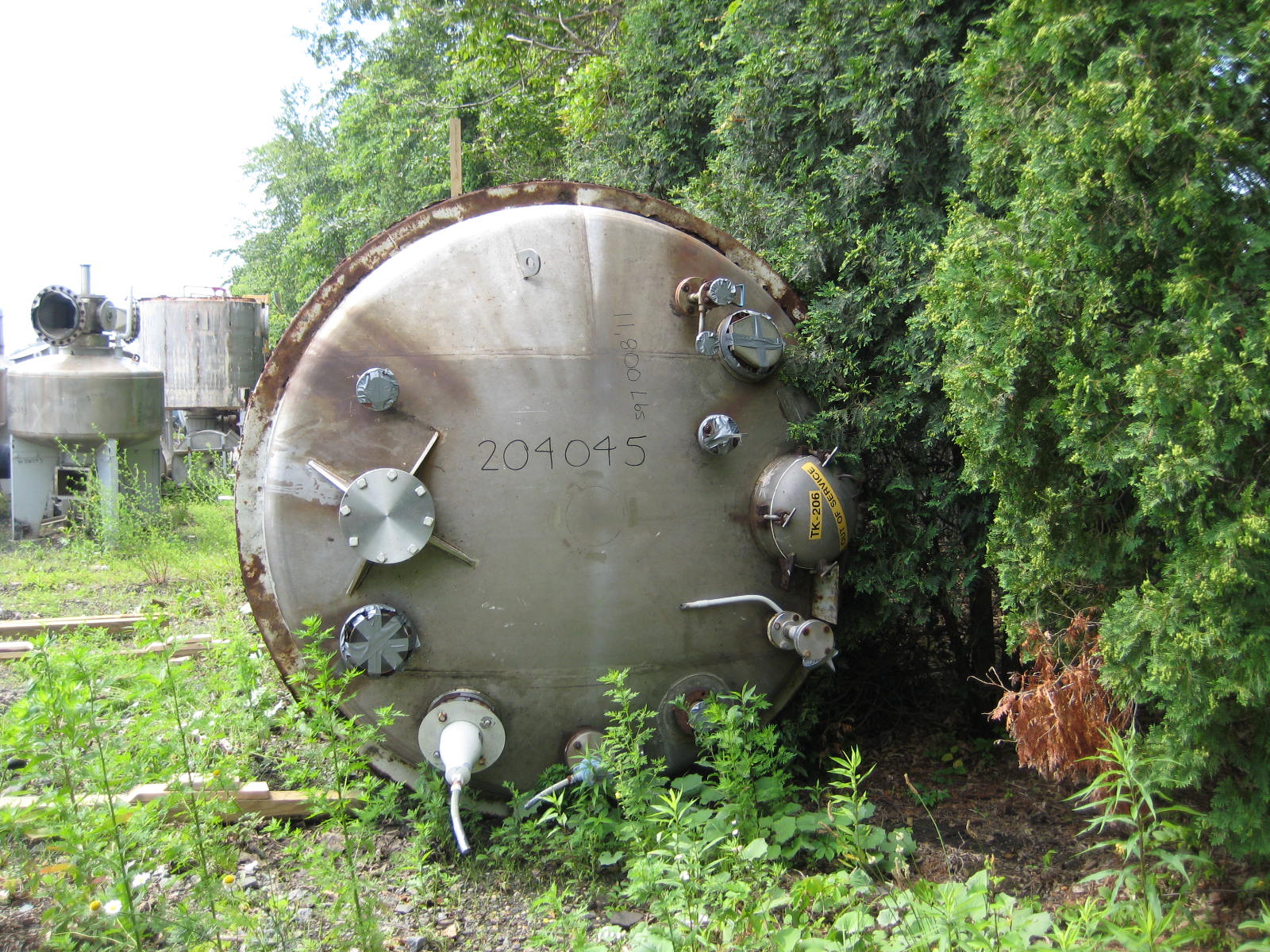

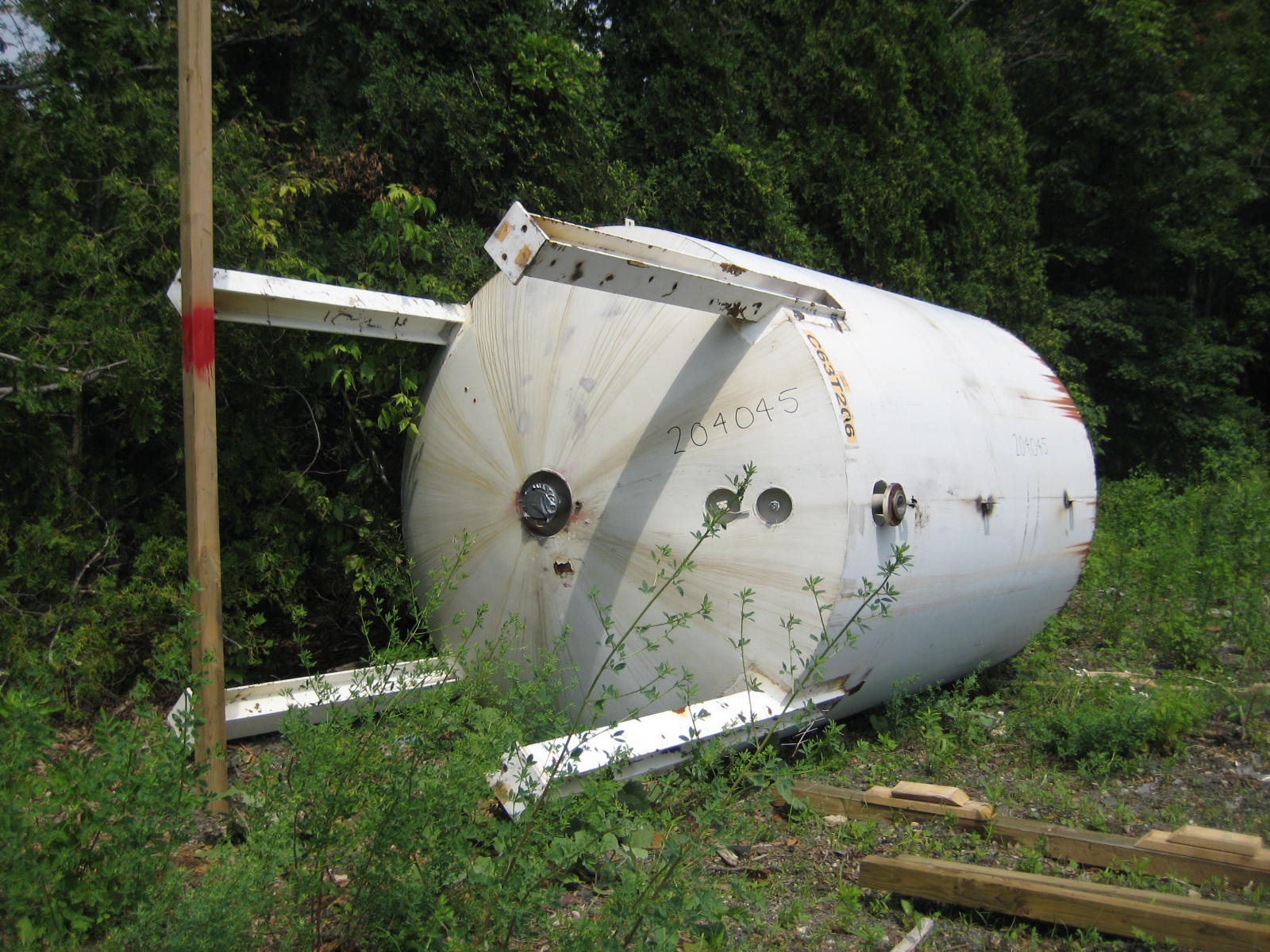

Stainless Steel 304L Bisphoric Tank - IPP# 204045

Type: Tank

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 28,000 L (7,400 gallons)

Orientation: Horizontal

• internal working pressure atmospheric @ 80 deg C, design temperature 150 deg C,
• Coil pressure rating: 3.5 bar
• Coil material: 316L s/steel
• Coil design: 1-turn, hairpin
• Coil location: Running along full length of vessel bottom
• Cradle type: Fixed c/steel tank has a 50mm fall from back to front, fully insulated with 50mm foam glass and clad with aluminum

Diameter: 2,500 mm (98.4 in). Straight-side Length: 6,000 mm (236.2 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 150 °C (302 °F). Does it have an Internal Coil?: Yes. Support: Saddle.

Type: Tank

Manufacturer: Constructiebedrijf Verkouille

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 16,000 L (4,250 gallons)

Orientation: Horizontal

• Built to TUV design code.
• With Mono C14D stainless steel rotary screw discharge pump.
• Pump operating at 77 RPM, 25 bar max del. pressure, 21.72 bar duty differential pressure

Diameter: 2,400 mm (94.5 in). Straight-side Length: 2,950 mm (115.6 in). Internal Pressure: 0.4 bar (5.8 psi). Internal Temperature: 165 °C (329 °F). Vacuum: Yes. Cone Length: 1,050 mm (41 in). Support: Lugs.

Type: Tank

Manufacturer: Peerless

Model: 11-148

Condition: Used

Material: Stainless Steel 304L

Clad: Yes

Capacity (Design): 3,050 L (800 gallons)

Orientation: Vertical

High pressure tank SO #31980-B w/.125" thick 0.125" thick 304LSS cladding

Diameter: 1,200 mm (48 in). Straight-side Length: 2,450 mm (96 in). Internal Pressure: 41.8 bar (606 psi). Internal Temperature: 135 °C (275 °F). Support: Skirt.

Type: Tank

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 355.8 L (94 gallons)

Orientation: Vertical

Diameter: 610 mm (24 in). Straight-side Length: 1,200 mm (48 in). Internal Pressure: 1.38 bar (20 psi). Internal Temperature: 162.8 °C (325 °F).
