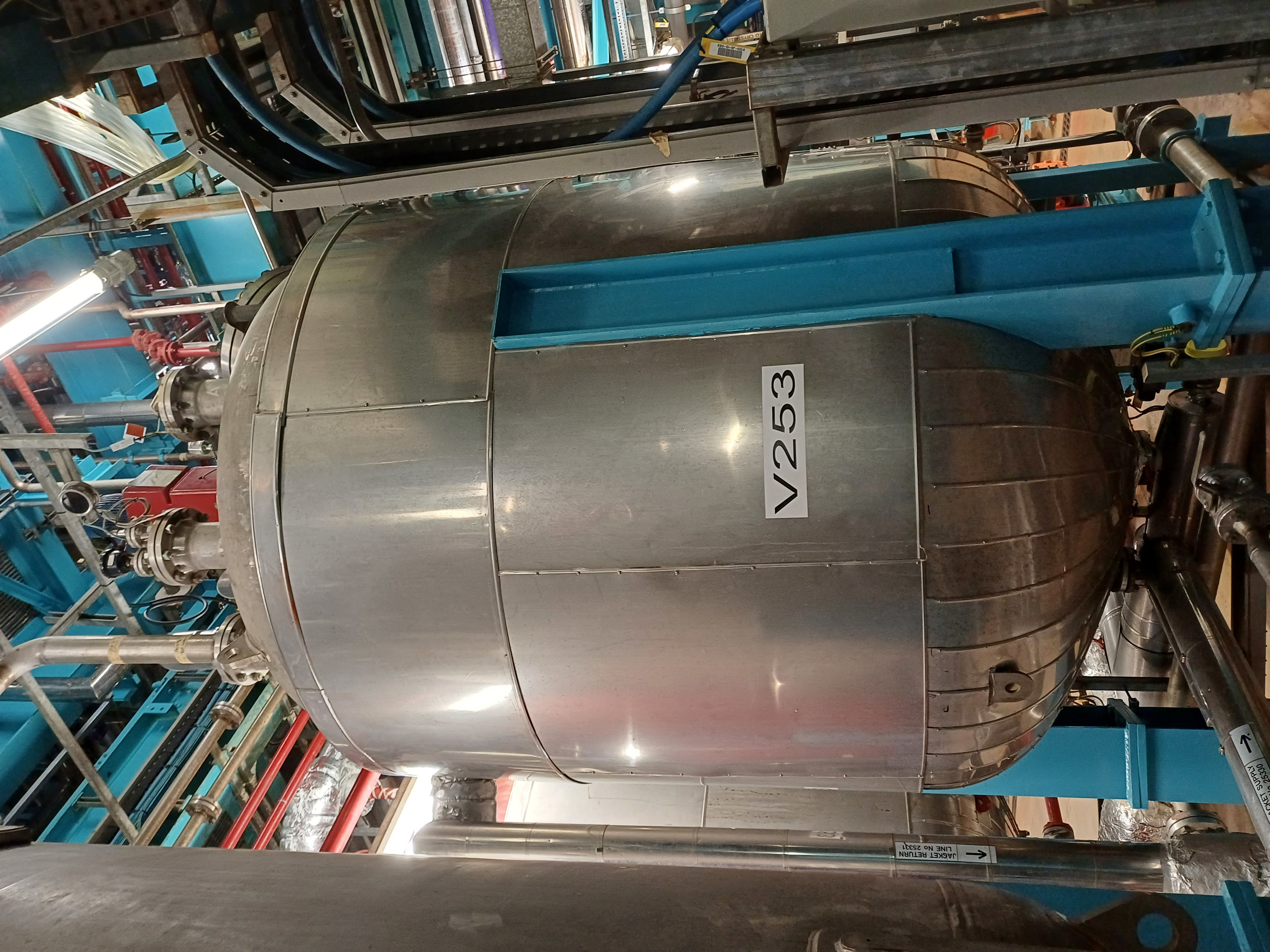

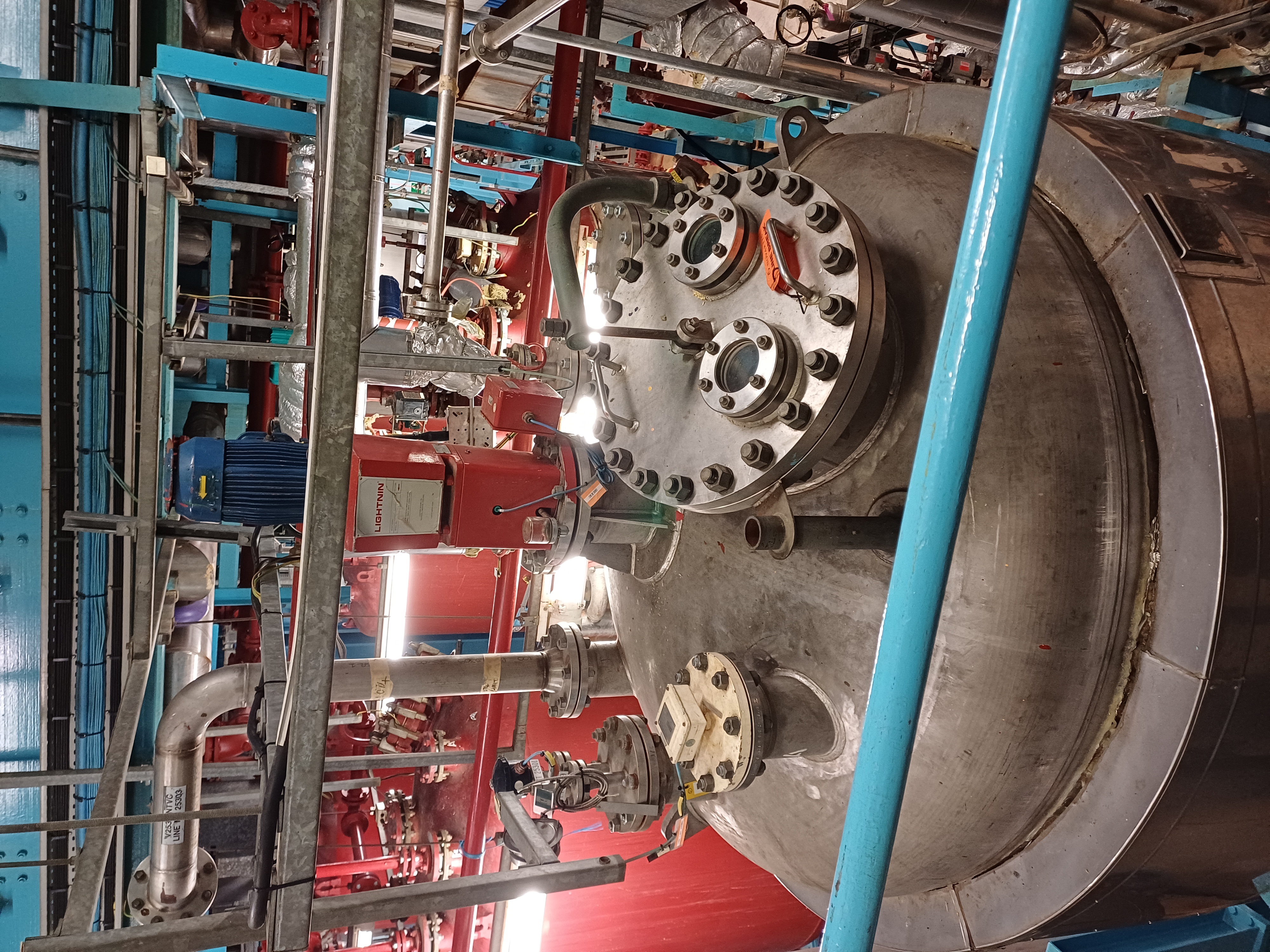

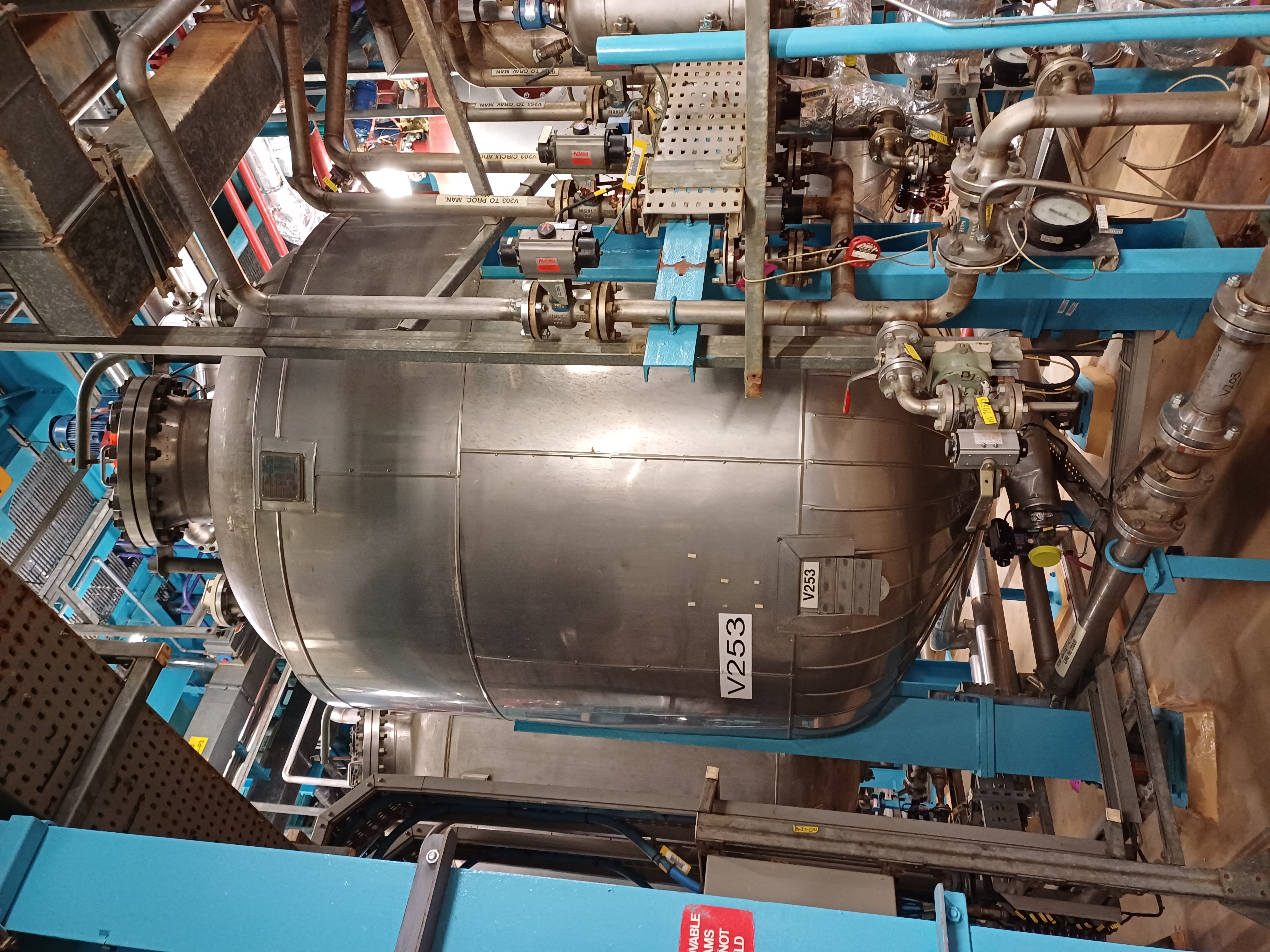

Stainless Steel 316L Isaac Webster Tank - IPP# 242807

Type: Tank

Manufacturer: Isaac webster & sons ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 6,300 L (1,650 gallons)

Orientation: Vertical

• design pressure internal 3.5 bar + full vacuum @ -25/170 degrees C,
• design code BS5500 1991 CAT 2,

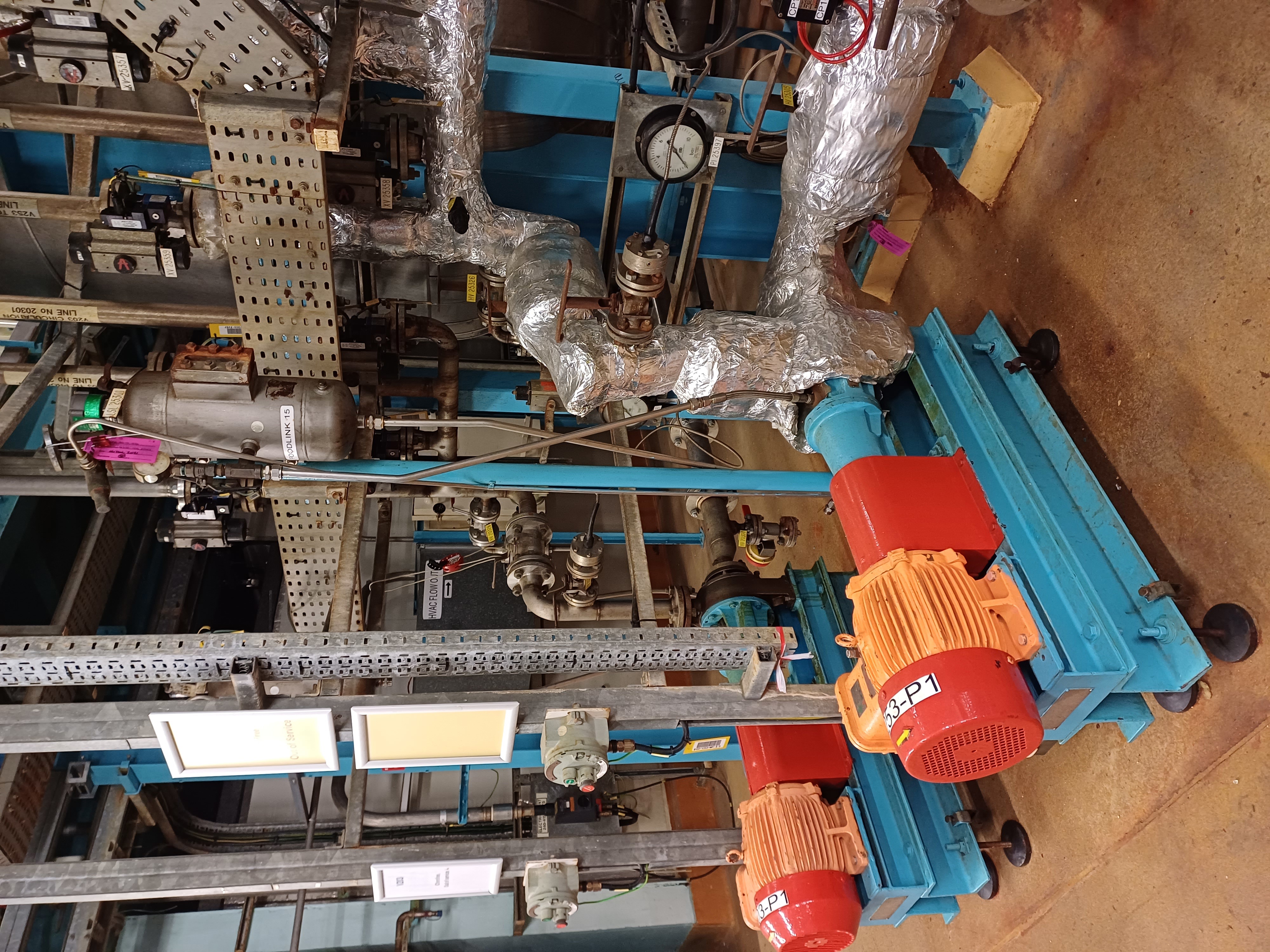

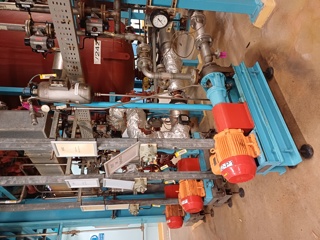

With (1) 316L stainless steel centrifugal pump, driven by 5.5kW, 3/50/415 volt, 2900 rpm Ex IP55 motor, mechanical seal with lubricator pot, mounted on a baseplate

Diameter: 2,000 mm (78.7 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 170 °C (338 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Isaac webster & sons ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 170 L (44.9 gallons)

Orientation: Horizontal

• design pressure -10 barg + full vacuum @ 5/120 degrees C,
• design code: BS5500 1991 CAT 2,

Diameter: 400 mm (15.7 in). Straight-side Length: 1,400 mm (55.1 in). Internal Pressure: 10 bar (145 psi). Internal Temperature: 120 °C (248 °F). Vacuum: Yes. Support: Saddle.

Type: Tank

Manufacturer: Process Systems ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 570 L (150.6 gallons)

Orientation: Horizontal

• pressure tank
• working pressure 3.4 barg + FV

Diameter: 600 mm (23.6 in). Straight-side Length: 1,850 mm (72.2 in). Internal Pressure: 5.2 bar (75.4 psi). Internal Temperature: 150 °C (302 °F). Vacuum: Yes.

Type: Tank

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 1,800 L (471.5 gallons)

Orientation: Vertical

Diameter: 990 mm (39 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 134 °C (273.2 °F). Vacuum: Yes. Support: Lugs.
