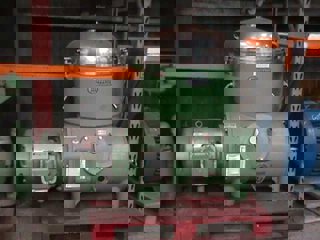

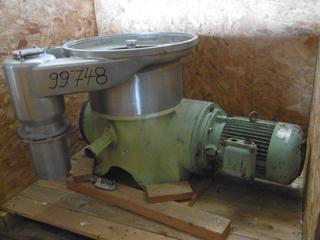

Type: Centrifuge-Disc Bowl
Manufacturer: Westfalia
Model: K015006
Condition: Unused
Material: Stainless Steel 316
Motor Horsepower: 19 kW (25.5 HP)
RPM Maximum: 4,500

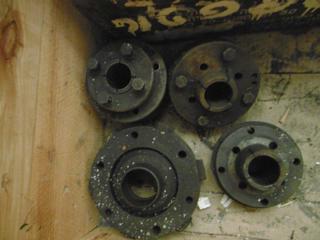

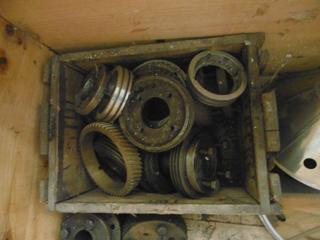

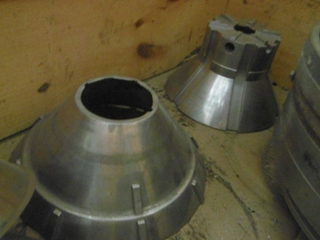

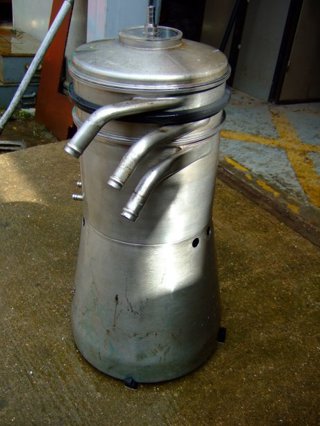

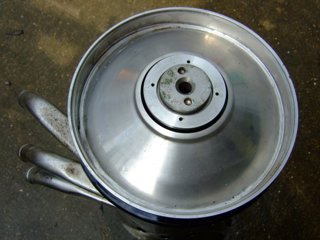

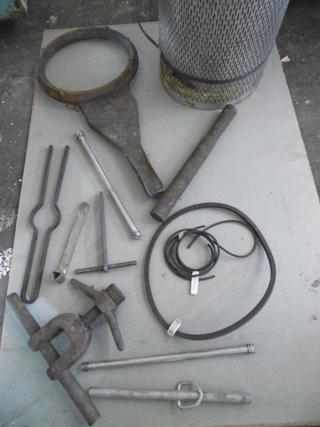

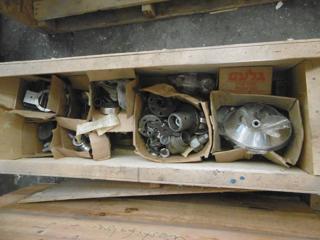

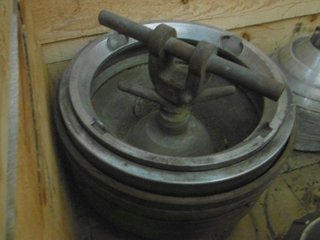

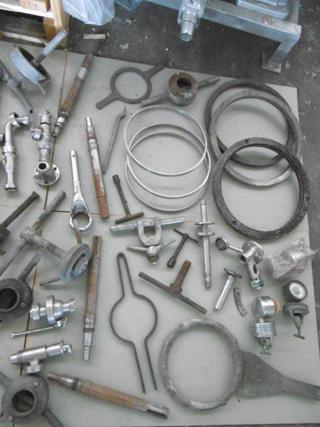

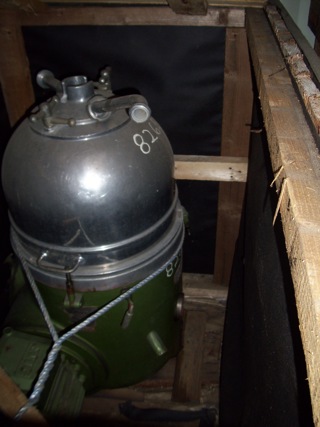

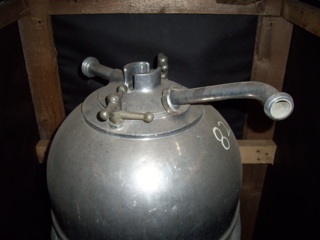

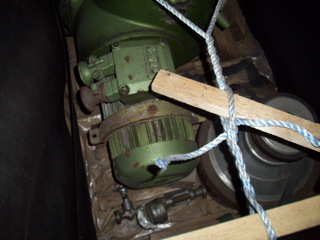

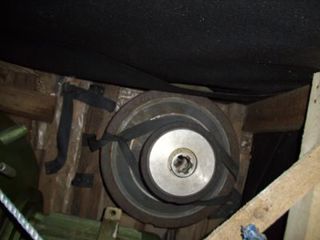

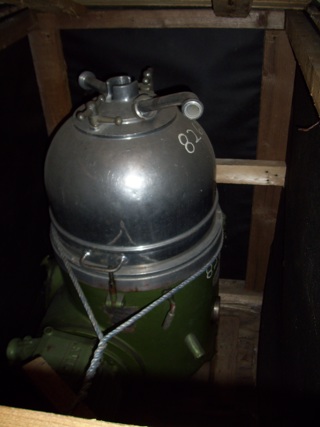

2-chamber bowl clarifier centrifuge. Complete with bowl, parts and tools in separate crate.

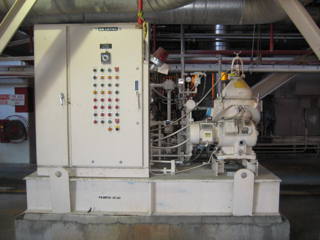

Type: Centrifuge-Disc Bowl
Manufacturer: Westfalia

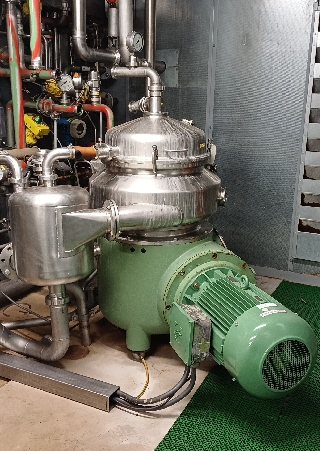

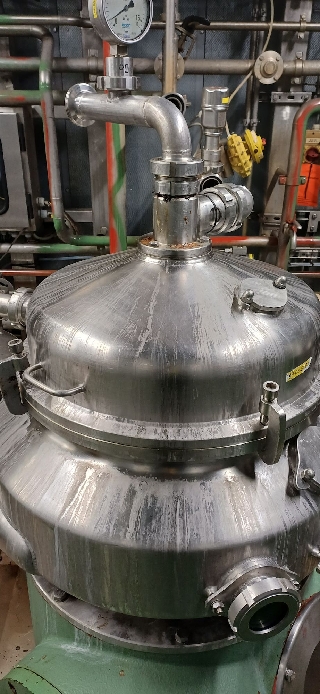

Model: RSA 60-01-576
Condition: Used
Material: Stainless Steel 316

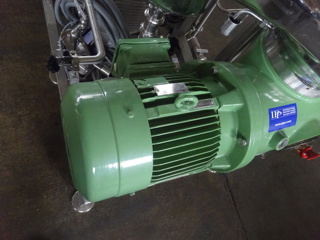

Motor Horsepower: 15 kW (20.1 HP)
Bowl Diameter: 790 mm (31.1 in)

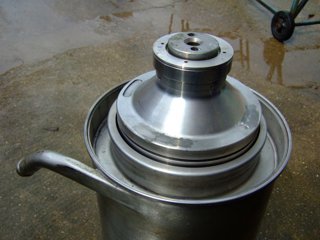

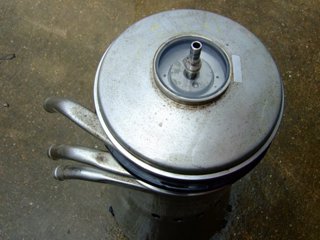

rebuilt disc bowl self cleaning solids 1.25 kg/dm3, heavy solid 1.1 kg/dm3, The product flows into the bowl through inlet and is separated in disk stack into a light and a heavy liquid phase with simultaneous removal of the solids which collect in the sediment holding space. The light liquid phase flows towards the center and is discharged foam-free and under pressure by centrifugal pump through outlet. The heavy liquid phase flows to the periphery and is discharged under pressure by centrifugal pump through outlet. The separated gums and solids collect in sediment holding space and are instantaneously ejected through ports at pre-set intervals by lowering the sliding piston. Closing water drains via the bowl valve. The ejection cycles are initiated by a control unit
Inlet Diameter: 40 mm (1.57 in). RPM Maximum: 6,450.

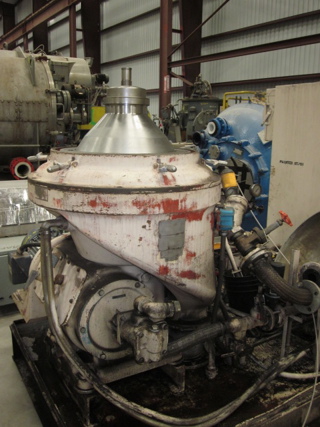

Type: Centrifuge-Disc Bowl
Manufacturer: Westfalia
Model: RSA 60-01-576
Condition: Used
Material: Stainless Steel 316
Motor Horsepower: 15 kW (20.1 HP)
Bowl Diameter: 790 mm (31.1 in)
disk bowl separator system, solids 1.3 kg.dm3, heavy solid 1 kg/dm3

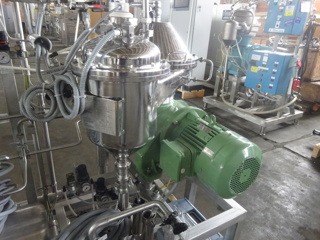

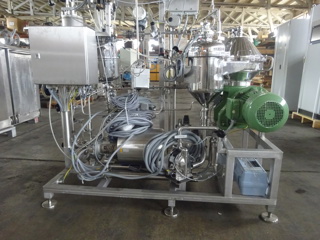

(1) 450 liter 316Ti stainless steel vertical tank, manufactured by Hinke, fabrik #8784, pressure -0.3/+0.49 bar @ -0/+90 degrees C (450 liter), weld flat top and bottom, mounted on legs, (1) 3.5/5/12 m3/hr @ 51/50/47m head 316 stainless steel centrifugal pump, manufactured by Dickow Pumpen, type NMBh 26/210, fabrik #9716261, 2900 rpm, 4.1/3.3/4.1kw, driven by 2.5kw, 3/50/380/660 volt, 2840 rpm motor mounted on a baseplate
The separator is equipped with a self-cleaning disc-type bowl. The product flows into the bowl through inlet and is separated in disk stack into a light and a heavy liquid phase with simultaneous removal of the solids which collect in the sediment holding space. The light liquid phase flows towards the center and is discharged foam-free and under pressure by centripetal pump through outlet. The heavy liquid phase flows to the periphery and is discharged under pressure by centripetal pump through outlet. The separated gums and solids collect in sediment holding space and are instantaneously ejected through ports at pre-set intervals by lowering the sliding piston. Closing water drains via the bowl valve. The ejection cycles are initiated by a control unit
Inlet Diameter: 40 mm (1.57 in). RPM Maximum: 6,450.

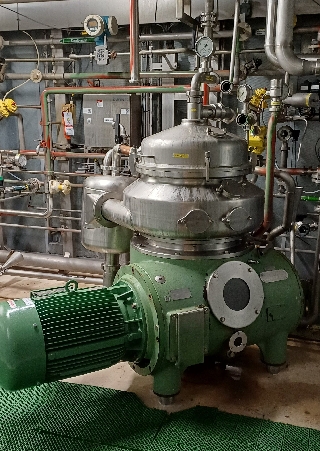

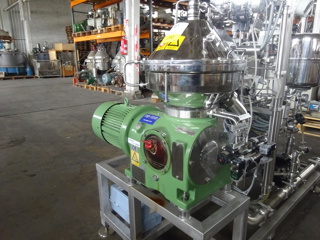

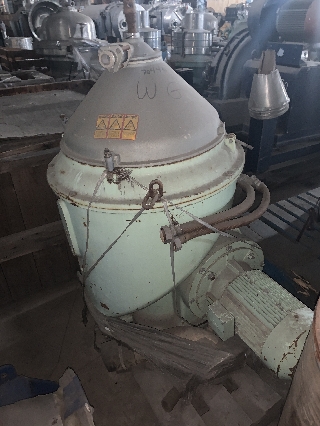

Type: Centrifuge-Disc Bowl
Manufacturer: Westfalia

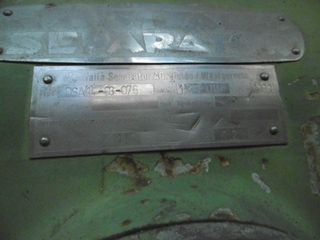

Model: DSA14-03-076
Condition: Used
Motor Horsepower: 7.5 kW (10.1 HP)
Number of Phases: 3

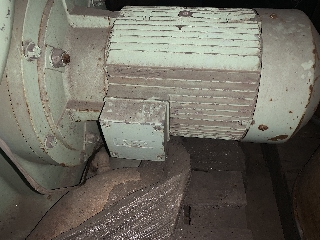

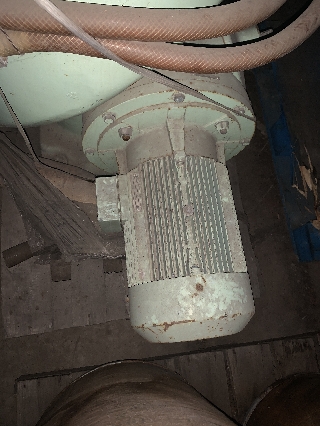

disc bowl centrifuge. Separator (3-phase) design. Special design for glucose separation Cast iron frame w/brake, oil level sight glass and revolution indicator for bowl speed check Drive by standard flange mount motor. Power transmission to bowl spindle via centrifugal friction clutch and worm gear. All bearings and the gears splash lubricated from a central oil bath. Pressure discharge of the heavy phase via built-in centripetal pump and gravity discharge of the light phase.
When your process demands precise, continuous separation of immiscible liquids or fine solids from liquids, disc bowl centrifuges offer superior performance for critical applications. With more than 47 years of experience, IPP offers immediate access to high-quality used disc bowl centrifuges sourced from 20 complete plant sites and included in our inventory of over 15,000 ready-to-ship pieces of equipment. Choosing used disc bowl centrifuges from IPP provides companies with faster project timelines, significant cost savings, and proven process reliability.
Disc bowl centrifuges, also known as disc stack centrifuges, operate by spinning a series of conical discs at high speeds to enhance the separation of solids and liquids or two immiscible liquids with different densities. They are essential for processes requiring continuous clarification, purification, or concentration.
