Used pulverizer equipment for sale: cost-effective solutions for material size reduction and processing

Type: Pulverizer

Subtype: Jet

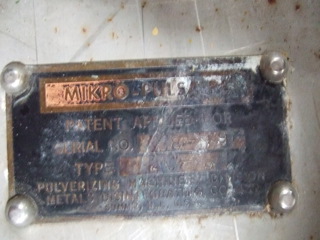

Manufacturer: Mikro

Model: 6MA

Condition: Used

Material: Stainless Steel Other

Outlet Discharge Diameter: 76.2 mm (3 in)

Inlet Diameter: 139.7 mm (5.5 in)

Mikro Atomizer Rated for 6,000 rpm. Capable of handling capacities from 100 to 1000 lbs/hr, dependent on the material, this machine handles 3 functions in one machine. Pulverizes, air classifies and conveys the material.

Motor Power (Design): 22.4 kW (30 HP). Speed (RPM): 6,000. Orientation: Horizontal.

Type: Pulverizer

Subtype: Jet

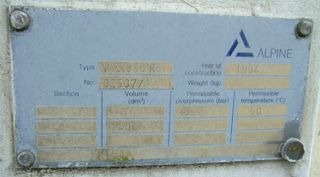

Manufacturer: Alpine (Hosokawa)

Model: 800 AFG-1

Condition: Used

Material: Carbon Steel

Capacity: 1,250 m3 (44,143 ft3)

Outlet Discharge Diameter: 400 mm (15.7 in)

fluidised opposed jet milling (grinding air pressure 6 barg, nozzle 0 16mm), 1250 dm3 grinding bin volume, 80 mbar permissible operating pressure in grinding bin, max operating pressure in grinding bin, 5- nozzles, nozzle diameters 14mm, 16mm, 18mm, classifier has 3-wheels, each wheel with 60 vanes wide pitch, narrow pitch 120 vanes, max wheel speed 4000 rpm each whees driven by 5.12 - 16 kw,3/50/415 volt, 940/2940 rpm motor, (1) 1100 liter carbon steel feed hopper weld dished top, weld coned bottom, bottom outlet with 150mm diameter carbon steel screw conveyor, 15.1 rpm speed,

Inlet Diameter: 16 mm (0.63 in). Motor Power (Design): 16 kW (21.5 HP). Orientation: Vertical. Pressure: 0.09 bar (1.31 psi). Temperature: 50 °C (122 °F). Air Flow Rate: 5,200 m3/h (3,061 CFM). Clarifier: Yes.

Type: Pulverizer

Subtype: Jet

Manufacturer: Alpine (Hosokawa)

Model: 800 AFG-1

Condition: Used

Material: Carbon Steel

Capacity: 1,250 m3 (44,143 ft3)

Outlet Discharge Diameter: 400 mm (15.7 in)

fluidised opposed jet milling (grinding air pressure 6 barg, nozzle 0 16mm) 1250 dm3 grinding bin volume, 80 mbar permissible operating pressure in grinding bin, max operating pressure in grinding bin, 5- nozzles, nozzle diameters 14mm, 16mm, 18mm, classifier has 3-wheels, each wheel with 60 vanes wide pitch, narrow pitch 120 vanes, max wheel speed 4000 rpm, each whees driven by 5.12 - 16 kw, 3/50/415 volt, 940/2940 rpm motor, (1) 1100 liter carbon steel feed hopper weld dished top, weld coned bottom, bottom outlet with 150mm diameter carbon steel screw conveyor, 15.1 rpm speed,

Inlet Diameter: 16 mm (0.63 in). Motor Power (Design): 16 kW (21.5 HP). Orientation: Vertical. Pressure: 0.09 bar (1.31 psi). Temperature: 50 °C (122 °F). Air Flow Rate: 5,200 m3/h (3,061 CFM). Clarifier: Yes.

Type: Pulverizer

Subtype: Jet

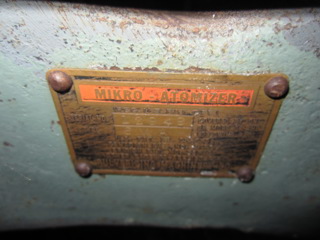

Manufacturer: Mikro

Model: 8 MA

Condition: Used

Material: Stainless Steel Other

Motor Power (Design): 90 kW (120.7 HP)

Speed (RPM): 8,000

Atomizer air swept classifying pulverizer/mill all parts which are in contact with the product are stainless steel, capacity is 100 kgs to 2000 kg/hour, down to D90 = 20 microns, the mill grinds, classifies and conveys the product the Mikro-Atomizer uses air flow to convey materials to the grinding zone, size reduction occurs when hammers fitted to the rotor impact particles @ 4000 to 8000 rpm, a deflecting liner returns oversized particles to the hammer impact zone for further reduction, the ground materials are then conveyed to the classifier wheels which are mounted to the grinding rotor, larger particles are rejected for regrinding as the desired particles are air conveyed by internal fan blades and exit the mill for collection

Orientation: Vertical. Clarifier: Yes.
