Type: Dryer-Wyssmont
Manufacturer: Krauss Maffei
Model: VTT 20/08
Condition: Used
Material: Stainless Steel 316L
Diameter: 2,000 mm (78.7 in)
Tray Diameter: 2,000 mm (78.7 in)

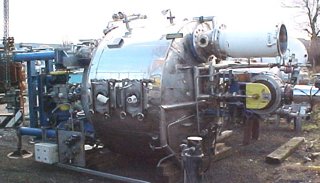

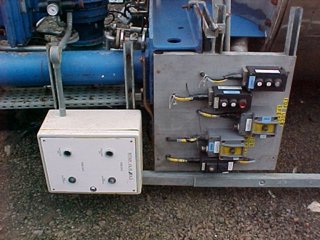

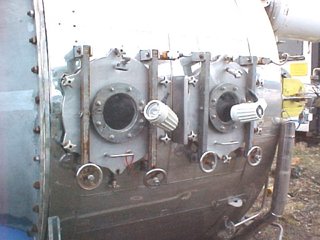

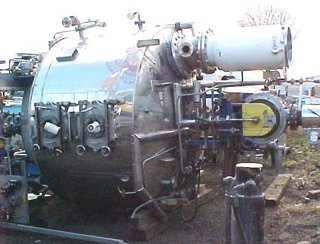

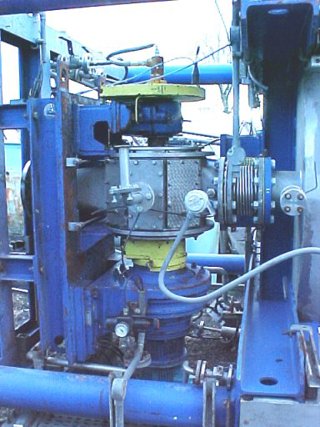

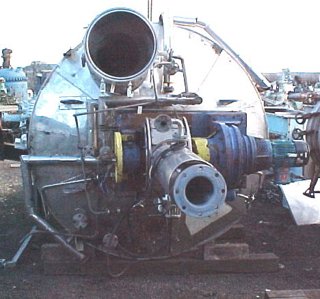

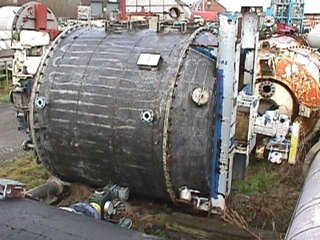

Jacketed Vacuum plate dryer, Order # 365306/2. jacket 4 bar @ 100 degrees C (21 liter), jacket test pressure 6.5 bar, 316L stainless steel (1.4435) jacket, Approximately 2.4m diameter x 1.4m straight side, weld dished top, bolt bottom. with (4x) 2000mm 316L stainless steel (1.4571) jacketed trays, approximately 2m diameter x 25mm deep with scrappers and (4x) smaller diameter plates with scrappers. internal shaft belt driven by 0.75 kw, 3/50/415 volt, 700 rpm Exd 11 BT5 motor via Lenze vari-speed gearbox, type 11-60-107-259, 1160-1600/10.5-171 rpm. Top head feed openings has a (1) Krauss Maffei 316L stainless steel (1.4435/1.4571) rotary vacuum seal, type VS20, working temperature 100 degrees C, direct driven by 2.8 kw, 3/50/415 volt, 280-1430 rpm Exd-11B-T4 motor. the discharge on the bottom head has (1) Krauss Maffei 316L stainless steel (1.4435/1.4571) rotary vacuum seal, type VS10, working temperature 100 degrees C, direct driven by 2.1 kw, 3/50/415 volt, 280-1430 rpm Exd motor. Controls available for both seals. Dryer includes (2) Nash stainless steel vacuum pumps, size SC-5-SS, driven by 30 kw, 3/50/415 volt, 1460/1470 rpm Exd-11B-T4 motor. top head and straight side have insulation and cladding.
Number of Trays: 8. Shelves MOC: Stainless Steel 316L. Temperature: 95 °C (203 °F).
Type: Dryer-Wyssmont
Manufacturer: Krauss Maffei
Model: VTT20/11-2/90-4
Condition: Used
Material: Stainless Steel 316L
Diameter: 63,500 mm (2,500 in)
Number of Trays: 11

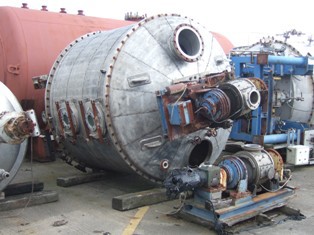

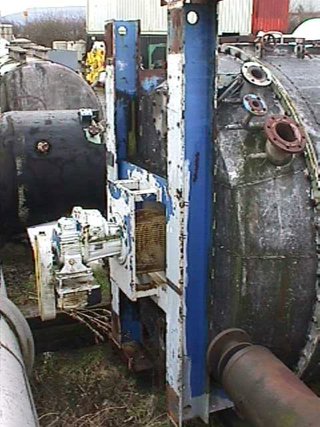

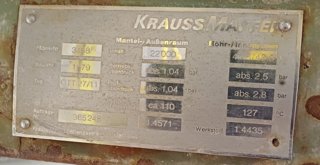

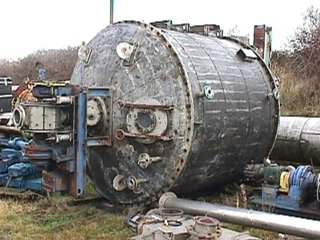

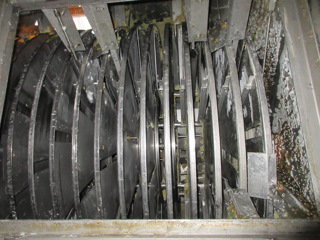

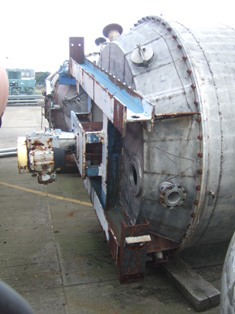

316L stainless steel (1.4571/1.4435) continuous vacuum plate dryer, 27.5 square meter heat surface area, manufactured by Krauss Maffei, fabrik #3608, KM order #365297/2/001, vessel 20 mbar @ 95 degrees C (11820 liter), (6) 1750mm diameter & (5) 1930mm diameter 316Ti stainless steel (1.4571) steam heated plates, each plate fitted with a scraper , plates 6 & 8 fitted with a crushing roller, vessel 2.5m diameter x 1881mm straight side, bolt dished top, bolt truncated flat bottom, under driven by 1.1kw, 3/50/415 volt, 700 rpm Exd 11B T5 motor via a vari-speed Lenza gearbox, 1160/1600-10.5/1.71 rpm, 1:6 ratio, packed gland on shaft, Openings: top : 1-500mm manway, 1-400mm (vacuum), 1-150mm (product inlet), 2-50mm (standby’s), straight side: 4-500mm manways, 1-125mm (heating inlet plate 3 & 4), 1-65mm (heating inlet plate 1 & 2), 2-50mm (standby & vacuum gauge), 1-40mm (heating inlet plate 11), bottom side: 2-175mm (hand holes), 1-100mm (level feeler), 2-65mm (heating outlet plate 1,2,3 & 10), 1-40mm (heating outlet plate 11), bottom: 1-200mm (product outlet with blind cover), 1-150mm (product outlet, Product inlet and outlet with a stainless steel rotary lock valve, driven by 2.2kw, 3/50/415 volt, 2850 rpm Exd 11B T5 motor via a vari-speed gearbox, 2800/0 to 1058 rpm, steam heated shaft with rotary union joint process data 55kg/hour of final product, initial moisture 65% rel. to 35% purity, residual moisture 35% rel. to 65% purity, density (moist) 392-471 kg/m3, density (dry) 245-318 kg/m3, drying temperature 65 degrees C, drying time 45-65 minutes, pressure in dryer 10 bar, mass flow of wet material 55 x 0.65 : 0.35 = 102 kg/hour, volume of wet material 102 : (0.392...0.471) = 260 – 217 liter/hour
Shelves MOC: Stainless Steel 316. Temperature: 95 °C (203 °F).

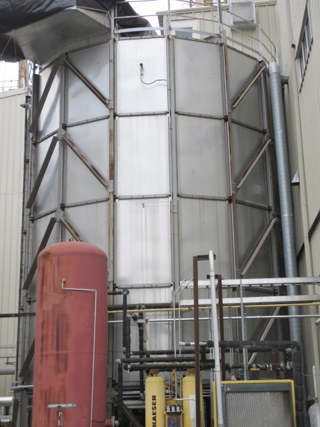

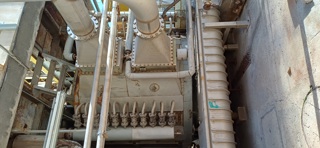

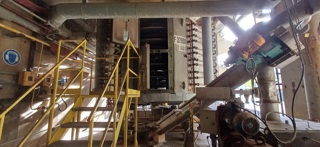

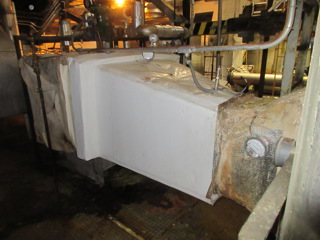

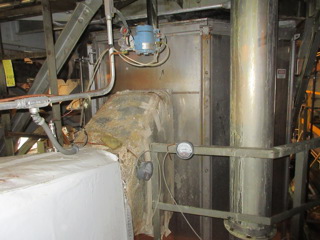

Type: Dryer-Wyssmont
Manufacturer: Wyssmont
Condition: Used
Material: Stainless Steel 316
Diameter: 2,743 mm (108 in)
Height: 5,182 mm (204 in)
Steam coil duty -Saturated steam at 1400 lbs./hr. at 110 psi max heating 3000 scfm to 300 degrees F. Dust collection cyclone by Airecon Model 12-1, size 18 serial CY-0116, counter clockwise 12 gauge 316 SS-36" diameter x 14' overall height.
Tray Diameter: 2,438 mm (96 in). Number of Trays: 22. Shelves MOC: Stainless Steel 316. Evaporation Rate: 612.3 kg/h (1,350 lb/h). Air Flow Rate: 5,445 m3/h (3,205 CFM). Temperature: 21.1 °C (70 °F). Tray Dryer Type: Semi Continuous. Orientation: Horizontal.
Type: Dryer-Wyssmont
Manufacturer: Krauss Maffei
Model: TTB20/16
Condition: Used
Material: Stainless Steel Other
Diameter: 1,930 mm (76 in)
Height: 3,048 mm (120 in)

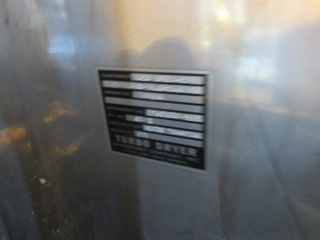

40.3 sq meter turbo dryer CS dryer housing 6'4" dia x 10' hig Trays are under driven, with a gear drive, requires a 2HP motor( none with unit)
Tray Diameter: 1,524 mm (60 in). Number of Trays: 16. Shelves MOC: Stainless Steel Other. Orientation: Vertical.
Wyssmont dryers, also known as Wyssmont Turbo-Dryers, are vertical tray dryers designed for continuous drying of difficult-to-handle materials. These systems use a series of slowly rotating trays within a stationary vertical housing, with heated air or inert gas passing through for efficient and uniform drying. With more than 47 years of expertise, IPP supplies used and surplus Wyssmont dryers sourced from 20 complete plant sites and backed by a vast inventory of over 15,000 process systems.
Wyssmont dryers are known for their ability to process sticky, heat-sensitive or abrasive products that would clog or degrade in other types of dryers. Their enclosed design also minimizes product loss and exposure to oxygen or contaminants.
Built for durability and clean processing, Wyssmont dryers are typically constructed from:
Learn more about Turbo-Dryer technology from Chemical Engineering.
Search the IPP inventory or contact IPP’s expert team to secure a used, secondhand or surplus Wyssmont dryer that matches your process. With trusted equipment in stock, IPP helps you save time and money across all stages of production.
