IPP# 1152, Packaging System Designed for Powders For Sale

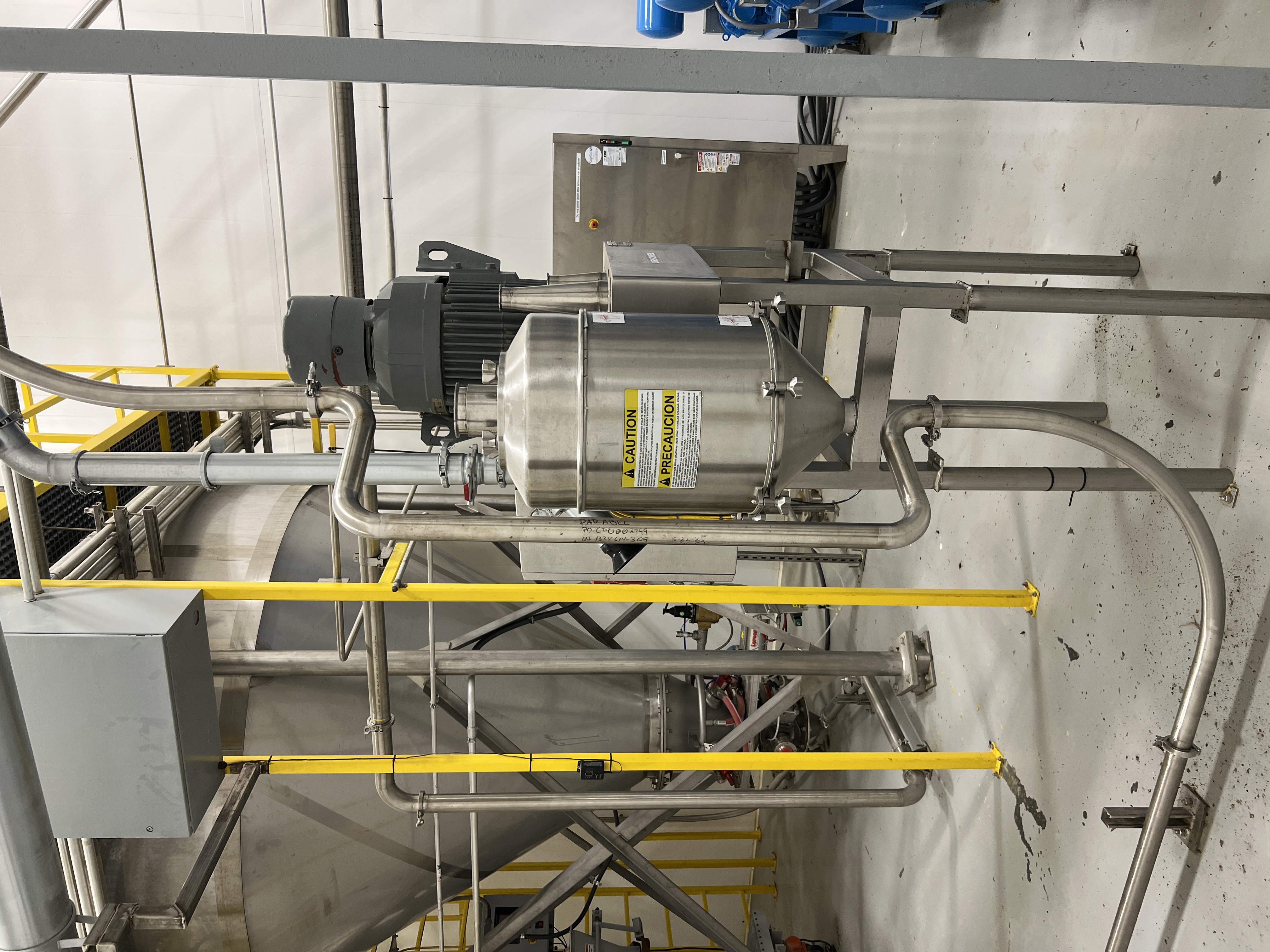

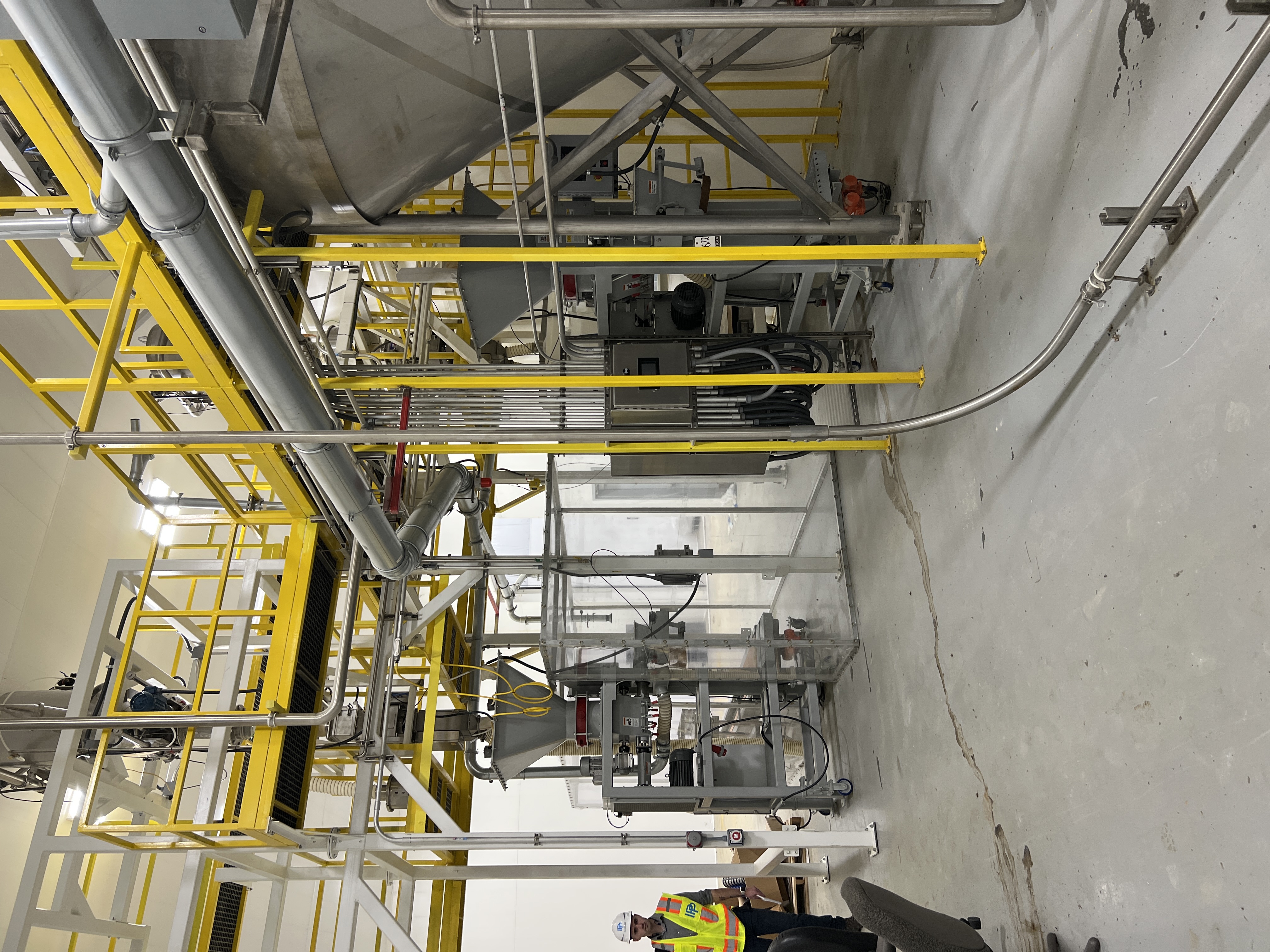

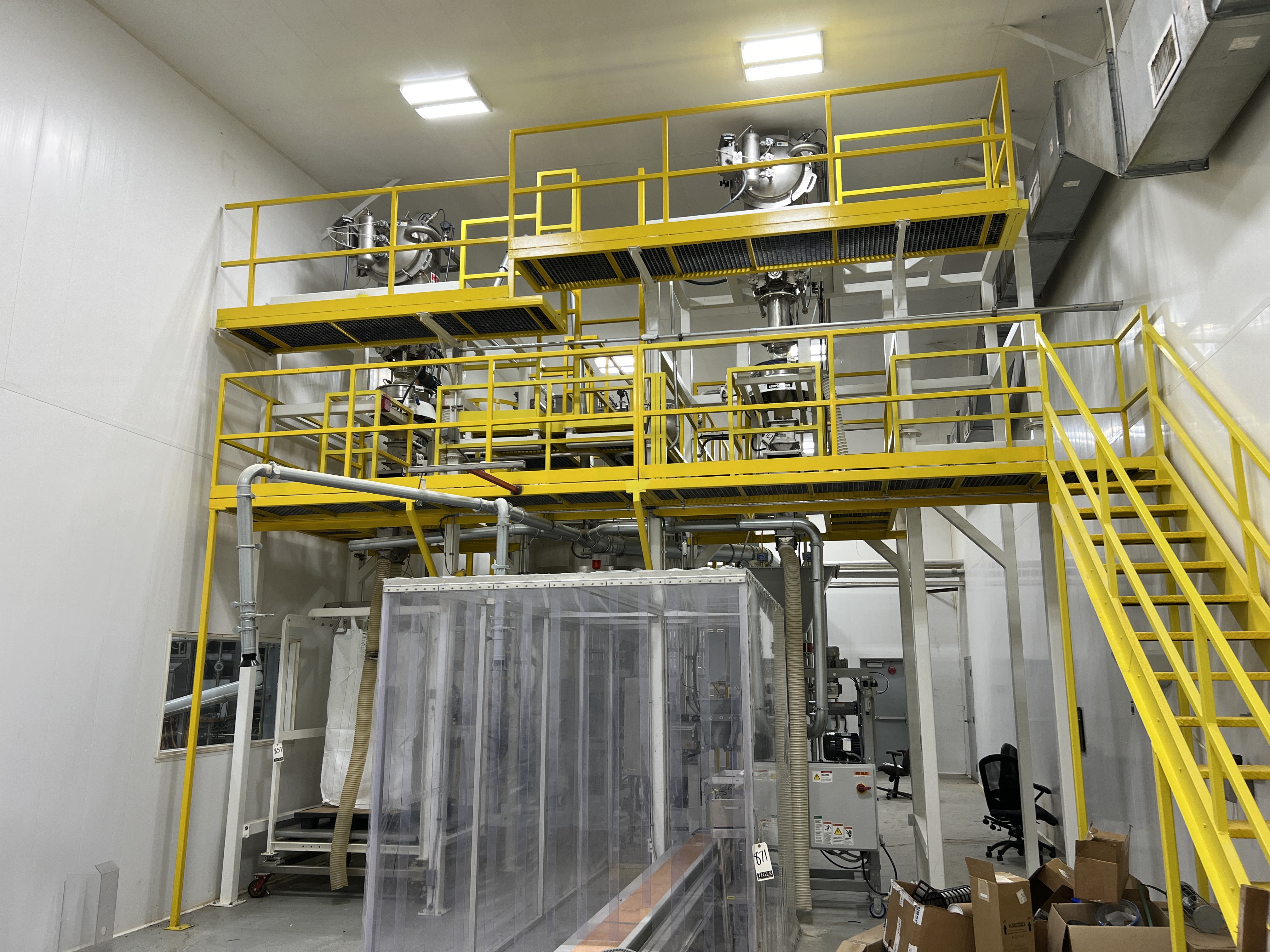

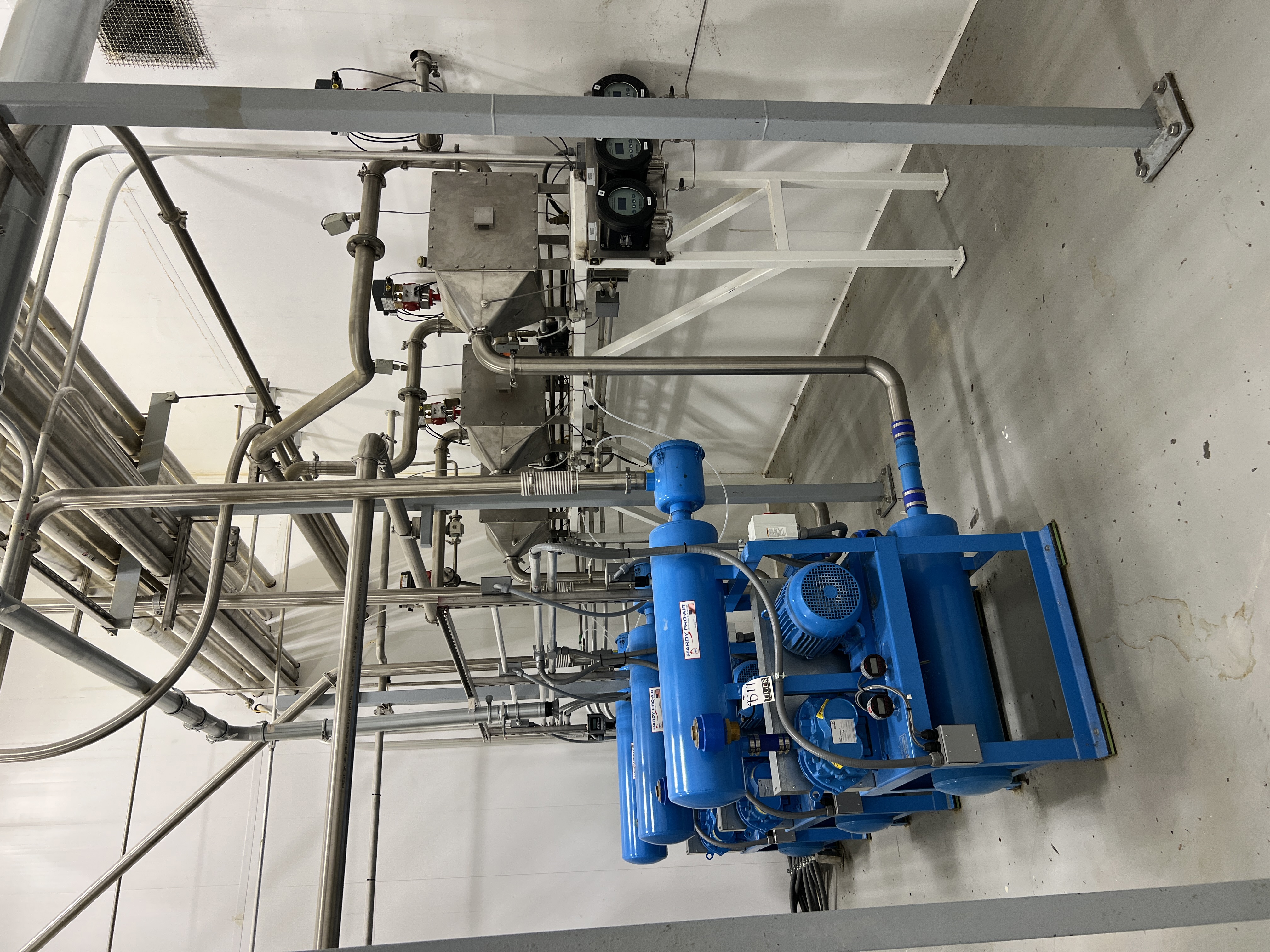

115 Lbs./Hr., Food Grade, Polished Stainless Steel, Product Packaging System. The Packaging System, designed by HAF, is fed using an airveyor system to convey bulk solids from a spin flash dryer to an automated bagging system while continuously under a nitrogen purge. Utilizing one Hardy Pro-Air Blower with VFD controls, rated at 10hp, producing up to 177cfm, up to 15psi pressure, and a vacuum of 137cfm at 16inMg, pulling air through 2.5”OD stainless steel lines from packaging dust collector and pushing air through an HAF In-Line HEPA Filter to pressurize product line coming from the spin flash dyer . Product is conveyed to the packaging system through a currently bypassed Urshel Comitrol Processor, model 1700, for proper sizing, prior to being conveyed into an HAF Dust collector (Horizontal Filter Receiver), cartridge style w/ rotary valve, which can be easily upgraded to include a pneumatic blender and aerator, then dumping into a Russel compact sieve w/ one 20" #8 mesh deck and .38hp vibrator, then falling through a Puritan Magnetics metal remover and metal detector with diverter valve; the metal free and properly sized product is then fed into a Choice Bagging Equipment Clean-Duty Open Mouth Bag Filler onto a TSC scale, and through a Gramatech Workhorse Bag Sealer, and onto a 184" x 24" belt conveyer for palletization; or easily upgradable to be sent from the metal detector directly into a super sack bagger.  HMI Controls are by Northwind Technical Services. See major equipment list in "Process Notes"
