SAA #2000-168, natural gas fired, continuous, comp ratio 9/1, min.WKI 91, ignition timing (BTDC) 11-02, service 4650 HP (3469 Kw), altitude limit 500 feet (152 meter), governed speed 1000 rpm, 0.80mm valve intake & exhaust clearance, firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L, AC generator (alternator) manufactured by Leroy Somer, type LSA-56-BM65-6P, serial #167056-2, IP 23, 3360.8 Kw, 4201 kVA power rating, 11000 volt, 220.5 Amp, 3 phase, 50 Hz, 1000 rpm, excitation AREP, all mounted on a carbon steel skid

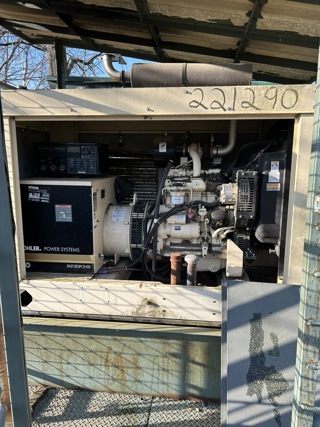

LIKE NEW CONDITION! 62 hours from new. Fresh PM, incl. batteries + 2hr load test, ready to go. KD115V Skid mounted, in outdoor sound attenuating enclosure with electronic controls on day tank. Gen set manufactured by Marathon, 150 KW standby, 480 v 3ph 60Hz, Direct driven by a Volvo Penta Gen set engine. 6 cylinder 4 stroke , direct injection. Turbo Charged and air to air intercooled. Drive engine number of cylinders: 6. Batteries: Yes. Battery Charger: Yes. Controls: Yes.

Trailer mounted set. Oil Type Required API CF-4

• Steam Turbine Generator Set with a Terry condensing steam turbine and Ideal Generator. The generator an electric four pole synchronous AC brushless generator Horizontal design, two bearing style, with single shaft extension. Windings intended to be WYE with full six leads, brought out, and equipped with damper windings to facilitate parallel operation with other generatorsBearings are sleeve type and eletrically insulated and forced oil is fed from an outside source. Bearings are also equipped with dial thermometers, return sight flow glass', and RTD protection. The bearings are also equipped with vibration probes in an X-Y orientation. Space heaters are also included and operate at 2400 watts, 120 vac, 60 hz.The turbine (IPP # 212616) is Multi stage condensing steam turbine, manufactured by Terry. Model # F26-10R. Serial # T42990. Rated for 6,300 rpm, 101,000 lbs./hr. at 600 psig, 750 degrees F., 2.5 in HGA. Electronic governor with direct actuation manufactured by Woodword. Base mounted on a common plate with a Tacke,. Capable of Nominal 15 psi extraction between the 6th & 7th stages. (Bleed)

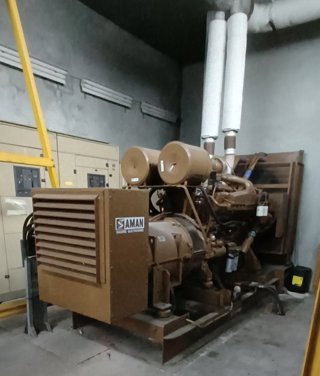

Diesel Fired backup Generator, Gen Set #3412 Generator #588 Water cooled, turbocharged and aftercooled. Four stroke V-12. With sound and weather enclosure. 3Phase / 10 Wire / 650KVa(520KW) / 1800rpm / 60Hz. Cat Gen set, brushless, revolving field solid state exciter, single bearing, close coupled. Connection WYE Driven by a 755HP Cat Engine,

Natural Gas Electric Generator Set Number 20502Cat Engine Model G3516 SITA SN 3RC00088,1085HPThe drivers are V-16, Spark ignition, Turbo charged and after cooled. These machines have been serviced by the OEM since start up and until shut downOperating speed 1200RPMs4 wire, Exciter 27V/80A, max temperature rise 115°C by resistance. Paired with a vertical heat exchanger 5’3”diax12’H Batteries: Yes. Battery Charger: Yes. Controls: Yes.

Diesel Generator set 277/480 volt With an IEC (International Electric Corp) generator, Model 6432LEJ-002 Serial Number A612123 frame 320 ambient 40 degrees C 965 continuous KW, 1206 KVA 1451 AMPS.
Driven by a Detroit Diesel Allison 149 Power, V12 engine with exhaust gas turbo charger, electric oil heater and muffler. Skid mounted with cooling fan serial number 126796.
New hour meter on generator with 102 hours, plus 665 previous hours on the unit.

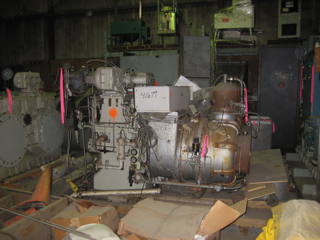

Elliott steam turbine generator set with Elliott turbines Single stage back pressure style units We believe this unit only has 100 hours runtime since overhaul.
Engine, gearbox and generator are mounted in a common skid. The Elliott gearbox reduces the turbine speed of 5750 RPM to a final speed of 1800 RPM to drive a conventional 4-pole, 2-bearing alternator rated 1000kW/1176kVA with 0.85 PF, 163 Amps and wound for 2400/4160V/3/60 Hz service. Rated Power - 1350HP/1007kW; Rated Turbine Speed - 5750 RPM; Rated Inlet Steam Pressure - Gauge - 599 PSI; Rated Steam Temperature - 750 Deg F; Rated Exhaust Pressure - 155 PSI. Gear Drive is a model # C4 R4, Serial # B102145C-G1, Rated power 1350, Service factor 1.66, High speed shaft;5750, Low speed shaft;1815 , Tag # 802654 C4 2624. Alternater is built by BBC (Brown Boveri) Serial # C36-A076-102, Drive end bearing 6322/C3, opposite drive end bearing 6320/C3. Time rated continuous; Frame # 717, enclosure is drip proof; rated ambient temp. 40 degrees C. With twin Amtek oil coolers and 1.5 hp oil pump. The package includes generator control and synch panels with scope, no boilers with units.

Elliott steam turbine generator set with Elliott turbines Single stage back pressure style units. We believe this unit has zero run hours since the overhaul. Engine, gearbox and generator are mounted in a common skid. Rated Power - 1350HP/1007kW; Rated Turbine Speed - 5750 RPM; Rated Inlet Steam Pressure - Gauge - 599 PSI; Rated Steam Temperature - 750 Deg F; Rated Exhaust Pressure - 155 PSI. Gear Drive is a model # C4 R4, Serial # B102145C-G2, Rated power 1350, Service factor 1.66, High speed shaft;5750, Low speed shaft;1815 , Tag # 802654 C4 2625. Alternater is built by BBC (Brown Boveri) Serial # C36-A076-101, Drive end bearing 6322/C3, opposite drive end bearing 6320/C3. Time rated continuous; Frame # 717, enclosure is drip proof; rated ambient temp. 40 degrees C. With twin Amtek oil coolers and 1.5 hp oil pump.

gas fired combined heat and power system, system includes: 5000 kg/hr Cochran single pass waste heat recovery boiler, max continuous 5010kg/hr, serial #95/2766, manufactured by Cochran Boilers Limited,design pressure 13 barg, inlet temperature 430 degrees C, design saturated steam temperature 188 degrees C (@ 10.5 barg), safety valve setting 11.55 barg, heat transfer duty 2934 +- 15%, specific garavity/density 0.95 kg/m3, specific heat 1.00 kCal/kg.C, approximate boiler dimensions 2630mm diameter x 6m long, boiler an with economiser, manufactured by Flametec ltd, serial #35690/04068, design pressure 20 barg @ 160 degrees C, 2 x 3360.8 Kw (4201 kVA) gas engine driven electrical generator, engine manufactured by Waukesha (Dresser), model #16VAT27GL, serial #C-80859/1 & C-80859/2, SAA #2000-168, natural gas fired, continuous, comp ratio 9/1, min.WKI 91, ignition timing (BTDC) 11-02, service 4650 HP (3469 Kw), altitude limit 500 feet (152 meter), governed speed 1000 rpm, 0.80mm valve intake & exhaust clearance, firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L, AC generator (alternator) manufactured by Leroy Somer, type LSA-56-BM65-6P, serial #167056-2, IP 23, 3360.8 Kw, 4201 kVA power rating, 11000 volt, 220.5 Amp, 3 phase, 50 Hz, 1000 rpm, excitation AREP, all mounted on a carbon steel skid oil lubrication, cooling water system, MCC control panels, some ductwork, process description: natural gas is used to fuel two gas engine powered generator sets that provide electrical power to the site, with the ability to export surplus power to the grid, heat extraction from the exhaust gases is used within the heat recovery system to heat the boiler feed water to the steam boiler, which provides steam to the plant steam main, excess heat from each engines jacket water cooling system and intercooler cooling system is removed and dispersed to atmosphere by the heat dump radiators, the intercooler cooling system is used to provide cooling to the engine lubricating oil system, valves are provided on the jacket water cooling, and lubricating oil systems to enable future connections to a second heat recovery system

SAA #2000-168, natural gas fired, continuous, comp ratio 9/1, min.WKI 91, ignition timing (BTDC) 11-02, service 4650 HP (3469 Kw), altitude limit 500 feet (152 meter), governed speed 1000 rpm, 0.80mm valve intake & exhaust clearance, firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L, AC generator (alternator) manufactured by Leroy Somer, type LSA-56-BM65-6P, serial #167056-2, IP 23, 3360.8 Kw, 4201 kVA power rating, 11000 volt, 220.5 Amp, 3 phase, 50 Hz, 1000 rpm, excitation AREP, all mounted on a carbon steel skid.

Natural Gas Generator Set Number 20502 Cat Engine Model G3516 SITA SN 3RC00095,1085HP The drivers are V-16, Spark ignition, Turbo charged and after cooled. These machines have been serviced by the OEM since start up and until shut down Operating speed 1200RPMs4 wire, Exciter 27V/80A, max temperature rise 115°C by resistance. Paired with a vertical heat exchanger 5’3”diax12’H Drive engine number of cylinders: 16. Engine Horsepower: 1,085. Batteries: Yes. Battery Charger: Yes.

Natural Gas Generator Set Number 20502 Cat Engine Model G3516 SITA SN 3RC00096,1085HP The drivers are V-16, Spark ignition, Turbo charged and after cooled. These machines have been serviced by the OEM since start up and until shut down Operating speed 1200RPMs 4 wire, Exciter 27V/80A, max temperature rise 115°C by resistance. Paired with a vertical heat exchanger 5’3”diax12’H

Natural Gas Generator Set Number 20502 Cat Engine Model G3516 SITA SN 3RC0089,1085HPThe drivers are V-16, Spark ignition, Turbo charged and after cooled. These machines have been serviced by the OEM since start up and until shut down Operating speed 1200RPMs4 wire, Exciter 27V/80A, max temperature rise 115°C by resistance. Paired with a vertical heat exchanger 5’3”diax12’H Drive engine number of cylinders: 16. Engine Horsepower: 1,085. Batteries: Yes. Battery Charger: Yes.

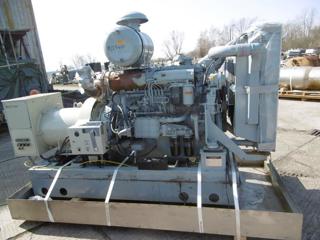

diesel engine driven generator set, 50 Hz, 400 volt, alternator manufactured by Leroy Somer, type LSA-46L9S, serial #47593/02, 200kw (250 kVA) continuous duty, 50Hz, 400 volt, 3 phase, 1500 rpm, insulation class H, 27 volt excitation continuous duty, IP 23, regulator RS129, diesel engine manufactured by Iveco Aifo, 221kw, type 8210SR125, serial #238916, 1500 rpm, Holset type 4LGK turbo, water cooled, all mounted on a carbon steel skid, set with (1) Martin Adam air filter which attached to the cooling radiator, type C1, auftrags #14960.1-21507, Komm #89/6090, (1) 1000 liter horizontal diesel fuel tank which is mounted inside a bunded tank, 960mm diameter x 1.5m straight side, level glass on one end, (1) control panel, (1) start up battery bank with 4-type 6V-OGlibloc.130 batteries, 6 volt, 152/130 Ah (5h),

400KW 70-79hp @ 2500RPM600V max @ 48A, 50kVA, 60Hz, Line to Line Voltage Engine Model Number: 3029TF150. Drive engine number of cylinders: 3. Engine Horsepower: 48. Batteries: Yes. Battery Charger: Yes. Controls: Yes.

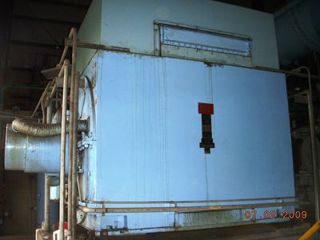

Unit consists of twin Kawasaki M1T-01 turbine engines designed for natural gas or light distillate fuel driving Kato generator thru Kawasaki reduction gear (8000/1800 rpm). Generator is rated 2500 KVA, WYE, 60 deg C temp rise. W/brushless exciter. Air cooled.

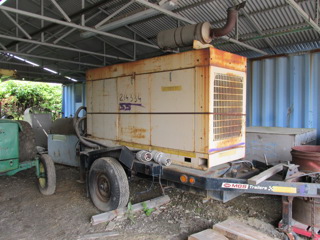

portable Diesel Generator set trailer mounted with Cummins water cooled diesel engine Cummins 6 cylinder diesel, water cooled, 505 cid/8.3 liter Cust Spec 42956 Injector PN 3908511, C series CPL 0831 , Timing 18 DEG, Valve Lash, cold Intake 0.012, Exh 0.024 , Firing 153624 300 rpm Low Idle 1800 rpm. Gen set has Analog control panel. Trailer equipped with (2) 600 volt power plugs. Generator set is mounted on a single axle trailer manufactured by MGS, VIN # 16M610913JD015280, with a built in fuel tank, with a 503 liter capacity. Unit is set up for cold weather operation and includes the following utilities supplied by 110 volts through a separate breaker panel. 1) Block heater 2) Water circulator and heater. 3) Pan/oil heater, 4) LaMarche battery charger Generator set and controls mounted inside a weatherproof enclosure.

1495 kW , back pressure turbine generator integrally geared high efficiency single stage design 29 tonne/hr (max) live steam @ 23 kg/cm2g and 340 deg C, exhausting back pressure 5.6 to 8.5 kg/cm2g @ 226 to 257 deg C, 282 to 1495 kW output, assumed generator efficiency 89.6 to 95.3%, mech output 315 to 1569 kW, turbine speed 10740 rpm, coupling speed 1500 rpm

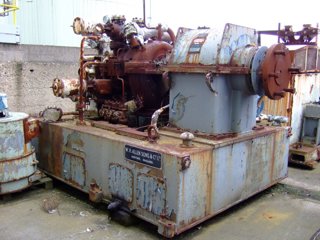

3750 KVA, steam turbine generator. This consists of (1) steam turbine manufactured by WH Allen and Sons, serial #T4/7284(7), 4500 HP, speed 10250 rpm, gearbox speed 1500 rpm. Inlet pressure 635 psi @ 670 degrees F, exhaust pressure 100 psi. (1) generator manufactured by Bruce Peebles, serial #94359, 1500 rpm, 11000 volt, 50 Hz, Type 'B' insulation. (1) exciter generator, manufactured by Westinghouse, 17.6 KW, 18.5 KVA, 1500 rpm, 3 phase, 50 Hz, 30.5 volt. (1) oil cooler, (1) oil filter, (1) gland condenser, (1) combined stop & emergency valve, (1) control panel

diesel engine driven electric generator. Unit rated 187.5 KW, 3/50/230/400 volt, 1500 rpm. Driven by (6) cylinders. Diesel engine, Type GLET-CA-2, SN 06042/1175/040. Turbo charged, oil and water cooling system. Unit w/built-in control panel. Skid mtd.

generator 560kVa, 1500 rpm, service duty SEC, IP23, engine speed 1800 rpm, water cooled, mounted on a carbon steel skid, Engine Model Number: VT A23 61. Drive engine number of cylinders: 8. Engine Horsepower: 1,800. Batteries: Yes. Controls: Yes.

Petbow 125 KVA diesel engine driven electric generator

AC current

1500 rpm

electric start type control gear,

water cooled, silencer,

built on control panel,

fully enclosed in soundproof cabinet.

330kVa, 1500 rpm, IP23, service duty S1, mounted on a carbon steel skid, water cooled, Engine Model Number: 2016. Drive engine number of cylinders: 8.
