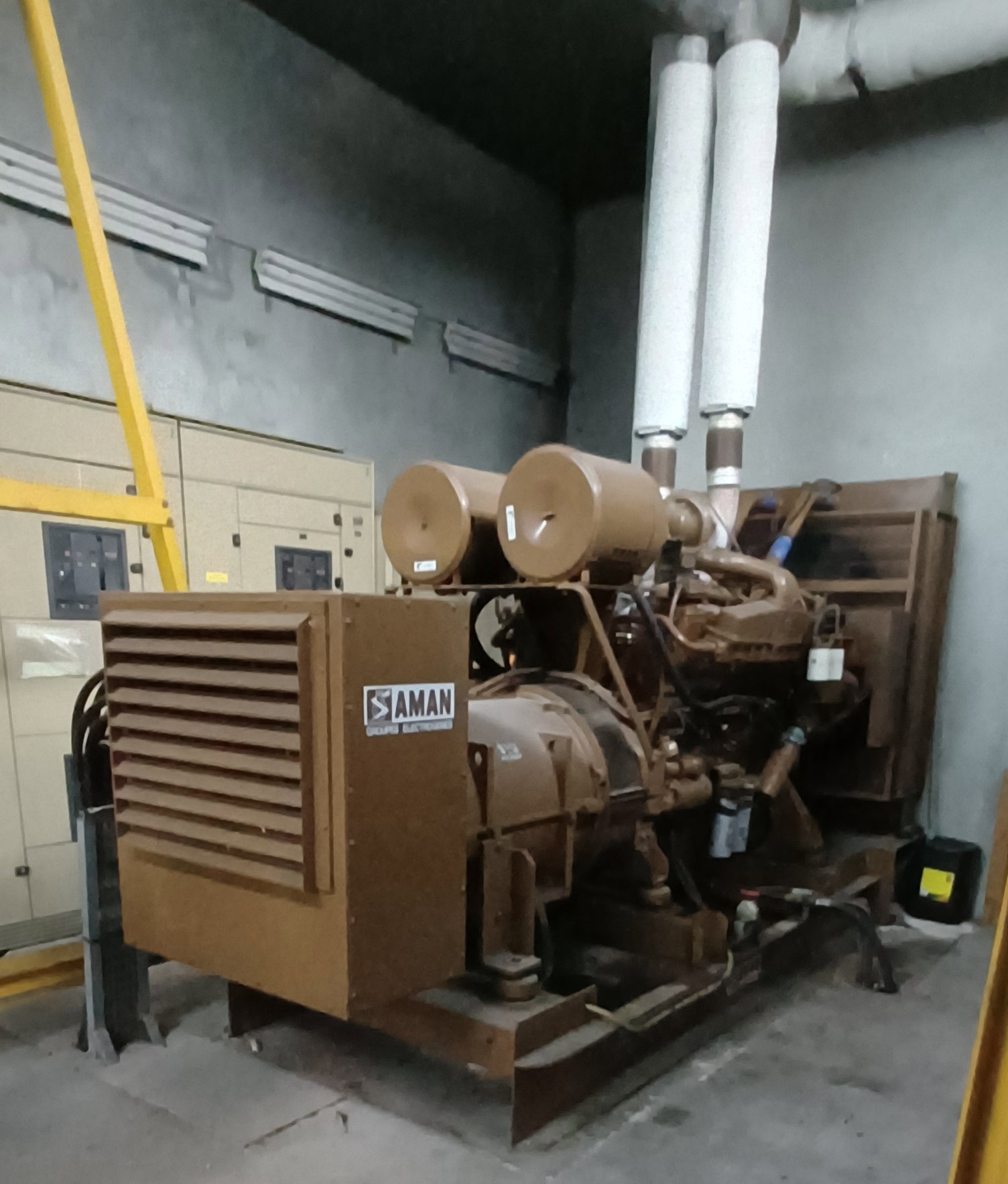

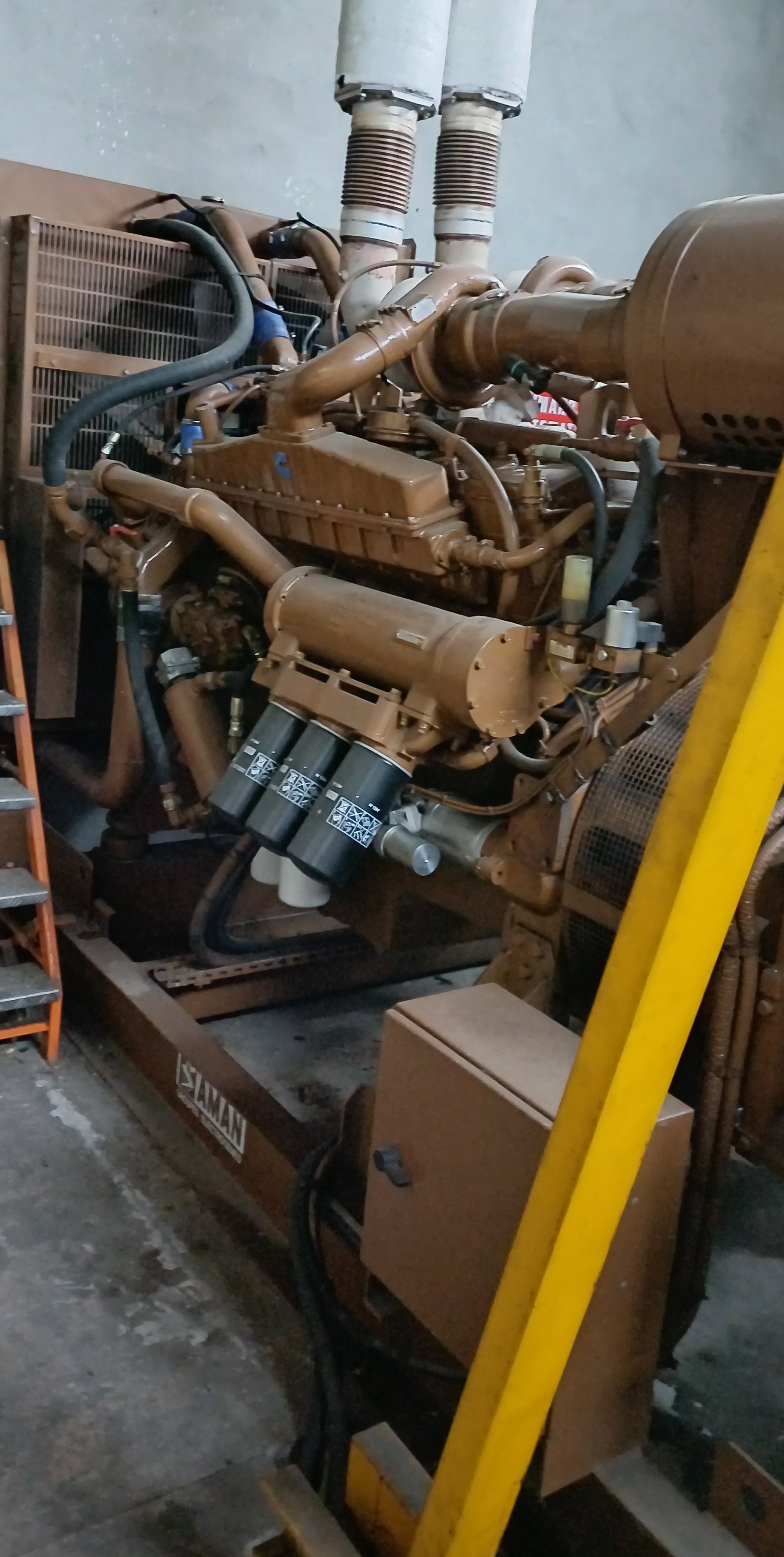

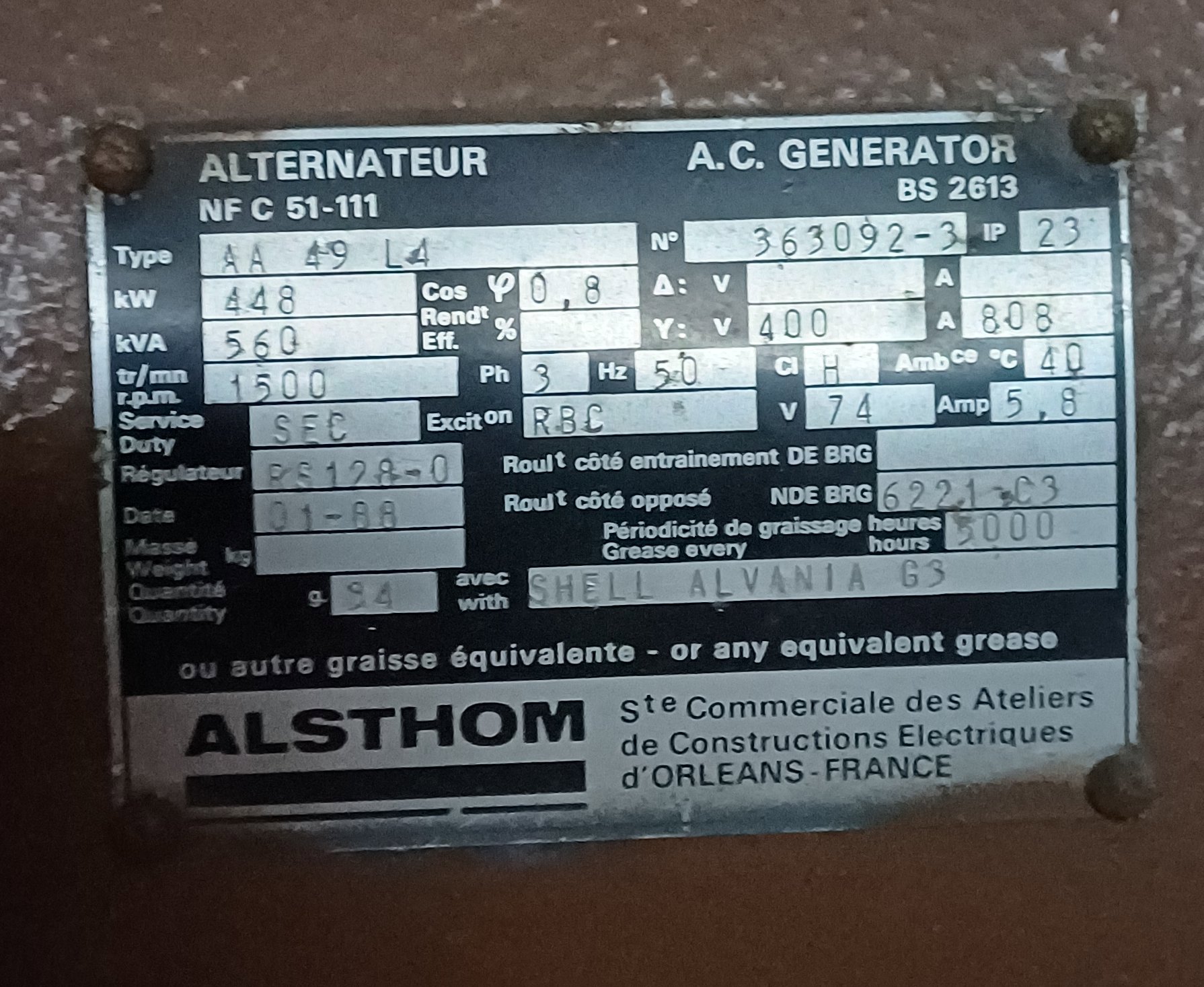

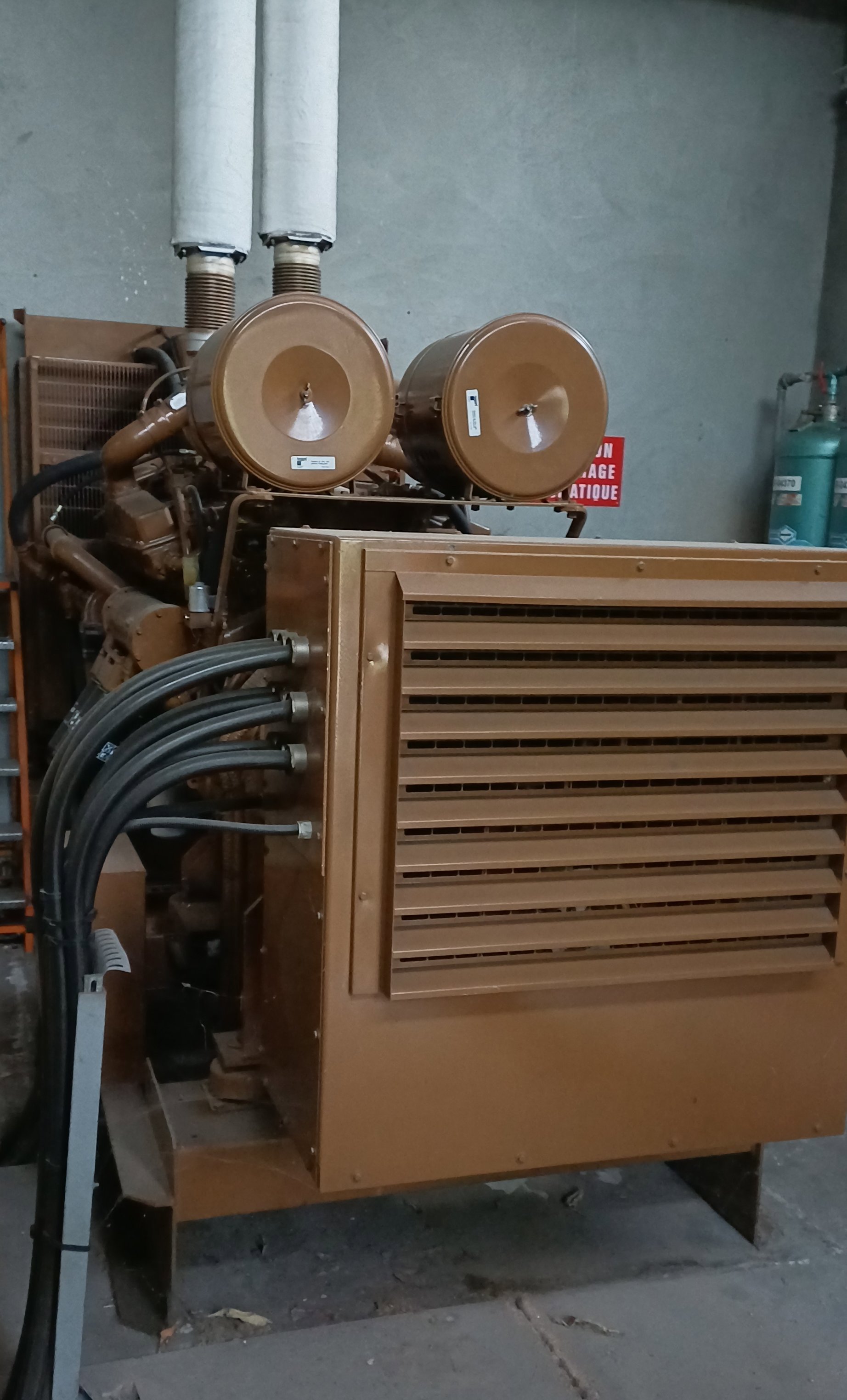

generator 560kVa, 1500 rpm, service duty SEC, IP23, engine speed 1800 rpm, water cooled, mounted on a carbon steel skid,
Type: Power Generator
Manufacturer: Dorman
Condition: Used
Material: Carbon Steel
Capacity: 0.19 MW
Voltage: 400
diesel engine driven electric generator. Unit rated 187.5 KW, 3/50/230/400 volt, 1500 rpm. Driven by (6) cylinders. Diesel engine, Type GLET-CA-2, SN 06042/1175/040. Turbo charged, oil and water cooling system. Unit w/built-in control panel. Skid mtd.
Cycle: 50. Phase: 3. Drive Power: 187.5 kW (251.4 HP). Fuel Type: Diesel. Powered By: Engine. Controls: Yes.
Type: Power Generator
Manufacturer: Waukesha
Model: 16VAT27GL
Condition: Used
Material: Carbon Steel
Capacity: 3.4 MW
Amperage: 220.5 amp
SAA #2000-168, natural gas fired, continuous, comp ratio 9/1, min.WKI 91, ignition timing (BTDC) 11-02, service 4650 HP (3469 Kw), altitude limit 500 feet (152 meter), governed speed 1000 rpm, 0.80mm valve intake & exhaust clearance, firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L, AC generator (alternator) manufactured by Leroy Somer, type LSA-56-BM65-6P, serial #167056-2, IP 23, 3360.8 Kw, 4201 kVA power rating, 11000 volt, 220.5 Amp, 3 phase, 50 Hz, 1000 rpm, excitation AREP, all mounted on a carbon steel skid.
Voltage: 11,000. Cycle: 50. Phase: 3. Operational Hours: 34,000. Drive Power: 3,350 kW (4,500 HP). Fuel Type: Natural Gas. Powered By: Engine.
Type: Power Generator
Manufacturer: Waukesha
Model: 16VAT27GL
Condition: Used
Material: Carbon Steel
Capacity: 6.7 MW
Amperage: 220.5 amp
gas fired combined heat and power system, system includes: 5000 kg/hr Cochran single pass waste heat recovery boiler, max continuous 5010kg/hr, serial #95/2766, manufactured by Cochran Boilers Limited,design pressure 13 barg, inlet temperature 430 degrees C, design saturated steam temperature 188 degrees C (@ 10.5 barg), safety valve setting 11.55 barg, heat transfer duty 2934 +- 15%, specific garavity/density 0.95 kg/m3, specific heat 1.00 kCal/kg.C, approximate boiler dimensions 2630mm diameter x 6m long, boiler an with economiser, manufactured by Flametec ltd, serial #35690/04068, design pressure 20 barg @ 160 degrees C, 2 x 3360.8 Kw (4201 kVA) gas engine driven electrical generator, engine manufactured by Waukesha (Dresser), model #16VAT27GL, serial #C-80859/1 & C-80859/2, SAA #2000-168, natural gas fired, continuous, comp ratio 9/1, min.WKI 91, ignition timing (BTDC) 11-02, service 4650 HP (3469 Kw), altitude limit 500 feet (152 meter), governed speed 1000 rpm, 0.80mm valve intake & exhaust clearance, firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L, AC generator (alternator) manufactured by Leroy Somer, type LSA-56-BM65-6P, serial #167056-2, IP 23, 3360.8 Kw, 4201 kVA power rating, 11000 volt, 220.5 Amp, 3 phase, 50 Hz, 1000 rpm, excitation AREP, all mounted on a carbon steel skid oil lubrication, cooling water system, MCC control panels, some ductwork, process description: natural gas is used to fuel two gas engine powered generator sets that provide electrical power to the site, with the ability to export surplus power to the grid, heat extraction from the exhaust gases is used within the heat recovery system to heat the boiler feed water to the steam boiler, which provides steam to the plant steam main, excess heat from each engines jacket water cooling system and intercooler cooling system is removed and dispersed to atmosphere by the heat dump radiators, the intercooler cooling system is used to provide cooling to the engine lubricating oil system, valves are provided on the jacket water cooling, and lubricating oil systems to enable future connections to a second heat recovery system
Voltage: 11,000. Cycle: 50. Phase: 3. Operational Hours: 34,000. Drive Power: 4,650 kW (6,250 HP). Fuel Type: Natural Gas. Powered By: Engine. Controls: Yes.
Type: Power Generator
Manufacturer: AEG
Model: DKBH404/04
Condition: Used
Material: Carbon Steel
Capacity: 0.46 MW
Amperage: 795 amp
550 KVA, diesel engine driven electric generator. Engine manufactured by Deutz; Generator: 550 KVA, 1500 rpm, 795 amps, 50 Hz. Unit rated 550 KVA, 3/50/400 volt, 1500 rpm. Driven by diesel engine Type BF16M716, serial #5252569, rated 625 HP, 1500 rpm. Air cooled, (16) cylinder, (2) sets of (8) cylinders each with turbocharger and intercooler. Intercooler rated 4 bar. Unit with (4) air filters, built-on control panel. Skid mounted.
Voltage: 400. Phase: 3. Drive Power: 463 kW (621 HP). Fuel Type: Diesel. Powered By: Engine. Controls: Yes.
