Bepex Torus Disc Cooler U shaped trough, continuous design. Certified by Moorhead Machinery & Boiler Co Moorhead Serial number 605-2300.
Shell rated 15 psi @ 350 degrees. No jacket on trough.
U shaped trough, bolted flat top, with one end bolted for rotor removal. Inside dimensions 48” ID x 9’ long Nominal 106 cubic foot working capacity, approx.
Unit has a tubular rotor with hollow discs mounted on the rotor to allow heating/cooling media to flow through the rotor. The shaft is mounted on outboard bearings, rotary joint on one end, packing glands. Chain and sprocket drive with a gear reducer and 25 HP 3/60/230/460 volt motor. 15 RPM shaft speed. The residence time is adjustable by and overflow weir at the discharge end.

Bepex Torus Disc Cooler U shaped trough, continuous design. Certified by Moorhead Machinery & Boiler Co Moorhead Serial number 605-2299.
Working pressure in the hollow rotor is 100 PSI @ + 50 to 350 degrees F Shell rated 15 psi @ 350 degrees. No jacket on trough.
U shaped trough, bolted flat top, with one end bolted for rotor removal. Inside dimensions 48” ID x 9’ long Nominal 106 cubic foot working capacity, approx.
Unit has a tubular rotor with hollow discs mounted on the rotor to allow heating/cooling media to flow through the rotor. The shaft is mounted on outboard bearings, rotary joint on one end, packing glands. Chain and sprocket drive with a gear reducer and 25 HP 3/60/230/460 volt motor. 15 RPM shaft speed. The residence time is adjustable by and overflow weir at the discharge end.

Torus disc dryer The rotor is 60" diameter x 14' long, and is hard faced. The rotor is cored for steam heating Heating medium is steam Trough is 69" wide x 177" long x 84" high with a vapor dome. Total height with dome cover is 154" high. Panel coil jacket on 25% of the dome cover. Continues product flow with retention time is controlled by adjustable product discharge weir. Rotor had hollow discs, and is chain and sprocket drive Outboard bearings, packing glands with N2 seal purge, Johnson rotary joint on shaft.

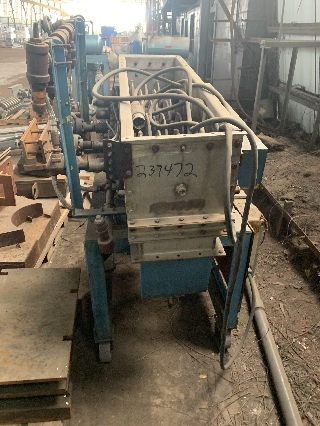

Thermal disc processor w/24" dia thermal discs Trough dimensions 40" wide x 9'6" long x 30" deep 5 shafts w/rotary joints thru Falk reducer 30.69:1 ratio 12" dia x 5'6" long discharge screw driven by 5 HP, 3/60/230/460 volt, 1425 rpm motor

Torus disc cooler Vessel rated 15 psig/full vacuum @ 385 degree F Outboard bearings Johnson rotary joints on shaft Max speed 15 rpm

Torus disc cooler

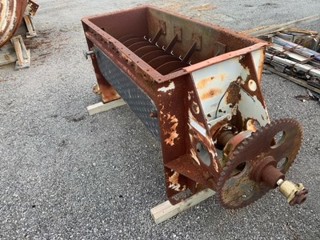

• Torus disc dryer screw 150 psi @ 375 deg FT trough is 64" long x 28" wide x 36" deep Requires 5 HP drive No cover
