Diameter (1):
600 mm
Pressure:
0.1 bar
Temperature:
102 °C
Additional Information:
(1.4435) tray column with sump tank

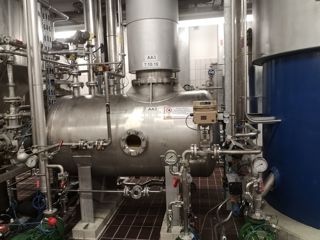

sump tank 1.1 bar @ 102 degrees C (1270 liter), 600mm diameter x 8700mm total height, (33) internal 316L stainless steel Varioflex valve trays, approx 200mm spacing, column in 3-sections ( 2-sections 2420mm high, 1- section 2260mm high), column with (1) 26.2 square meter 304 stainless steel (1.4301) tube and shell vertical condenser, manufactured by GIG, design pressure tube side 6 bar @ 35 degrees C, shell atmospheric @ 64 degrees C, (194) 17.2mm diameter x 1.2mm thick x 2.5m long 304 stainless steel tubes, 4 pass tubeside, single pass shell side, 419mm diameter 304 stainless steel shell, condenser fits on to the top of the column, (2) 3.5 m3/hr @ 34m head 316 stainless steel centrifugal pumps, type NCL oh 32/165, manufactured by Dickow Pumpen, 2.1 kw, 2900 rpm, EX design, mounted on a baseplate
