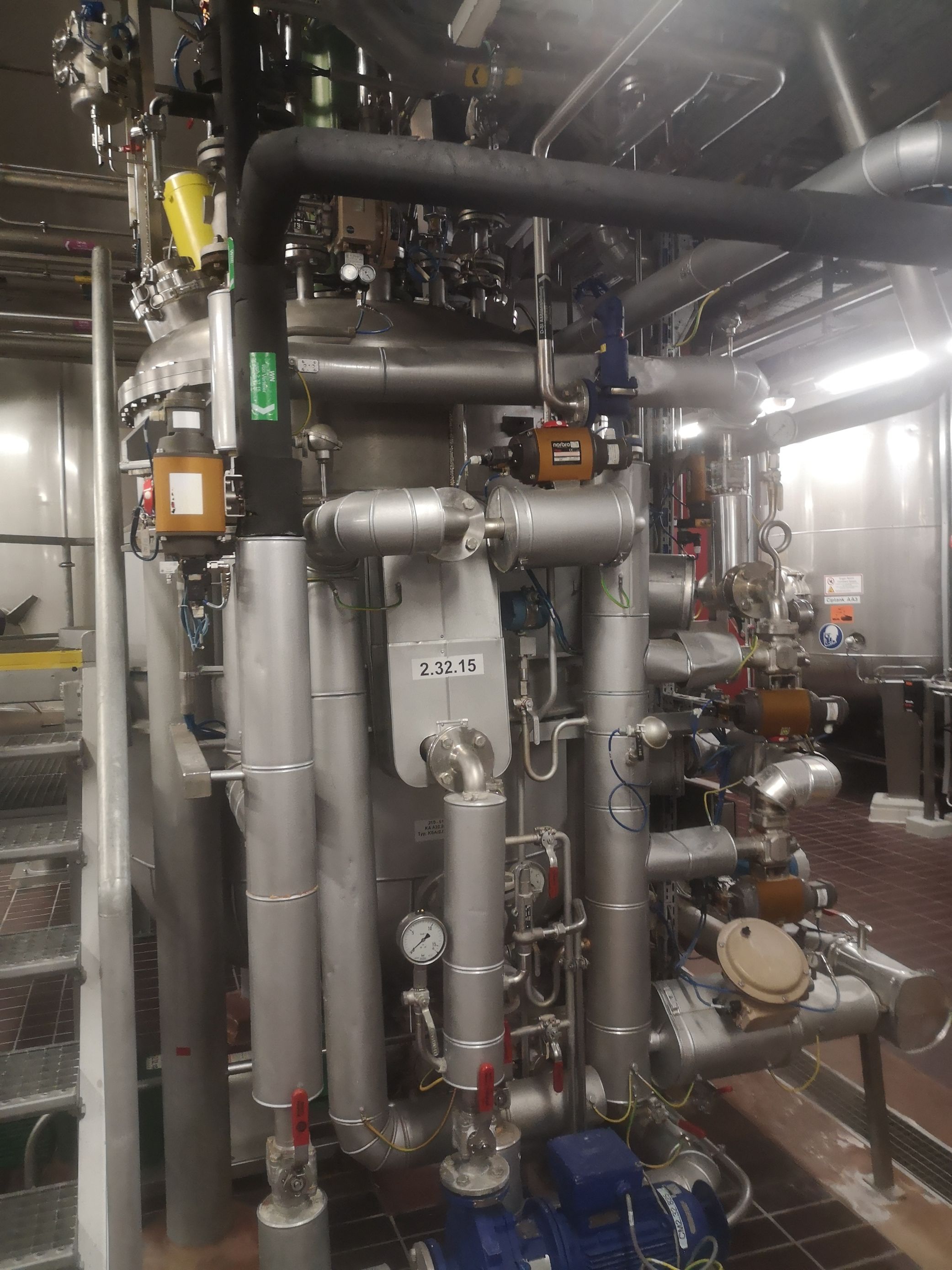

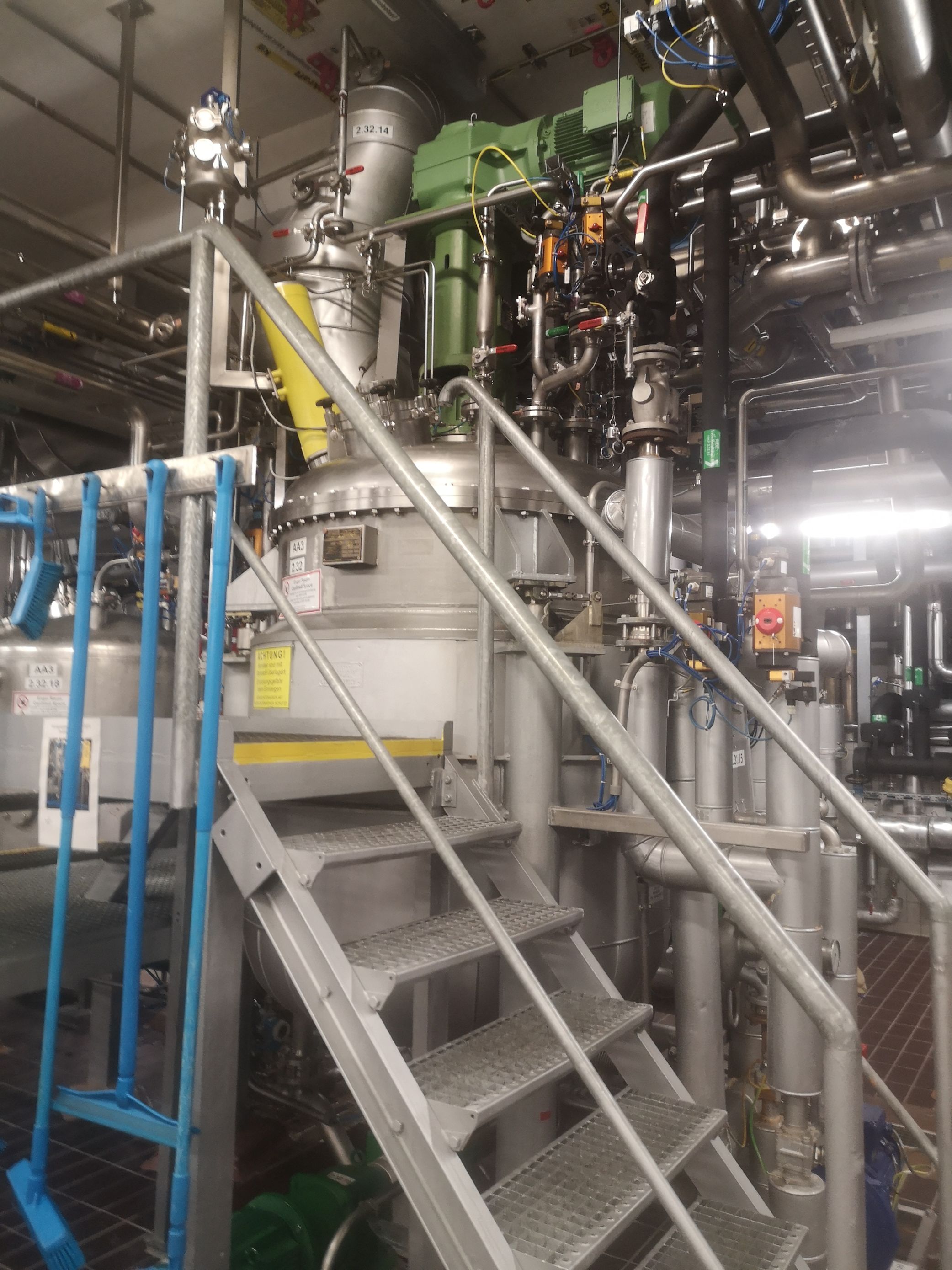

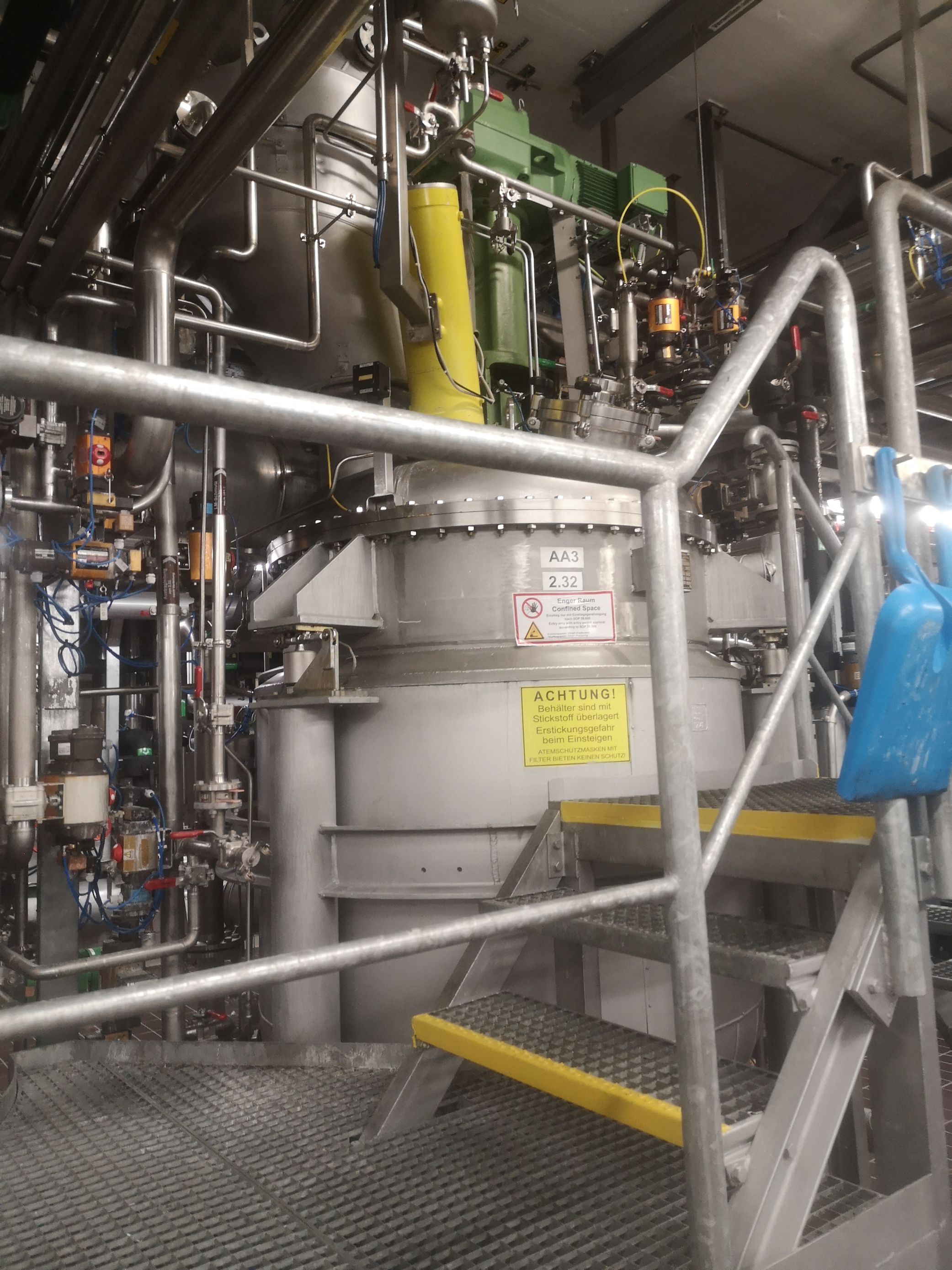

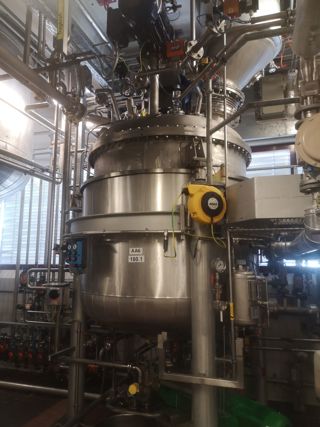

Batch-Type Agitated Reactor 2,650 L (697 gallons) Stainless Steel Austenitic For Sale - IPP# 236078

Type: Reactor

Subtype: Batch-Type Agitated

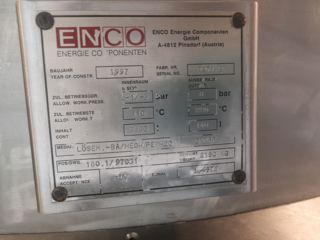

Manufacturer: Enco

Model: TUV

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 3,650 L (959 gallons)

Internal Pressure: 2 bar (29 psi)

3200 liter TUV internal pressure -1/2 bar @ 110 degrees C (3630 liter), jacket 8 bar @ 220 degrees C (140 liter) Motor: 3 phase interrupted ribbon type agitator mechanical seal with lubricator pot 316Ti stainless steel (1.4571) half pipe coil jacket on straight side, 316Ti stainless steel (1.4571) standard jacket on bottom dish

Internal Temperature: 110 °C (230 °F). Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 220 °C (428 °F). Jacket Material of Construction: Stainless Steel Austenitic. Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 1,300 mm (52 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

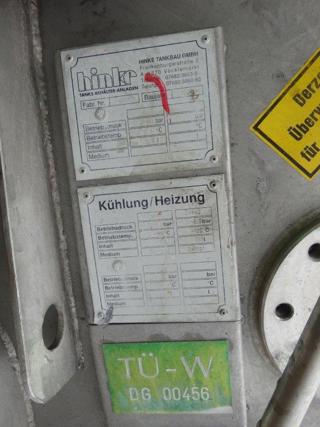

Manufacturer: HINKE

Model: TUV

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 12,800 L (3,400 gallons)

Internal Pressure: 3 bar (43.5 psi)

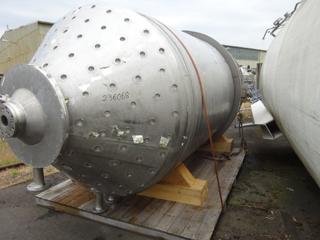

11000 liter reactor/crystaliser TUV internal pressure -1/3 bar @ 130 degrees C (12800 liter) jackets 1/6 bar @ 120 degrees C (54/315 liter) 2m diameter x 3350mm straight side x 1110mm high bottom cone mechanical seal with lubricator (1) 316L stainless steel flat half pipe coil jacket on straight side (1) 316L stainless steel dimple jacket on bottom cone

Internal Full Vacuum: Yes. Internal Temperature: 130 °C (266 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 120 °C (248 °F). Jacket Material of Construction: Stainless Steel 316. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 3,350 mm (131.9 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

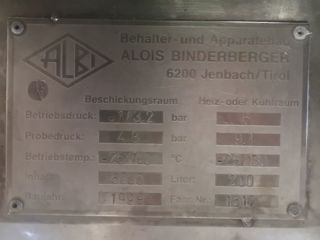

Manufacturer: Albi

Model: TUV

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity (Design): 6,000 L (1,600 gallons)

Internal Pressure: 3.2 bar (46.4 psi)

TUV internal pressure -1/3.2 bar @ -25/130 degrees C (6000 liter), jacket 6 bar @ -25/130 degrees C (200 liter) Motor phase : 3 400/690 volt (3) sets of intermig agitators on shaft internal baffles on sidewall Openings types: Mixture of standard flat flange fittings and Tri-clamp fittings Insulation: Fully insulated and cladded

Internal Temperature: 130 °C (266 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 130 °C (266 °F). Jacket Material of Construction: Stainless Steel 304. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 1,700 mm (66.9 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gerhard & Rauh

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 2,900 L (766 gallons)

Internal Pressure: 6 bar (87 psi)

316 Ti ss internal pressure 6 bar @160 degrees C jacket 6 bar @ 160 degrees C (total volume 59 liter)

Internal Temperature: 160 °C (320 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 160 °C (320 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 1,500 mm (59.1 in). Straight Side Length: 1,200 mm (48 in). Support Type: Legs.
