Air Flow:
480 m3/h
Orientation:
Horizontal
Additional Information:
consisting of (2) Leybold Heraeus c/steel Roots blowers,
(1) 55ltr 316l s/steel (1.4571) vertical pressure tank, manufactured by Dynamite Nobel, fabrik #573, pressure 6 + vak bar @ 150 deg C, 400mm diameter x 400mm straight side, bolt flat top, weld dished bottom, openings top: 2-50mm, straight side: 1-50mm, bottom: 1-25mm

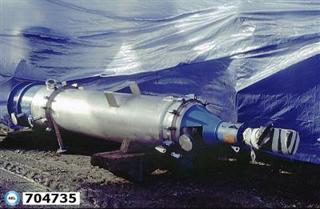

(1) 9.72 sqm 316L s/steel (1.4571) tube, shell and head horizontal heat exchanger, maunufactured by Dynamit Nobel, fabrik #348, pressure tube side 6 bar @ 165 deg C (48ltr), shell 10 bar @ 200 deg C (66ltr), (55) 25mm diameter x 2.5mm x 2.5m long 316L s/steel tubes, shell 450mm diameter x 3031mm overall length, 2-dished heads, openings tubeside: (1) dished head with 1-50mm, (1) dished head with 1-50mm, shell: 1-100mm, 2-50mm,
all TUV certified
