Results 7 items found

Available equipment

Showing 7 of 7 matching equipment.

Stock Number: #221604
Stainless Steel 316 Sombroek Packed Column
Diameter (1): 600 mm
Pressure: 1.1 bar
Vacuum: Yes
Temperature: 340 °C
Additional Information: packing height 2.7m 316 stainless steel pall rings de-mister in top
More Details ⟶
Stock Number: #221617
Stainless Steel 304 Sombroek Packed Column
Diameter (1): 1,000 mm
Length (overall): 8,300 mm
Pressure: 2.7 bar
Vacuum: Yes
Temperature: 186 °C
Additional Information: (1) 3050mm high packed section and (1) 1520mm packed section, 37mm diameter Pall ring packing, (2) distribution plates, (1) demister, (2) packing support plates bolt dished top, weld dished bottom
More Details ⟶
Stock Number: #221537

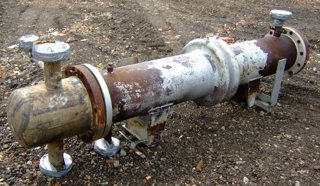

Stainless Steel 304 Sombroek Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 60.5 m²
Orientation: Horizontal
Shell Pressure: 12.8 bar
Shell Temperature: 232 °C
Shell Material: Carbon Steel
Tube Pressure: 5.3 bar
Tube Temperature: 232 °C
Tube Material: Stainless Steel 304
Tubesheet Material: Stainless Steel 304
Vacuum: Yes
Shell Diameter: 850 mm
Head Material: Stainless Steel 304
Additional Information: • Expansion bellow: Yes (1) 304 s/steel bonnet heads (1) 304 s/steel dished head Length: 2,600 mm. Tube Number: 554. Tube Diameter: 0.75 in. Tube Length: 1,900 mm. Tube Thickness: 1.65 mm. Nozzle Schedule: - Openings tubeside: (1) head with 2-6", (1) head with none - Openings shell side: 1-4", 1-2".
More Details ⟶
Stock Number: #221526

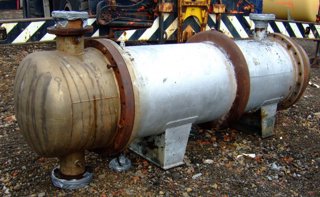

Stainless Steel 304 Sombroek Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 11.4 m²
Orientation: Horizontal
Shell Pressure: 20 bar
Shell Temperature: 250 °C
Shell Material: Carbon Steel
Tube Pressure: 5 bar
Tube Temperature: 250 °C
Tube Material: Stainless Steel 304
Tubesheet Material: Stainless Steel 304
Vacuum: Yes
Shell Diameter: 323 mm
Head Material: Stainless Steel 304
Additional Information: Expansion bellows: Yes (2) 304 s/steel bonnet heads Length: 2,900 mm. Tube Number: 48. Tube Diameter: 0.75 in. Tube Length: 2,050 mm. Nozzle Schedule: Tube side openings: (1) head with 2-3", (1) head with none - Shell side openings: 1-2", 1-1 1/2".
More Details ⟶
Stock Number: #221515

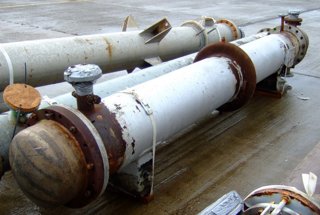

Stainless Steel 316 Sombroek Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 39 m²
Orientation: Horizontal
Shell Pressure: 10.5 bar
Shell Temperature: 288 °C
Shell Material: Carbon Steel
Tube Pressure: 5.3 bar
Tube Temperature: 288 °C
Tube Material: Stainless Steel 316
Tubesheet Material: Stainless Steel 316
Vacuum: Yes
Shell Diameter: 500 mm
Head Material: Stainless Steel 316
Additional Information: (2) 316 s/steel bonnet heads Expansion bellows: Yes Length: 4,300 mm. Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 190. Tube Diameter: 19 mm. Tube Length: 3,650 mm. Tube Thickness: 1.65 mm. Nozzle Schedule: Tube openings: - 1 head with 2-4" - 1 head with none - Shell openings: - 2-3" - 1-1".
More Details ⟶
Stock Number: #221531

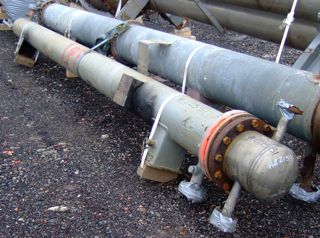

Titanium Sombroek Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 156 ft²
Orientation: Horizontal
Shell Pressure: 10.5 bar
Shell Temperature: 150 °C
Shell Material: Carbon Steel
Tube Pressure: 3 bar
Tube Temperature: 150 °C
Tube Material: Titanium
Vacuum: Yes
Shell Diameter: 273 mm
Head Material: Titanium
Length: 5,300 mm
Additional Information: Tube Type: U-Tube. Tube Number: 31. Tube Diameter: 0.75 in. Tube Length: 4,700 mm. Nozzle Schedule: - Openings: - Tubeside: 2-1 1/2" - Shell side: 2-2".
More Details ⟶
Stock Number: #221614

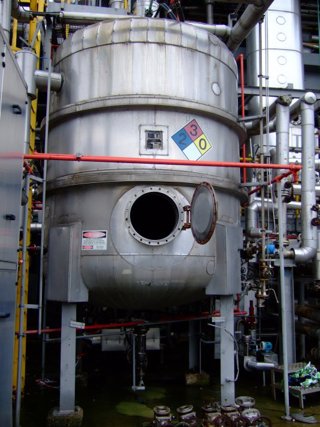

Stainless Steel 304 Sombroek Tank
Capacity (Design): 14,850 L
Orientation: Vertical
Diameter: 2,400 mm
Straight-side Length: 2,650 mm
Internal Pressure: 1.1 bar
Internal Temperature: 110 °C
Vacuum: Yes
Support: Legs
More Details ⟶
