Stainless Steel 316 Dryer-Rotary Vacuum 7.9 m3 (280 ft3) For Sale - IPP# 100950

Type: Dryer-Rotary Vacuum

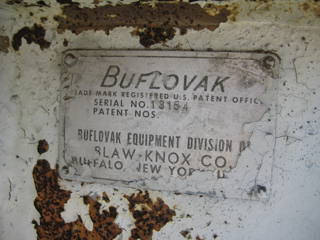

Manufacturer: Blaw Knox

Condition: Used

Material: Stainless Steel 304

Capacity Design: 3.5 m3 (125 ft3)

Capacity Working: 2.3 m3 (82 ft3)

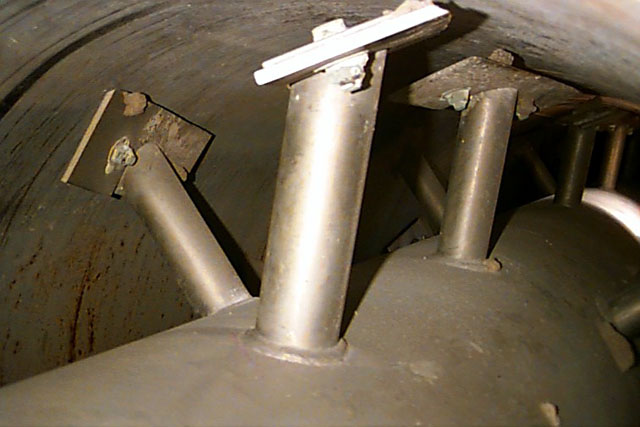

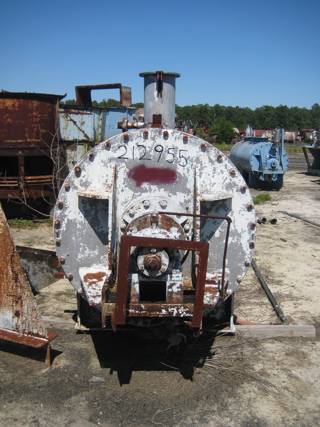

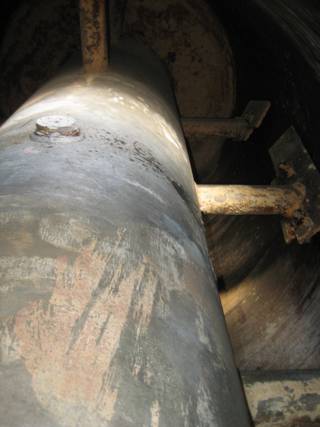

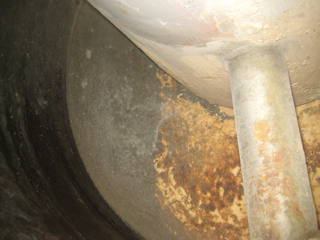

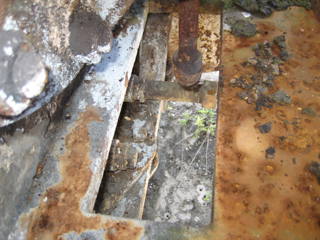

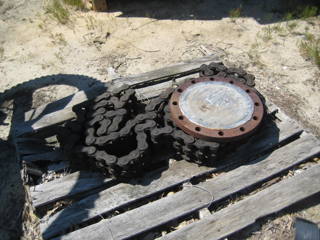

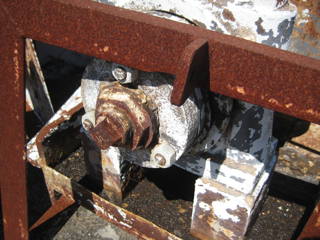

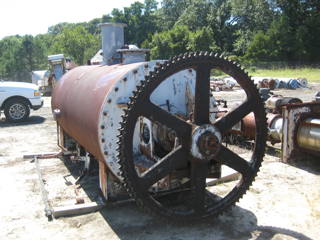

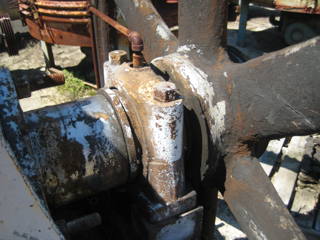

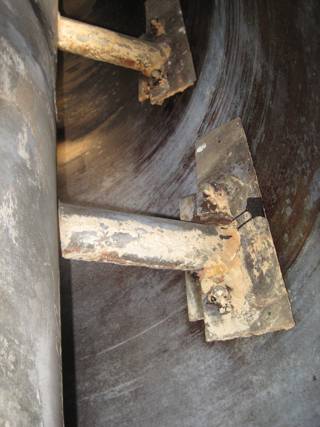

4' diameter x 10' long chamber. as 24" cored shaft with paddles and removable scrapers. No drive available. Unit has chain guards for drive. Top openings one 12", one 10 ". Jacket openings are 2" NPT. 12" bottom discharge.

Diameter: 1,219 mm (48 in). Length: 3,048 mm (120 in). Height: 2,134 mm (84 in). Agitation Seal Type: Packing. Jacket Material: Carbon Steel.

Type: Dryer-Rotary Vacuum

Manufacturer: Krauss Maffei

Model: DTB630C-List-Discotherm

Condition: Used

Material: Stainless Steel 316

Capacity Design: 0.72 m3 (25.4 ft3)

Capacity Working: 0.63 m3 (22.2 ft3)

vac dryer (cooler). 316SS shell Total capacity 0.72 cbm Shell 600mm (24") dia x 3.8m (12'6") long Has 18" dia removable cored rotor. Has 9" long scraper blades on shaft. Has (17) fixed delumpers on str side of vessel. Openings: top 2-24" w/bolt cover; btm 3-2", 2-8".

Diameter: 600 mm (23.6 in). Length: 3,800 mm (149.6 in). Height: 2,500 mm (98.4 in). Temperature: 50 °C (122 °F). Pressure: 6 bar (87 psi). Heat Transfer Surface Area: 14.3 m² (153.9 ft²). Orientation: Horizontal. Operational Mode: Continuous. Agitation: Yes. Jacket Material: Stainless Steel 304. Jacket Pressure: 7 bar (101.5 psi). Jacket Temperature: 50 °C (122 °F).

Type: Dryer-Rotary Vacuum

Manufacturer: Stokes

Model: 900-59-125

Condition: Used

Material: Stainless Steel 316

Capacity Design: 7 m3 (247.2 ft3)

Diameter: 1,219 mm (48 in)

jacketed rotary vacuum dryer 3/50/380 volt Cleveland 63-55:1 ratio 3.8 HP, 1750 rpm gearbox shaft cored for steam heating, no national board, rated 50 psi @ 300 degrees F (1-straight side and 1-each end) Rotary union joint, outboard bearings. Unit with dust collector. Openings: top (2) 3' x 18 1/2" hinged access covers with counter balanced mechanism, 2-12"; end 1-8"; bottom 1-10" with manual open/close mechanism; jacket 4-6", 4-2", 4-1", 4-3/4"; shaft 1-2", 1-1 1/2".

Length: 6,096 mm (240 in). Temperature: 148.9 °C (300 °F). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Dust Collection: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F).

Type: Dryer-Rotary Vacuum

Manufacturer: Devine

Condition: Used

Material: Stainless Steel 316

Capacity Design: 2.8 m3 (100 ft3)

Capacity Working: 1.98 m3 (70 ft3)

Rotary vacuum dryer Vessel rated for Full vacuum 12.5" diameter cored shaft with 24 fixed plows. Outboard bearings with packing glands.

Diameter: 1,219 mm (48 in). Length: 3,048 mm (120 in). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Agitation Seal Type: Packing. Jacket Pressure: 2.4 bar (35 psi). Jacket Temperature: 104.4 °C (220 °F).
