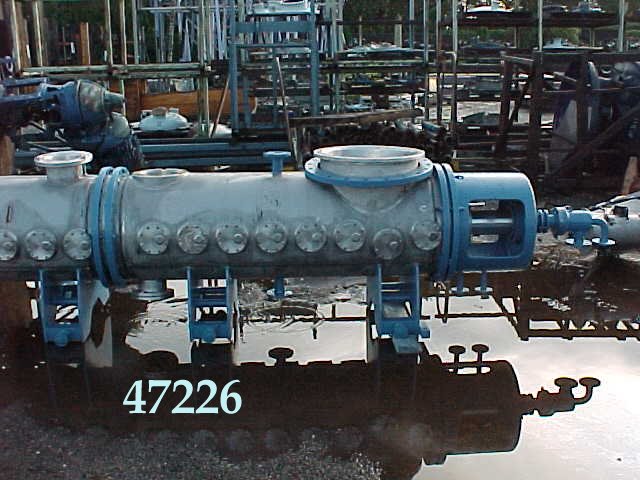

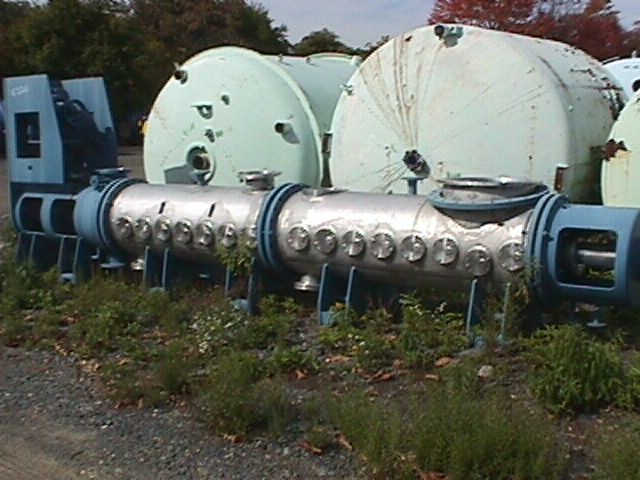

vac dryer (cooler).
316SS shell
Total capacity 0.72 cbm
Shell 600mm (24") dia x 3.8m (12'6") long
Has 18" dia removable cored rotor.
Has 9" long scraper blades on shaft.
Has (17) fixed delumpers on str side of vessel.
Openings: top 2-24" w/bolt cover; btm 3-2", 2-8".
Type: Dryer-Rotary Vacuum
Manufacturer: Blaw Knox
Condition: Used
Material: Stainless Steel 316
Capacity Design: 7.93 m3 (280 ft3)
Capacity Working: 5.38 m3 (190 ft3)
Shell rated full vac @ 300 deg F
Has 24" dia removable cored rotor w/SS paddles and teflon scrapers
Openings: top 2-24"; btm 1-24"
No drive grearbox or rotary joint
Diameter: 1,219 mm (48 in). Length: 9,144 mm (360 in). Temperature: 149 °C (300 °F). Rated for Vacuum: Yes. Heat Transfer Surface Area: 35 m² (377 ft²). Jacket Material: Carbon Steel. Jacket Pressure: 3.45 bar (50 psi). Jacket Temperature: 149 °C (300 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Stokes
Model: 900-59-125
Condition: Used
Material: Stainless Steel 316
Capacity Design: 7 m3 (247 ft3)
Diameter: 1,219 mm (48 in)
jacketed rotary vacuum dryer
3/50/380 volt
Cleveland 63-55:1 ratio
3.8 HP, 1750 rpm gearbox
shaft cored for steam heating, no national board, rated 50 psi @ 300 degrees F
(1-straight side and 1-each end)
Rotary union joint, outboard bearings. Unit with dust collector. Openings: top (2) 3' x 18 1/2" hinged access covers with counter balanced mechanism, 2-12"; end 1-8"; bottom 1-10" with manual open/close mechanism; jacket 4-6", 4-2", 4-1", 4-3/4"; shaft 1-2", 1-1 1/2".
Length: 6,096 mm (240 in). Temperature: 149 °C (300 °F). Rated for Vacuum: Yes. Heat Transfer Surface Area: 23.3 m² (251 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Dust Collection: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 3.45 bar (50 psi). Jacket Temperature: 149 °C (300 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Devine
Condition: Used
Material: Stainless Steel 316
Capacity Design: 2.83 m3 (100 ft3)
Capacity Working: 1.98 m3 (70 ft3)
Rotary vacuum dryer
Vessel rated for Full vacuum
12.5" diameter cored shaft with 24 fixed plows.
Outboard bearings with packing glands.
Diameter: 1,219 mm (48 in). Length: 3,048 mm (120 in). Rated for Vacuum: Yes. Heat Transfer Surface Area: 11.7 m² (126 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Agitation Seal Type: Packing. Jacket Pressure: 2.41 bar (35 psi). Jacket Temperature: 104 °C (220 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Rosenmund AG
Condition: Used
Material: Stainless Steel 316
Capacity Design: 10 m3 (353 ft3)
Capacity Working: 6.7 m3 (237 ft3)
Jacketed rotary vacuum batch paddle dryer with static chopper blades
Patent and designed by List DTB
manufacturing #3000.01.01.01.3000,
working pressure internal -1/6 bar @ 260 degrees C (11000 liter), jacket 6 bar @ 260 degrees C (511 liter), shaft 6 bar @ 260 degrees C (560 liter),
bolt flat ends, 316Ti stainless steel (1.4571) half pipe coil jacket on straight side and both ends,
paddle driven by a 110/112w, 3 phase, 50/60 Hz, 400-690/460 volt, 1488/1791 rpm, IP 55 siemens CE motor via a Flender 906/9.4 rpm reduction gearbox
paddle speed 9.4 rpm
openings top: 1-800mm (filter), 4-250mm, 4-150mm (product inlet), 2-150mm, 2-50mm, 4-50mm (jacket), side: 8-50mm (jacket), bottom: 1-150mm (center discharge), 1-80mm, 4-50mm, both flat ends: 2-50mm (jacket)
dryer with dust filter, cyclone
Diameter: 1,900 mm (74.8 in). Length: 4,930 mm (194 in). Temperature: 260 °C (500 °F). Pressure: 6 bar (87 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 29.1 m² (313 ft²). Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Agitation Seal Type: Packing. Dust Collection: Yes. Jacket Material: Stainless Steel Austenitic. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 260 °C (500 °F). Jacket Type: Half Pipe/Limpet.
