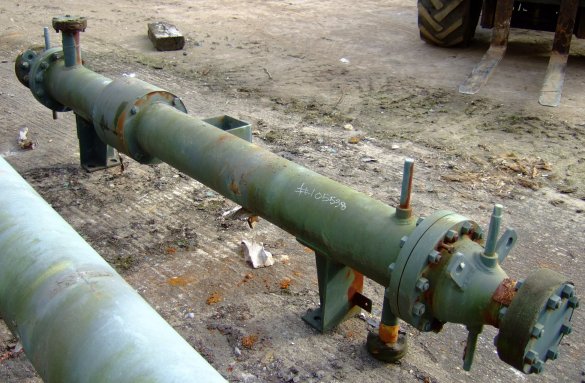

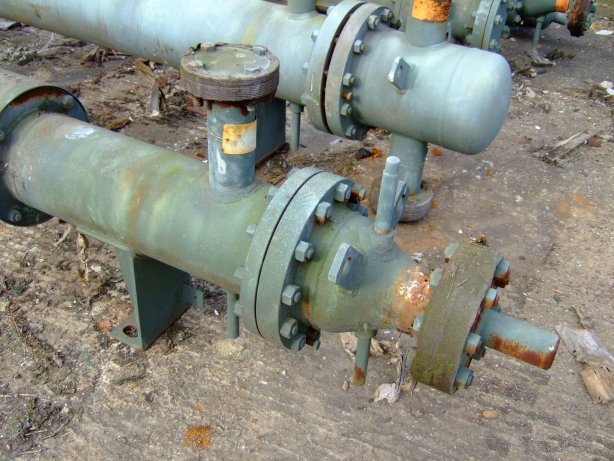

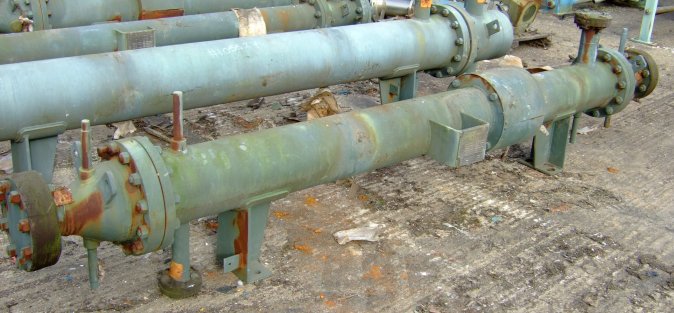

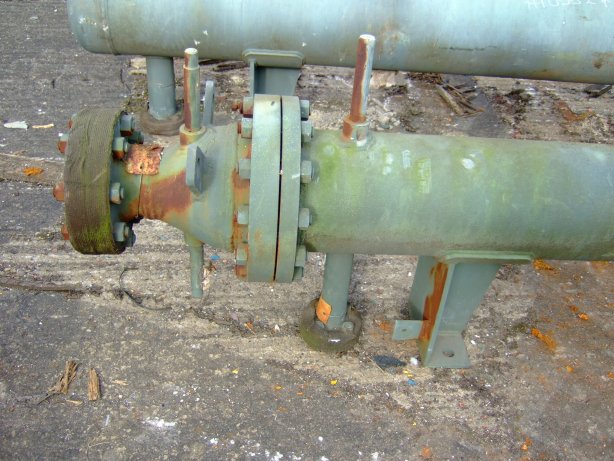

Unused Carbon Steel Johnson Hunt LTD AEM Shell and Tube Heat Exchanger - IPP# 105538

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Johnson Hunt LTD

Model: AEM

Condition: Unused

Material: Carbon Steel

Heat Transfer Surface Area: 1.58 m² (17 ft²)

Orientation: Horizontal

Has (11) 3/4" diameter x 14 gauge x 6' long tubes. 2 heads

Shell Pressure: 26 bar (377 psi). Shell Temperature: 190 °C (374 °F). Shell Material: Carbon Steel. Tube Pressure: 26 bar (377 psi). Tube Temperature: 190 °C (374 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 152.4 mm (6 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 11. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,850 mm (72 in). Tube Thickness: 2 mm (0.08 in).

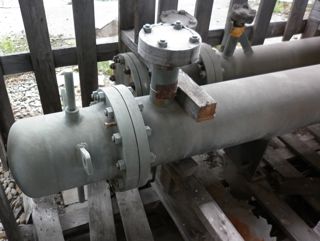

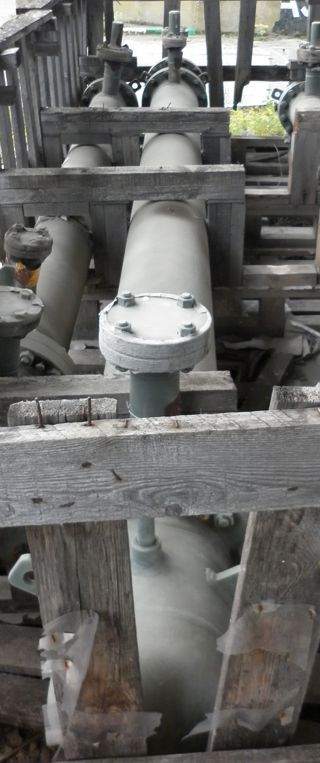

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Johnson Hunt LTD

Model: AEM

Condition: Unused

Material: Carbon Steel

Heat Transfer Surface Area: 1.95 m² (21 ft²)

Orientation: Horizontal

3/4" diameter x 14 gauge x 6' long tubes,

• Head information: 2 heads

Shell Pressure: 55.5 bar (805 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 21 bar (305 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 152.4 mm (6 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 18. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,850 mm (72 in). Tube Thickness: 2 mm (0.08 in).

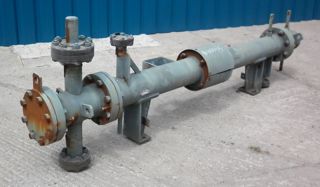

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Johnson Hunt LTD

Model: AEM

Condition: Unused

Material: Carbon Steel

Heat Transfer Surface Area: 10.3 m² (111 ft²)

Orientation: Horizontal

3/4' diameter x 14 gauge x 12' long tubes 2 heads

Shell Pressure: 9 bar (131 psi). Shell Temperature: 150 °C (302 °F). Shell Material: Carbon Steel. Tube Pressure: 9 bar (131 psi). Tube Temperature: 150 °C (302 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 254 mm (10 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 4. Tube Number: 48. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,650 mm (144 in). Tube Thickness: 2 mm (0.08 in).

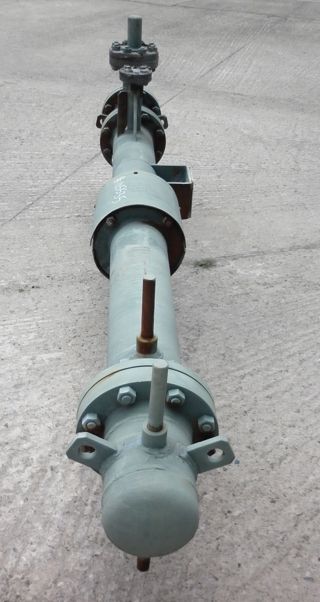

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Johnson Hunt LTD

Model: AEM

Condition: Unused

Material: Carbon Steel

Heat Transfer Surface Area: 1.95 m² (21 ft²)

Orientation: Horizontal

3/4" diameter x 14 gauge x 8' long tubes. 2 heads

Shell Pressure: 9 bar (131 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Carbon Steel. Tube Pressure: 9 bar (131 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 152.4 mm (6 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 14. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,450 mm (96 in). Tube Thickness: 2 mm (0.08 in).
