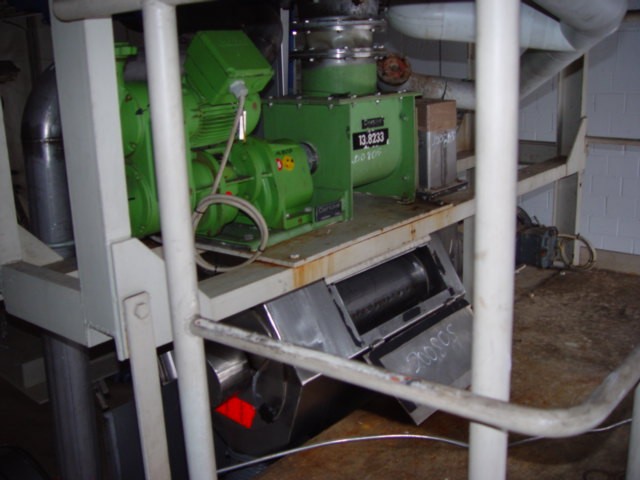

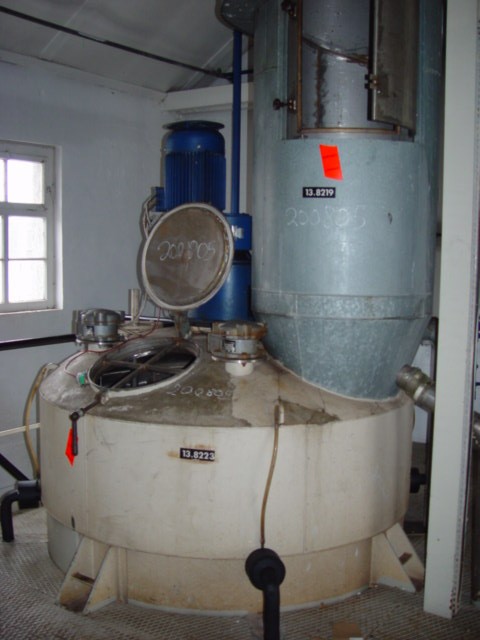

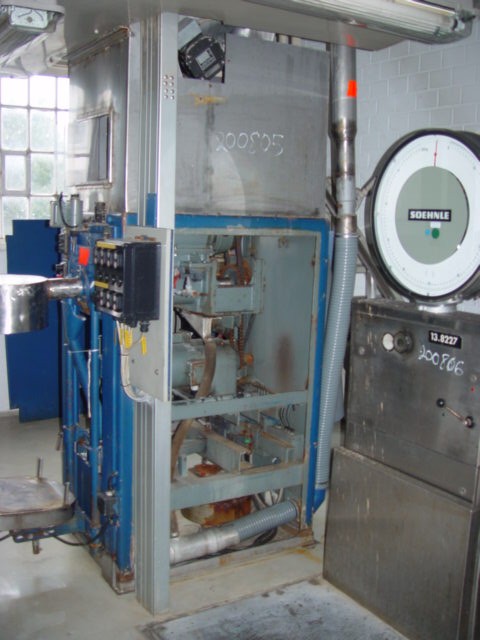

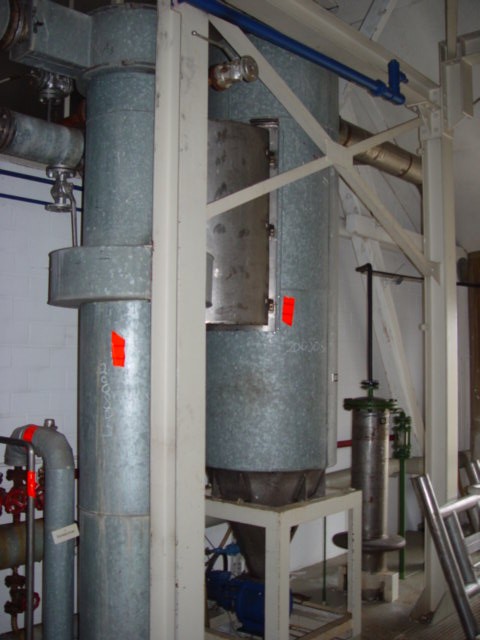

vertical vacuum dryer system Shell 1800 mm diameter x 900 mm straight side x 1400 mm conical section. With vertical rotating screw. Vibratory hammers on the conical section. Openings on dryer/mixer: Top 500 mm manway with cover, 1-200 mm. With vertical stainless steel condenser/ preheater, 300 mm diameter x 1600 mm long, single pass design. Under the filter is a stainless steel rotary airlock driven by 0.37kW 3/50/220/380V 1390 RPM motor. With Werner & Pfleiderer type DRT 250/6, serial number 163305, 1.4571 dryer rated 4700 KJ/Hour. Spiral rated 6 bar, jacket rated 6 bar @ 200 degrees C. Spiral driven by 0.37 kW, 3/50/380V motor. Mixer/ dryer discharges into a rotary airlock type GAC 187, with 200 mm feed and 100 mm discharge openings. With variable speed drive. Bottom of mixer has a pneumatic operated valve. From airlock product is fed into a 1.4571 rotating screen manufactured by Gericke, 200 mm diameter x 750 mm long, driven by 2.2 kW 3/50/220/380V 450 RPM motor. system includes a screw conveyor to the filler, manufactured by Independent Scale, serial number 18273, rated 25 KG @ 1250 RPM.
Type: Dryer-Rotary Vacuum
Manufacturer: Venuleth & Ellenberger
Condition: Used
Material: Stainless Steel Austenitic
Capacity Design: 6 m3 (211.9 ft3)
Capacity Working: 4 m3 (141.3 ft3)
rotary vacuum dryer shaft 200mm diameter paddle rotation 1356mm diameter Exe Grp 1,2,3. Belt and pulley to gearbox Paddle clearance to dryer wall 5mm. Openings: top 3-419mm (16"); 1-200mm center bottom outlet.
Diameter: 1,400 mm (55.1 in). Length: 4,050 mm (159.1 in). Height: 2,000 mm (78.7 in). Temperature: 200 °C (392 °F). Pressure: 6 bar (87 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 17.7 m² (191 ft²). Shaft Cored and National Board Stamped: Yes. Agitation: Yes. Agitation Seal Type: Packing. Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 200 °C (392 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Engelsmann AG
Model: K127AM200/180
Condition: Used
Material: Stainless Steel Austenitic
Capacity Design: 0.25 m3 (8.8 ft3)
Capacity Working: 0.17 m3 (6 ft3)
Vacuum dryer system internal pressure rated -1/+1bar @ -10/+165 degrees C (volume 250 liter), jacket pressure rated -1/+8bar @ -10/+165 degrees C (volume 35 liter) type CD180M-4 3~/50Hz/230-400V/1,460rpm CE confirm, EExdeIICT4, system including: (1) 3.1m² 1.4571 stainless steel tube and shell heat exchanger/condenser, (1) 8m³/h @ 3m head iron cast centrifugal pump, (1) 50 liter 1.4571 stainless steel condensate receiver, (1) 20 liter 1.4571 stainless steel gas separator, (1) 17.5 liter 1.4571 stainless steel jacketed pressure tank, (1) Frequency converter on pallet, (2) stainless steel guards on pallet, (2) Valves and (1) chain on pallet, Accessories on pallet
Diameter: 600 mm (23.6 in). Length: 2,300 mm (90.6 in). Height: 2,200 mm (86.4 in). Temperature: 165 °C (329 °F). Pressure: 1 bar (14.5 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 4.4 m² (47 ft²). Agitation Seal Type: Mechanical. Jacket Material: Stainless Steel Austenitic. Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 165 °C (329 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Giovanola
Condition: Used
Material: Stainless Steel Austenitic
Capacity Design: 2.2 m3 (78.4 ft3)
Capacity Working: 1.6 m3 (56.5 ft3)
Rotary vacuum paddle dryer system system includes tanks, filters, pumps and other ancillaries
Diameter: 1,500 mm (59.1 in). Length: 4,000 mm (156.9 in). Height: 2,950 mm (116.1 in). Temperature: 165 °C (329 °F). Rated for Vacuum: Yes. Heat Transfer Surface Area: 5.1 m² (55.2 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Dust Collection: Yes. Jacket Material: Stainless Steel Other. Jacket Pressure: 6.5 bar (94.3 psi). Jacket Temperature: 165 °C (329 °F). Jacket Type: Half Pipe/Limpet.
Type: Dryer-Rotary Vacuum
Manufacturer: Giovanola
Condition: Used
Material: Stainless Steel Austenitic
Capacity Design: 10 m3 (353.1 ft3)
Capacity Working: 6.7 m3 (236.6 ft3)
jacketed rotary vacuum paddle dryer internal design pressure -1 bar @ 200 degrees C (10000 liter) coil jacket 6 bar @ 200 degrees C (420 liter) rotor/paddle 6 bar @ 200 degrees C (520 liter), (1) weld dished end (drive), (1) bolt dished end rotor/paddle with union joint center bottom discharge
Diameter: 1,800 mm (70.6 in). Length: 5,150 mm (202.9 in). Height: 2,600 mm (102.4 in). Temperature: 200 °C (392 °F). Pressure: 1 bar (14.5 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 28.8 m² (310 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Jacket Material: Carbon Steel. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet.
