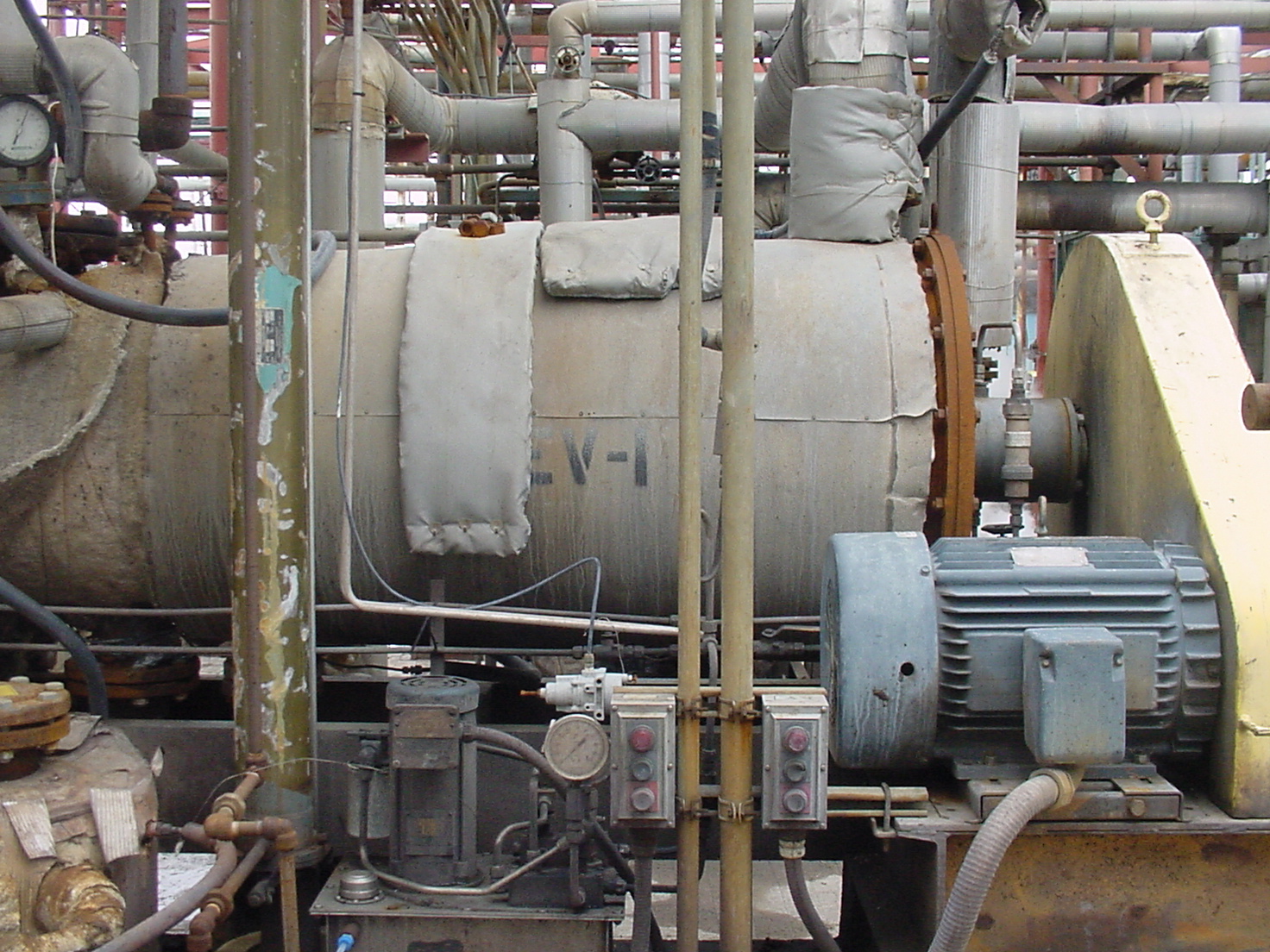

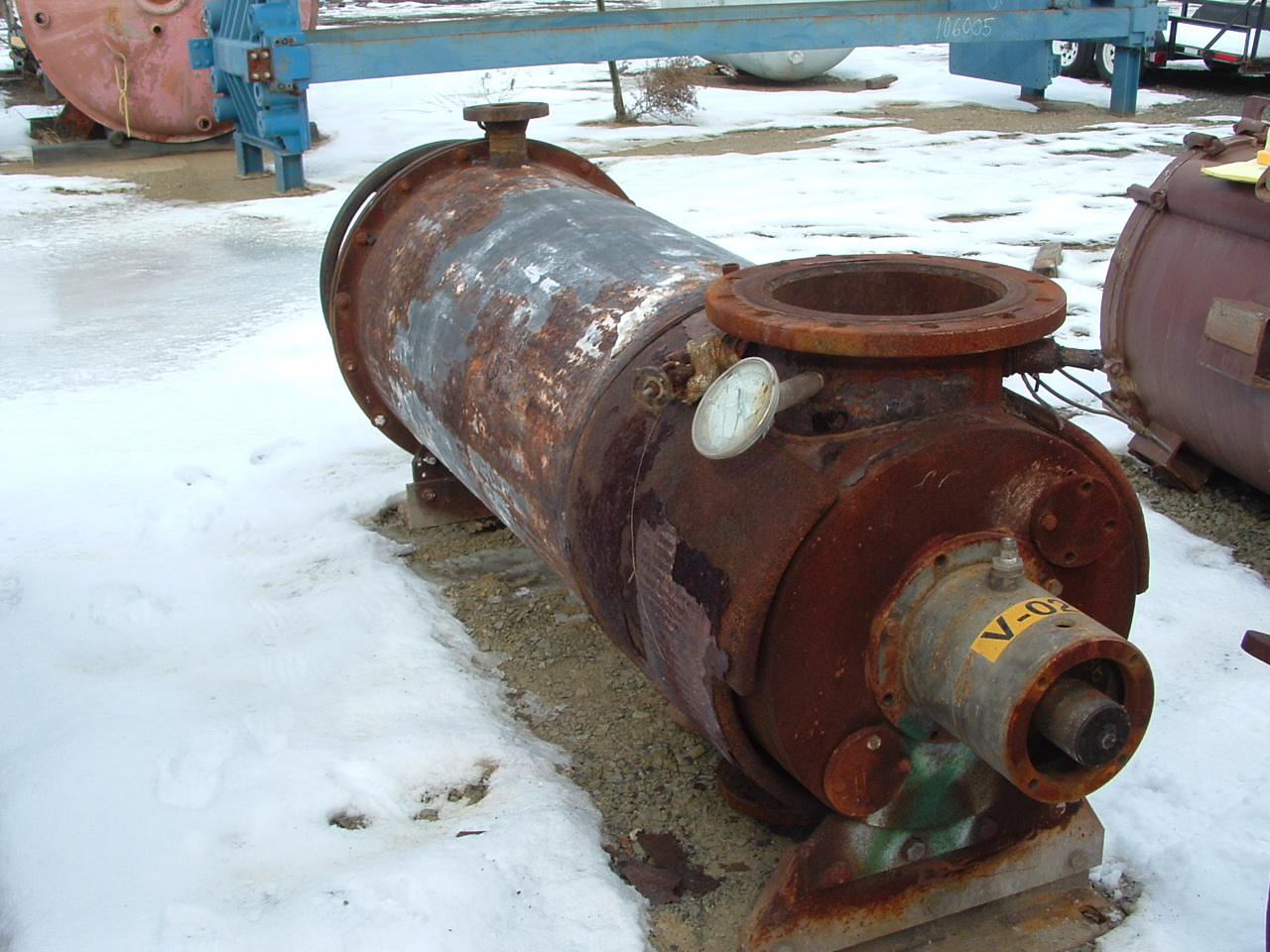

Carbon Steel Wiped/Thin Film Evaporator - IPP# 201618

  • Carbon Steel Wiped/Thin Film Evaporator - IPP# 201618 Carbon Steel Wiped/Thin Film Evaporator - IPP# 201618
  • Carbon Steel Wiped/Thin Film Evaporator - IPP# 201618 Carbon Steel Wiped/Thin Film Evaporator - IPP# 201618
  • Carbon Steel Wiped/Thin Film Evaporator - IPP# 201618 Carbon Steel Wiped/Thin Film Evaporator - IPP# 201618
  • Carbon Steel Wiped/Thin Film Evaporator - IPP# 201618
  • Carbon Steel Wiped/Thin Film Evaporator - IPP# 201618
  • Carbon Steel Wiped/Thin Film Evaporator - IPP# 201618
Overview
Evaporator
Wiped/Thin Film
LCI
Used
Carbon Steel
Capacity
72.6 kg/h (160 lb/h)
3 m² (32 ft²)
Dimensions
Horizontal
610 mm (24 in)
1,200 mm (48 in)
Other Specifications
260 °C (500 °F)
Yes
Yes
Top Head
Flat
Bolted
Bottom Head
Flat
Welded
Additional Information

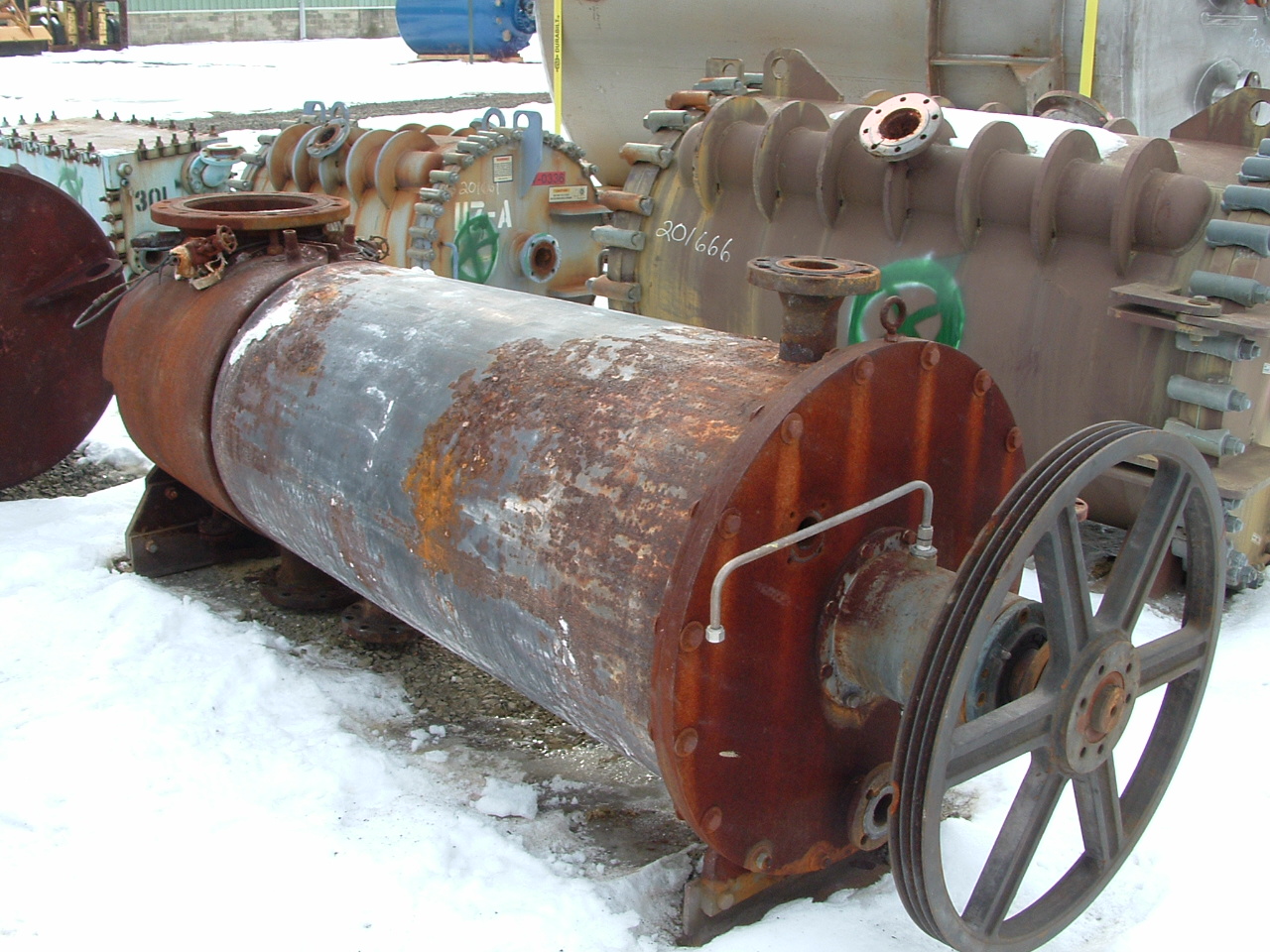

Shell double diameter 36/24" x 48" long. The reverse tapered shell processes back pressure to ensure retention and stability of liquid film. Removable rotor has manual clearance adjustment. Mechanical seal on shaft. With drive pulley, requires a motor.
