Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Balfour
Model: Stratavap
Condition: Used
Material: Stainless Steel 304
Total Heat Transfer Surface Area: 0.23 m² (2.5 ft²)
Orientation: Vertical

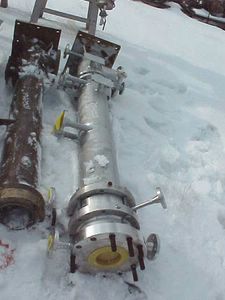

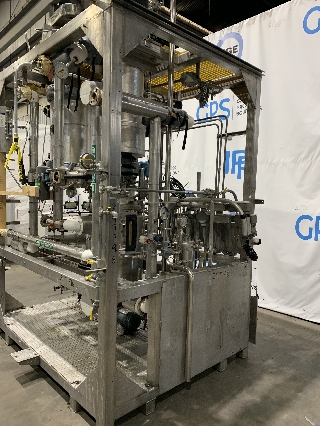

wiped film lab size evaporator system. jacket 13.8 bar @ 200 degrees C. Consisting of (1) 2.5 square feet 304 stainless steel vertical jacketed wiped/thin film evaporator. with 304 stainless steel jacket. 4-blade flexible teflon wipers. Rotor driven by Eurodrive, Type RGUV-031A, 30-177 rpm, 17.06:1 ratio, varispeed drive, driven by 3 KW, 3/50/415 volt, 1430 rpm flameproof motor. Mechanical seal. (1) stainless steel circulation pump. manufactured by Howard Pumps, serial #14037, model #CL2-20. Capacity 5000 liter/hour, pressure 6 bar. Eurodrive 98-381 rpm, 5.04:1 ratio, varispeed drive, driven by 7.5 KW, 3/50/415 volt, 1440 rpm flameproof motor. (1) approx 15 square feet stainless steel tube, head and carbon steel shell heat exchanger. manufactured by Johnsons, serial #63055. Pressure 163 psi @ 300 degrees C. Shell 7" diameter x 72" long. Shell with expansion bellows.
Diameter: 152.4 mm (6 in). Height: 762 mm (30 in). Pressure: 1 bar (14.5 psi). Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Eurodrive RGUV-031A.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: MLK4-0600/4500/90
Condition: Used
Material: Hastelloy - C276
Evaporation Rate: 122.5 kg/h (270 lb/h)
Total Heat Transfer Surface Area: 5 m² (53.8 ft²)

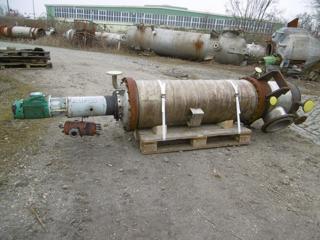

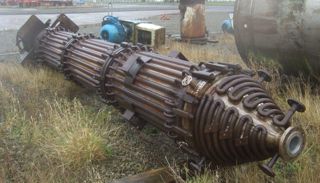

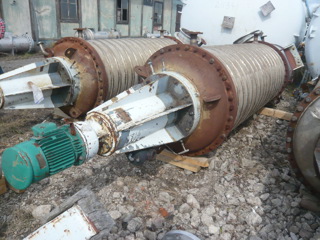

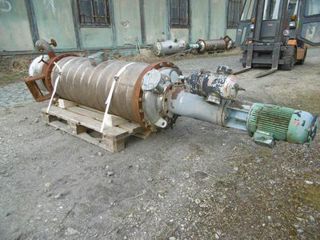

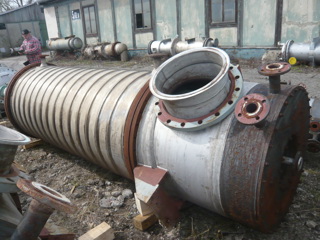

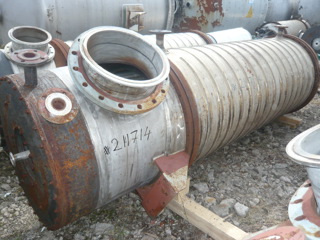

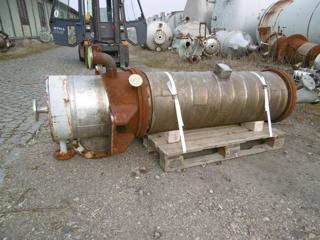

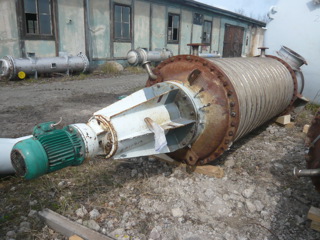

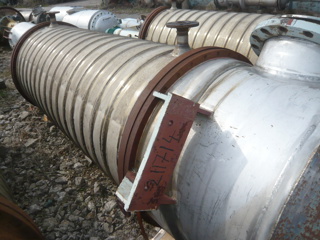

jacketed wiped film evapaorator jacket 2.76 bar @ 250 deg C, 4- sections of carbon steel limpet coils on body and bottom cone,Rotor with 4-fixed blades (unused Hastelloy C276 spare rotor available) rotor belt driven by 18.5 kw, 3/50/415 volt, 975 rpm Ex motor chamber 600mm diameter x 5m staright side
Orientation: Vertical. Diameter: 600 mm (23.6 in). Height: 5,000 mm (196.9 in). Pressure: 1 bar (14.5 psi). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film

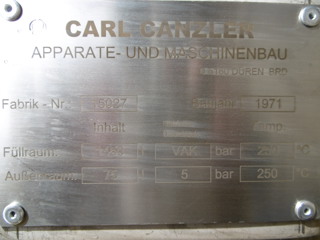

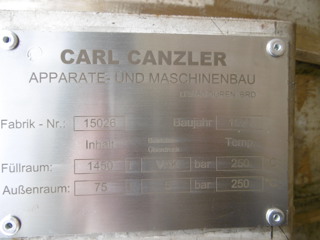

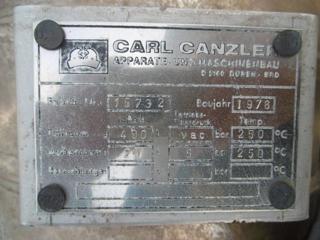

Manufacturer: CARL GANZLER
Model: 450/1.8-K2.7
Condition: Used
Material: Stainless Steel Austenitic
Evaporation Rate: 43.1 kg/h (95 lb/h)
Total Heat Transfer Surface Area: 1.8 m² (19.4 ft²)

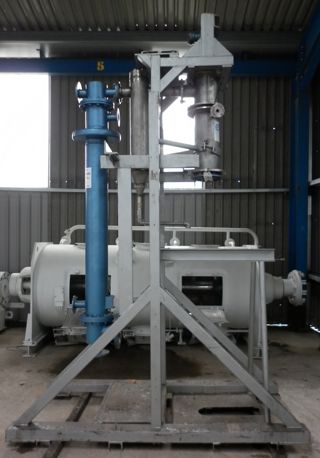

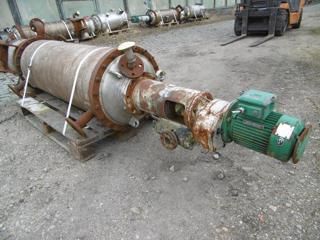

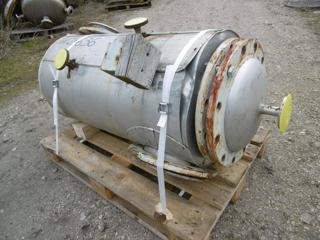

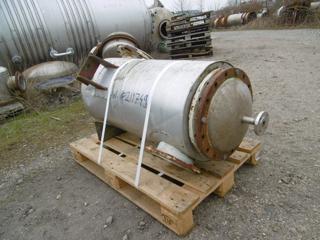

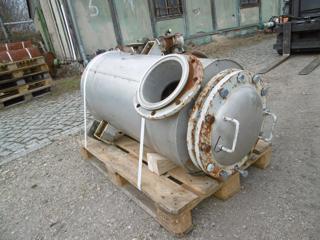

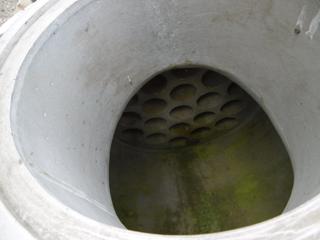

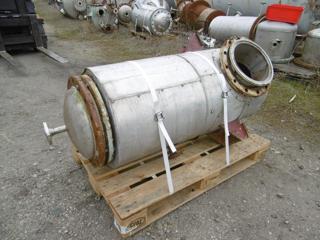

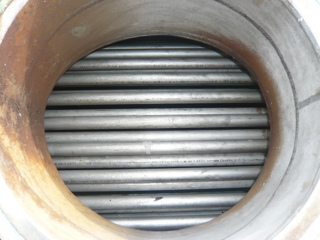

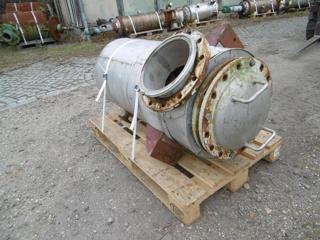

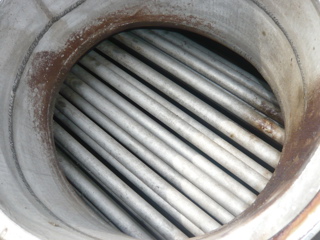

Short Path wiped film evaporator system with internal condensor includes SS seperator tank Rated 490 liter 20 liter in the jacket Top mounted rotor drive with a 1.7 kw, 50 Hz gear motor with mechanical seal on rotor. Rotor has graphite wipers. 2.7 SqM internal tube condenser, inlet and outlet for condensor in Bottom head. Evaporator has a side bottom discharge for product. Vessel weight empty, 700 kg; motor and rotor 350 kg.

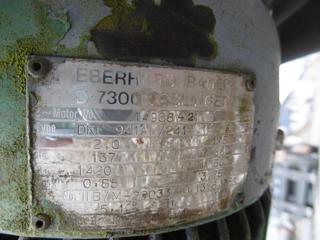

Orientation: Vertical. Diameter: 470 mm (18.5 in). Height: 3,172 mm (124.9 in). Pressure: 5 bar (72.5 psi). Temperature: 250 °C (482 °F). Internal Condenser: Yes. Internal Condenser size: 2.7 m² (29.1 ft²). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Berhard Bauer DKF 941AH/241.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 11.3 kg/h (25 lb/h)
Total Heat Transfer Surface Area: 0.5 m² (5.4 ft²)
wiped film evaporator/filmtruder body only.
jkt rated 227 psi @ 392 deg F.
Diameter: 152.4 mm (6 in). Height: 1,829 mm (72 in). Pressure: 6.9 bar (100 psi). Temperature: 350 °C (662 °F). Vacuum: Yes.
Used evaporators are thermal separation systems that concentrate solutions, recover solvents, or reduce waste volume by vaporizing liquid components. These systems are essential across industries where product purity, yield, and cost-efficiency matter. With more than 47 years of industry expertise, IPP offers used, secondhand and surplus evaporators from 20 complete plant sites and a massive inventory of over 15,000 systems ready to ship.
Evaporators are available in multiple configurations—falling film, rising film, forced circulation, wiped film and multiple-effect systems—each tailored for specific viscosity, temperature sensitivity and throughput needs.
Evaporators are built for long service life, cleanability and chemical resistance:
Learn more about evaporator types and applications in process industries from Chemical Engineering.
Search the IPP inventory or contact IPP’s equipment experts to locate the ideal used, secondhand or surplus evaporator for your facility. Whether for concentration, recovery or purification, IPP helps you save time and money with precision systems ready to ship.
