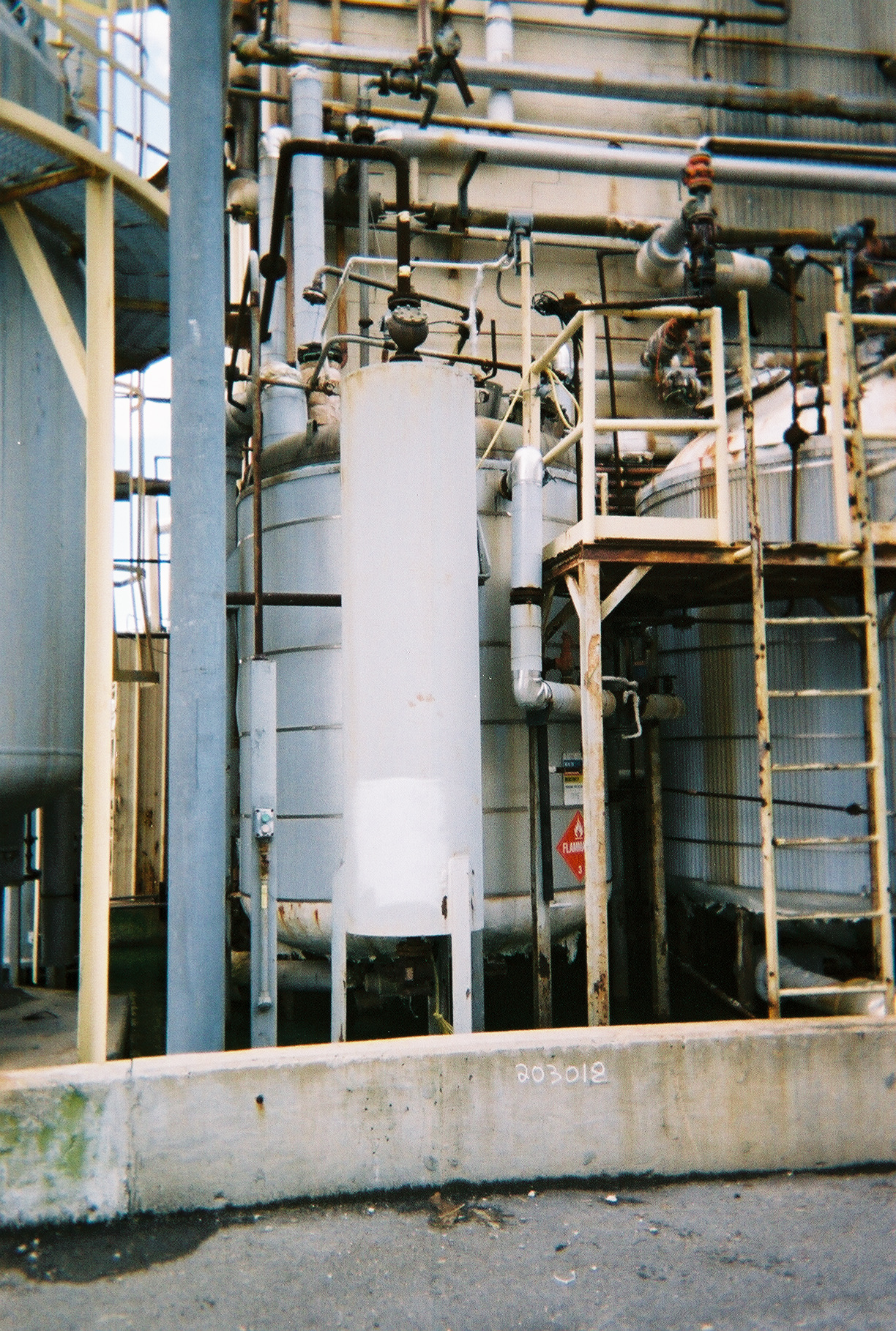

Stainless Steel 316L Paul Mueller Tank - IPP# 203018

Type: Tank

Manufacturer: Paul Mueller

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 28,750 L (7,600 gallons)

Orientation: Vertical

• Type: Pressure tank (Flash Still)
• Packing Manufacturer: Koch-Glitsch
• Top Head: Accepts flash condenser
• Internal Packing: Koch Flexichevron in 316L SS
• Shipping Weight: 19,800lbs.
• Inspection Manway: 24"

Diameter: 2,750 mm (108 in). Straight-side Length: 4,900 mm (192 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 273.9 °C (525 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Lugs.

Type: Tank

Manufacturer: Paul Mueller

Condition: Used

Material: Stainless Steel 321

Capacity (Design): 1,900 L (500 gallons)

Orientation: Vertical

Diameter: 1,450 mm (58 in). Straight-side Length: 1,200 mm (48 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Lugs.

Type: Tank

Manufacturer: Process Systems ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 570 L (150.6 gallons)

Orientation: Horizontal

• pressure tank
• working pressure 3.4 barg + FV

Diameter: 600 mm (23.6 in). Straight-side Length: 1,850 mm (72.2 in). Internal Pressure: 5.2 bar (75.4 psi). Internal Temperature: 150 °C (302 °F). Vacuum: Yes.

Type: Tank

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 1,800 L (471.5 gallons)

Orientation: Vertical

Diameter: 990 mm (39 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 134 °C (273.2 °F). Vacuum: Yes. Support: Lugs.
