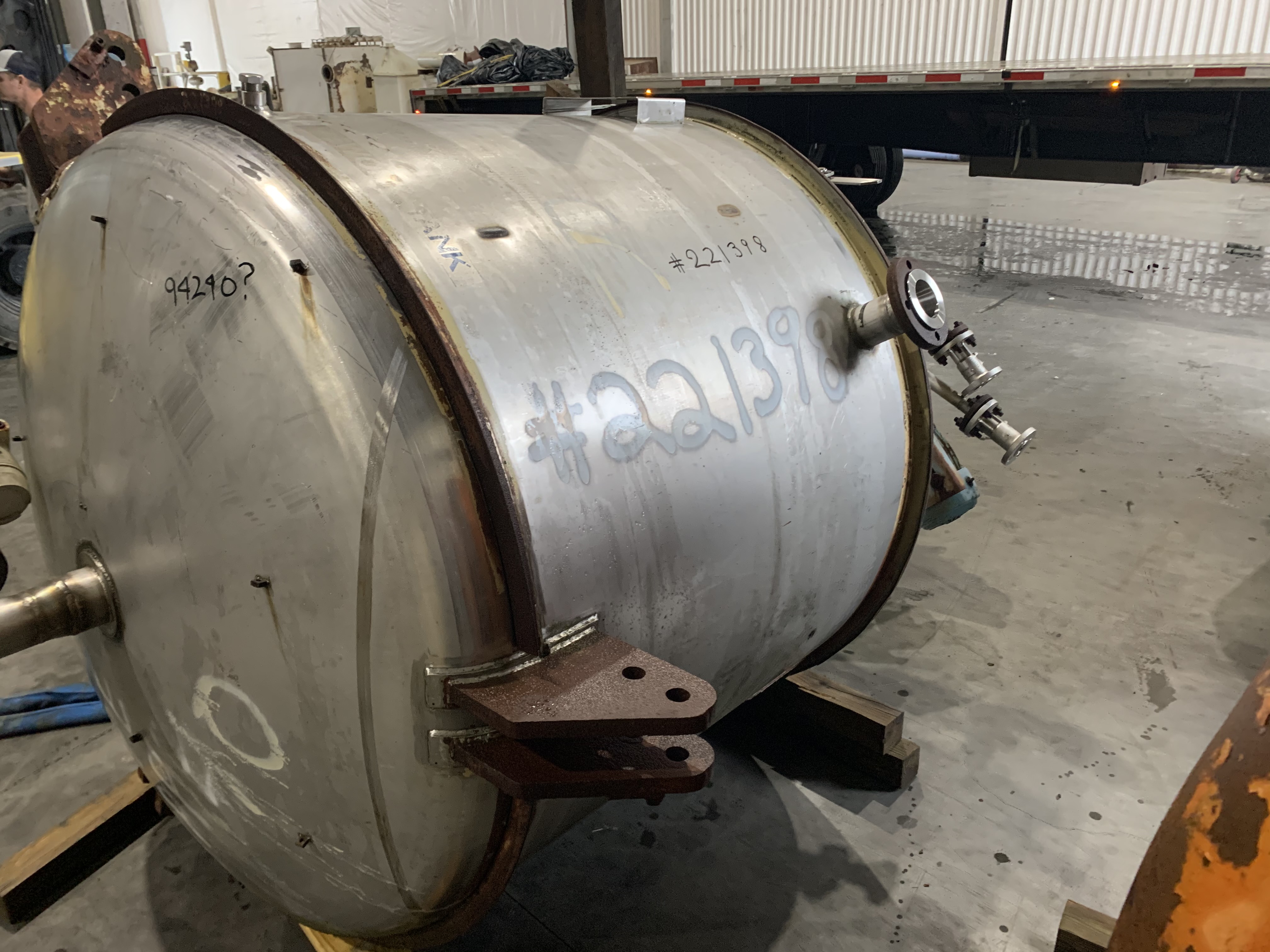

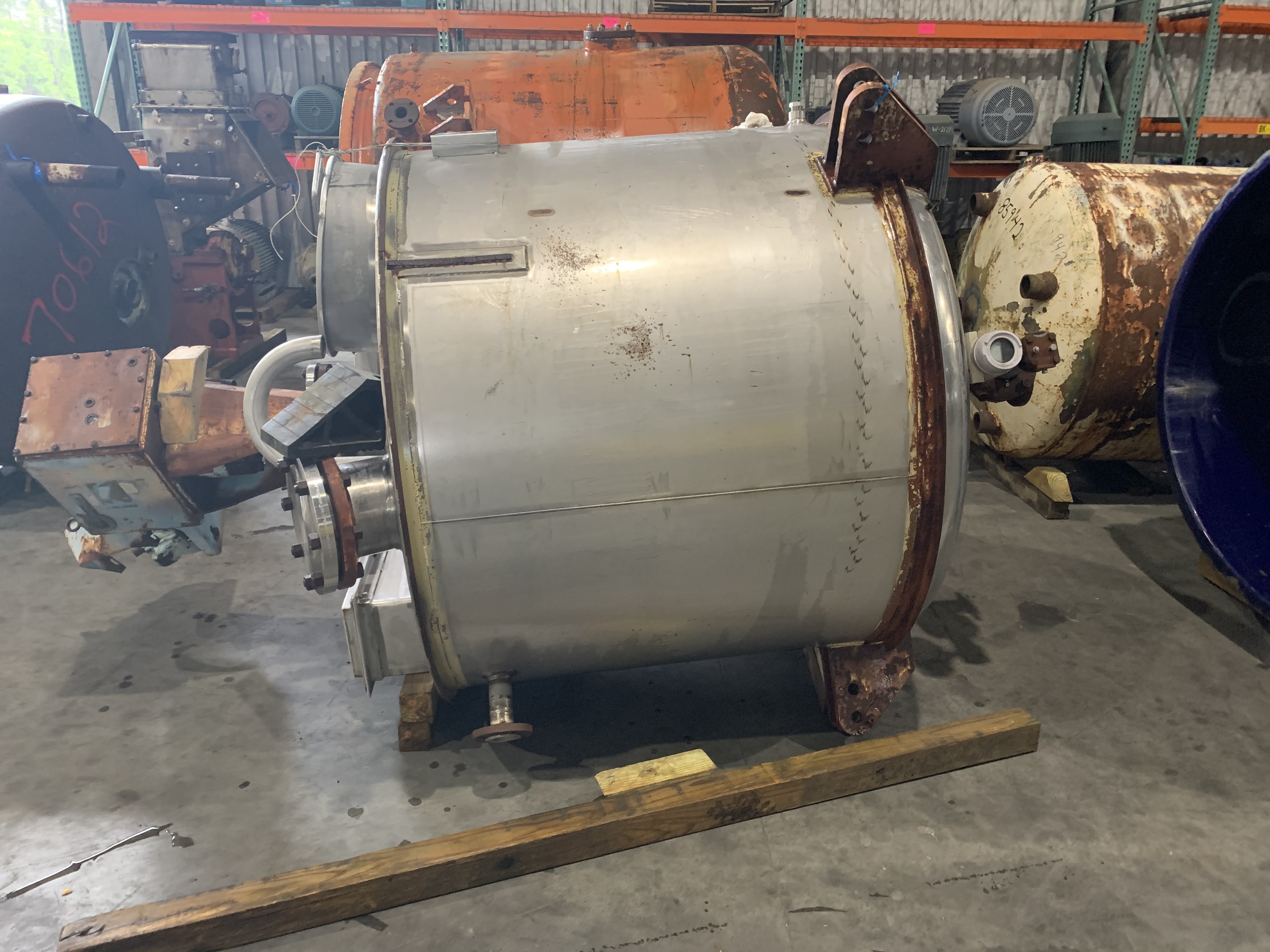

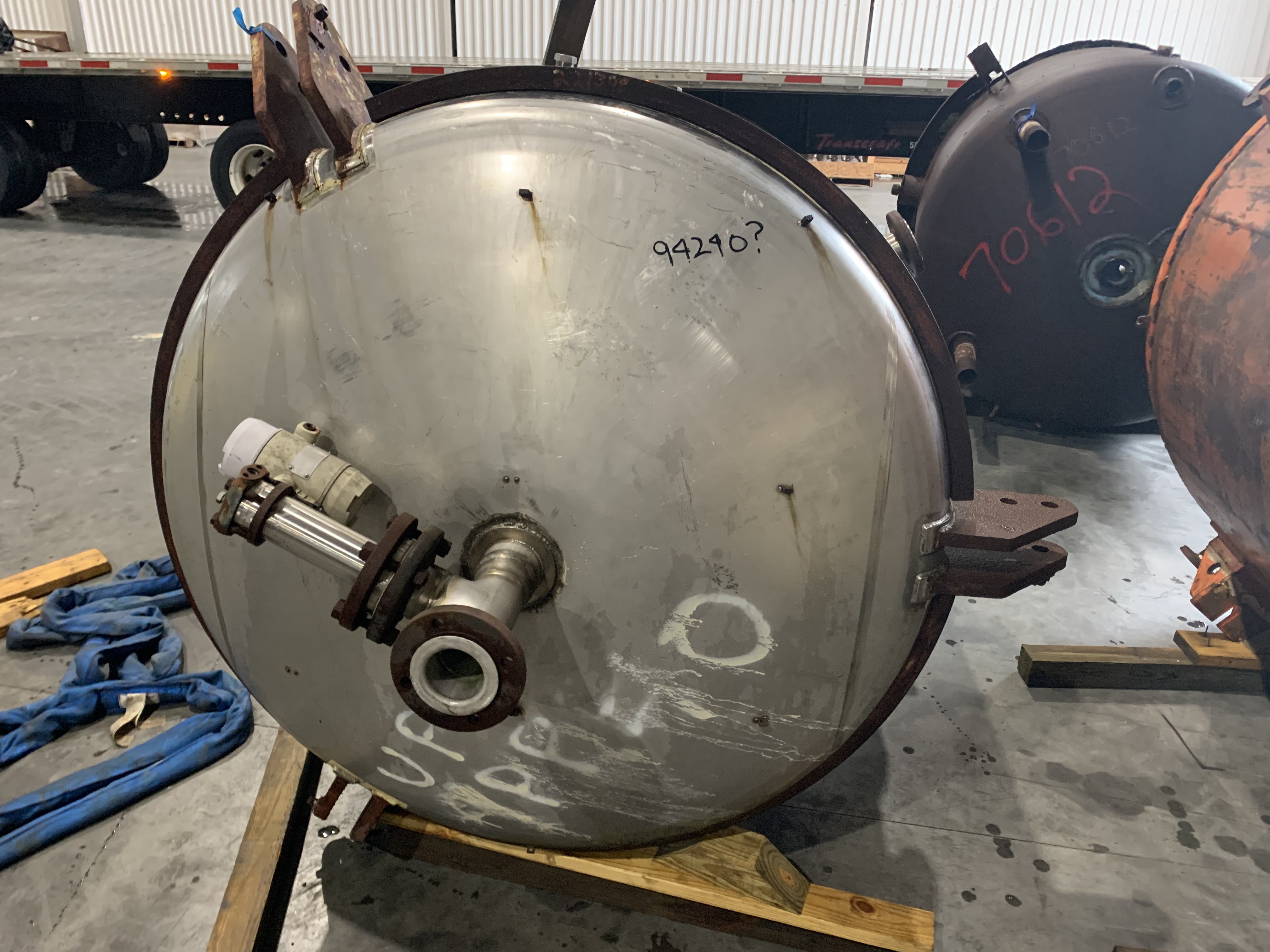

Stainless Steel 321 Paul Mueller Tank - IPP# 233855

Type: Tank

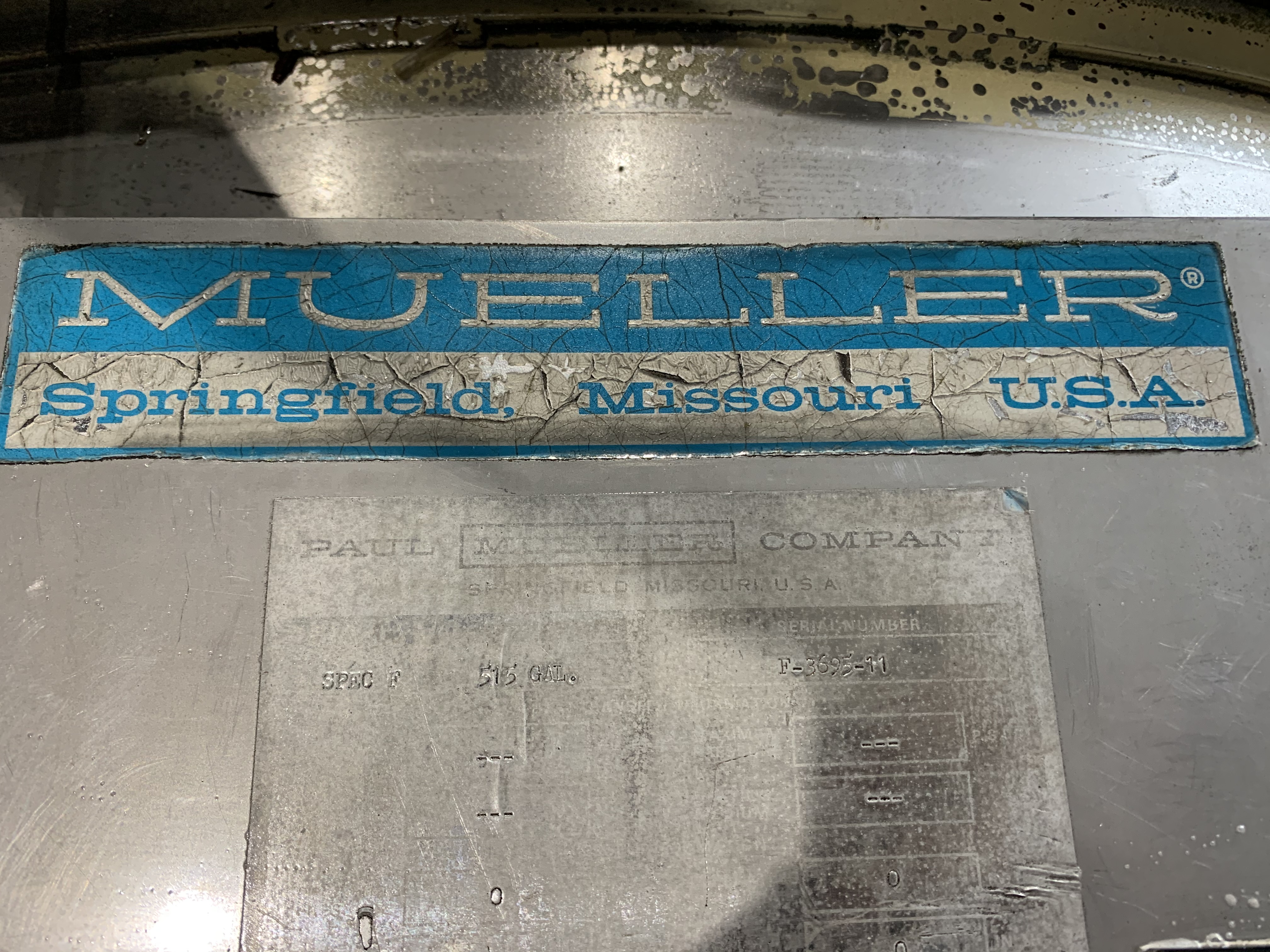

Manufacturer: Paul Mueller

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 28,750 L (7,600 gallons)

Orientation: Vertical

• Type: Pressure tank (Flash Still)
• Packing Manufacturer: Koch-Glitsch
• Top Head: Accepts flash condenser
• Internal Packing: Koch Flexichevron in 316L SS
• Shipping Weight: 19,800lbs.
• Inspection Manway: 24"

Diameter: 2,750 mm (108 in). Straight-side Length: 4,900 mm (192 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 273.9 °C (525 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Lugs.

Type: Tank

Manufacturer: Paul Mueller

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 7,550 L (2,000 gallons)

Orientation: Vertical

• With dimple jacket on tank straight side and bottom head.

Diameter: 2,000 mm (78 in). Straight-side Length: 2,000 mm (78 in). Internal Pressure: 3.7 bar (53 psi). Internal Temperature: 182.2 °C (360 °F). Jacket Type: Dimple. Jacket Material: Stainless Steel 304. Jacket Pressure: 9.3 bar (135 psi). Jacket Temperature: 182.2 °C (360 °F). Support: Legs.

Type: Tank

Condition: Used

Material: Stainless Steel 321

Clad: Yes

Capacity (Design): 20,000 L (5,300 gallons)

Orientation: Horizontal

• ISO tank fully insulated and clad.
• Encased in carbon steel framework for wagons, stacking, or fork lifting.

Diameter: 2,200 mm (86.6 in). Straight-side Length: 5,200 mm (204.7 in). Support: Frame Mounted with Feet.

Type: Tank

Condition: Used

Material: Stainless Steel 321

Clad: Yes

Capacity (Design): 20,000 L (5,300 gallons)

Orientation: Horizontal

• ISO tank fully insulated and clad.
• Encased in carbon steel framework for wagons, stacking, or fork lifting.

Diameter: 2,200 mm (86.6 in). Straight-side Length: 5,200 mm (204.7 in). Support: Frame Mounted with Feet.
