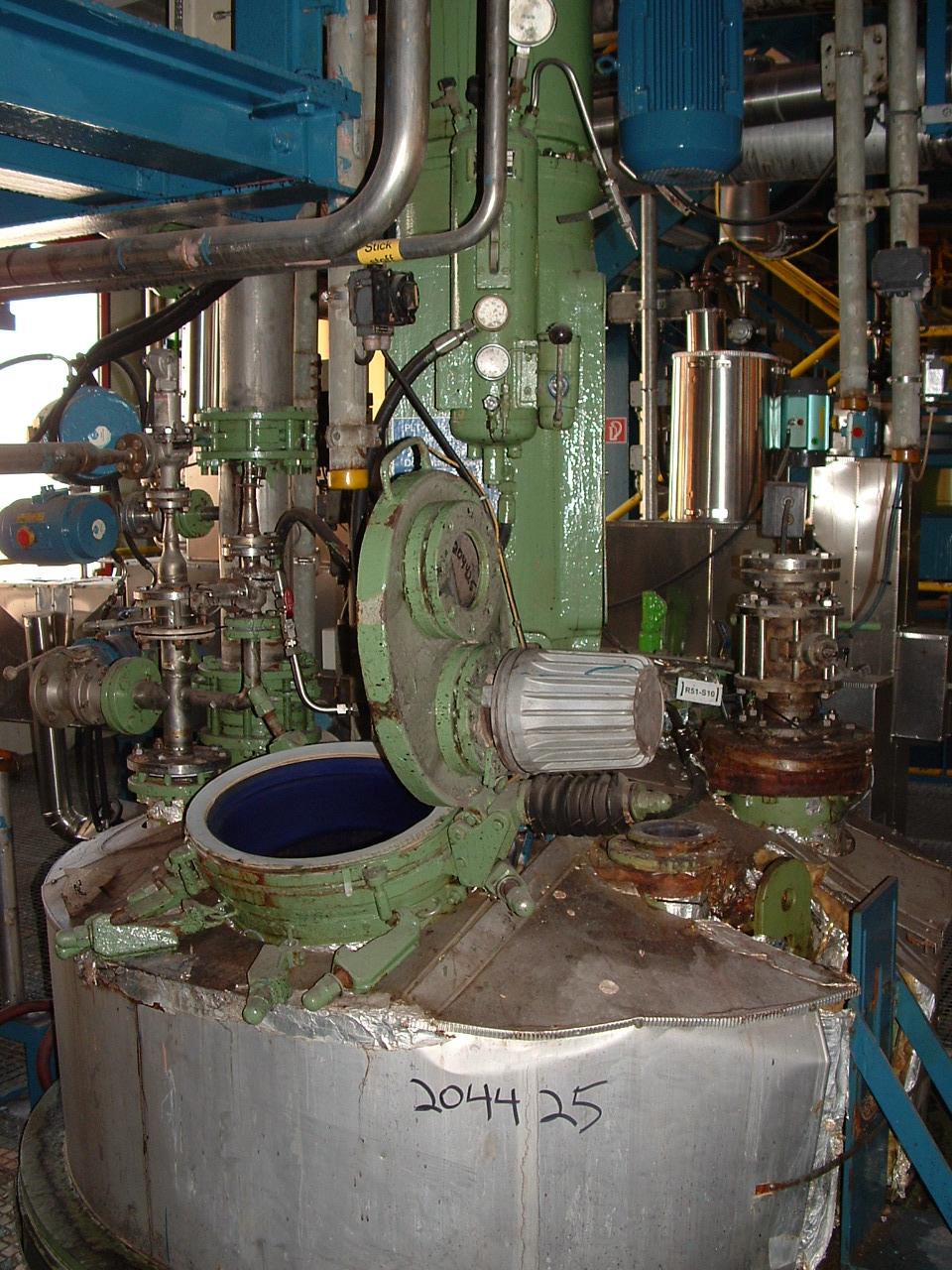

Glasslined Eisenwerk Kaiserslautern AE Batch-Type Agitated Reactor - IPP# 204425

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 127 L (33.5 gallons)

Internal Pressure: 6 bar (87 psi)

100 liter

• CE number: 401379
• Glass type: 3009 internal design pressure -1/6 bar @ -25/200 degrees C (127 liter) jacket -1/6 bar @ -25/200 degrees C (38 liter)

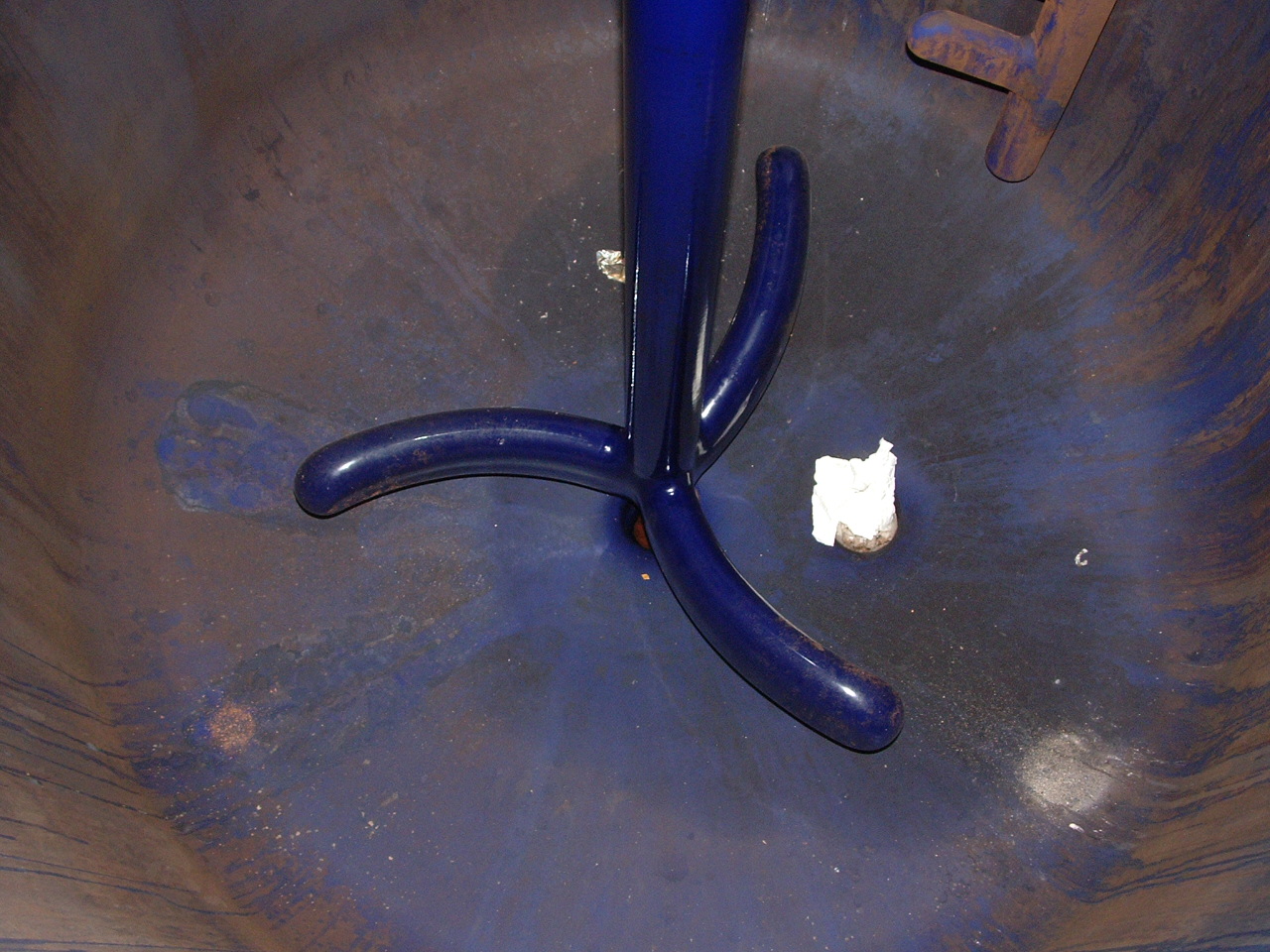

• 3-finger retreat curved agitator (white glass)
• Motor: 3 phase
• vari-speed drive
• 260/460 volt
• Body and top cover: Blue glass
• Certification: CE certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Diameter: 508 mm (20 in). Straight Side Length: 495 mm (19.5 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 847 L (223.8 gallons)

Internal Pressure: 6 bar (87 psi)

630 liter

• CE number: 401381
• Glass type: 3009-internal design pressure -1/6 bar @ -25/200 degrees C (847 liter)jacket -1/6 bar @ -25/200 degrees C (152 liter)
• 3-finger retreat curved agitator (white glass)
• vari-speed drive
• Motor: 3 phase
• 260/460 volt-- shaft speed 29/166 rpm
• mechanical seal with lubricator
• Body and top cover: Blue glass 1-50mm (jacket)
• Certification: CE certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight Side Length: 799 mm (31.5 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Tycon

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 1,450 L (381.7 gallons)

Internal Pressure: 3.2 bar (46.4 psi)

jacket rated 6 bar @ -25/+200 deg C. -Other: Includes a nucerite 2-finger upward baffle with a temperature sensor. Internal rated for 3.2 bar and full vacuum. jacket 110 liters

Internal Full Vacuum: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 1,200 mm (47.2 in). Straight Side Length: 1,000 mm (39.4 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 700 L (184.9 gallons)

Internal Pressure: 6 bar (87 psi)

• Jacket volume: 160 liter
• Jacket diameter: 1100mm
• Jacket: (2)-50mm, 17mm motor 3~/50Hz/220-380V

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,000 mm (39.4 in). Straight Side Length: 1,300 mm (51.2 in).
