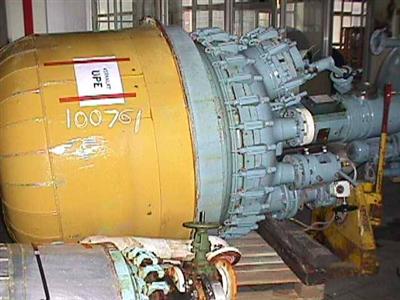

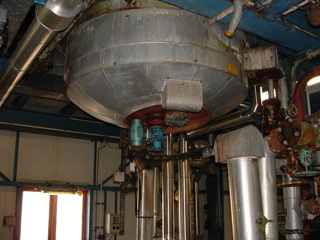

Glasslined Tycon AE Batch-Type Agitated Reactor - IPP# 100761

  • Glasslined Tycon AE Batch-Type Agitated Reactor - IPP# 100761 Glasslined Tycon AE Batch-Type Agitated Reactor - IPP# 100761
  • Glasslined Tycon AE Batch-Type Agitated Reactor - IPP# 100761
Overview
Reactor
Batch-Type Agitated
Tycon
AE
Used
Glasslined
1,450 L (381.7 gallons)
Pressure Vessel
3.2 bar (46.4 psi)
Yes
Jacket/Internal Coil
6 bar (87 psi)
200 °C (392 °F)
Carbon Steel
Agitation System
Yes
Mechanical

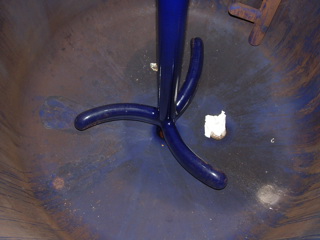

- Agitator: Equipped with a 3-blade retreat curve impellor agitator and a dry running mechanical seal on the shaft - Motor: 2.5 KW motor, driven by a Reeves variable speed drive with a Ruba gear reducer (Type 332-C-15, SN 78218-1) and an output speed of 20-120 rpm
2.5 kW (3.4 HP)
Finger Baffle
2-finger upward baffle
Dimensions
1,200 mm (47.2 in)
1,000 mm (39.4 in)
Heads
Dish
Dish
Other Specifications
Yes
Inlets & Outlets
- Top: Clamp dished top with a 350mm x 450mm manway and cover, and a 125mm sight glass - Bottom: Welded dished bottom with a 100mm center outlet

jacket rated 6 bar @ -25/+200 deg C. -Other: Includes a nucerite 2-finger upward baffle with a temperature sensor. Internal rated for 3.2 bar and full vacuum. jacket 110 liters

Similar Equipment

Glasslined DeDietrich AE Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 127 L (33.5 gallons)

Internal Pressure: 6 bar (87 psi)

100 liter

  • CE number: 401379
  • Glass type: 3009 internal design pressure -1/6 bar @ -25/200 degrees C (127 liter) jacket -1/6 bar @ -25/200 degrees C (38 liter)
  • 3-finger retreat curved agitator (white glass)
  • Motor: 3 phase
  • vari-speed drive
  • 260/460 volt
  • Body and top cover: Blue glass
  • Certification: CE certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Diameter: 508 mm (20 in). Straight Side Length: 495 mm (19.5 in). Support Type: Lugs.

Glasslined DeDietrich AE Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 847 L (223.8 gallons)

Internal Pressure: 6 bar (87 psi)

630 liter

  • CE number: 401381
  • Glass type: 3009-internal design pressure -1/6 bar @ -25/200 degrees C (847 liter)jacket -1/6 bar @ -25/200 degrees C (152 liter)
  • 3-finger retreat curved agitator (white glass)
  • vari-speed drive
  • Motor: 3 phase
  • 260/460 volt-- shaft speed 29/166 rpm
  • mechanical seal with lubricator
  • Body and top cover: Blue glass 1-50mm (jacket)
  • Certification: CE certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight Side Length: 799 mm (31.5 in). Support Type: Lugs.

Glasslined Tycon Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Tycon

Condition: Used

Material: Glasslined

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

Tycon glass lined dual zone coil jacketed reactor

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 260 °C (500 °F). Orientation: Vertical. Agitation: Yes.

Glasslined Eisenwerk Kaiserslautern AE Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: EWK Eisenwerke Kaiserslautern

Model: AE

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 2,500 L (660 gallons)

Internal Pressure: 6 bar (87 psi)

rated -1/6 bar @ -25/200 degrees C internal; 6 bar @ -25/200 degrees C in the jacket. With Kesterman drive with reeves varispeed, model 442/80GRF7-300, 40 to 125 u/min output, driven by 6.6KW motor, 3Ph 60Cyc, 600V.

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Diameter: 1,600 mm (63 in). Straight Side Length: 2,050 mm (81.5 in).
