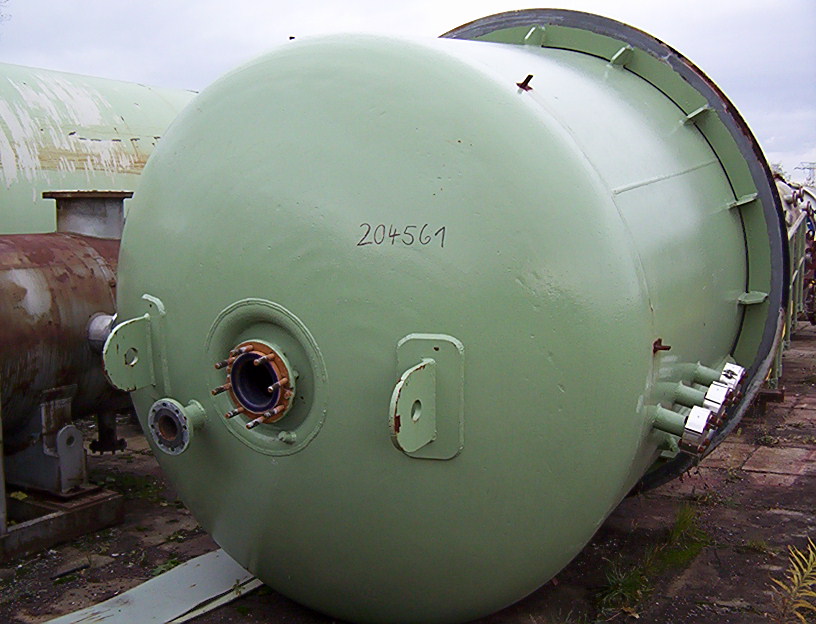

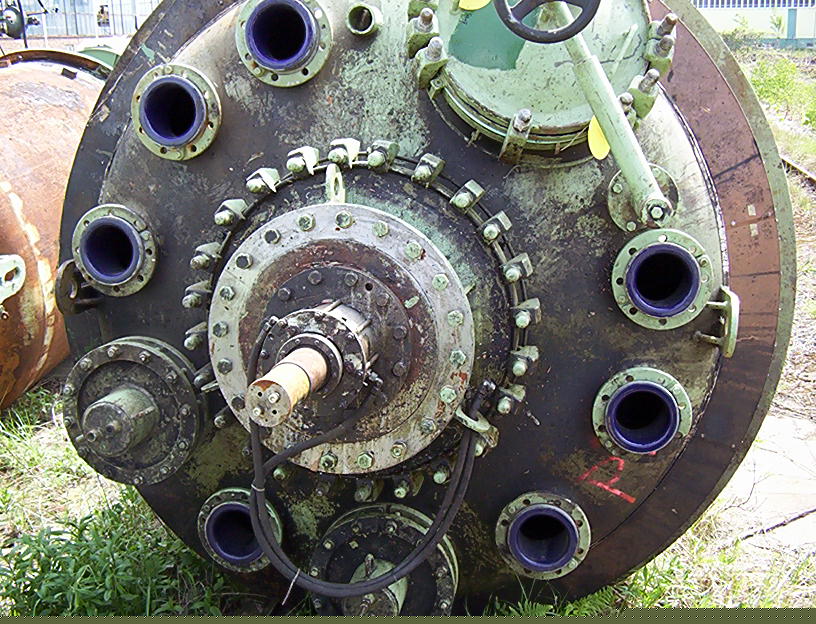

Glasslined Tycon CE Batch-Type Agitated Reactor - IPP# 204561

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Tycon

Model: CE

Condition: Used

Material: Glasslined

Capacity (Design): 3,100 L (824 gallons)

Internal Pressure: 6 bar (87 psi)

internal pressure -1/6 bar @ -25/200 degrees C (3120 liter), jacket -1/6 bar @ -25/200 degrees C (135 liter straight side and bottom dish TUV certified

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 1,200 mm (48.1 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Tycon

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 1,450 L (381.7 gallons)

Internal Pressure: 3.2 bar (46.4 psi)

jacket rated 6 bar @ -25/+200 deg C. -Other: Includes a nucerite 2-finger upward baffle with a temperature sensor. Internal rated for 3.2 bar and full vacuum. jacket 110 liters

Internal Full Vacuum: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 1,200 mm (47.2 in). Straight Side Length: 1,000 mm (39.4 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: CE

Condition: Used

Material: Glasslined

Capacity (Design): 2,100 L (559 gallons)

Internal Pressure: 6 bar (87 psi)

Order number: 68525 internal pressure -1/6 bar @ 200 degrees C (total volume 2115 liter) jacket pressure 7 bar @ 200 degrees C (volume 319 liter) with 10hp/600rpm/VS-10 Pfaudler gear, ratio 1:5,05, belt driven by a 3,6kW/3~/50Hz/380-660V/1430rpm/Ex proof motor.

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 7 bar (101.5 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 1,500 mm (59.1 in). Straight Side Length: 1,200 mm (47.2 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: CE

Condition: Used

Material: Glasslined

Capacity (Design): 11,700 L (3,100 gallons)

Internal Pressure: 6 bar (87 psi)

internal pressure -1/6 bar @ -10/+200 degrees C jacket 7 bar @ -10+200 degrees C jacket 1100 ltr. 400mm diameter x 3180mm tangent to tangent, VonRoll drive, 40/80 rpm, belt driven by a BBC 13/20kW, 3/50 /380V, 700/1400rpm motor, with mechanical seal on shaft with lubricator pump. Total weight 12,000 kg

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 7 bar (101.5 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 2,400 mm (94.5 in). Straight Side Length: 3,200 mm (125.2 in). Support Type: Lugs.
