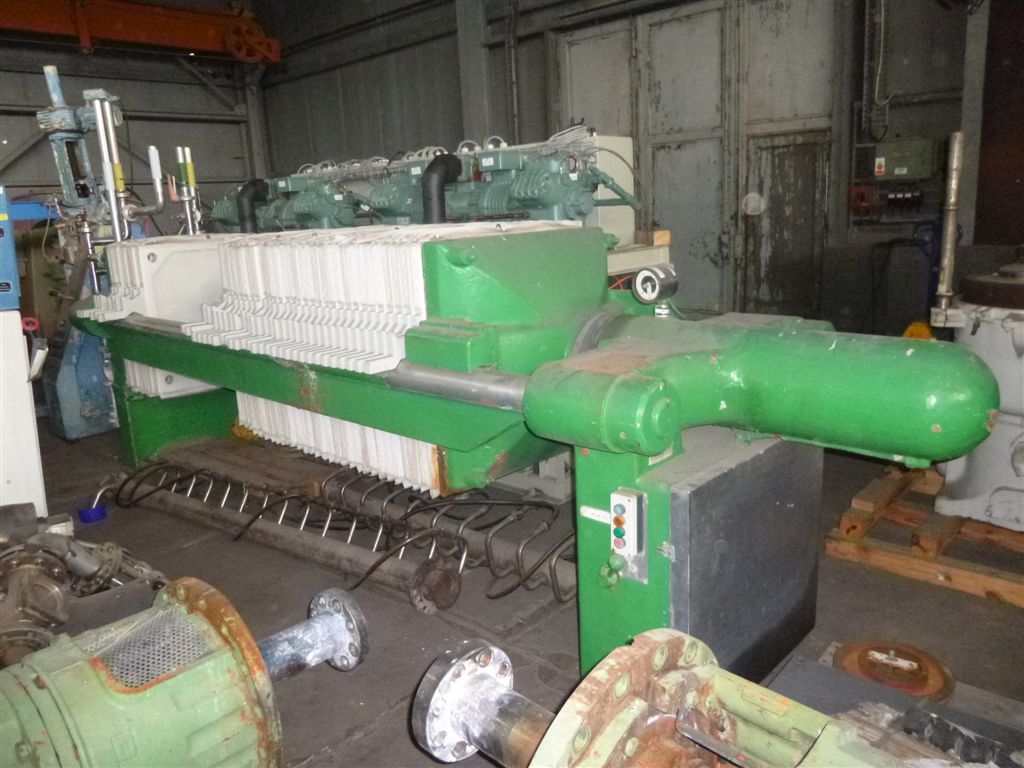

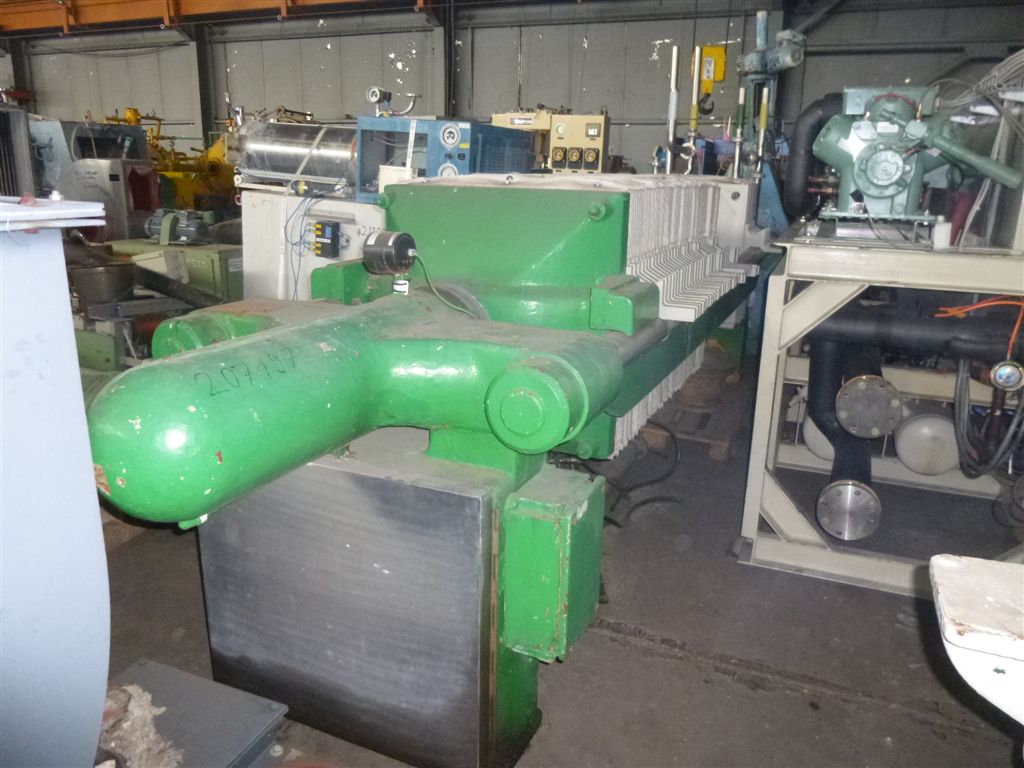

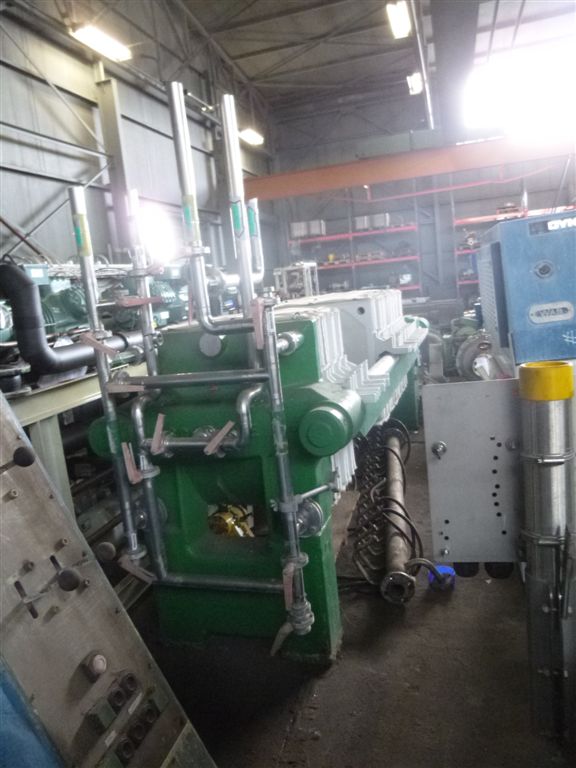

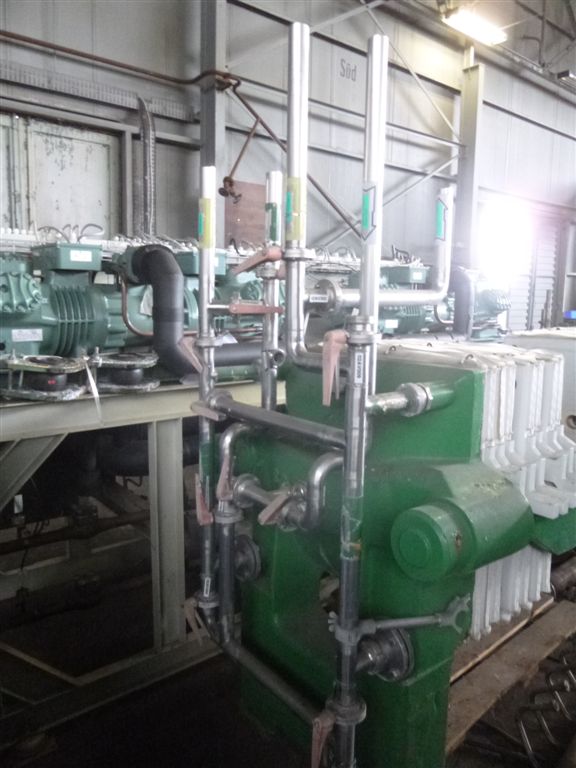

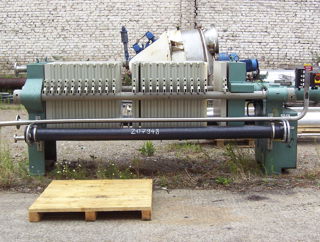

Polypropylene Schule Filter Press - IPP# 207197

Type: Filter

Subtype: Press

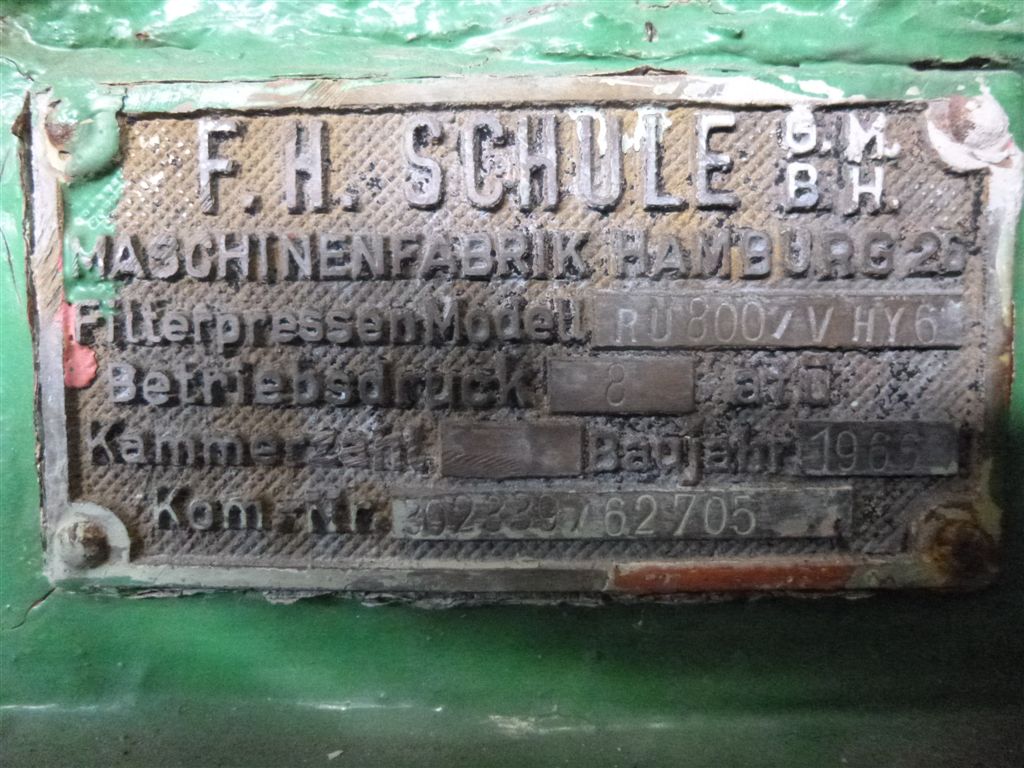

Manufacturer: Schule

Model: KUK/800/VHy6

Condition: Used

Material: Polypropylene

Filtration Area: 20 m² (215 ft²)

Pressure: 8 bar (116 psi)

• Polypropylene Membrane Plate filter press Filter has (21) plates, (2) end plates, 50mm cake thickness before squeeze.
• Closing pressure 280/300 bar, (3) eye center feed 5 kW / 220/380 V / 50 Hz, ex proof motor and pump.
• Control panel mounted on the filter Frame ,Includes a Polypropylene stainless steel drip tray for under the plates.

Temperature: 20 °C (68 °F). Cake Volume: 0.49 m3 (17.3 ft3). Filter Press Plate Type: Gasketed Recessed. Number of Plates: 21. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in). Plate Thickness: 49.8 mm (1.96 in). Plates Gasketed: Yes. Plates Shifted By: Manual.

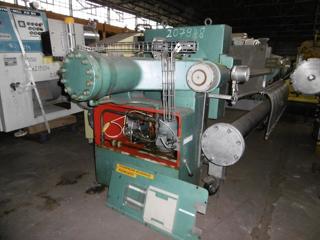

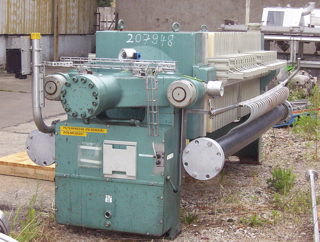

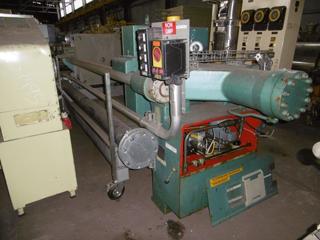

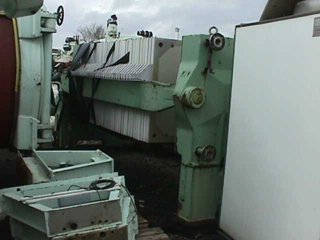

Type: Filter

Subtype: Press

Manufacturer: Schule

Model: KUK-1200/VIS04Y6-1EX

Condition: Used

Material: Polypropylene

Filtration Area: 82.9 m² (892 ft²)

Pressure: 6 bar (87 psi)

• 1200mm x 1200mm polypropylene recessed plate filter press.
• Plates manufactured by Vohwinkel.
• Hydraulic closure pressure 230 bar.
• Top center feed, 4 eye closed discharge.

Cake Volume: 1,400 m3 (49,450 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 36. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plate Thickness: 64 mm (2.5 in). Plates Recessed: Yes.

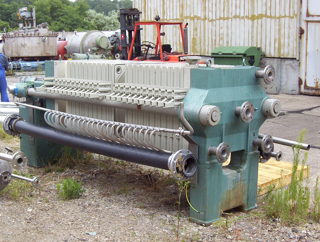

Type: Filter

Subtype: Press

Manufacturer: Bethlehem Corp

Condition: Used

Material: Polypropylene

Filtration Area: 3.2 m² (34.8 ft²)

Cake Volume: 0.03 m3 (1.2 ft3)

• Unit has 10 chambers recessed plates with 1/2" recess for forming 1" thick cake. 4 corner closed discharge,
• Unit has an air over oil compensating pump.

Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 10. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 457.2 mm (18 in). Plate Height: 457.2 mm (18 in). Plate Thickness: 12.7 mm (0.5 in). Plates Recessed: Yes. Plates Shifted By: Manual.

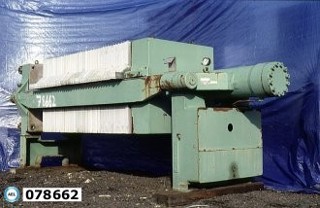

Type: Filter

Subtype: Press

Manufacturer: Rittershaus & Blecher

Condition: Used

Material: Polypropylene

Filtration Area: 62.4 m² (672 ft²)

Pressure: 6 bar (87 psi)

• Recessed filter press. 62.4 square meter filter area, can be expanded to (60) plates (96 sq. meter).
• 4 eye center feed.
• Motorized hydraulic closure. Rated 170-200 bar.
• With safety mirrors,
• Cake thickness approx. 30 mm. Filter volume approx. 0.88 cu meter.
• Filter plates are suspended from an overhead beam.

Cake Volume: 0.88 m3 (31.1 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 39. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plate Shifter: Yes. Plates Recessed: Yes. Plates Shifted By: Automatic.
