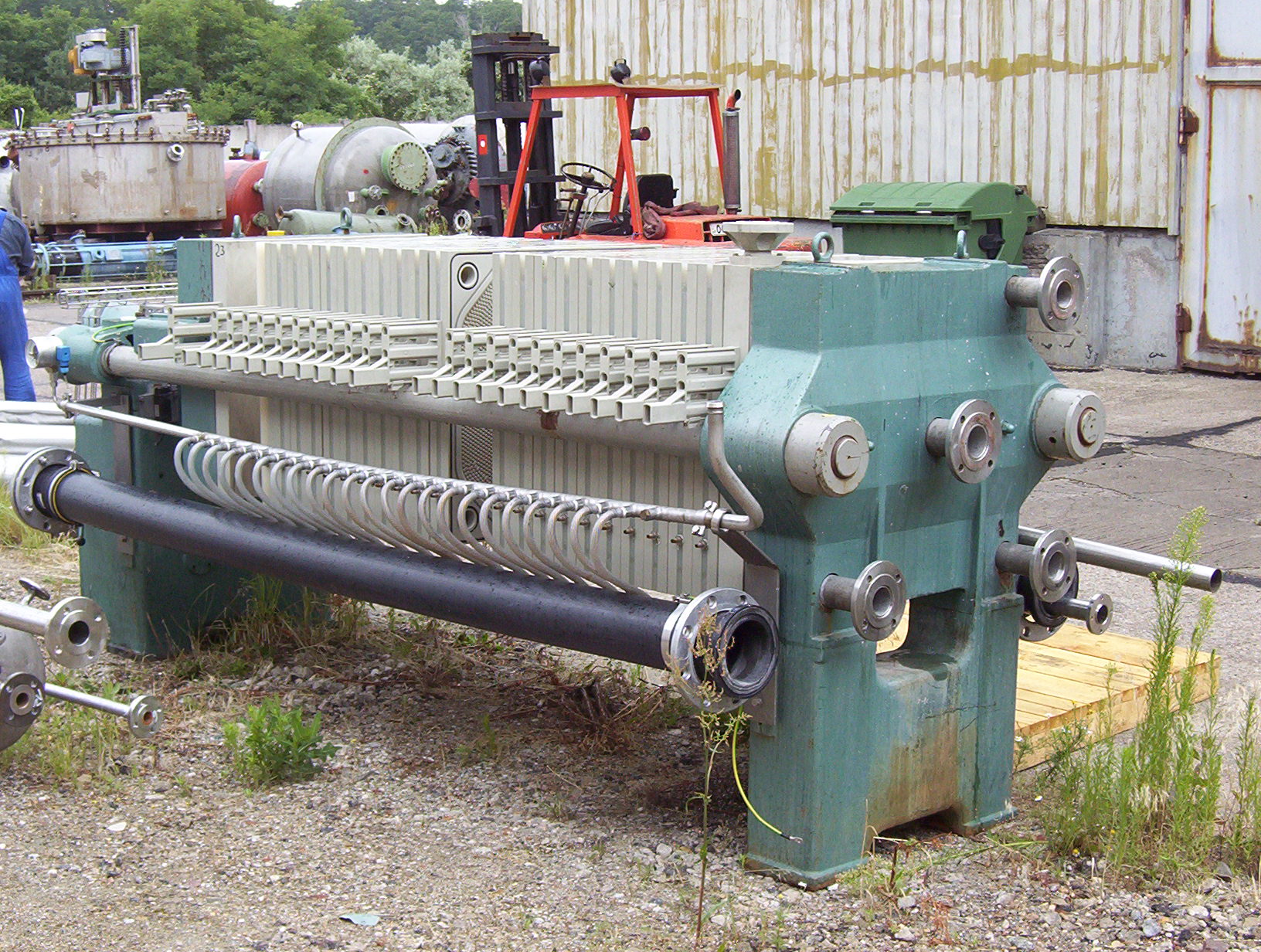

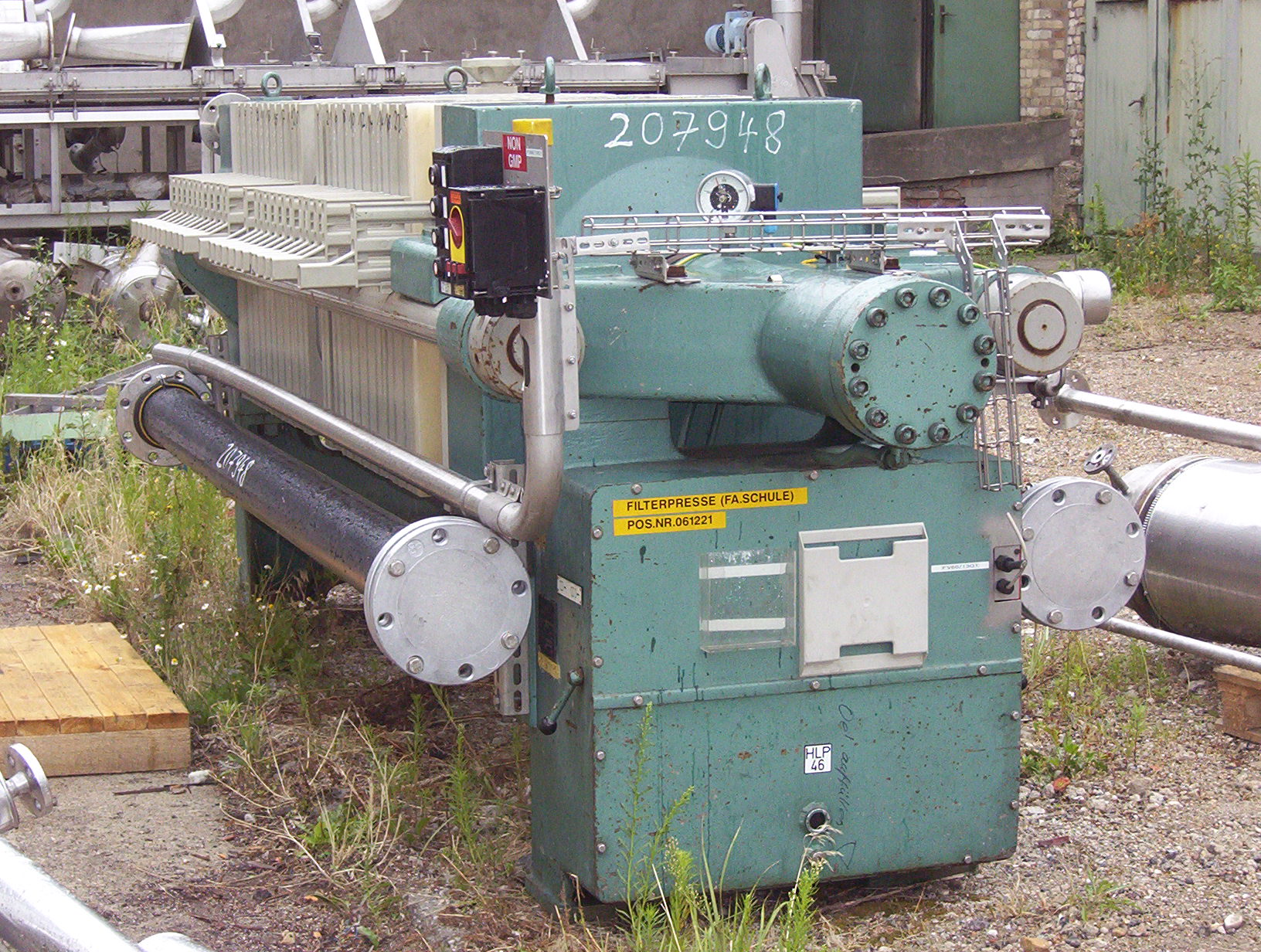

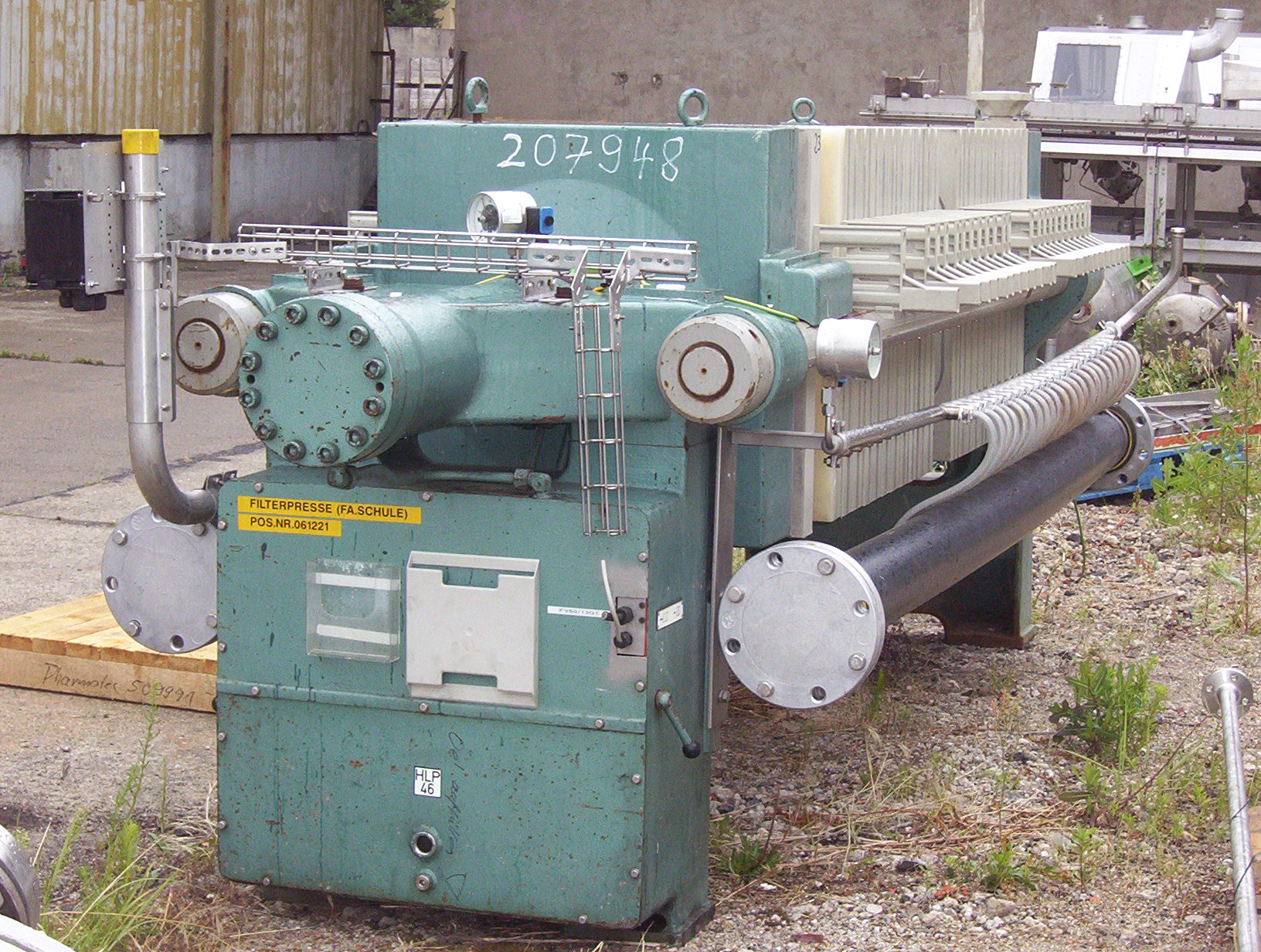

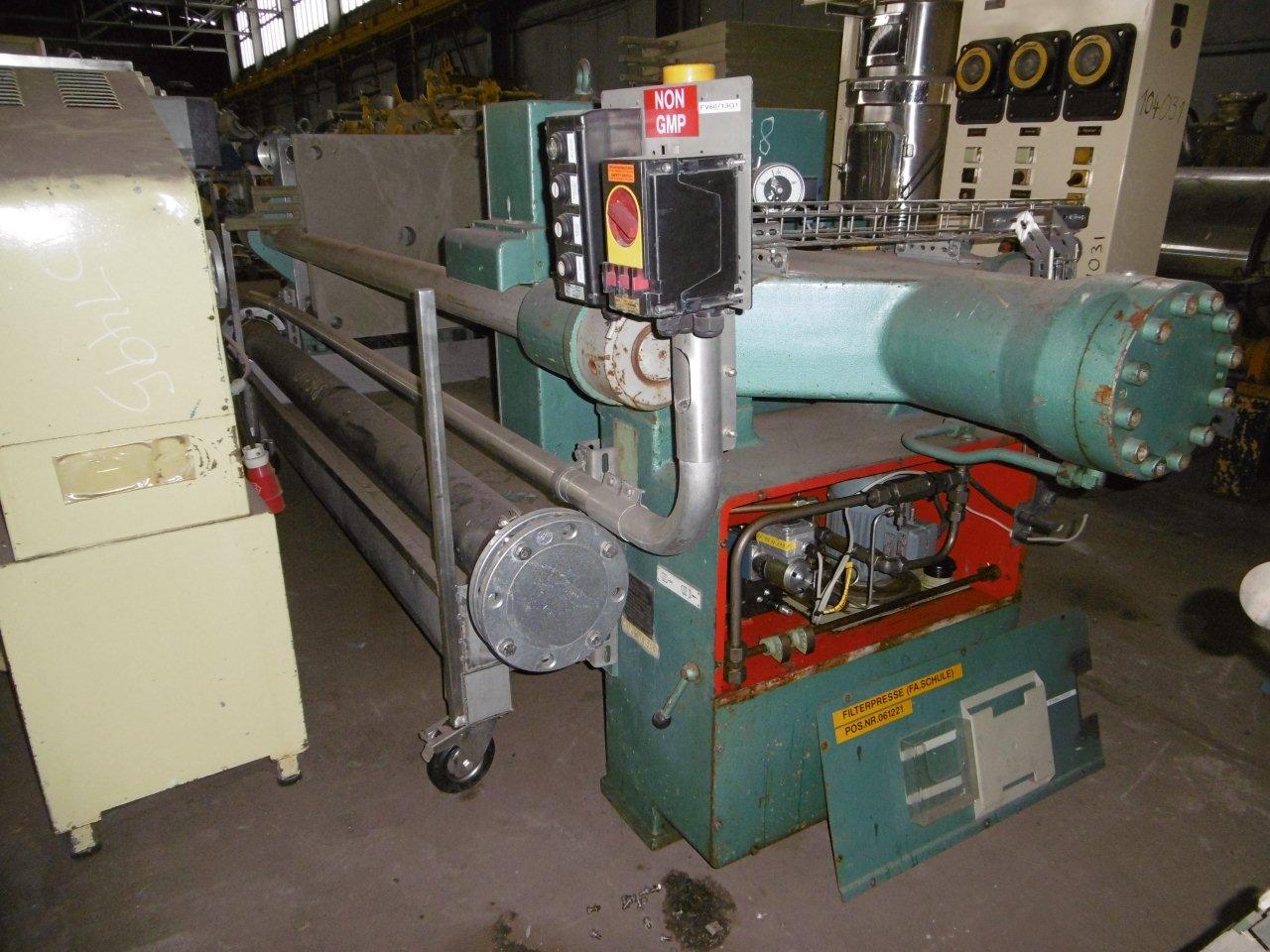

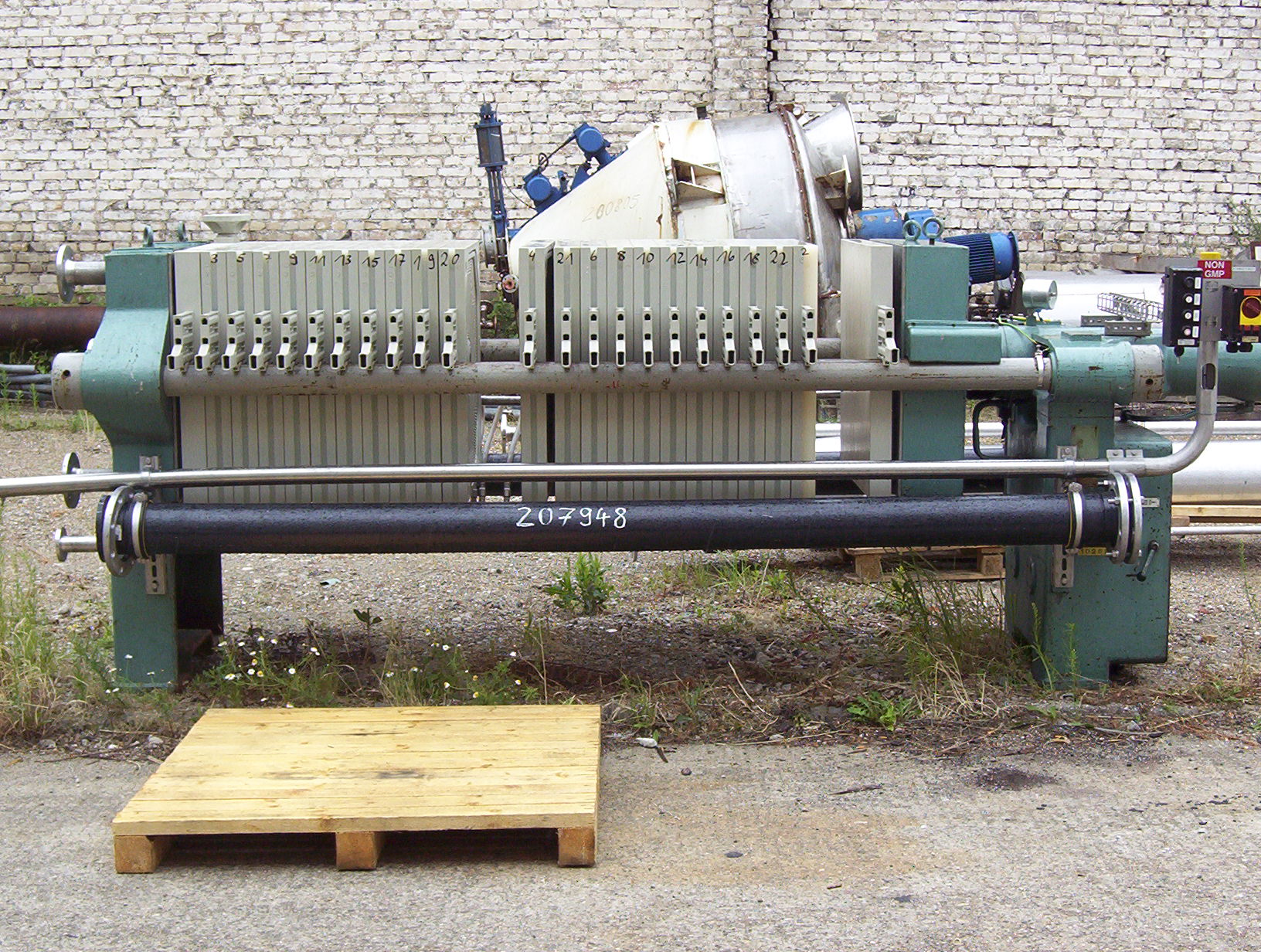

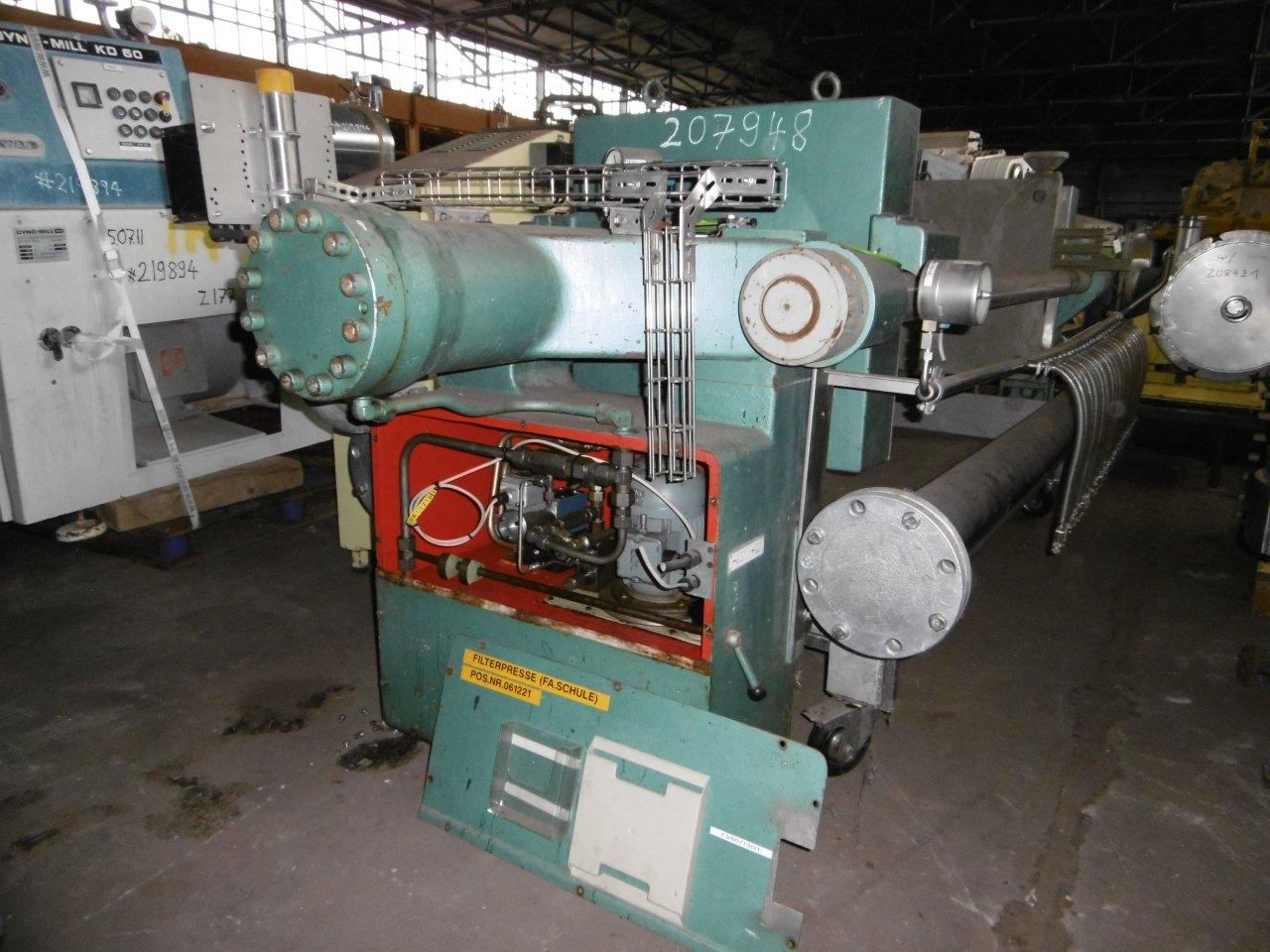

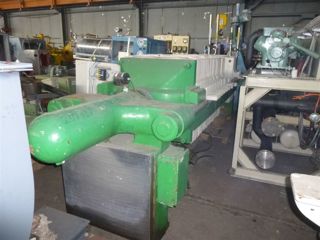

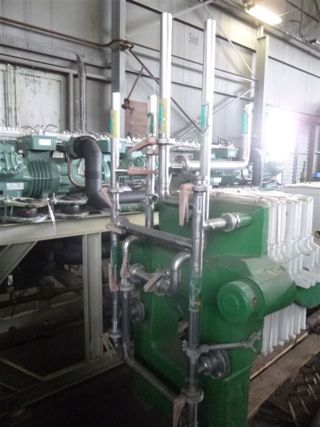

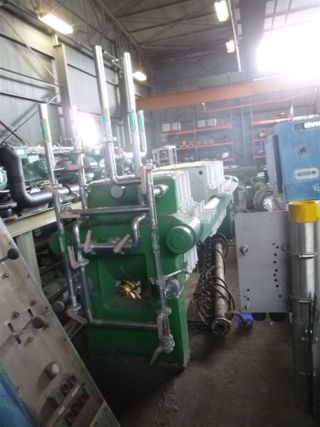

Polypropylene Schule KUK/800/VHy6 Press Filter - IPP# 207948

Type: Filter

Subtype: Press

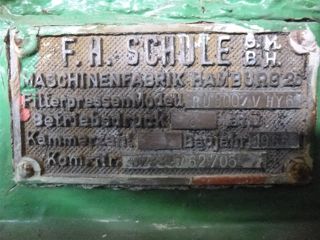

Manufacturer: Schule

Model: RU800/VHY6

Condition: Used

Material: Polypropylene

Filtration Area: 22.4 m² (241 ft²)

Pressure: 8 bar (116 psi)

• Recess Plated 700mm x 700mm x 7mm deep, Non Gasketed.
• (2) end plates, 70mm center feed, 50mm 4-corner discharge, hydraulic closing mechanism.

Cake Volume: 3.52 m3 (124 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 35. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in). Plate Thickness: 45 mm (1.77 in). Plates Recessed: Yes. Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Schule

Model: KUK-1200/VIS04Y6-1EX

Condition: Used

Material: Polypropylene

Filtration Area: 82.9 m² (892 ft²)

Pressure: 6 bar (87 psi)

• 1200mm x 1200mm polypropylene recessed plate filter press.
• Plates manufactured by Vohwinkel.
• Hydraulic closure pressure 230 bar.
• Top center feed, 4 eye closed discharge.

Overall Length: 5,200 mm (205 in). Overall Width: 1,720 mm (67.7 in). Overall Height: 2,000 mm (78.7 in). Cake Volume: 1,400 m3 (49,440 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 36. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plate Thickness: 64 mm (2.52 in). Plates Recessed: Yes.

Type: Filter

Subtype: Press

Manufacturer: Bethlehem Corp

Condition: Used

Material: Polypropylene

Filtration Area: 3.23 m² (34.8 ft²)

Overall Length: 2,642 mm (104 in)

• Unit has 10 chambers recessed plates with 1/2" recess for forming 1" thick cake. 4 corner closed discharge,
• Unit has an air over oil compensating pump.

Overall Width: 914 mm (36 in). Overall Height: 1,435 mm (56.5 in). Cake Volume: 0.034 m3 (1.2 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 10. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 457 mm (18 in). Plate Height: 457 mm (18 in). Plate Thickness: 12.7 mm (0.5 in). Plates Recessed: Yes. Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Rittershaus & Blecher

Condition: Used

Material: Polypropylene

Filtration Area: 62.4 m² (672 ft²)

Pressure: 6 bar (87 psi)

• Recessed filter press. 62.4 square meter filter area, can be expanded to (60) plates (96 sq. meter).
• 4 eye center feed.
• Motorized hydraulic closure. Rated 170-200 bar.
• With safety mirrors,
• Cake thickness approx. 30 mm. Filter volume approx. 0.88 cu meter.
• Filter plates are suspended from an overhead beam.

Overall Length: 6,400 mm (252 in). Overall Width: 1,900 mm (74.8 in). Overall Height: 2,650 mm (104 in). Cake Volume: 0.88 m3 (31.1 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 39. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plate Shifter: Yes. Plates Recessed: Yes. Plates Shifted By: Automatic.
