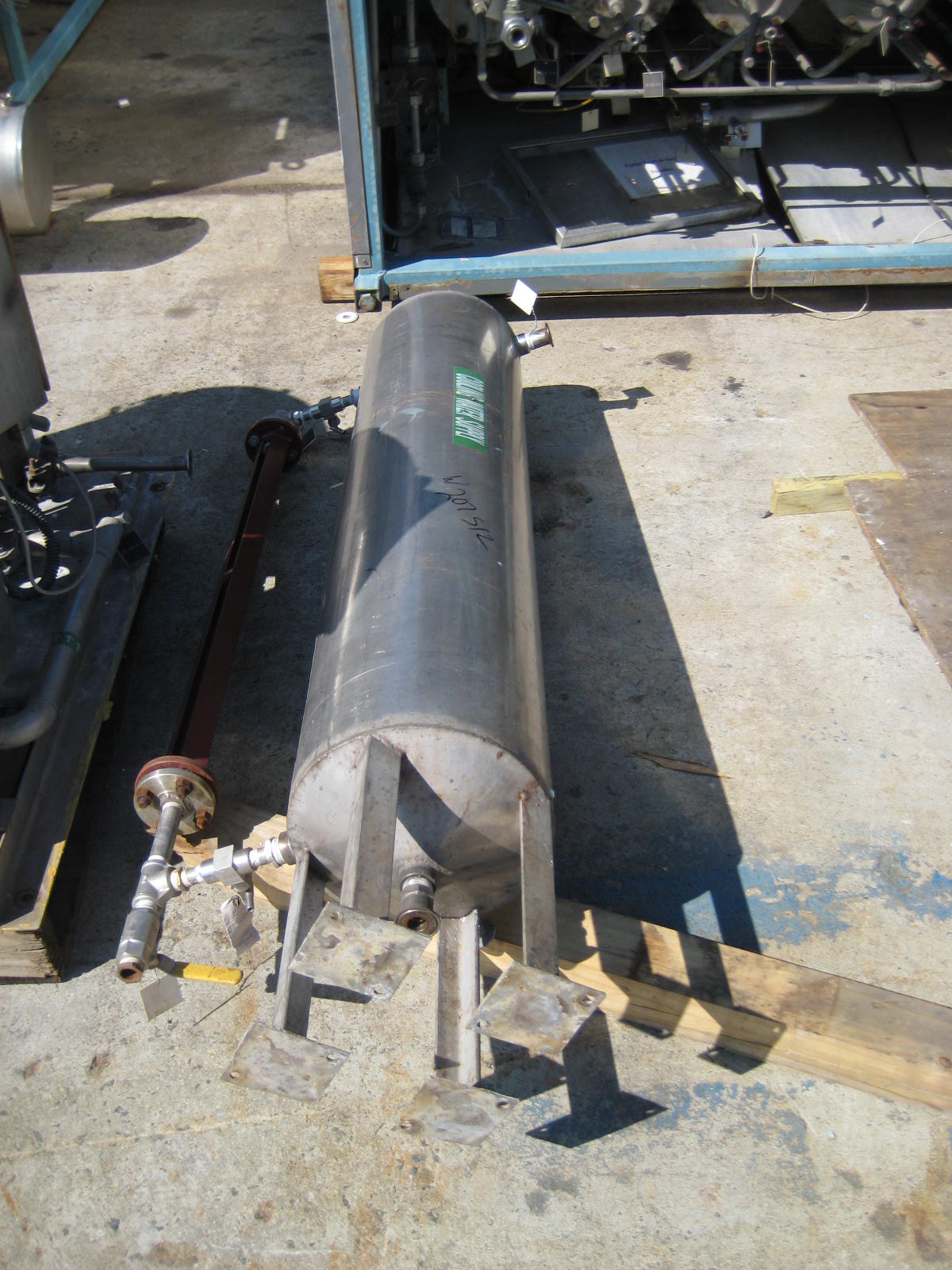

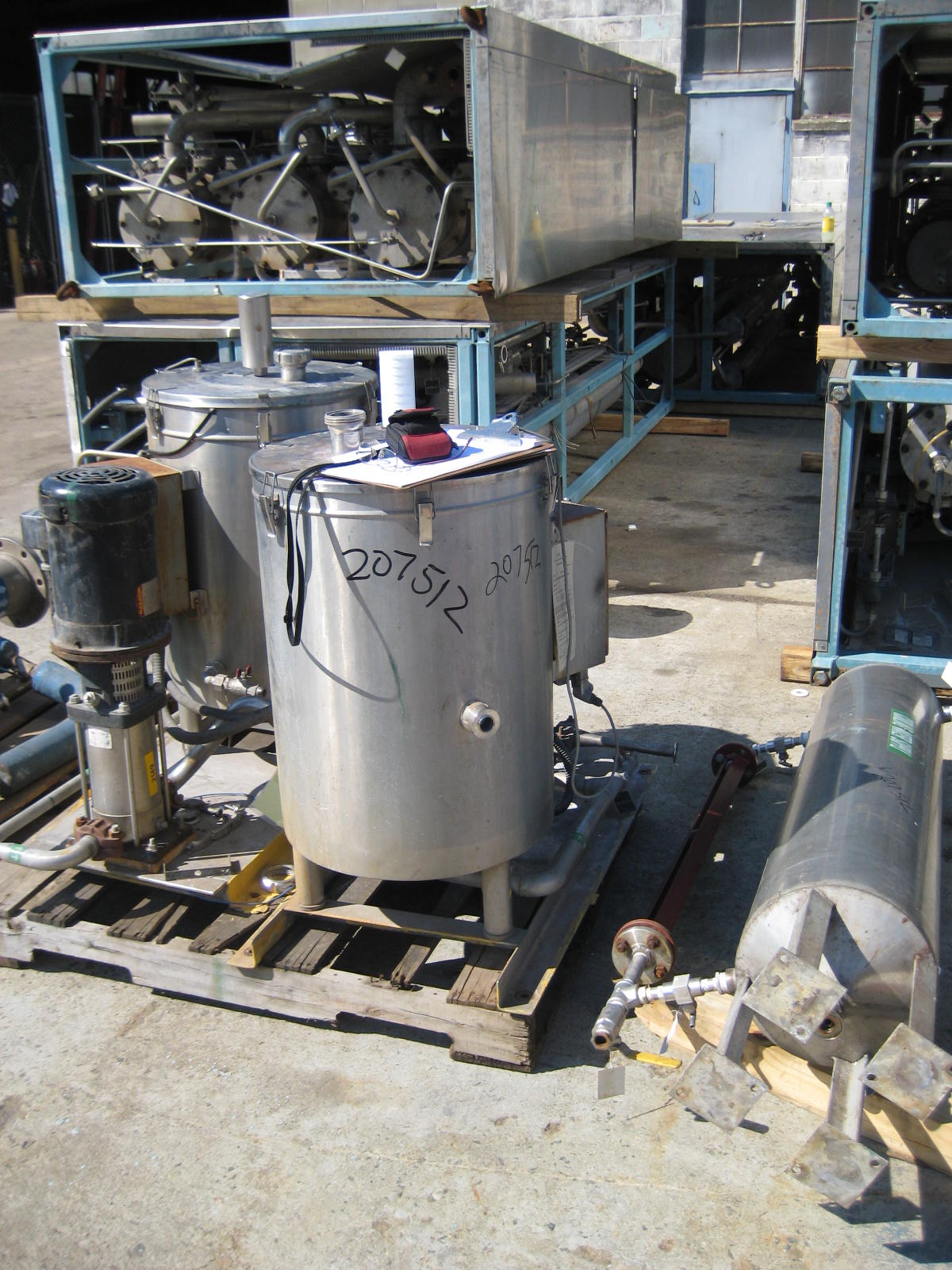

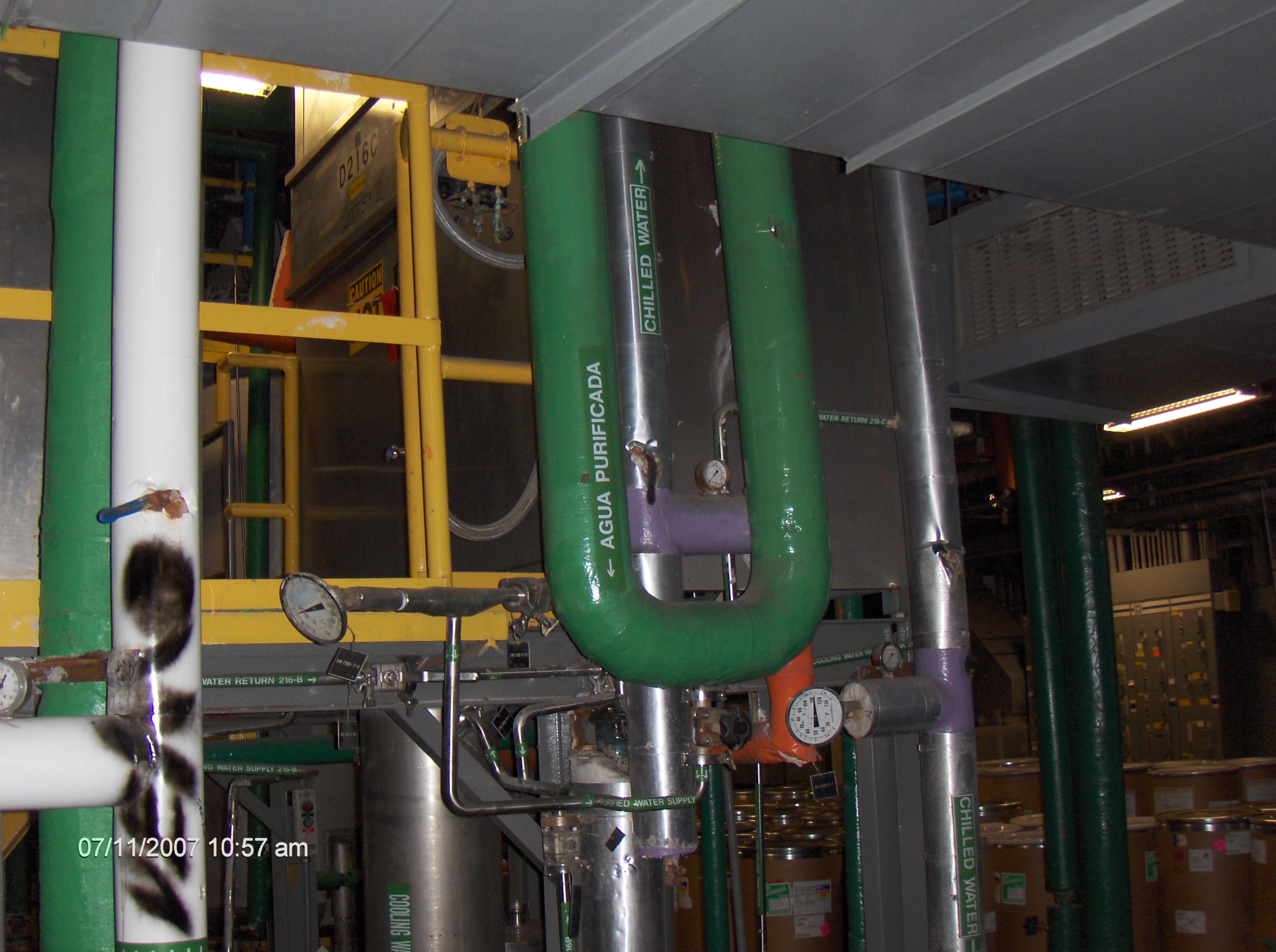

Still Stainless Steel 316 For Sale - IPP# 207512

Type: Still

Manufacturer: Santasalo-Sohlberg Corp

Model: 2000H1

Condition: Used

Material: Stainless Steel 316

Diameter: 250 mm (9.8 in)

Length: 3.1 m (10 ft)

176 lbs./hr.of pure steam generated at 58 psi Clean Steam Generator Finn Aqua with (1) 316SS DI columns enclosed in a 304SS housing with associated pumps, valves, condensors, collection pots Housingis 36" wide x 51" long x 11' high

Still Type: Column Still. Pressure: 8 bar (116 psi). Temperature: 175 °C (347 °F). Controls: Yes. Support Type: Skid. Orientation: Vertical.

Type: Still

Manufacturer: Santasalo-Sohlberg Corp

Model: 1000HSG

Condition: Used

Material: Stainless Steel 316

Pressure: 8 bar (116 psi)

Temperature: 175 °C (347 °F)

2802 lbs./hr steam pressure of 87 psi DI Water still Finn Aqua with (4) 316SS DI columns enclosed in a 304SS housing with associated pumps, valves,collection pots Housingis 36" wide x 11' long x 11' high

Controls: Yes. Support Type: Skid. Column: Yes.

Type: Still

Manufacturer: OY Santaslo

Model: 6-350

Condition: Used

Material: Stainless Steel 316

Diameter: 420 mm (16.5 in)

Length: 0.35 m (1.15 ft)

45 liter water still system distillate outlet temperature 70 degree C (158 degree F), steam is condensed into distillate by cold cooling water, slow steam speed with special baffle produces high distillate quality even from soft water, ventilation system to remove gasses from the steam, excess salts limited by adjustable bleed valve. System consists of (1) 45 liter 316L stainless steel boiler tank, 420mm diameter x 350mm straight side, with 9.5 KW, 220/380 volt Loval immersion type heating element, element mounted on bottom of tank. (1) 75 liter 316L stainless steel condenser tank with 12mm diameter cooling spiral, internal baffle. This tank mounts on top of boiler tank. Openings: distillate 1-20mm, 1-12mm cooling water feed, 1-12mm cooling water outlet. (1) 316L stainless steel rectangular regulating tank. 625mm long x 325mm wide x 200mm deep with magnetic float/level switch, Type 862D-F40, 240/440 volt, 70 watt. (1) 480 liter 316L stainless steel vertical pressure tank. Manufactured by Olsa, Serial #1237. Rated 1 bar @ 120 degree C. 800mm diameter x 1000mm straight side, welded dished top and bottom. (4) turns on coil, (3) 75mm diameter x 700mm long stainless steel tubes for heater elements mounted on bottom of straight side (no heating elements). Openings: top 1-180mm, 3-20mm (1 with probe and sensor, 1 with pressure gauge), 1-12mm; coil 2-20mm; bottom 1-50mm.

Still Type: Column Still. Pressure: 1.01 bar (14.7 psi). Temperature: 100 °C (212 °F). Column: Yes. Orientation: Vertical.

Type: Still

Manufacturer: Distillation Engineering Co.

Condition: Used

Material: Stainless Steel 316

Diameter: 304.8 mm (12 in)

Length: 2 m (6.7 ft)

with out a still pot. Needs a 750-1000 gallon reactor to complete (sold separate) Designed to bolt onto the top of a reactor with a 750-1000 gallon capacity. (depending on the chemical service) The system consists of the following parts First a 12" x 80" SS packed column, second a top mounted re-boiler, and third a reflux tank. The column section is 12" diameter x 80" overall length. 316 SS, NB # 205, rated for FV/125 psi at 500 degrees F. Manufactured by Roben. With a packing support 10" from the bottom of the column. Estimated packed capacity is 5 ft.3. The U-Tube condenser is top mounted to the column. It is 150 ft.2, The shell is 316 SS. NB # 4892. The shell is rated for FV/150 psi at 450 degrees F The tubes are rated for 100 psi at 450 degrees F. It is manufactured by Roben, serial # 81034. It is 18" diameter x 107" overall length. Two pass tube side. With 2" tube nozzles. The reflux/receiver tank has a 60 Gallon capacity and is manufactured from 316 SS material. It is orientated vertically. The dimensions of the vessel are 24" diameter x30" straight side,

Still Type: Column Still. Pressure: 8.6 bar (125 psi). Temperature: 260 °C (500 °F). Column: Yes. Orientation: Vertical.
