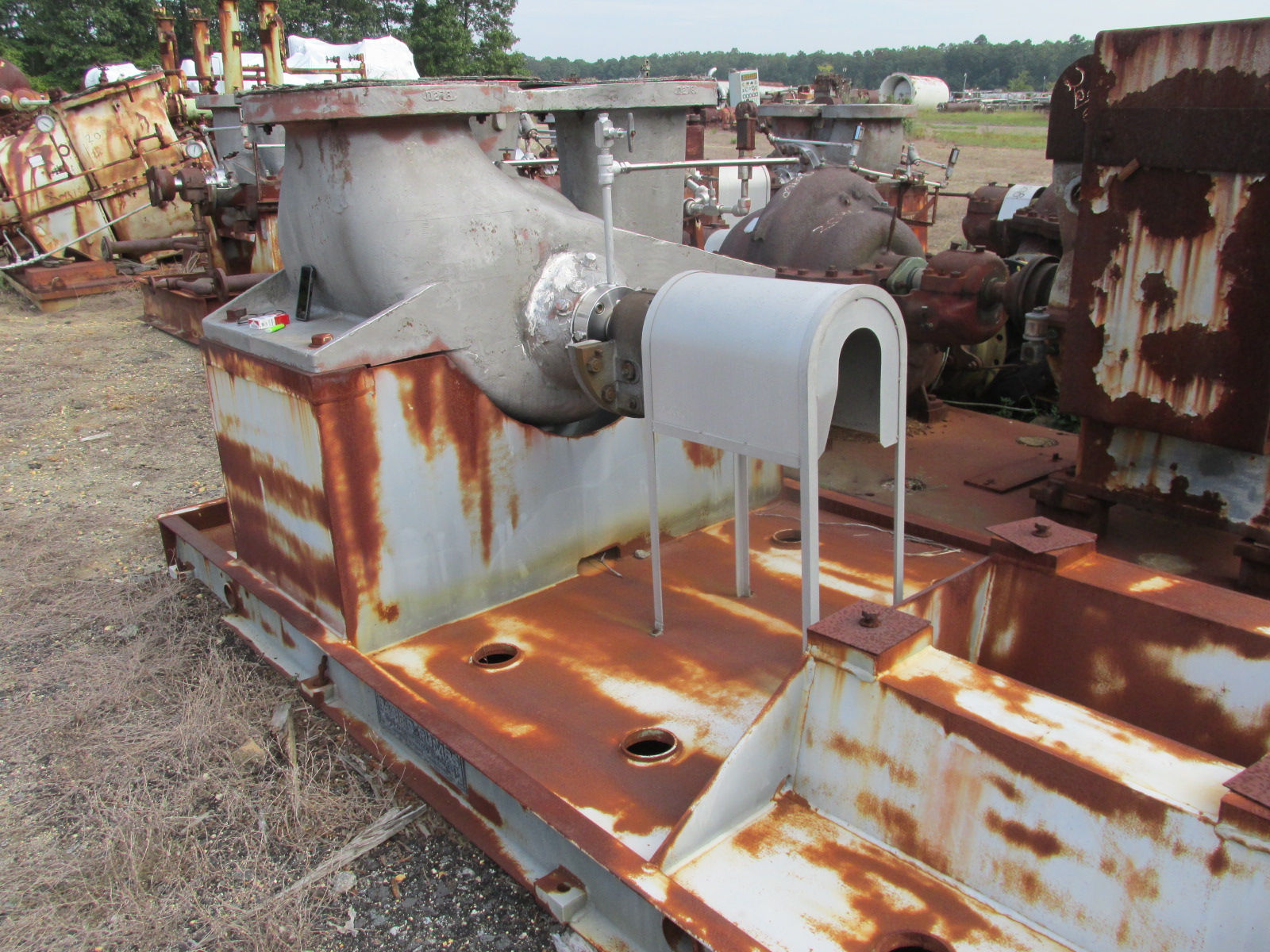

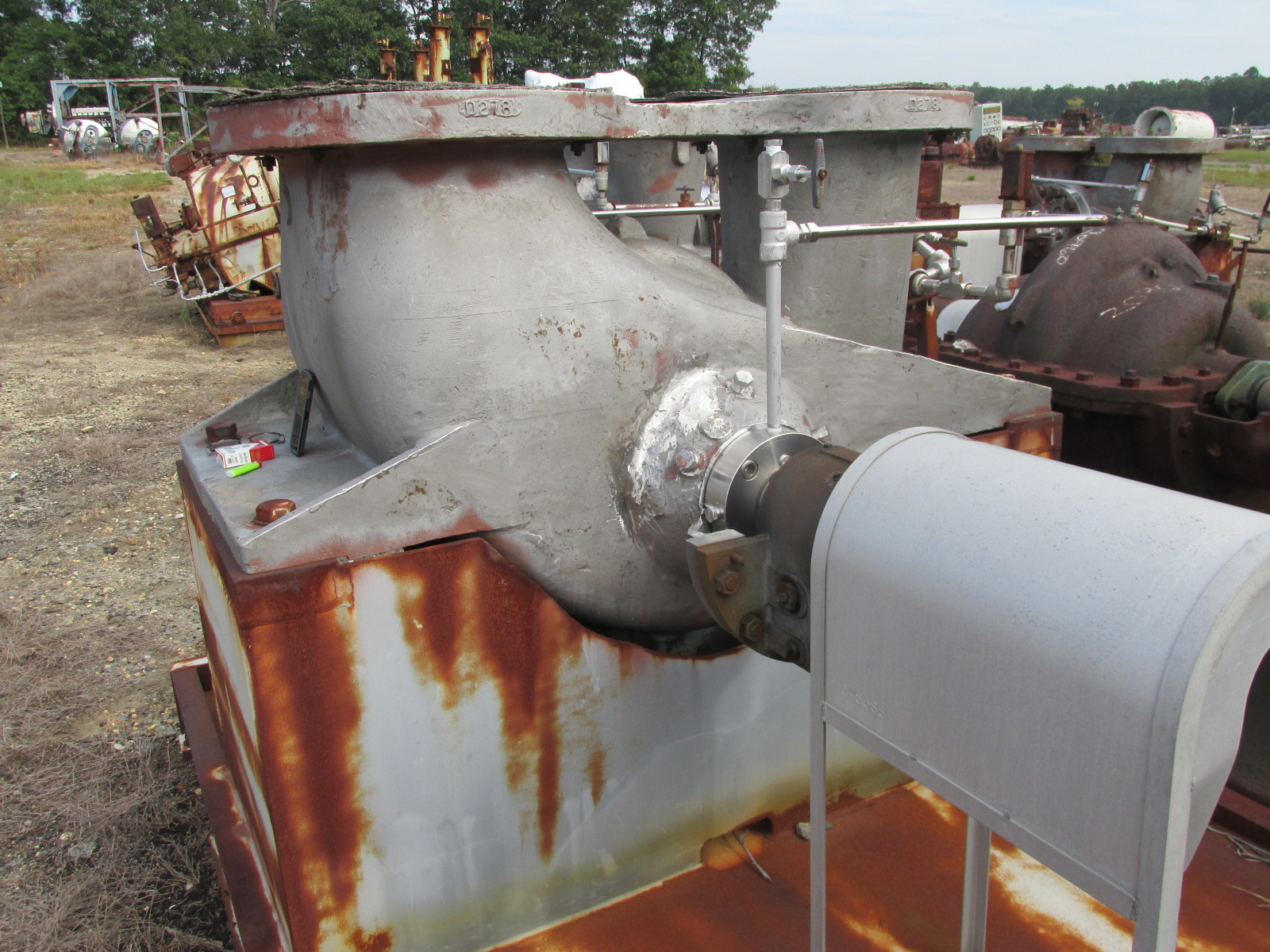

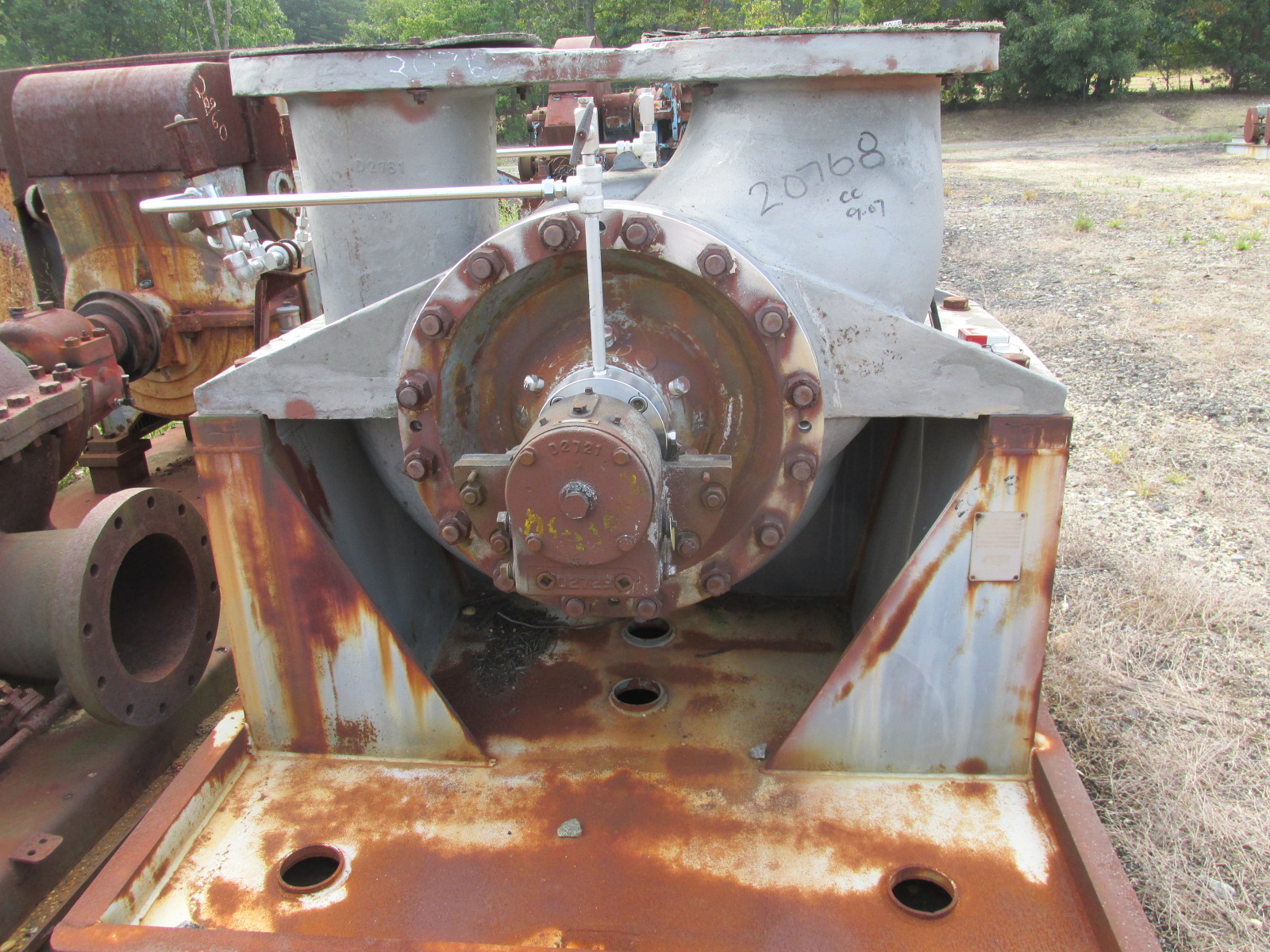

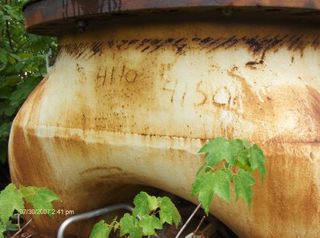

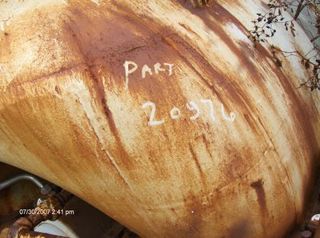

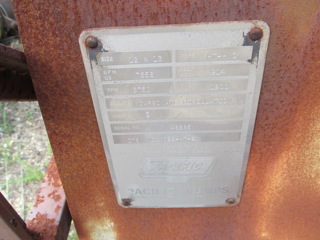

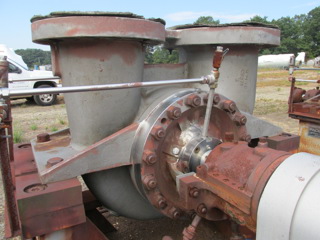

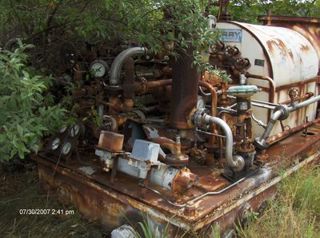

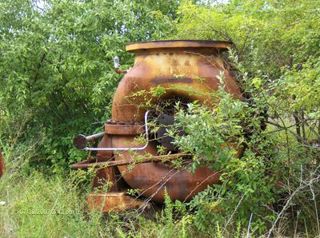

Unused Stainless Steel 316 Centrifugal Pump 2,165 m3/h (9,533 GPM) For Sale - IPP# 20768

Type: Pump

Subtype: Centrifugal

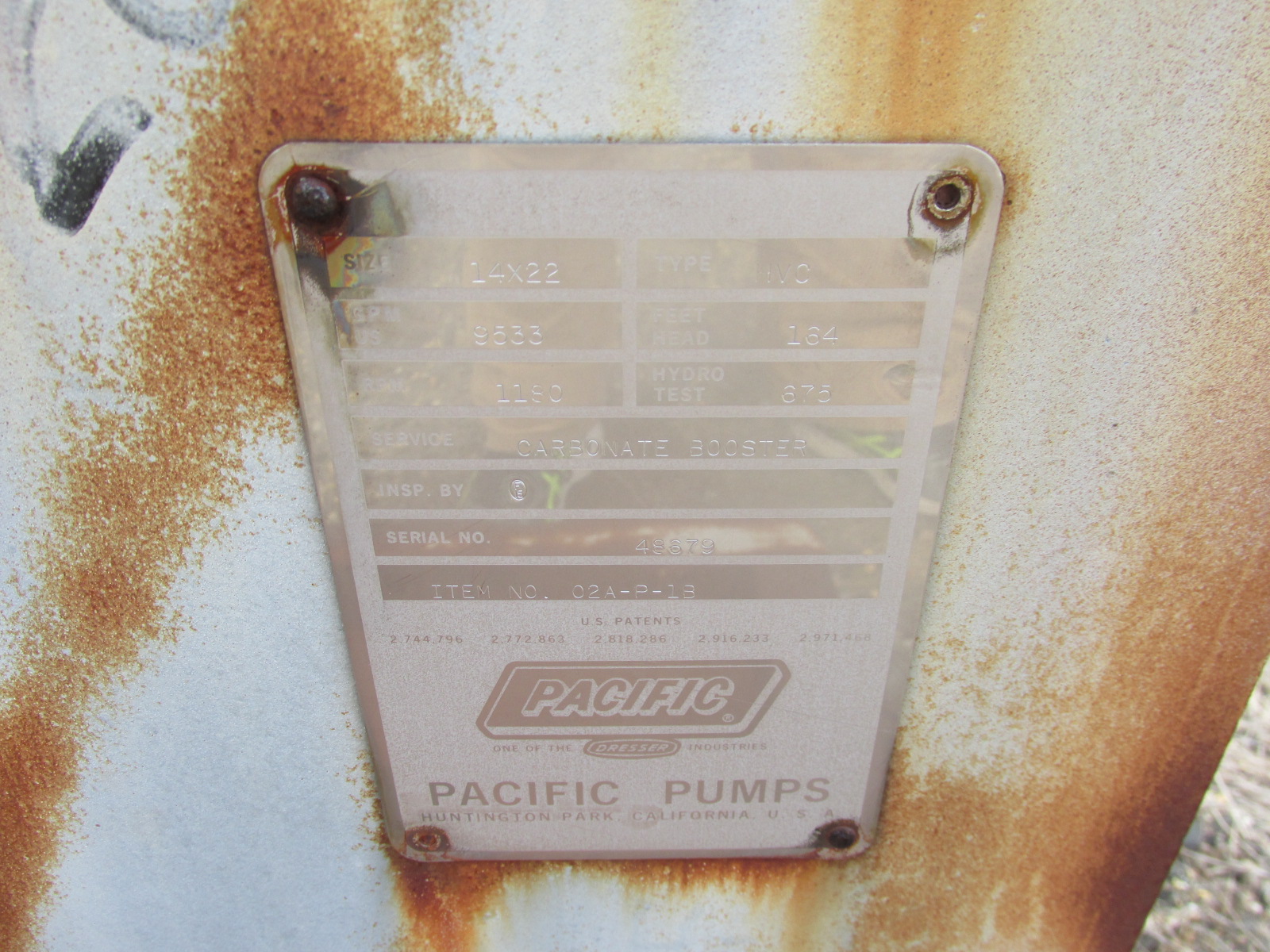

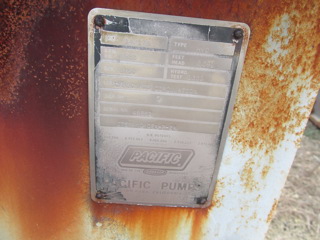

Manufacturer: Pacific Pumps

Model: HVC

Condition: Unused

Material: Stainless Steel 317

Flow Rate: 2,026 m3/h (8,922 GPM)

Pump Head: 332.5 m (1,091 ft)

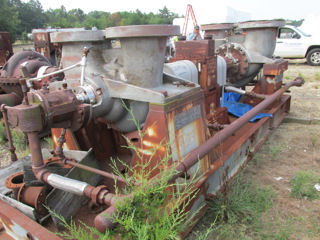

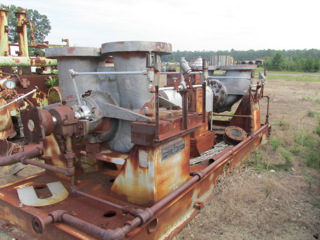

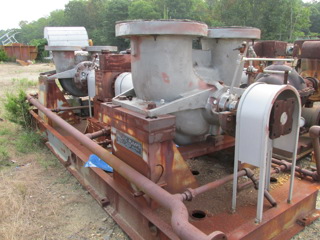

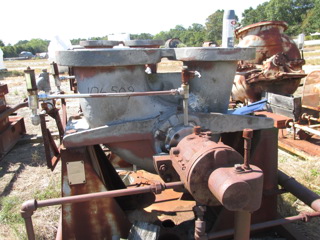

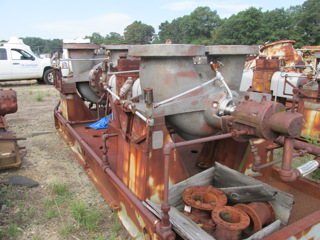

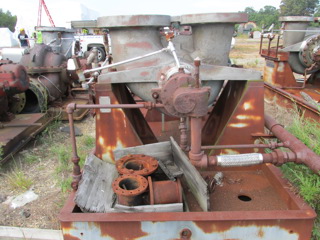

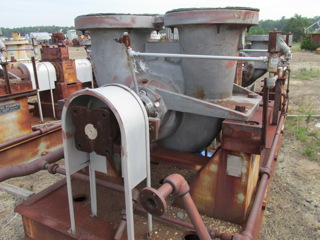

8922/7656 GPM 1091/914 ft./hd Tandem mounted centrifugal pumps Two pumps with an intermediate automatic clutch driven between the pumps Single shaft end designed to be driven by a Terry Steam Turbine Item # 02B-P-2A Clutch is manufactured by Marland, Model Cecon, size CEUS-4M. serial # 73025 B. Takes 14 quarts auto transmission fluid. Rated for 1823 HP. Free end pump is a size 12 x 13. Type HT-HVC. Rated for 7656 GPM at 914 ft./hd., RPM=3750. Hydro tested to 1200 psi. Serial # 48685, Item # 02B-HT-2. Both pumps have mechanical seals and forced oil lubrication. Seal flush water requirement is 1.5 GPM(3 GPM both pumps) of clean cool liquid 50 psi over suction pressure. Cooling water required at 2 gpm of 95 degree F. Max. at 75 psi (max). Both pumps and clutch are base mounted.

Pressure: 93.1 bar (1,350 psi). Orientation: Horizontal. Powered By: Steam.

Type: Pump

Subtype: Centrifugal

Manufacturer: Pacific Pumps

Condition: Unused

Material: Stainless Steel 316

Flow Rate: 2,026 m3/h (8,922 GPM)

Pump Head: 332.5 m (1,091 ft)

• Flow rate: 8922/7656 GPM
• Head: 1091/914 ft./hd.
• Pump type: Tandem mounted
• Number of pumps: Two
• Single shaft end designed to be driven by a Terry Steam Turbine.

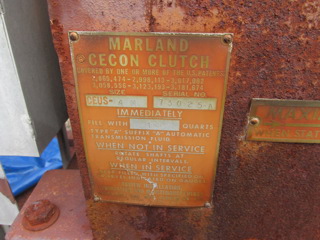

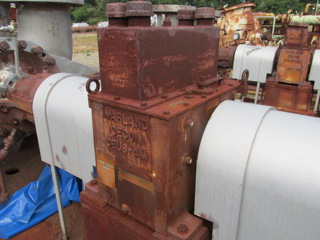

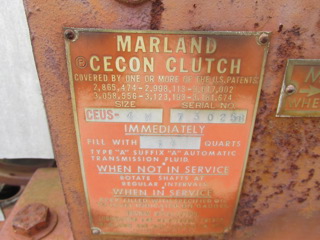

• Clutch: Intermediate automatic clutch driven between the pumps, manufactured by Marland, Model Cecon, size CEUS-4M, serial # 73025 B, takes 14 quarts auto transmission fluid, rated for 1823 HP
• Driven end pump: Size 14 x 17.5 type HVC, rated for 8933 gpm. at 1091 ft./hd., RPM=3760, hydro tested at 1350 psi, serial # 48682, Item # 02A-P-2A
• Free end pump: Size 12 x 13. Type HT-HVC. Rated for 7656 GPM at 914 ft./hd., RPM=3750, hydro tested to 1200 psi, serial # 48684, Item # 02A-HT-2
• Mechanical seals and forced oil lubrication on both pumps
• Seal flush water requirement: 1.5 GPM(3 GPM both pumps) of clean cool liquid 50 psi over suction pressure
• Cooling water required: 2 gpm of 95 degree F. Max. at 75 psi (max)

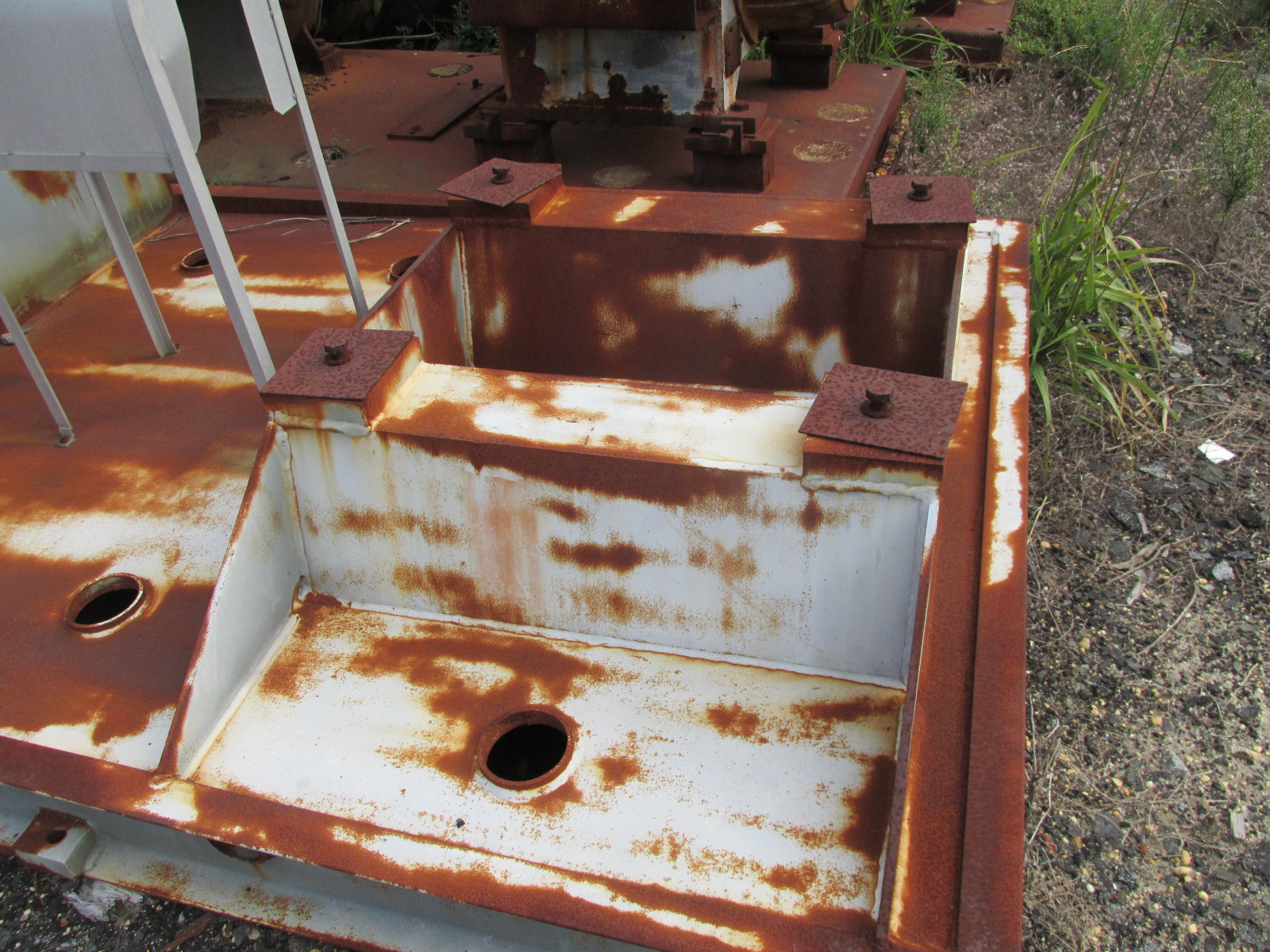

• Pump and clutch mounting: Base mounted.

Powered By: Steam.

Type: Pump

Subtype: Centrifugal

Manufacturer: Gaston County

Model: Imp-15

Condition: Used

Material: Stainless Steel 316

Orientation: Horizontal

Size 12x10 Type GC. Closed impellor Front suction, top discharge Openings: 1-250mm, 1-300mm. No motor.

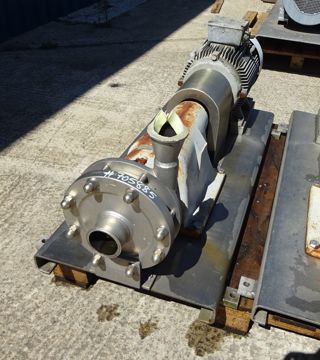

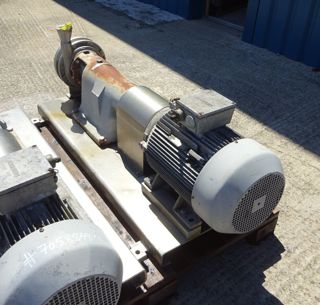

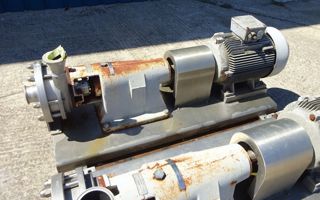

Type: Pump

Subtype: Centrifugal

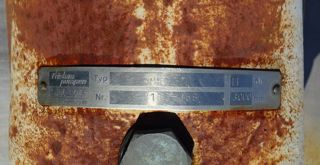

Manufacturer: Fristram

Model: FMS-322-L

Condition: Used

Material: Stainless Steel 316

Flow Rate: 35.7 m3/h (157 GPM)

Pressure: 5 bar (72.5 psi)

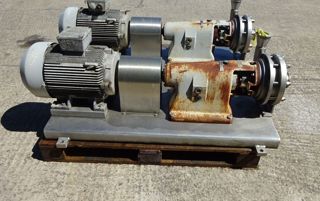

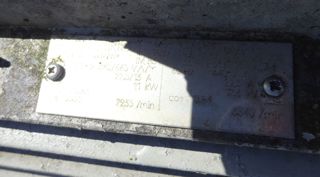

direct driven by 2-speed motor 11kw, 3/50/380/660 volt, 2935 rpm

Orientation: Horizontal. Motor Power: 12.6 kW (16.9 HP). Motor Speed (RPM): 3,540.
