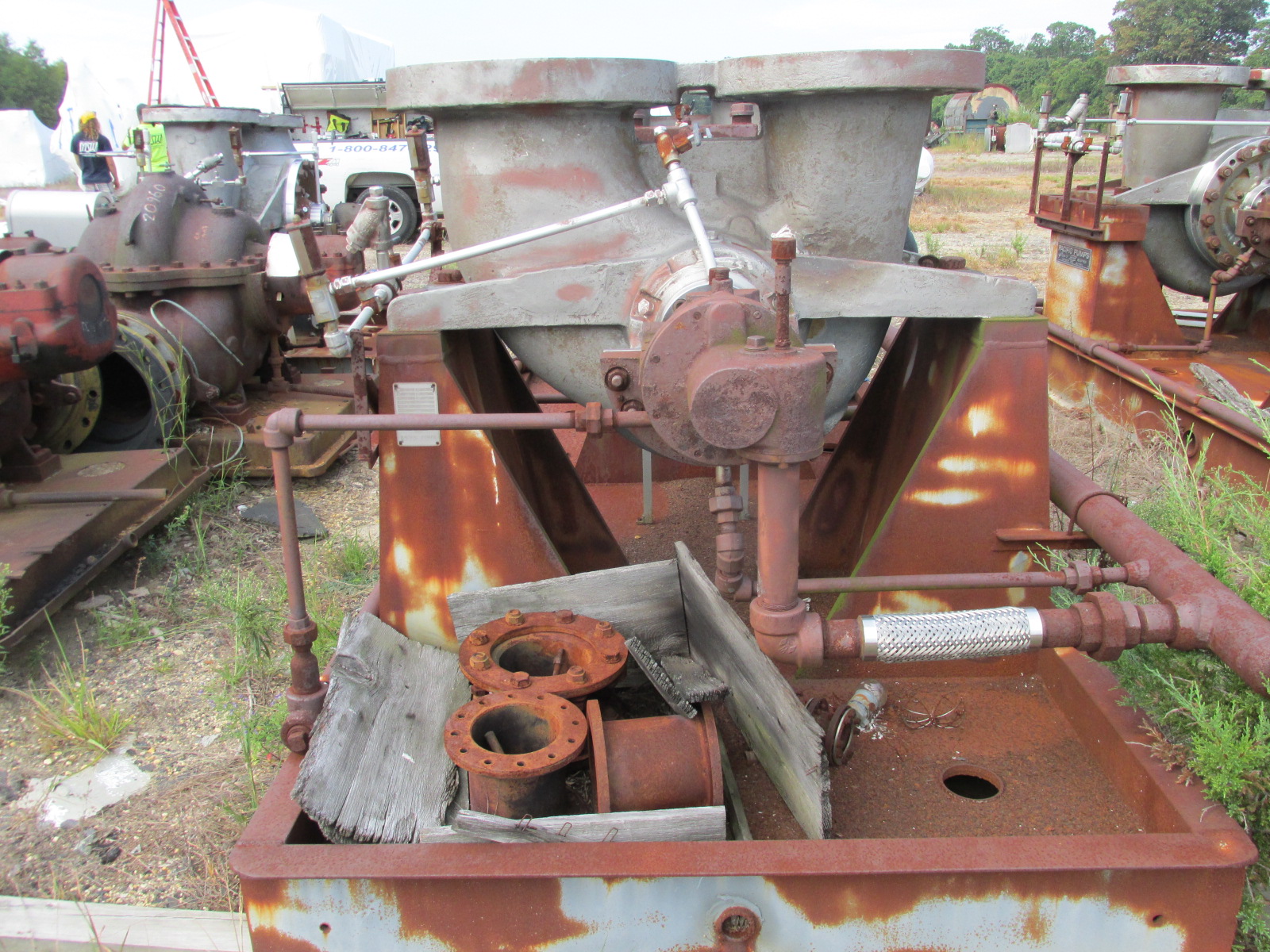

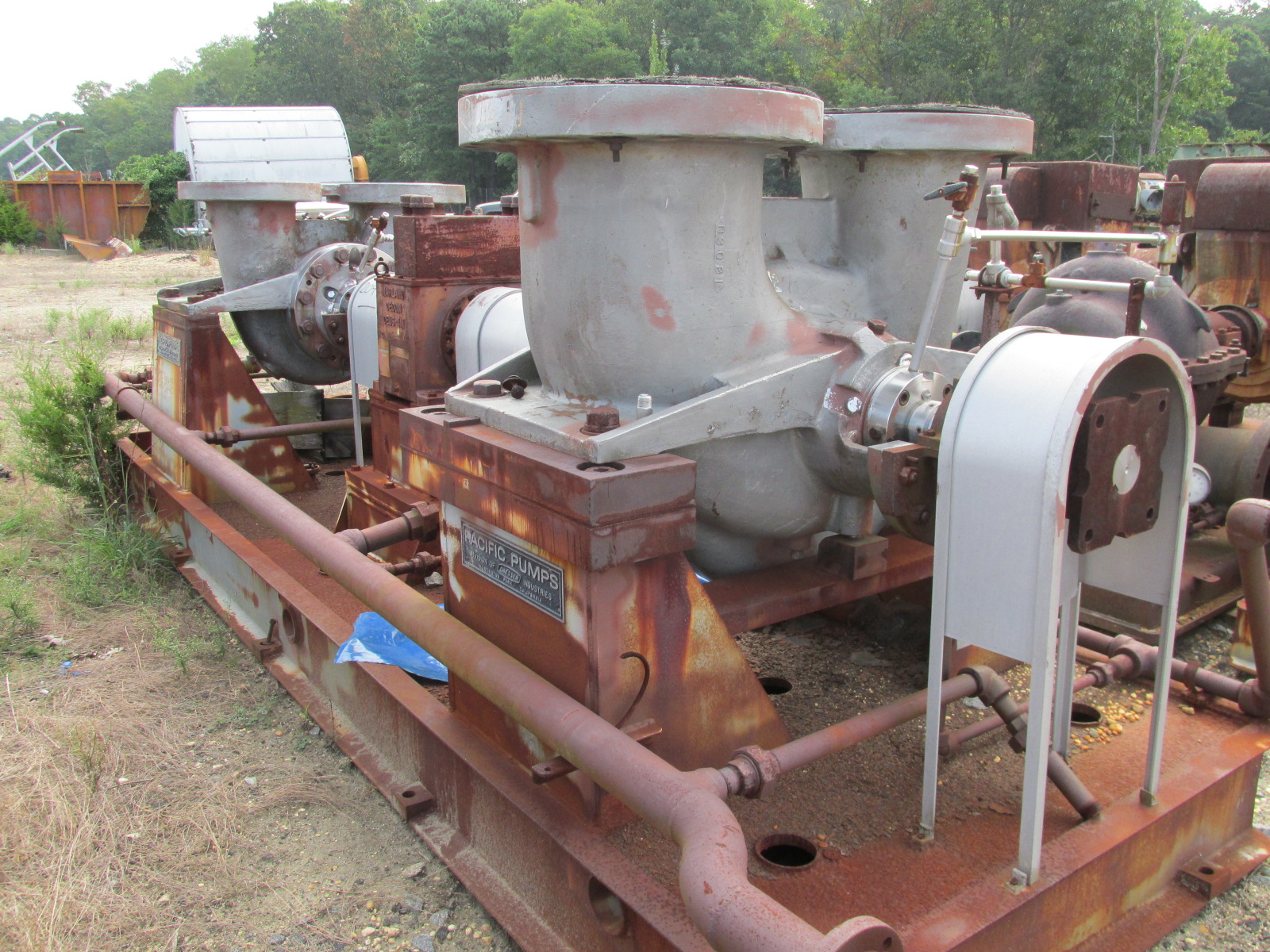

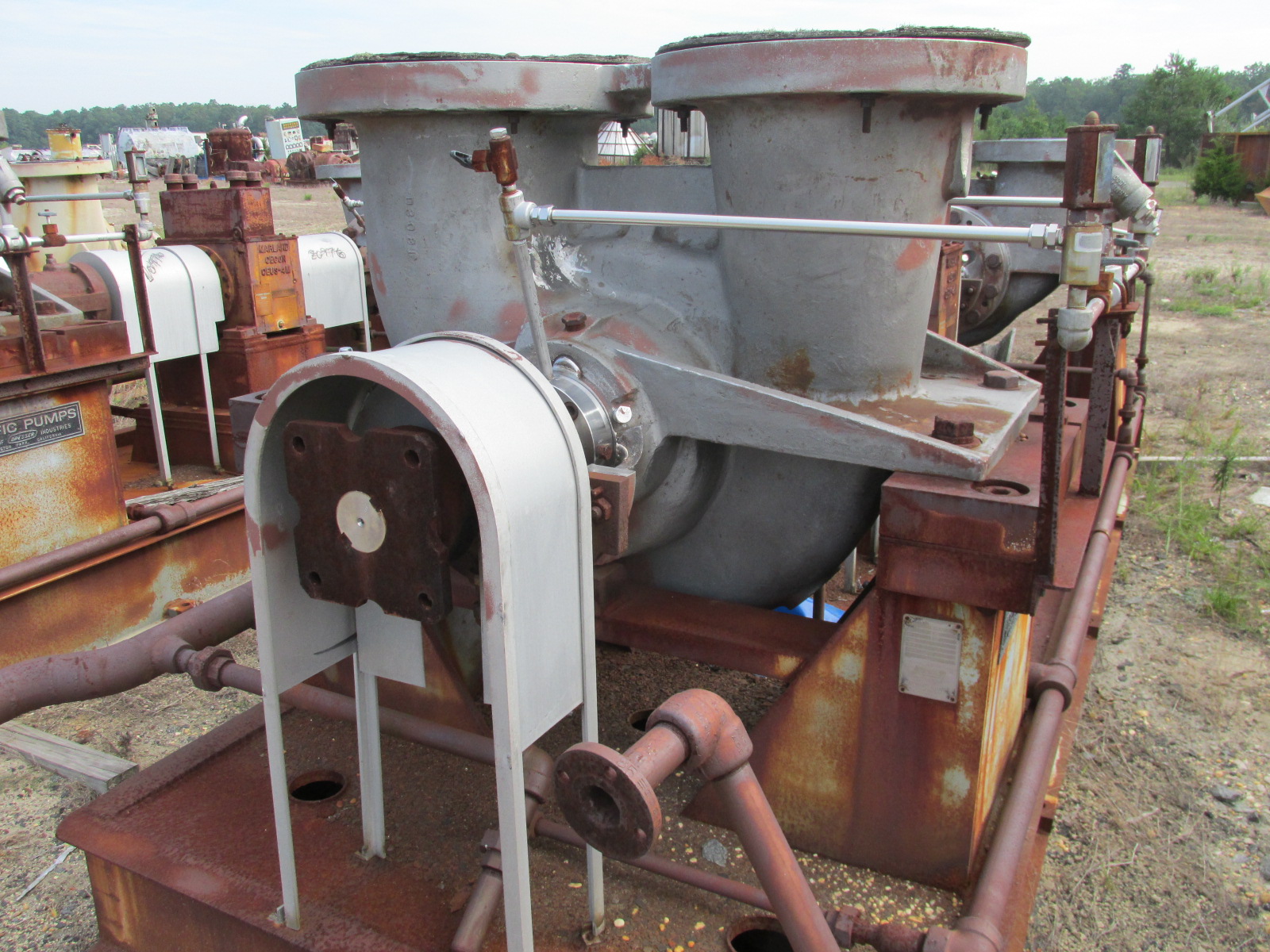

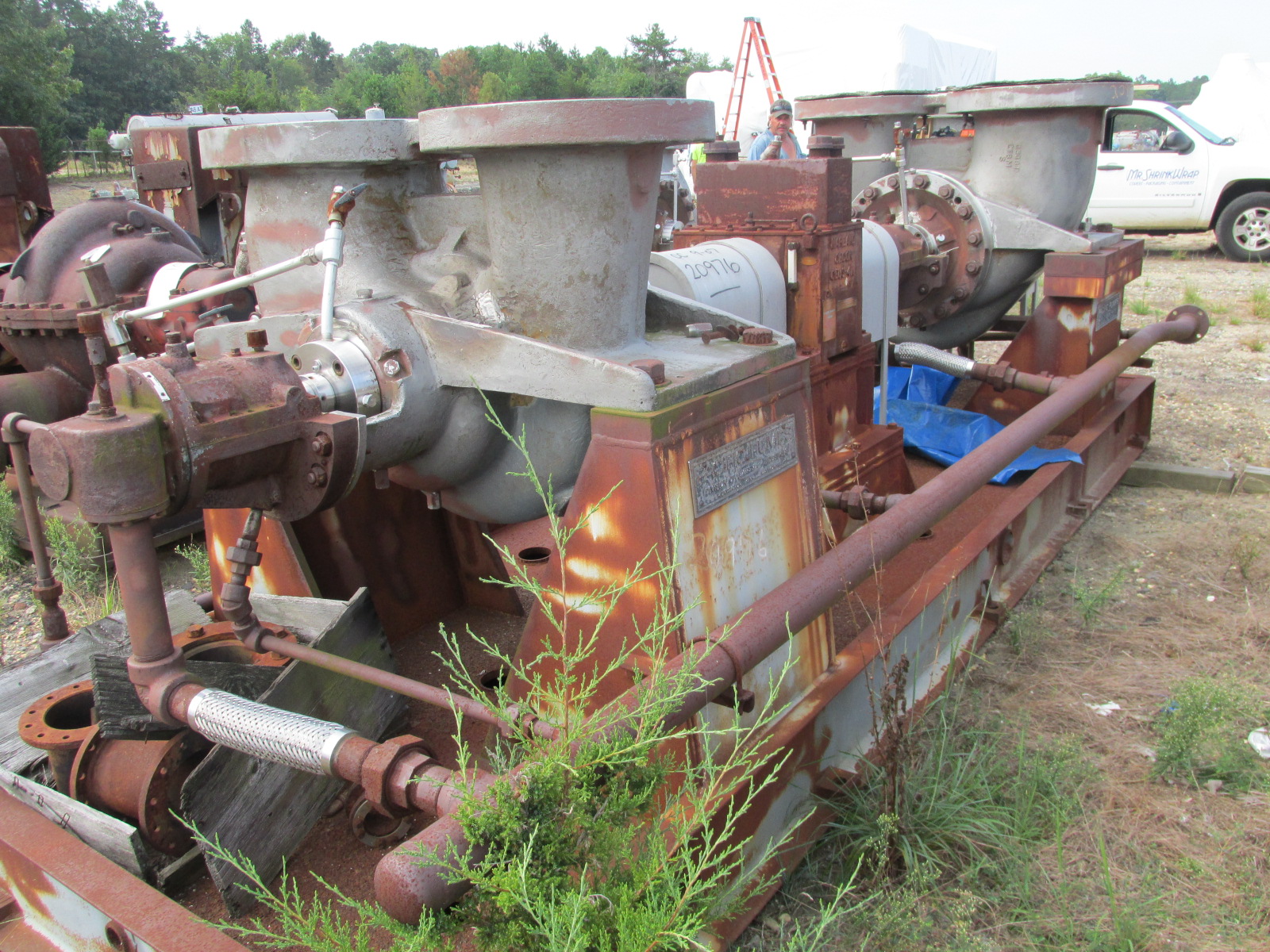

Unused Stainless Steel 317 Pacific Pumps HVC Centrifugal Pump - IPP# 20976

Type: Pump

Subtype: Centrifugal

Manufacturer: Pacific Pumps

Model: HVC

Condition: Unused

Material: Stainless Steel 316

Flow Rate: 2,165 m3/h (9,533 GPM)

Pump Head: 56.1 m (184 ft)

• Item # 02A-P-1B
• Designed to be driven by an electric motor

Pressure: 60.3 bar (875 psi). Orientation: Horizontal. Powered By: Electric.

Type: Pump

Subtype: Centrifugal

Manufacturer: Pacific Pumps

Condition: Unused

Material: Stainless Steel 316

Flow Rate: 2,026 m3/h (8,922 GPM)

Pump Head: 333 m (1,091 ft)

• Flow rate: 8922/7656 GPM
• Head: 1091/914 ft./hd.

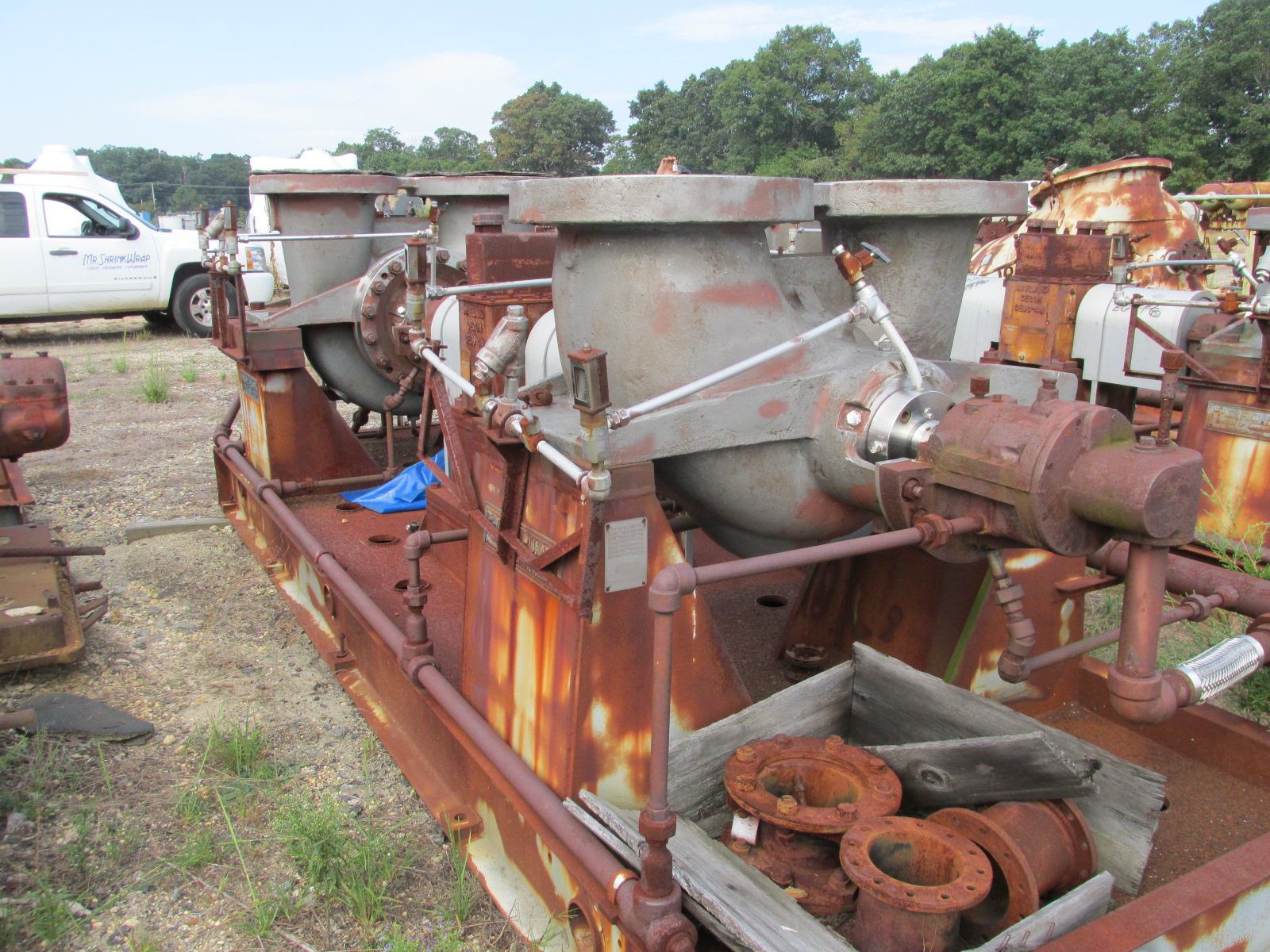

• Pump type: Tandem mounted
• Number of pumps: Two
• Single shaft end designed to be driven by a Terry Steam Turbine.

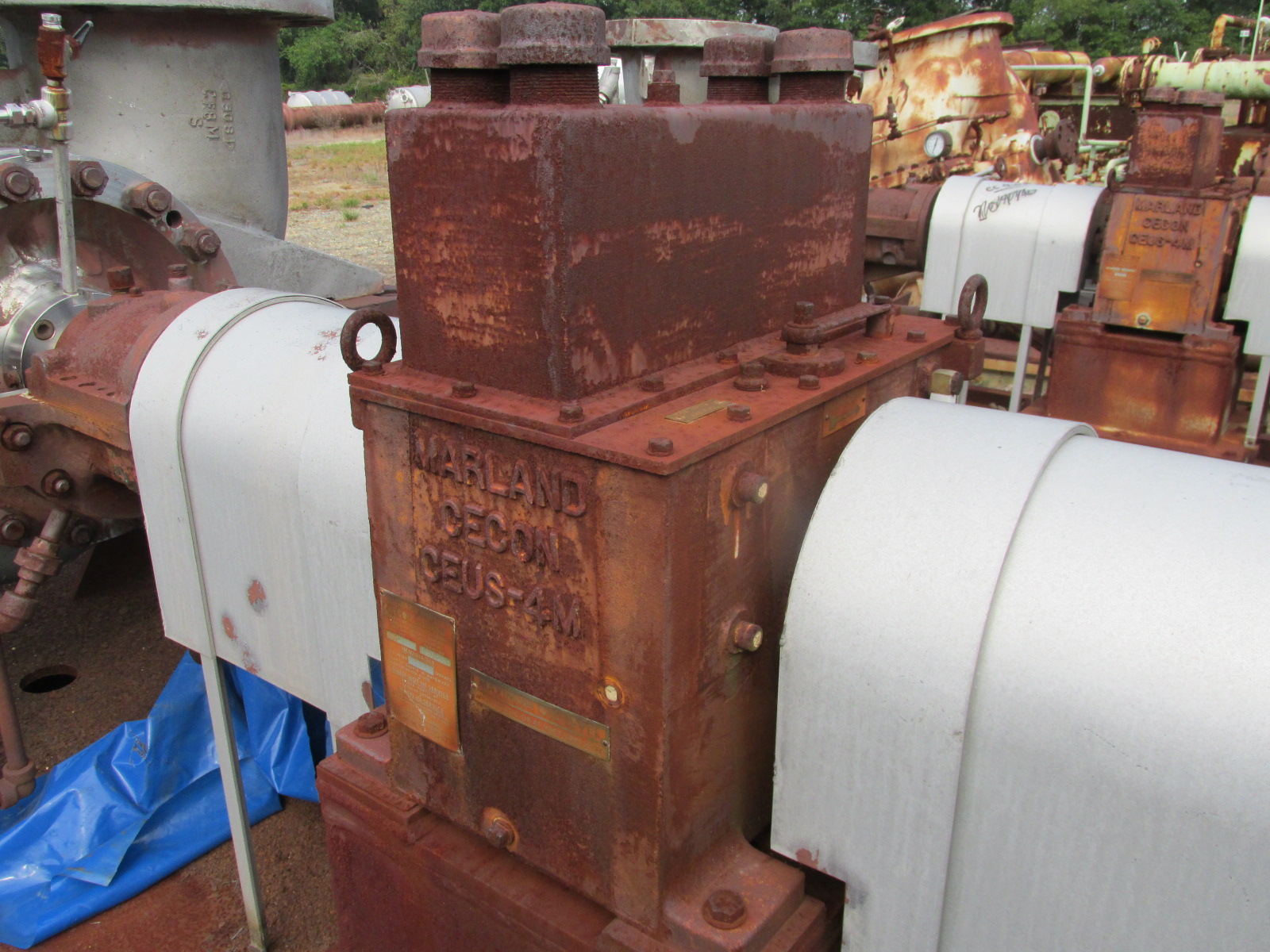

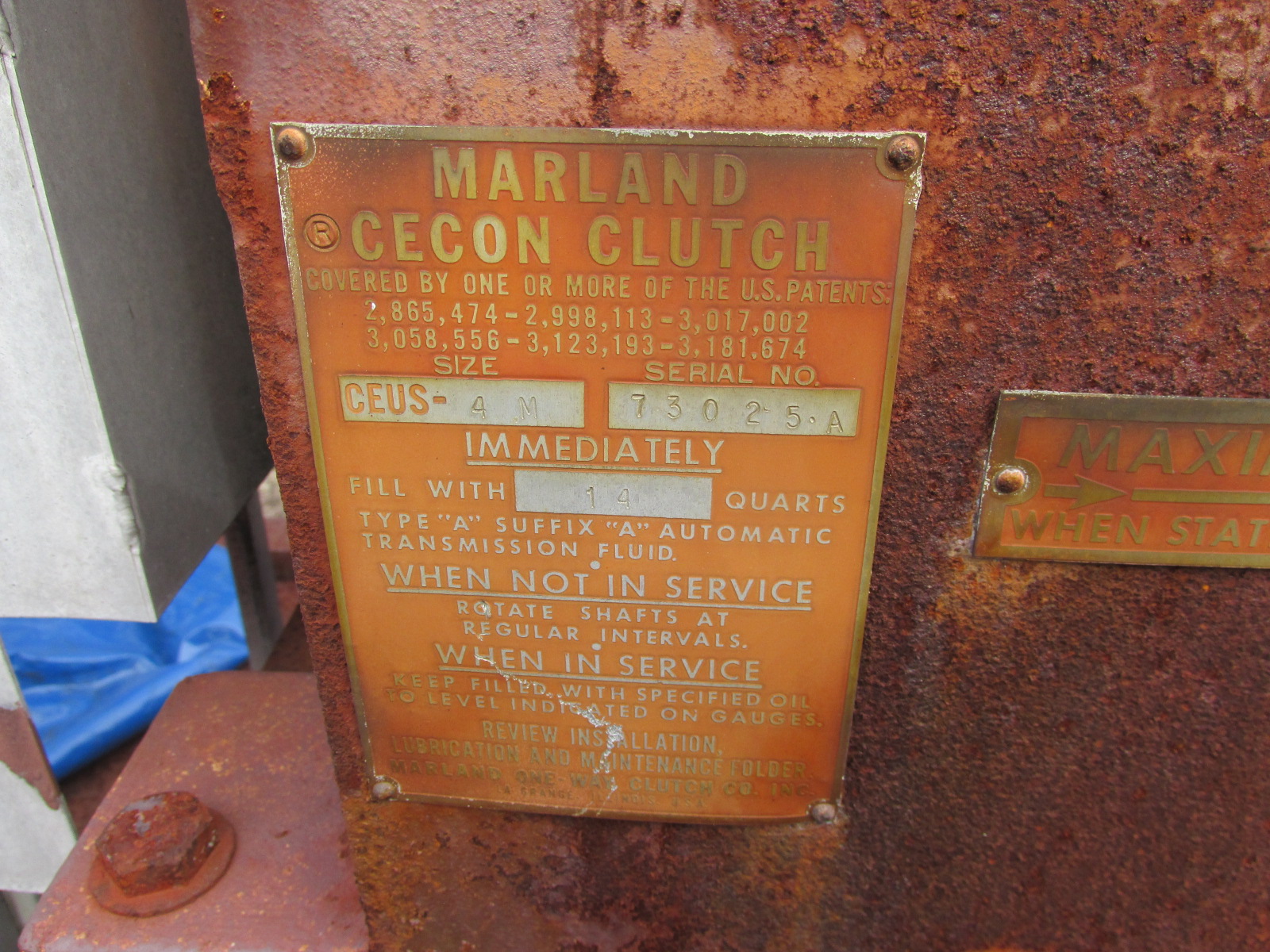

• Clutch: Intermediate automatic clutch driven between the pumps,
  manufactured by Marland, Model Cecon, size CEUS-4M, serial # 73025 B, takes 14 quarts auto transmission fluid, rated for 1823 HP

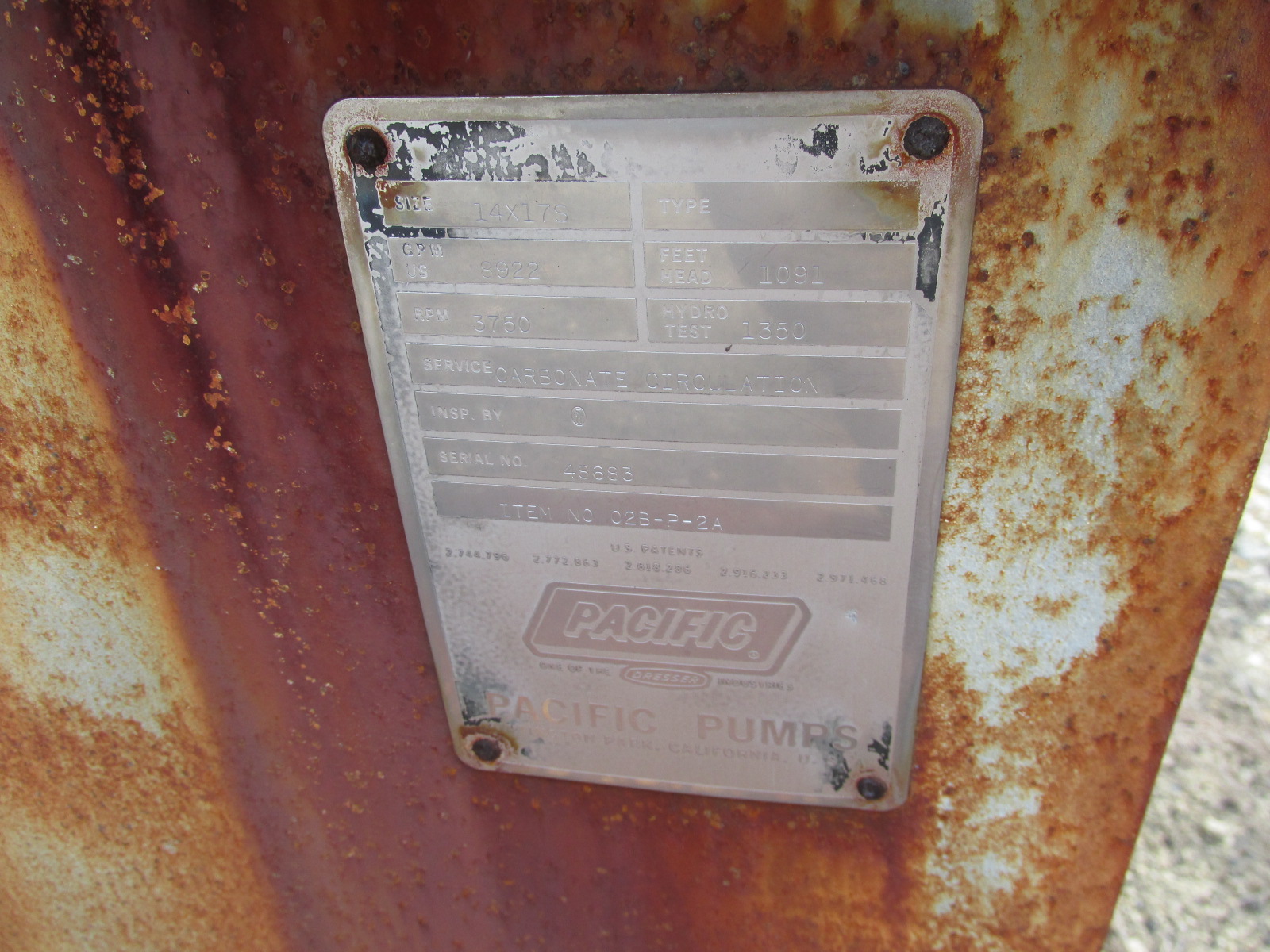

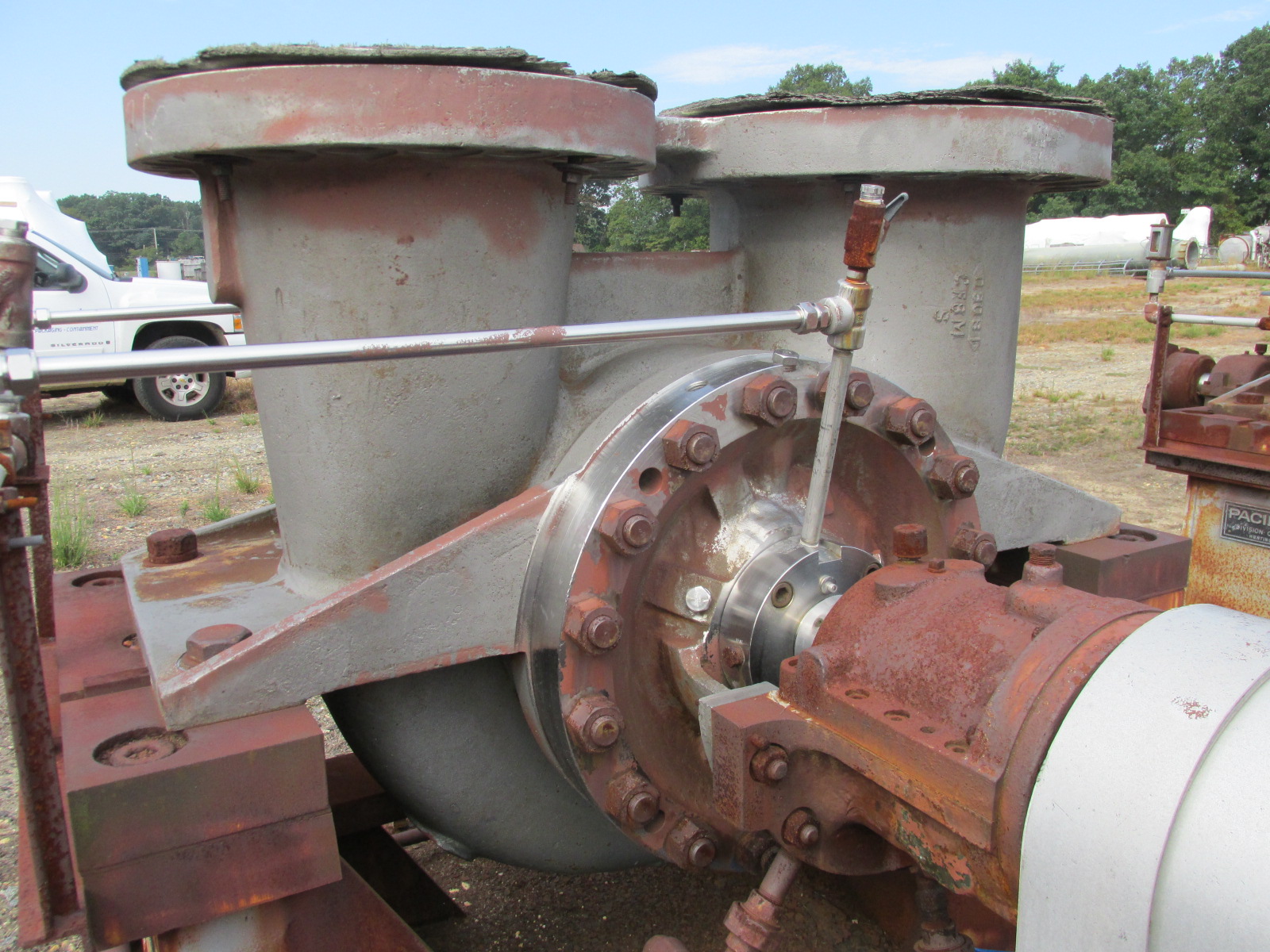

• Driven end pump: Size 14 x 17.5 type HVC, rated for 8933 gpm. at 1091 ft./hd., RPM=3760, hydro tested at 1350 psi, serial # 48682, Item # 02A-P-2A

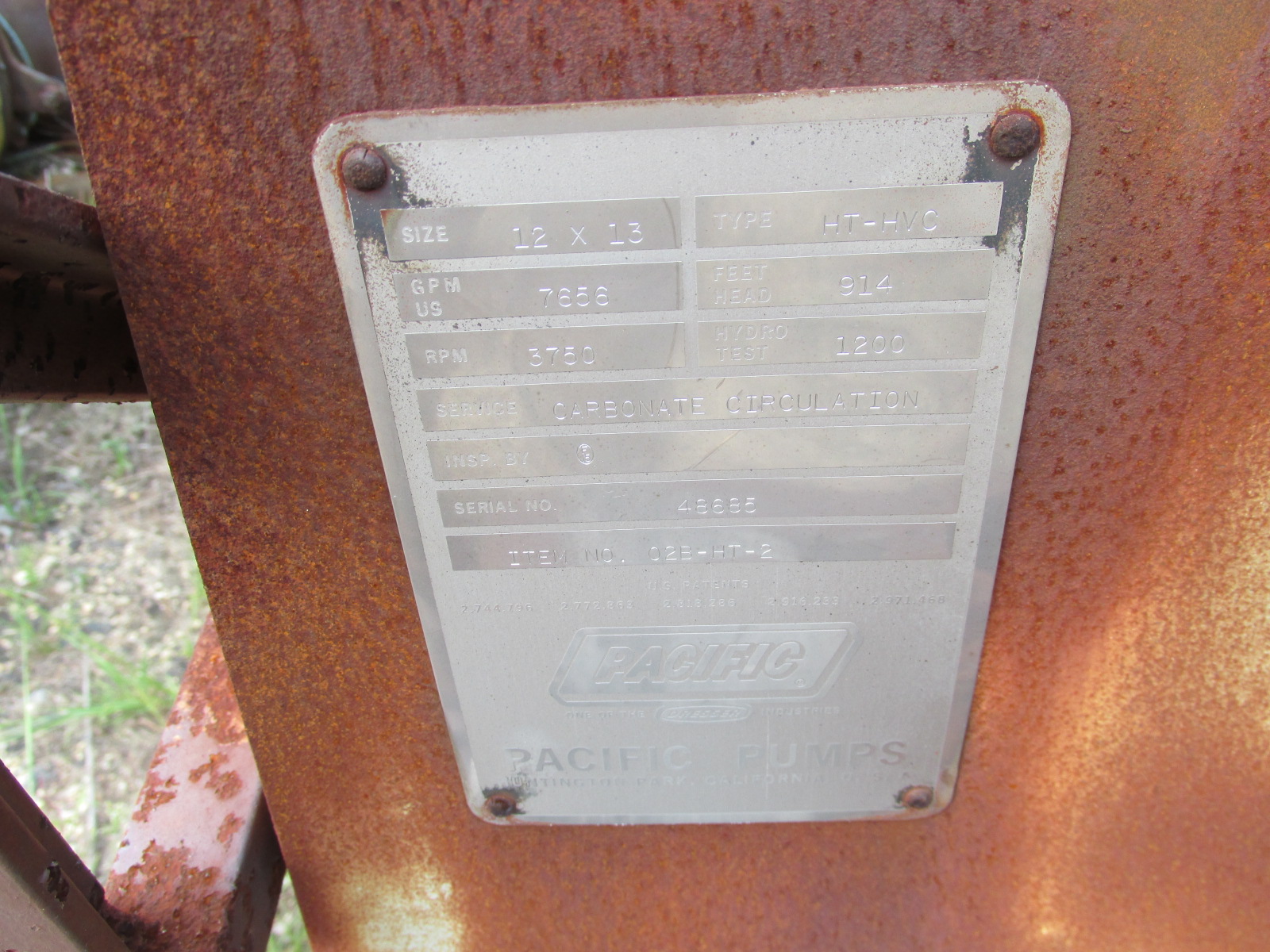

• Free end pump: Size 12 x 13. Type HT-HVC. Rated for 7656 GPM at 914 ft./hd., RPM=3750, hydro tested to 1200 psi, serial # 48684, Item # 02A-HT-2
• Mechanical seals and forced oil lubrication on both pumps
• Seal flush water requirement: 1.5 GPM(3 GPM both pumps) of clean cool liquid 50 psi over suction pressure
• Cooling water required: 2 gpm of 95 degree F. Max. at 75 psi (max)
• Pump and clutch mounting: Base mounted.

Powered By: Steam.
